3KP SERIES
DATA SHEET
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 5.0 to 220 Volts
3000 watt Peak Pulse Power
FEATURE
Plastic package has Underwriters Laboratory.
Flammability Classification 94V-O.
Glass passivated junction.
3000W Peak Pulse Power capability on 10/1000µs waveform.
Excellent clamping capability.
P600
Repetition rate (duty cycle):0.05%.
Low incremental surge resistance.
Fast response time: typically less than 1.0ps from 0 Volts to V
BR
.
Typical I
R
less than 1µA above 10V.
High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length, 5lbs., (2.3kg) tension.
MECHANICAL DATE
Case: Molded plastic over glass passivated junction.
Terminals: Plated Axial leads, solderable per MIL-STD-750, Method 2026.
Polarity: Color band denotes positive end (cathode) except Bipolar.
Mounting Position: Any.
Weight: 0.045 ounce, 2.1grams.
DEVICES FOR BIPOLAR APPLICATION
For bidirectional use C or CA suffix for types 3KP5.0 thru types 3KP220 (e.g. 3KP5.0C, 3KP220CA), electrical
characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified
RATING

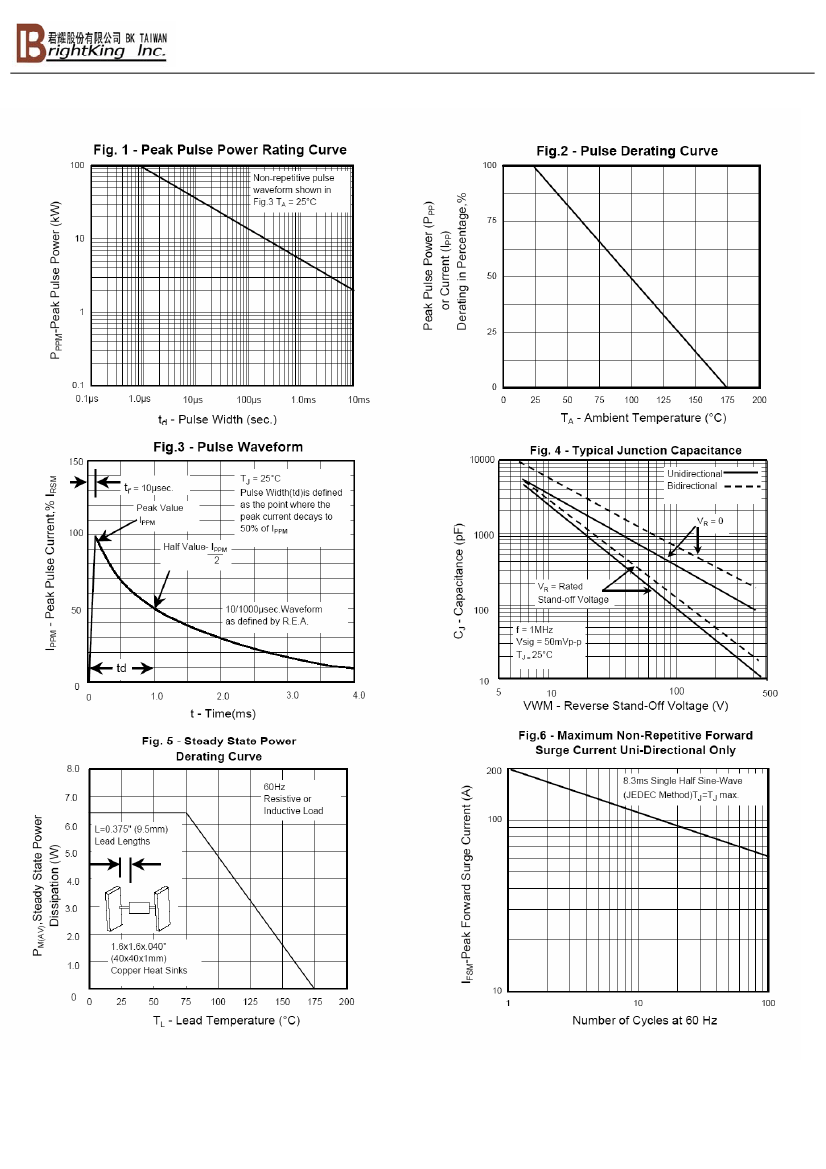

Peak Pulse Power Dissipation on 10/1000µs waveform (Note 1, FIG.1).
Peak Pulse Current of on 10/1000µs waveform (Note 1, FIG.3).
Steady State Power Dissipation at T
L
= 75
℃
, Lead lengths.375", (9.5mm) (Note 2).
Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on
Rated Load, (JEDEC Method) (Note 3).
Operating junction and Storage Temperature Range.
SYMBOL
P
PPM
VALUE
Minimum 3000
See Table 1
8
300
-55 to +175
UNITS
Watts
Amps
Watts
Amps
℃
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
Notes: 1.Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25℃ per Fig. 2.
2. Mounted on Copper Pad area of 1.6×1.6" (40×40mm) per Fig. 5.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
