CSS054D Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. A
A. Electrical Specifications:
P/N
CSS054D-100
_
CSS054D-120
_
CSS054D-150
_
CSS054D-180
_
CSS054D-220
_
CSS054D-270
_
CSS054D-330
_
CSS054D-390
_
CSS054D-470
_
CSS054D-560
_
CSS054D-680
_
CSS054D-820
_
CSS054D-101
_
CSS054D-121
_
CSS054D-151
_
CSS054D-181
_
CSS054D-221
_
CSS054D-271
_
Marking
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
Inductance
(μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
10
10
10
10
10
10
DCR Max.
(Ω)
0.07
0.07
0.08
0.10
0.13
0.16
0.18
0.18
0.27
0.29
0.33
0.43
0.49
0.68
0.94
1.00
1.18
1.30
Rated Current
(A) Max.
1.65
1.57
1.39
1.29
1.12
1.06
0.97
0.91
0.80
0.76
0.68
0.62
0.55
0.49
0.44
0.40
0.36
0.33

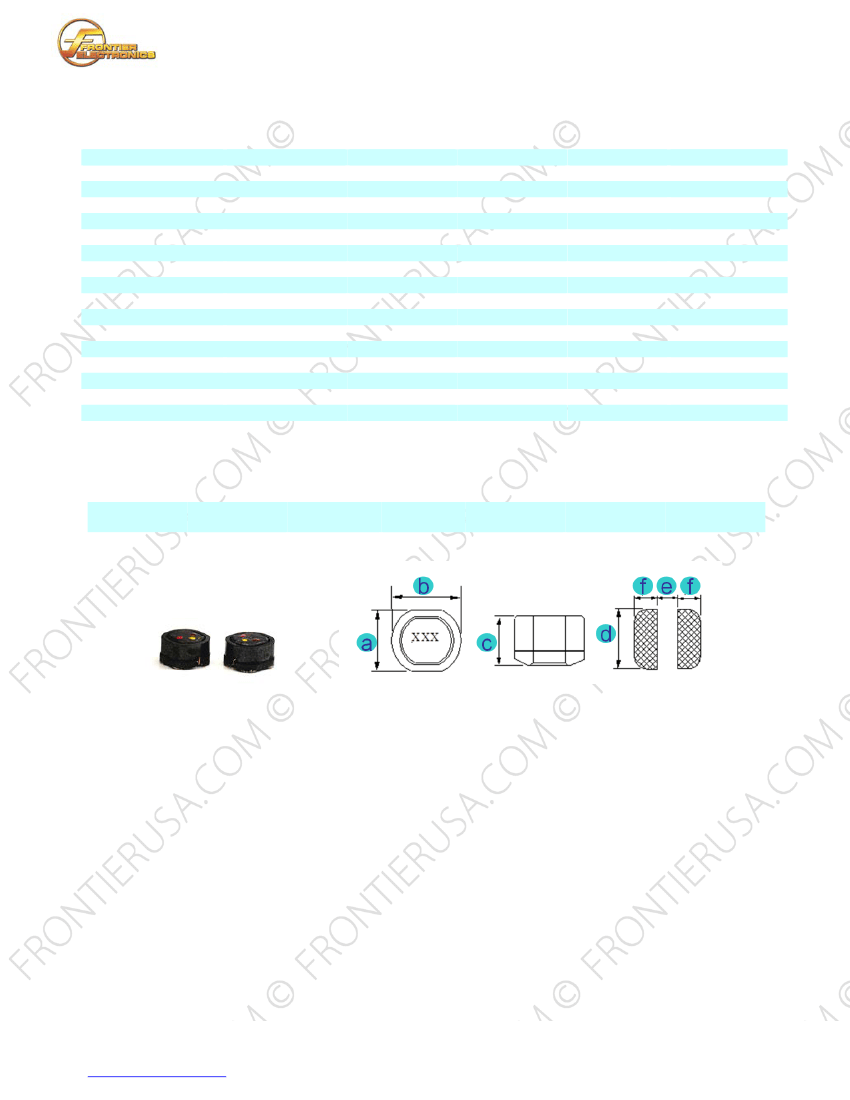

B. Dimensions: mm (Inch)
Series
CSS054D
Tol.
a
7.0
(0.276)
±0.35
(0.014)
b
7.5
(0.295)
±0.35
(0.014)
c
4.5
(0.177)
±0.4
(0.016)
d
7.5
(0.295)
Typ.
e
2.0
(0.079)
Typ.
f
4.0
(0.157)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
P/N: CSS054D-xxx_, “CSS054D” = Type, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_” : M = ± 20%.
Operating temperature range: -25ºC to +85ºC (Including self-generated heat).
Inductance measured using the HP4284A LCR meter.
DCR measured using 502BC milli-ohm meter.
Inductance drop no more than 10% of initial value at rated current, temperature rise ∆t < 40ºC.
Inductance and Current range: From 10 µH (1.65A) to 270 µH (0.33A).
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSS054D Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. A

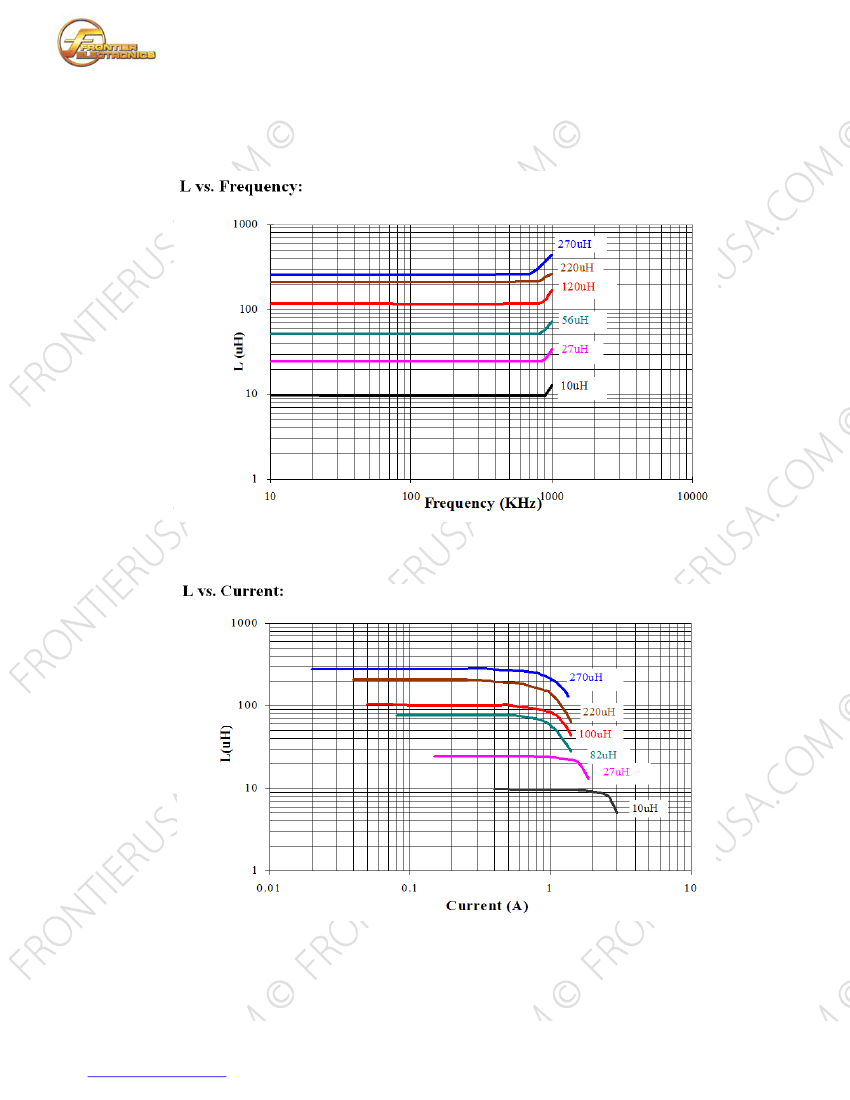

E. Characteristics Curve:
