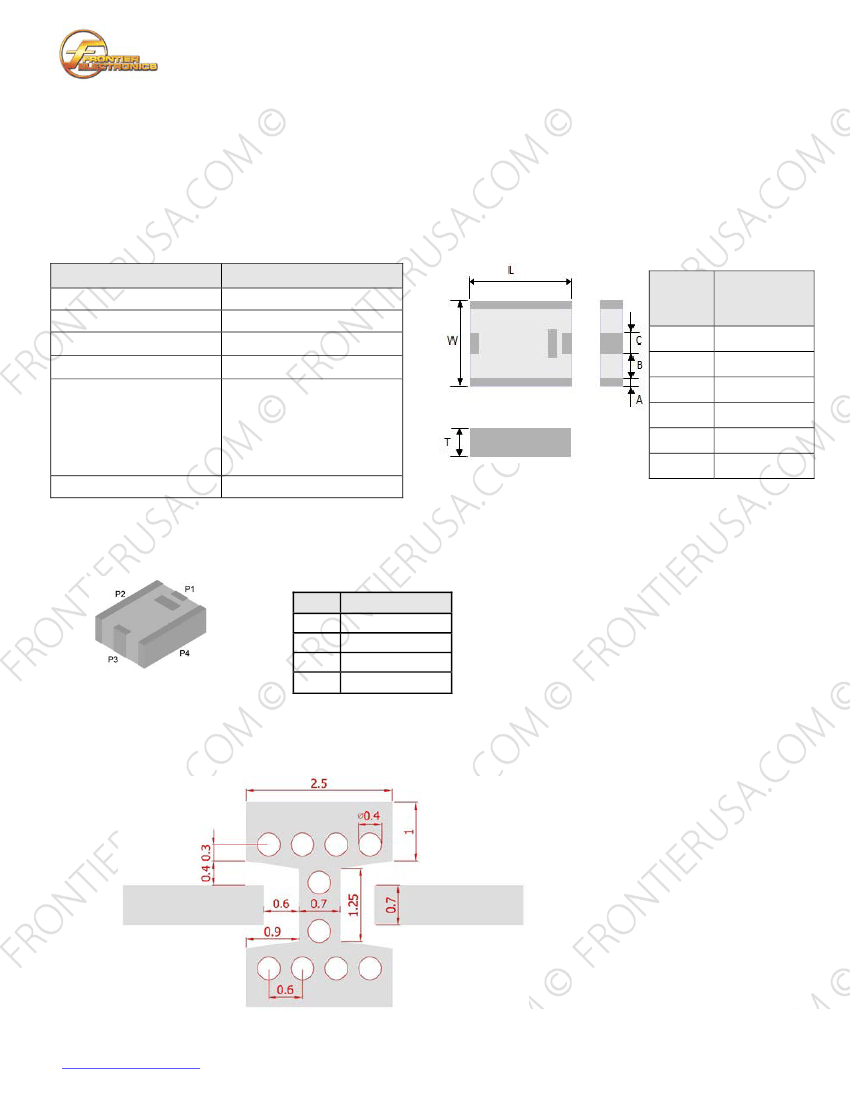

BP2500A1008CT BAND PASS FILTER SPECIFICATION
Rev. A
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 2.5 X 2.0 X 1.2 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.
RF CHARACTERISTICS
P/N BP2500A1008CT
Frequency range
Insertion Loss (max)
VSWR
Impedance
Specification
2400 - 2500 MHz
1.7dB max
2.0 max
50 Ω
30dB @ 900MHz
30dB @ 1850 MHz
Attenuation (min.)
20dB @ 2100 MHz
40dB @ 4800 MHz
25dB @ 7200 MHz
Operating temperature range
-40°C to +85°C
PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C
Dimension
(mm)
2.50 ± 0.20
2.00 ± 0.20
1.20 ± 0.10
0.20 ± 0.20
0.50 ± 0.20
0.50 ± 0.20
TERMINAL CONFIGURATION
PIN
P1
P2
P3
P4
Definition
Input/Output
GND
Output/Input
GND
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Unit in mm
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500A1008CT BAND PASS FILTER SPECIFICATION
Rev. A

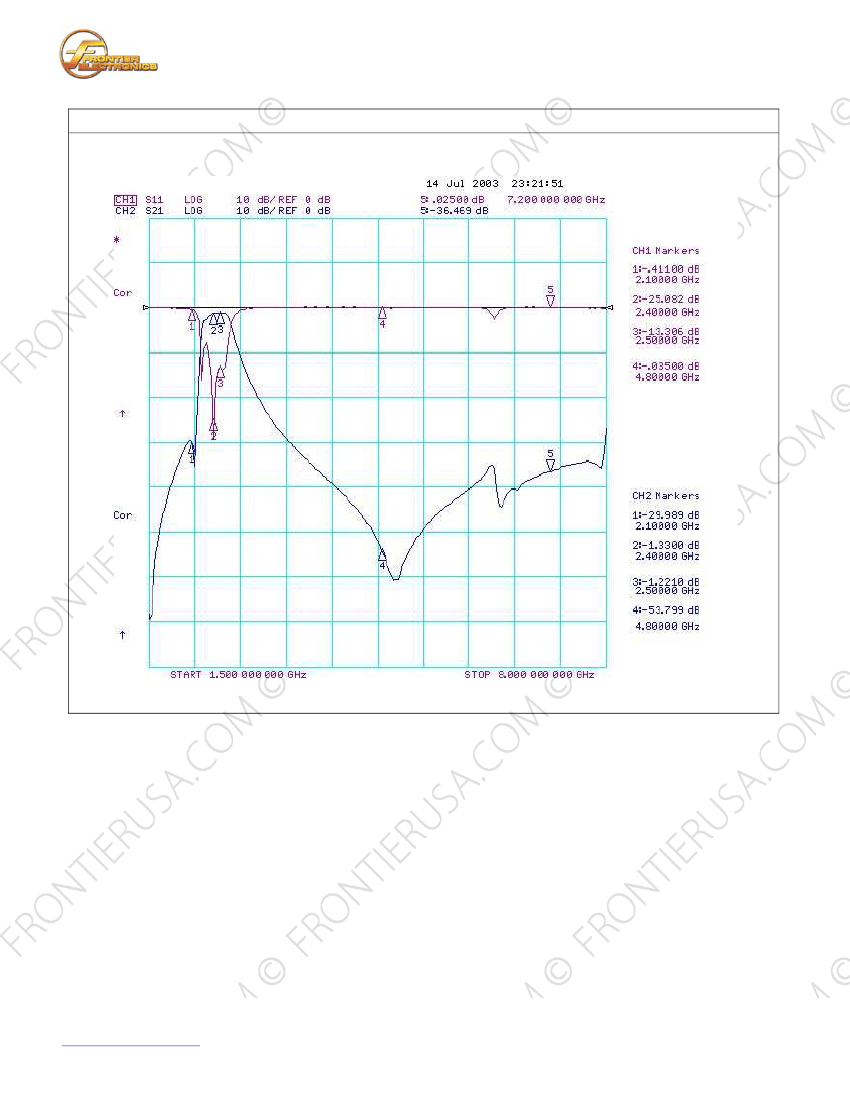

Typical RF Performance
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
