SPS-9380F-CXX0G_2015 Overview

2.125 Gbps SFP LC SINGLE-MODE TRANSCEIVER

Preview

Download Datasheet

View All

Optoway

FEATURES

DESCRIPTION

SPS-9380F-CXX0G

***********************************************************************************************************************************************************************

SPS-9380F-CXX0G / SPS-9380BF-CXX0G

(RoHS Compliant)

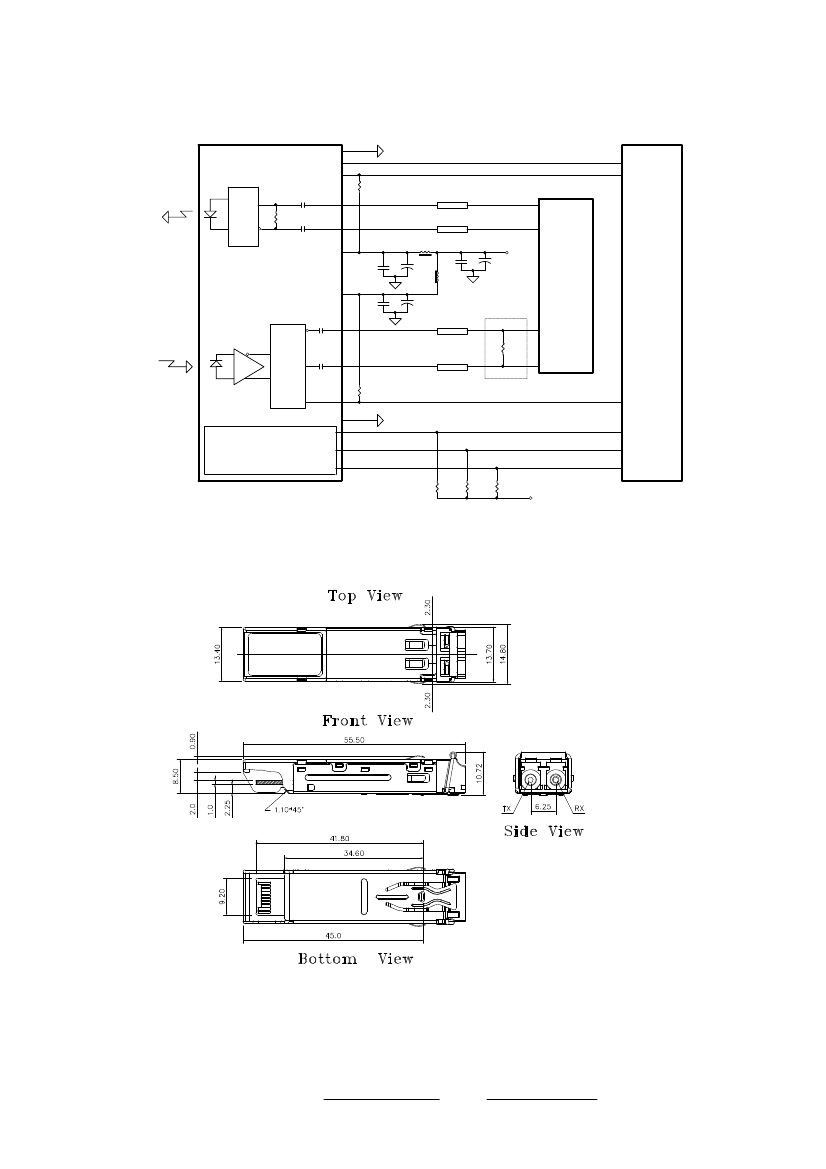

3.3V / CWDM / 2.125 Gbps SFP LC SINGLE-MODE TRANSCEIVER

**********************************************************************************************************************************************************************

Hot-Pluggable SFP Footprint LC Optical Transceiver

Small Form-Factor Pluggable (SFP) MSA compatible

18 Wavelength (λ): 1270 nm to 1610 nm CWDM DFB

LD Transmitter

Compliant with IEEE 802.3z 1000BASE

Compliant with Fibre Channel 1X/2X SM-LC-L FC-PI

23 dB Power Budget at Least

AC/AC Coupling according to MSA

Single +3.3 V Power Supply

RoHS Compliant

0 to 70

C Operation: SPS-9380F-CXX0G

-5 to 85

C Operation: SPS-9380BF-CXX0G

Class 1 Laser International Safety Standard IEC 60825

Compliant

The SPS-9380F-CXX0G series single mode transceivers is

small form factor pluggable module for bi-directional serial

optical data communications such as Gigabit Ethernet

1000BASE and Fibre Channel 1Xx/2X SM-LC-L FC-PI. It

is with the SFP 20-pin connector to allow hot plug

capability. This module is designed for single mode fiber

and operates at a nominal wavelength of CWDM

wavelength. There are eighteen center wavelengths

available from 1270 nm to 1610 nm, with each step 20 nm.

A guaranteed minimum optical link budget of 23 dB is

offered The transmitter section uses a multiple quantum

well CWDM DFB laser and is a class 1 laser compliant

according to International Safety Standard IEC-60825. The

receiver section uses an integrated InGaAs detector

preamplifier (IDP) mounted in an optical header and a

limiting post-amplifier IC.

APPLICATIONS

ATM Switches and Routers

SONET / SDH Switch Infrastructure

XDSL Applications

Metro Edge Switching

LASER SAFETY

This single mode transceiver is a Class 1 laser product. It

complies with IEC-60825 and FDA 21 CFR 1040.10 and

1040.11. The transceiver must be operated within the

specified temperature and voltage limits. The optical ports

of the module shall be terminated with an optical connector

or with a dust plug.

ORDER INFORMATION

P/No.

Bit Rate

(Gb/s)

FC-PI

Power

Budget

(dB)

> 23

Wavelength Package

(nm)

CWDM*

LC SFP

Temp.

(

0 to 70

-5 to 85

TX Power RX Sens.

RoHS

(dBm)

(dBm) Compliant

5 to 0

Typ.

(nm)

1450

1470

1490

1510

1530

1550

1570

1590

1610

-23

Max.

(nm)

1457.5

1477.5

1497.5

1517.5

1537.5

1557.5

1577.5

1597.5

1617.5

Yes

Clasp Color

Code

Yellow Orange

Gray

Violet

Blue

Green

Yellow

Orange

Red

Brown

SPS-9380F-CXX0G

2.125/1.063

SPS-9380BF-CXX0G

2.125/1.063

200/100

Max.

(nm)

1277.5

1297.5

1317.5

1337.5

1357.5

1377.5

1397.5

1417.5

1437.5

CWDM* Wavelength (0 to 70

Central

Wavelength

-C270

-C290

-C310

-C330

-C350

-C370

-C390

-C410

-C430

Min.

(nm)

1264.5

1284.5

1304.5

1324.5

1344.5

1364.5

1384.5

1404.5

1424.5

Typ.

(nm)

1270

1290

1310

1330

1350

1370

1390

1410

1430

Clasp Color

Central

Code

Wavelength

Light Purple

-C450

Sky Blue

-C470

Yellow Green

-C490

Yellow Ocher

-C510

Pink

-C530

Beige

-C550

White

-C570

Silver

-C590

Black

-C610

Min.

(nm)

1444.5

1464.5

1484.5

1504.5

1524.5

1544.5

1564.5

1584.5

1604.5

CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.

***********************************************************************************************************************************************************************

OPTOWAY TECHNOLOGY INC.

No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303

Tel: 886-3-5979798

Fax: 886-3-5979737

E-mail: sales@optoway.com.tw http: // www.optoway.com.tw

1/1/2008 V3.0
