Optoway
SPS-9130V-1T1RG
1310 nm /
3 Gb/s
Medium Power
Optical SM Transmitter/Receiver
FEATURES
l
SMPTE 297-2006 Compatible
l
Speed from 50 Mbps to 3Gbps with up to 30 km
Single-mode Fiber
l
Distance up to 30 km for 3G-SDI
l
Support Video Pathological Patterns for SD-SDI,
HD-SDI and 3G-SDI
l
Single Transmitter with Simplex LC
l
Single Receiver with Simplex LC
l
Based on Industry Standard SFP
l
TTL Laser Disable Input
l
TTL TX_Fault Output
l
TTL RX_LOS Output
l
Single +3.3 V Power Supply
l
RoHS-6 Compliant
l
0 to 70
o
C Operation
l
Hot Pluggable
l
Class 1 Laser International Safety Standard IEC-60825
Compliant
SPS-9130V-1T1RG
1
***********************************************************************************************************************************************************************
(RoHS Compliant)
DESCRIPTION
The SPS-9130V-1T1RG is a optical single mode
transmitter/receiver module designed to transmit/receive
optical serial digital signals as defined in SMPTE 297-2006.
It supports from 50 Mbps to 3 Gbps and is specifically
designed for transmitted the SMPTE 259M, SMPTE 344M,
SMPTE 292M and SMPTE 424M SDI pathological
patterns. It is with the SFP 20-pin connector to allow hot
plug capability.. It is with 1310 nm DFB laser transmitters.
The transmitter can transmit signal from 50 Mbps to 3
Gbps with up to 30 km of single-mode fiber. A maximum
distance of 30 km is achievable with 3Gbps pathological
signals.
**********************************************************************************************************************************************************************
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
APPLICATIONS
l
SMPTE 297-2006 Compliant Electrical-to-Optical
Interfaces
l
High-density Video Routers
ORDER INFORMATION
P/No.
Type
Bit Rate
(Mb/s)
TX
λ
(nm)
Power
(dBm)
0 to -5
λ
(nm)
RX
Sen.
(dBm)
LC SFP
Package
Sen.
(dBm)
LC SFP
LC SFP
LC SFP
LC SFP
Package
Temp
(
o
C)
0 to 70
Temp
(
o
C)
0 to 70
0 to 70
0 to 70
0 to 70
RoHS
Compliant
Yes
RoHS
Compliant
Yes
Yes
Yes
Yes
SPS-9130V-1T1RG
P/No.
1-TX+1-RX
50 to 3000
1310 DFB
Type
Bit Rate
(Mb/s)
TX
λ
(nm)
1260/1620 0 to -20
RX
RELATED PRODUCTS
Power
(dBm)
0 to -5
0 to -5
1260/1620 0 to -20
1260/1620 0 to -20
λ
(nm)
SPS-9130V-2TG
SPS-9130V-1TG
SPS-9110V-2RG
SPS-9110V-1RG
2-TX
1-TX
2-RX
1-RX
50 to 3000 1310 DFB
50 to 3000 1310 DFB
50 to 3000
50 to 3000
LINK DISTANCE
Transmitter
SPS-9130V-2TG or
SPS-9130V-1TG or
SPS-9130V-1T1RG
Receiver
SPS-9110V-2RG or
SPS-9110V-1RG or
SPS-9130V-1T1RG
SDI
3G-SDI
HD-SDI
SD-SDI
Bit Rate
2.97Gbps
1.485Gbps
270Mbps
Max. Link Distance (km)
30
30
30
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
3/1/2009 V1.0
Optoway
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
Power Supply Voltage
ESD Tolerance on all pins
Relative Humidity
Symbol
Tstg
Tc
Vcc
---
Min
-40
-20
0
5
Max
85
85
4
1
95
Units
o
C
o
C
V
KV HBM
% RH
SPS-9130V-1T1RG
2
***********************************************************************************************************************************************************************
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Notes
non-condensing
Recommended Operating Conditions
Parameter
Symbol
Power Supply Voltage
Vcc
Operating Case Temperature
Tc
Baud Rate
Power Supply Current
Icc
Min
3.13
0
50
Typ
3.3
200
Max
3.47
70
3000
300
Units / Notes
V
o
C
Mb/s
mA
Transmitter Specifications (0
o
C < Tc < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Relative Intensity Noise
Symbol
Po
λ
∆λ
SMSR
ER
RIN
Min
-5
1260
---
30
5
Typ
-2
1310
Max
0
1360
1
Units
dBm
nm
nm
dB
dB
dB/Hz
ps
ps
ps
ns
mVp-p
V
V
V
V
V
V
Notes
1
-20 dB width
7.5
-120
135
270
800
1.5
Optical Rise Time / Fall Time
tr / tf
2, SMPTE 424M
2, SMPTE 292M
2, SMPTE 344M
2, SMPTE 259M
AC coupled input
TX Output Enabled
TX Ouput Disabled
Electrical
Differential Input Voltage
Disable Input Voltage -- Low
Disable Input Voltage -- High
Output TX_Fault -- Low
Output TX_Fault -- High
SCL, SDA
1.
2.
V
IH
- V
IL
V
TDIS,L
V
TDIS,H
V
OL
V
OH
V
OH
V
OL
200
0
2.0
0
2.5
2.5
0
1200
0.8
Vcc+0.3
0.5
Vcc+0.3
Vcc+0.3
0.5
Output power is power coupled into a 9/125
µm
single mode fiber.
20% to 80%, unfiltered.
Receiver Specifications (0
o
C < Tc < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Optical
Wavelength of Operation
Sensitivity for SMPTE 424M
2.97 Gb/s
Sensitivity for SMPTE 292M
1.485 Gb/s
Signal Detect -- Asserted
Signal Detect -- Deasserted
Signal detect -- Hysteresis
Symbol
Min
1260
0
0
0
0
---
-29
1
Typ
---
---
---
---
---
Max
1620
-18
-20
-20
-21
-20
---
6
Units
nm
dBm
dBm
dBm
dBm
dBm
dBm
dB
Notes
Sen
Sen
Pa
Pd
Pathological
PRBS 2
23
-1, BER=1E-12
Pathological
PRBS 2
23
-1, BER=1E-12
Transition: low to high
Transition: high to low
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
3/1/2009 V1.0
Optoway
Optical Return Loss
Electrical
CML Output (Differential)
-27
550
660
850
135
270
800
1.5
0.5
Vcc+0.3
Vcc+0.3
0.5
dB
SPS-9130V-1T1RG
3
***********************************************************************************************************************************************************************
Optical Rise Time / Fall Time
tr / tf
Output LOS Voltage -- Low
Output LOS Voltage -- High
SCL, SDA
3.
20% to 80%, unfiltered.
V
OL
V
OH
V
OH
V
OL
0
2.5
2.5
0
mVp-p
ps
ps
ps
ns
V
V
V
V
AC coupled output
3, SMPTE 424M
3, SMPTE 292M
3, SMPTE 344M
3, SMPTE 259M
I
OL
=-1.6mA, 1 TTL unit load
I
OH
=40µA, 1 TTL unit load
MODULE DEFINITION
Module Definition
4
PIN 5
SCL
PIN 6
SDA
Interpretation by Host
Serial module definition protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, SCL and SDA appear as no connector
(NC). When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire serial CMOS E
2
PROM
protocol of the ATMEL AT24C01A/02/04 family of components.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
3/1/2009 V1.0
Optoway

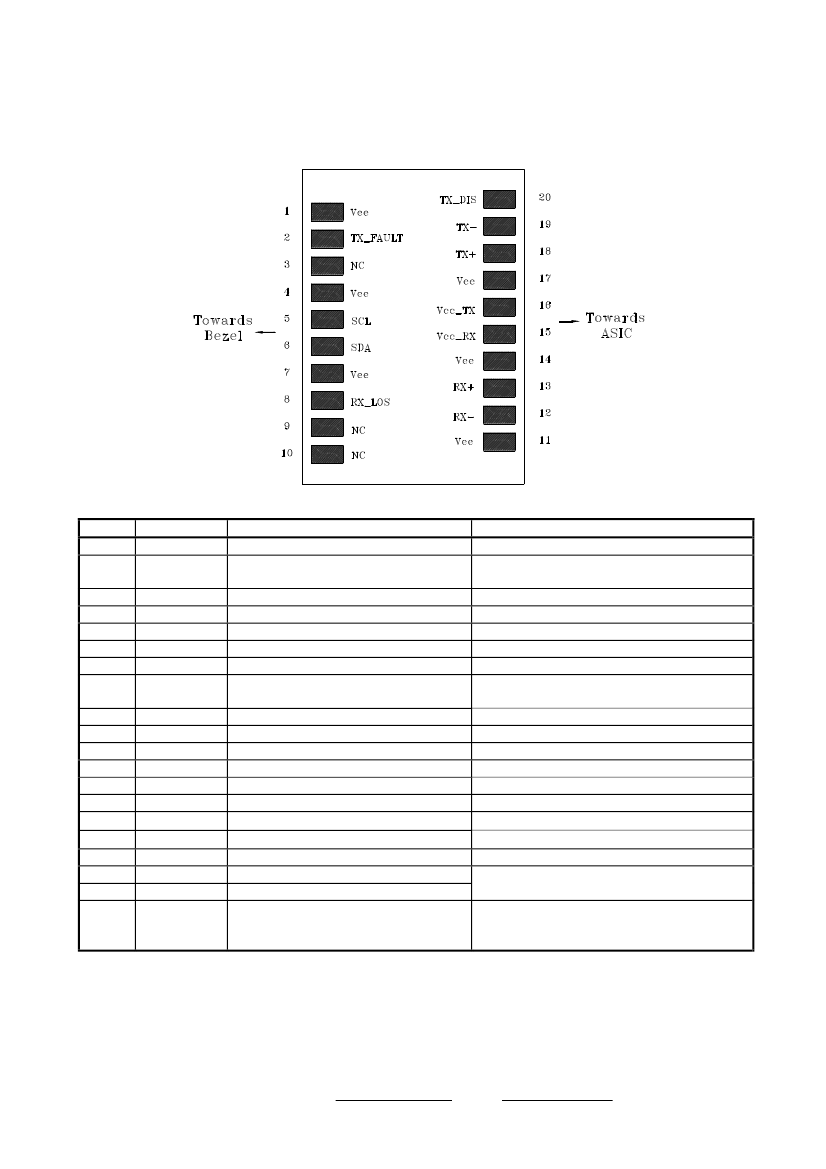

CONNECTION DIAGRAM
SPS-9130V-1T1RG
4
***********************************************************************************************************************************************************************
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Name
Vee
TX_Fault
NC
Vee
SCL
SDA
Vee
RX_LOS
NC
NC
Vee
RX-
RX+
Vee
Vcc RX
Vcc TX
Vee
TX+
TX-
TX_DIS
Function
Signal Ground
Transmitter Fault Indicator (Active high,
open-drain)
No Connection
Signal Ground
Serial I
2
C Clock
Serial I
2
C Data
Signal Ground
Receiver Loss of Signal Indicator (Active
high, open-drain)
No Connection
No Connection
Signal Ground
Negative Differential Output
Positive Differential Output
Signal Ground
Power Supply
Power Supply
Signal Ground
Positive Transmitter Data In
Negative Transmitter Data In
Transmitter Disable
Notes
+3.3V±5%
+3.3V±5%
AC coupled differential lines with 100 ohm
differential termination inside the module
Internal 4.7 kΩ pull-up. The bias current and
modulation current are turned off if TX1_DIS =
HIGH.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
3/1/2009 V1.0
Optoway

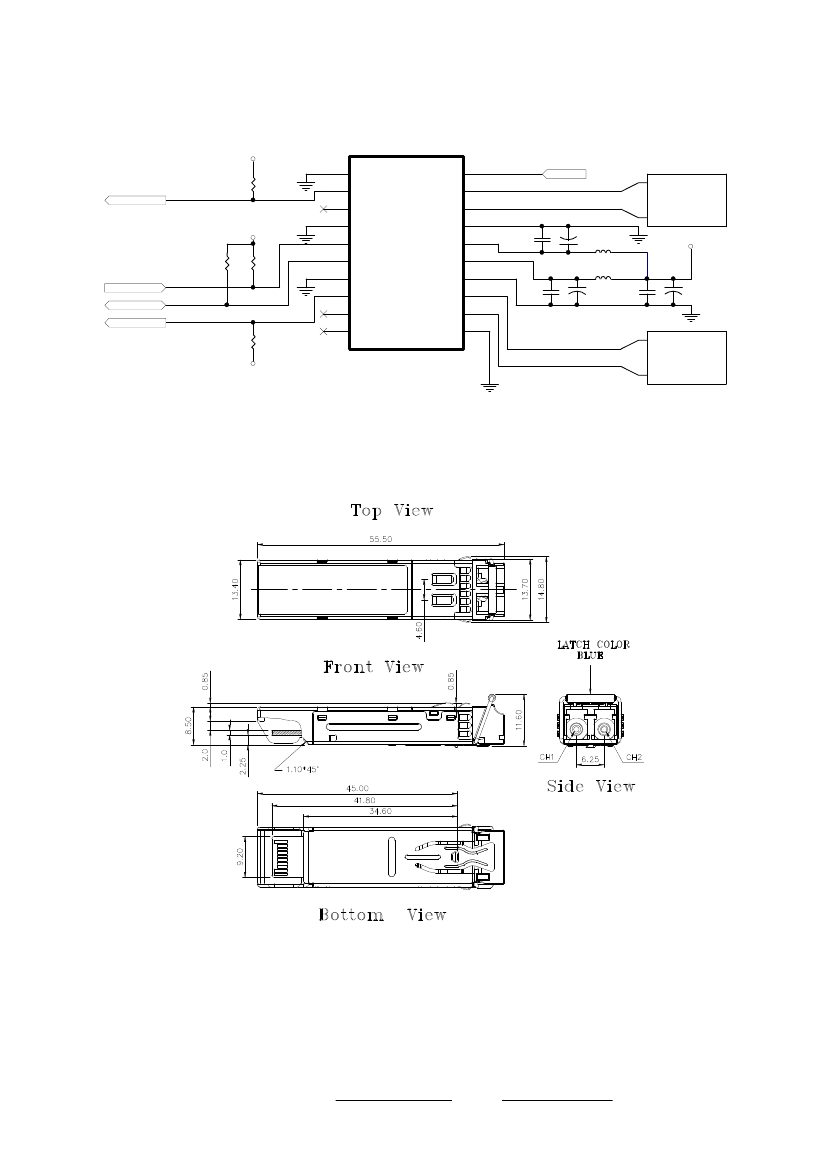

RECOMMENDED CIRCUIT SCHEMATIC
VCC 3.3V
1
4.7K
TX_FAULT
VCC 3.3V
5
4.7K
I2C CLK
I2C DATA
RX_LOS
4.7K
4.7K
6
7
8
9
10
2
3
4
Vee
TX_FAULT
NC
Vee
SCL
SDA
Vee
RX_LOS
NC
NC
TX_DIS
TX -
TX +
Vee
Vcc_TX
Vcc_RX
Vee
RX +
RX -
Vee
20
19
18
17
16
15
14
13
12
11
100nF
100nF
10uF
TX_DIS
SPS-9130V-1T1RG
5
***********************************************************************************************************************************************************************
TD -
100Ω Differential
TD +
1uH
1uH
10uF 100nF
10uF
VCC 3.3V
Re-Clocker
RD +
100Ω Differential
Re-Clocker
RD -
VCC 3.3V
1. Consult the Chipset manufacturer’s applications information for biasing required for TX outputs. Some chipset outputs
are internally biased and may not need external bias resistor.
PACKAGE DIAGRAM (
Units in mm)
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
3/1/2009 V1.0
