Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type) for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
UMK105BJ473KVHF
Features
Item Summary
0.047uF±10%, 50V,
X5R, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
0.047 uF ± 10 %
0402/1005
50 V
5%
X5R
-55 to +85 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

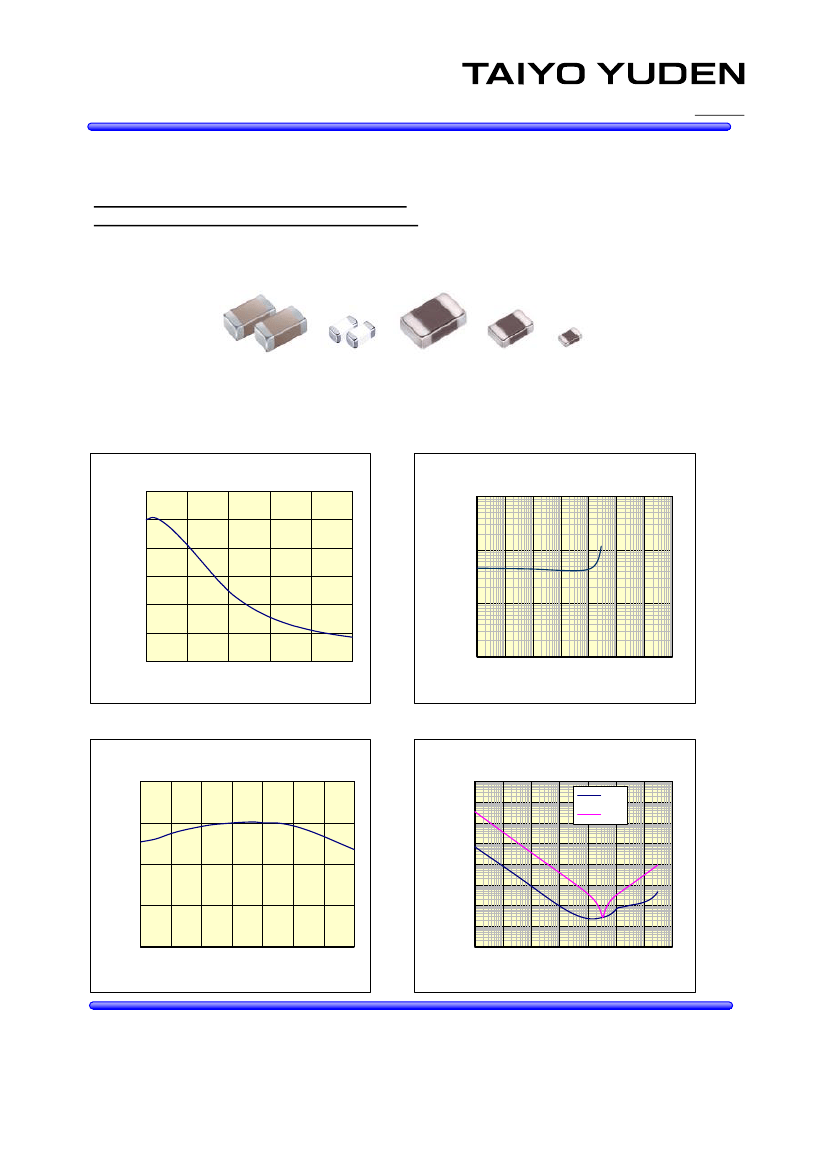

Multi Layer Ceramic Capacitor
○UMK105BJ473KVHF
50V 1005 X5R 0.047uF +/- 10% t=0.55mmMAX
50V 0402 X5R 0.047uF +/- 10% t=0.022inchMAX
-Electrical Characteristics Data-
17QA09
RoHS compliance product
20
0
UMK105BJ473KVHF
DC Bias Char.
1
UMK105BJ473KVHF
Capacitance Freq.
Capacitance[uF]
-20
0.1
dC/C[%]
-40
-60
-80
0.01
-100
0
10
20
30
40
DC Bias Voltage[V]
50
0.001
0.001 0.01 0.1
1
10
100 1000 10000
Frequency[MHz]
UMK105BJ473KVHF
Capacitance Temp.
10
100000
10000
0
1000
UMK105BJ473KVHF
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
100
10
1
0.1
-20
0.01
-30
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
Notice for TAIYO YUDEN Products
for
High Quality Equipment
Please read this notice before using the TAIYO YUDEN products.
!
products.
REMINDERS
■
Please conduct validation and verification of our products in actual condition of mounting and operating environment before using our
■
The product listed in this spec sheet is intended for use in general electronic equipment (e.g., AV equipment, OA equipment, home electric
appliances, office equipment, information and communication equipment), medical equipment classified as Class I or II by IMDRF, industrial
equipment, and automotive interior applications, etc. Please be sure to contact TAIYO YUDEN for further information before using the product
for any equipment which may directly cause loss of human life or bodily injury (e.g., transportation equipment including, without limitation,
automotive powertrain control system, train control system, and ship control system, traffic signal equipment, medical equipment classified as
Class III by IMDRF).
Please do not incorporate our products into any equipment requiring high levels of safety and/or reliability (e.g., aerospace equipment,
aviation equipment*, medical equipment classified as Class IV by IMDRF, nuclear control equipment, undersea equipment, military
equipment).
*Note:
There is a possibility that our products can be used only for aviation equipment that does not directly affect the safe operation of aircraft (e.g., in-flight
entertainment, cabin light, electric seat, cooking equipment) if such use meets requirements specified separately by TAIYO YUDEN. Please be sure to
contact TAIYO YUDEN for further information before using our products for such aviation equipment.
When our products are used even for high safety and/or reliability-required devices or circuits of general electronic equipment, it is strongly
recommended to perform a thorough safety evaluation prior to use of our products and to install a protection circuit as necessary.
Please note that unless you obtain prior written consent of TAIYO YUDEN, TAIYO YUDEN shall not be in any way responsible for any damages
incurred by you or third parties arising from use of the product listed in this spec sheet for any equipment requiring inquiry to TAIYO YUDEN or
prohibited for use by TAIYO YUDEN as described above.
■
Information contained in this spec sheet is intended to convey examples of typical performances and/or applications of our products and is not
intended to make any warranty with respect to the intellectual property rights or any other related rights of TAIYO YUDEN or any third parties
nor grant any license under such rights.
■
Please note that the scope of warranty for our products is limited to the delivered our products themselves and TAIYO YUDEN shall not be in
any way responsible for any damages resulting from a fault or defect in our products. Notwithstanding the foregoing, if there is a written
agreement (e.g., supply and purchase agreement, quality assurance agreement) signed by TAIYO YUDEN and your company, TAIYO YUDEN will
warrant our products in accordance with such agreement.
■
The contents of this spec sheet are applicable to our products which are purchased from our sales offices or authorized distributors
(hereinafter “TAIYO YUDEN’s official sales channel”). Please note that the contents of this spec sheet are not applicable to our products
purchased from any seller other than TAIYO YUDEN’s official sales channel.
■
Caution for Export
The product listed in this spec sheet may require specific procedures for export according to “U.S. Export Administration Regulations”, “Foreign
Exchange and Foreign Trade Control Law” of Japan, and other applicable regulations. Should you have any questions on this matter, please
contact our sales staff.
