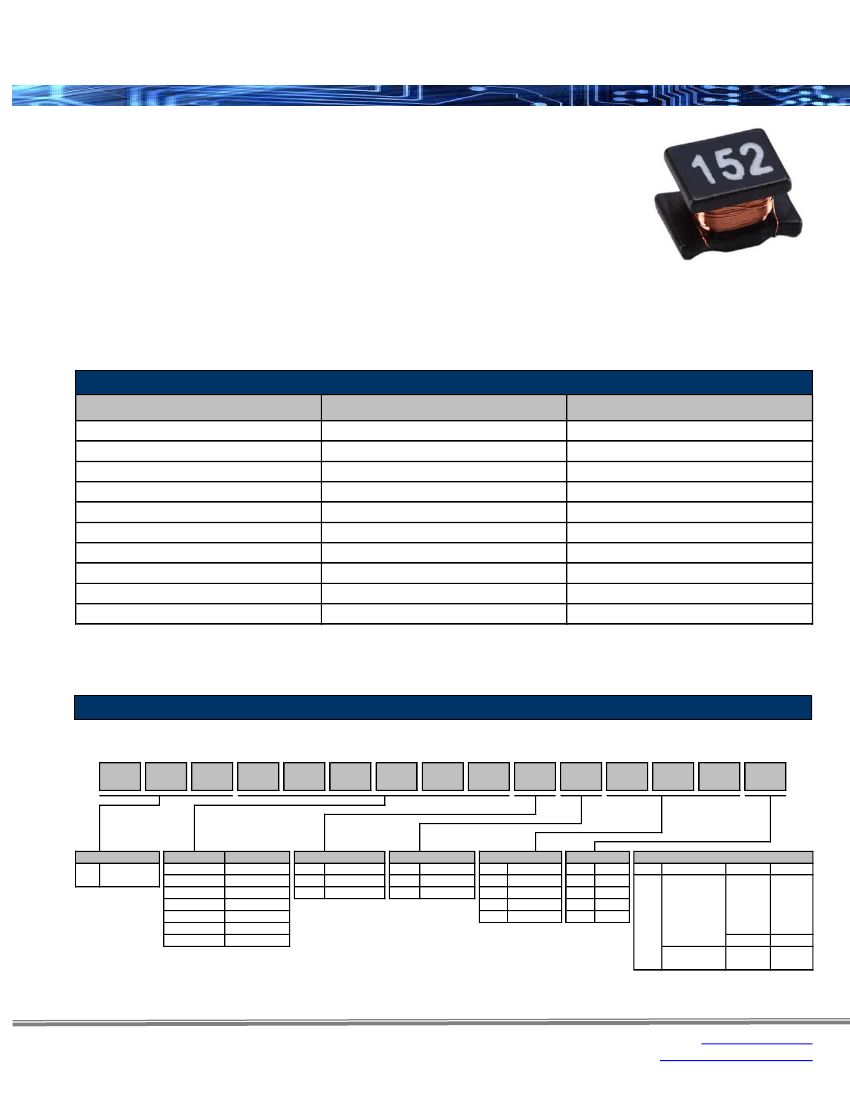

VLH Series
Miniature SMD Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
Wirewound of ferrite core miniature chip inductor
VLH322515/322520/453226 are high Q value at high frequency and
low DC resistance
VLH322520C/453226C are low DC resistance, high current
capacity and high impedance characteristics. They are excellent
for using as a choke coil in DC power supply circuits
RoHS compliant – lead free
Pagers, cordless phones
High frequency communication products
Personal computers
Disk drives and computer peripherals
DC power supply circuits
Applications:
•
•
•
•
•
Inductance and Current Ranges
Type
VLH252010
VLH252012
VLH252510
VLH322515
VLH322520
VLH453226
VLH322515C
VLH322520C
VLH453226C
VLH575047C
Electrical specifications at 25ºC
Inductance (μH)
0.47 ~ 10
0.47 ~ 10
1.00 ~ 22
1.00 ~ 100
1.00 ~ 560
1.00 ~ 2200
0.47 ~ 120
1.00 ~ 560
1.00 ~ 470
0.12 ~ 10000
Current Range (A)
2.80 ~ 0.65
3.70 ~ 0.90
2.30 ~ 0.51
1.00 ~ 0.1
0.445 ~ 0.04
0.50 ~ 0.03
3.40 ~ 0.17
1.00 ~ 0.06
1.08 ~ 0.09
6.00 ~ 0.05
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
V
L
H
4
5
3
2
2
6
C
-
1
0
1
K
Product Series
SMD
VLH
Choke Chip
Code
252010
252012
252510
322515(C)
322520(C)
453226(C)
575047(C)
Dimension
2.5x2.0x1.0
2.5x2.0x1.2
2.5x2.5x1.05
3.2x2.5x1.55
3.2x2.5x2.0
4.5x3.2x2.6
5.7x5.0x4.7
Special
Code Description
Blank General Use
C
Choke Use
Special
Code Description
-
Standard
S
Shielded
Inductance
Code Inductance
0.12μH
R12
12μH
120
100μH
101
1000μH
102
Tolerance
Code Tol
± 5%
J
± 10%
K
M ± 20%
N
± 30%
Code
T
Packaging
Description
Size
252010
252012
252510
7" tape
and reel
322515
322520
453226
13" tape
575047
and reel
Quantity
2,000
500
1,000
Rev Date: 11/30/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
VLH Series
Miniature SMD Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

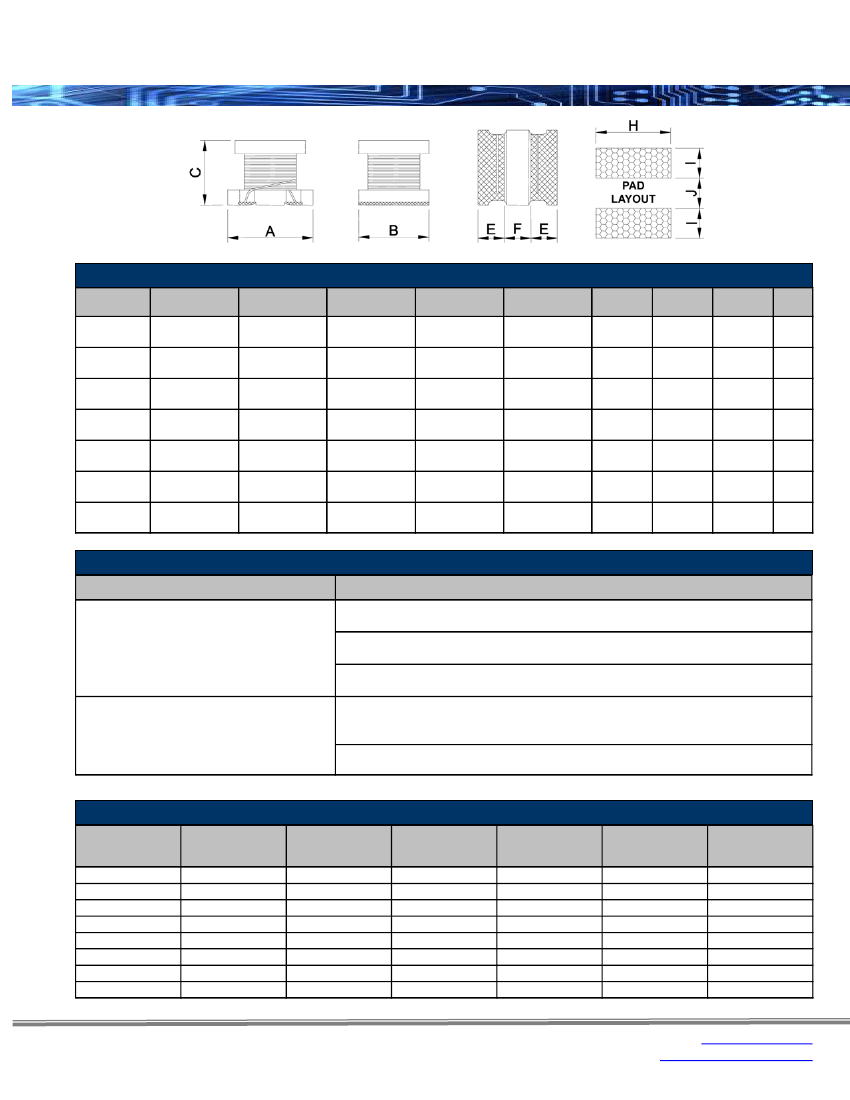

Mechanical Specifications
Type / Code
252010
252012
252510
322515(C)
322520(C)
453226(C)
575047(C)
A
0.098 ± 0.008
2.5 ± 0.2
0.098± 0.008
2.5 ± 0.2
0.098 ± 0.008
2.5 ± 0.2
0.126 ± 0.012
3.2 ± 0.3
0.126 ± 0.012
3.2 ± 0.3
0.177 ± 0.012
4.5 ± 0.3
0.224 ± 0.012
5.7 ± 0.3
B
0.079 ± 0.008
2.0 ± 0.2
0.079 ± 0.008
2.0 ± 0.2
0.098 ± 0.008
2.5 ± 0.2
0.098 ± 0.008
2.5 ± 0.2
0.098 ± 0.008
2.5 ± 0.2
0.126 ± 0.008
3.2 ± 0.2
0.197 ± 0.012
5.0 ± 0.3
C
0.039 max.
1.0 max.
0.047 max.
1.2 max.
0.041 max.
1.05 max.
0.061 ± 0.012
1.55 ± 0.3
0.079 ± 0.012
2.0 ± 0.3
0.102 ± 0.012
2.6 ± 0.3
0.185 ± 0.020
4.7 ± 0.5
E
0.016 ± 0.008
0.4 ± 0.2
0.016 ± 0.008
0.4 ± 0.2
0.033 ref.
0.85 ref
0.041 ± 0.012
1.05 ± 0.3
0.041 ± 0.012
1.05 ± 0.3
0.039 min.
1.0 min.
0.051 min
1.3 min.
F
0.039 min.
1.0 min.
0.039 min.
1.0 min.
0.033 ref.
0.85 ref.
0.041 ± 0.012
1.05 ± 0.3
0.041 ± 0.012
1.05 ± 0.3
0.039 min.
1.0 min.
0.067 min.
1.7 min.
H
0.083
2.1
0.083
2.1
0.098
2.5
0.079
2.0
0.079
2.0
0.118
3.0
0.197
5.0
I
0.035
0.9
0.035
0.9
0.047
1.2
0.059
1.5
0.059
1.5
0.079
2.0
0.079
2.0
J
0.031
0.8
0.031
0.8
0.031
0.8
0.039
1.0
0.039
1.0
0.047
1.2
0.079
2.0
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Type, Code
Maximum
Rated DC Current (I sat): The current when the inductance becomes 30% typical its initial
value (Ta=25ºC)
252010, 252012, 252510, 322515(C)
Temperature Rise Current (I rms): The actual current when the temperature of coil
becomes
∆
T=40ºC
(Ta=25ºC)
Operating temperature range: -40 ~ 105ºC
Rated DC Current: The current when the inductance becomes 10% lower than its initial
value or the current when the temperature of coil increases
∆T20ºC.
The smaller one is
defined as Rated DC Current. (Ta=25ºC)
Operating temperature range: -40 ~ 85ºC
322520(C), 453226(C), 575047C
Electrical Specifications – VLH252010
Type / Code
R47
1R0
1R5
2R2
3R3
4R7
6R8
100
L
(uH)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
Tolerance
M
M
M
M
M
M
M
M
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
DCR (Ω)
max.
0.048
0.085
0.128
0.190
0.304
0.440
0.541
0.854
I rms (A)
typical
2.30
1.70
1.40
1.10
0.94
0.78
0.70
0.52
I sat (A)
typical
2.80
2.00
1.70
1.40
1.20
0.98
0.82
0.65
Rev Date: 11/30/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
VLH Series
Miniature SMD Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – VLH252012
Type / Code
R47
1R0
1R5
2R2
3R3
4R7
5R6
6R8
100
L
(uH)
0.47
1.0
1.5
2.2
3.3
4.7
5.6
6.8
10
Tolerance
M
M
M
M
M
M
M
M
M
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
DCR (Ω)
max.
0.056
0.088
0.126
0.155
0.272
0.406
0.450
0.612
0.756
I rms (A)
typical
2.20
1.80
1.50
1.30
1.00
0.81
0.72
0.66
0.59
I sat (A)
typical
3.70
2.70
2.20
2.00
1.60
1.30
1.15
1.10
0.90
Electrical Specifications – VLH252510
Type / Code
1R0
1R5
2R2
3R3
4R7
5R6
6R8
8R2
100
220
L
(uH)
1.0
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10
22
Tolerance
M
M
M
M
M
M
M
M
M
M
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
DCR (Ω)
typical
0.085
0.115
0.168
0.239
0.316
0.420
0.487
0.548
0.610
1.552
I rms (A)
typical
1.90
1.50
1.20
1.10
0.90
0.83
0.80
0.71
0.68
0.40
I sat (A)
typical
2.30
1.90
1.50
1.30
1.10
0.98
0.90
0.84
0.79
0.51
Electrical Specifications – VLH322515
Type / Code
1R0
1R5
2R2
3R3
4R7
100
150
220
330
470
680
101
L
(uH)
1.0
1.5
2.2
3.3
4.7
10
15
22
33
47
68
100
Tolerance
N
N
M
M
K
K
K
K
K
K
K
K
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
DCR (Ω)
max.
0.078
0.068
0.126
0.180
0.195
0.420
0.750
1.000
1.400
2.200
3.200
4.500
IDC (A)
max.
1.000
1.200
0.790
0.700
0.650
0.450
0.300
0.250
0.200
0.170
0.130
0.100
SRF (MHz)
min.
100
100
64
50
43
26
22
19
17
13
9
8
Rev Date: 11/30/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
VLH Series
Miniature SMD Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – VLH322520
Type / Code
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
L
(uH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
Tolerance
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
Quality Factor
Spec. min. Test Condition
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
40
1MHz, 0.1V
40
1MHz, 0.1V
40
1MHz, 0.1V
40
1MHz, 0.1V
40
1MHz, 0.1V
40
1MHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
50
796KHz, 0.1V
50
796KHz, 0.1V
50
796KHz, 0.1V
DCR (Ω)
max.
0.50
0.60
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
2.20
2.50
2.80
3.10
3.50
3.90
4.30
4.90
5.50
6.20
7.00
8.00
9.30
10.20
11.80
12.50
15.00
22.00
25.00
28.00
IDC (A)
max.
0.445
0.425
0.400
0.390
0.370
0.320
0.300
0.290
0.270
0.250
0.240
0.225
0.190
0.180
0.170
0.165
0.150
0.125
0.115
0.110
0.100
0.085
0.080
0.070
0.080
0.075
0.070
0.065
0.065
0.065
0.065
0.050
0.045
0.040
SRF (MHz)
min.
100
100
75
60
50
43
38
35
31
28
25
23
20
18
16
15
14
13
12
11
11
10
9
8.5
8
7.5
7
6
5.5
5
5
5
5
5 ref
Rev Date: 11/30/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
VLH Series
Miniature SMD Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – VLH453226
Type / Code
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
L
(uH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
Tolerance
M
M
M
M
M
M
M
M
K, M
K, M
K, M
K, M
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
Test
Condition
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1MHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
1KHz, 0.1V
Quality Factor
Spec. min. Test Condition
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
20
1MHz, 0.1V
30
1MHz, 0.1V
30
1MHz, 0.1V
30
1MHz, 0.1V
30
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
35
1MHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
796KHz, 0.1V
40
252KHZ, 0.1V
40
252KHZ, 0.1V
40
252KHZ, 0.1V
40
252KHZ, 0.1V
40
252KHZ, 0.1V
DCR (Ω)
max.
0.20
0.20
0.30
0.30
0.30
0.32
0.35
0.38
0.40
0.47
0.50
0.56
0.56
0.62
0.73
0.82
0.94
1.10
1.20
1.40
1.50
1.70
1.90
2.20
2.50
3.00
3.70
4.50
5.40
6.80
8.20
9.70
11.80
14.50
17.00
20.50
25.00
30.00
37.00
45.00
50.00
IDC (A)
max.
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.450
0.450
0.400
0.380
0.360
0.340
0.320
0.300
0.270
0.240
0.220
0.200
0.180
0.170
0.160
0.150
0.130
0.120
0.110
0.100
0.095
0.090
0.080
0.070
0.065
0.060
0.050
0.045
0.040
0.035
0.030
SRF (MHz)
min.
120
100
85
75
62
53
47
41
38
33
31
27
23
21
19
17
15
14
12
11
10
9.3
8.4
7.5
6.8
6.2
5.5
5
4.5
4
3.6
3.3
3
2.7
2.5
2.2
2
1.8
1.6
1.5
1.3
Rev Date: 11/30/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
