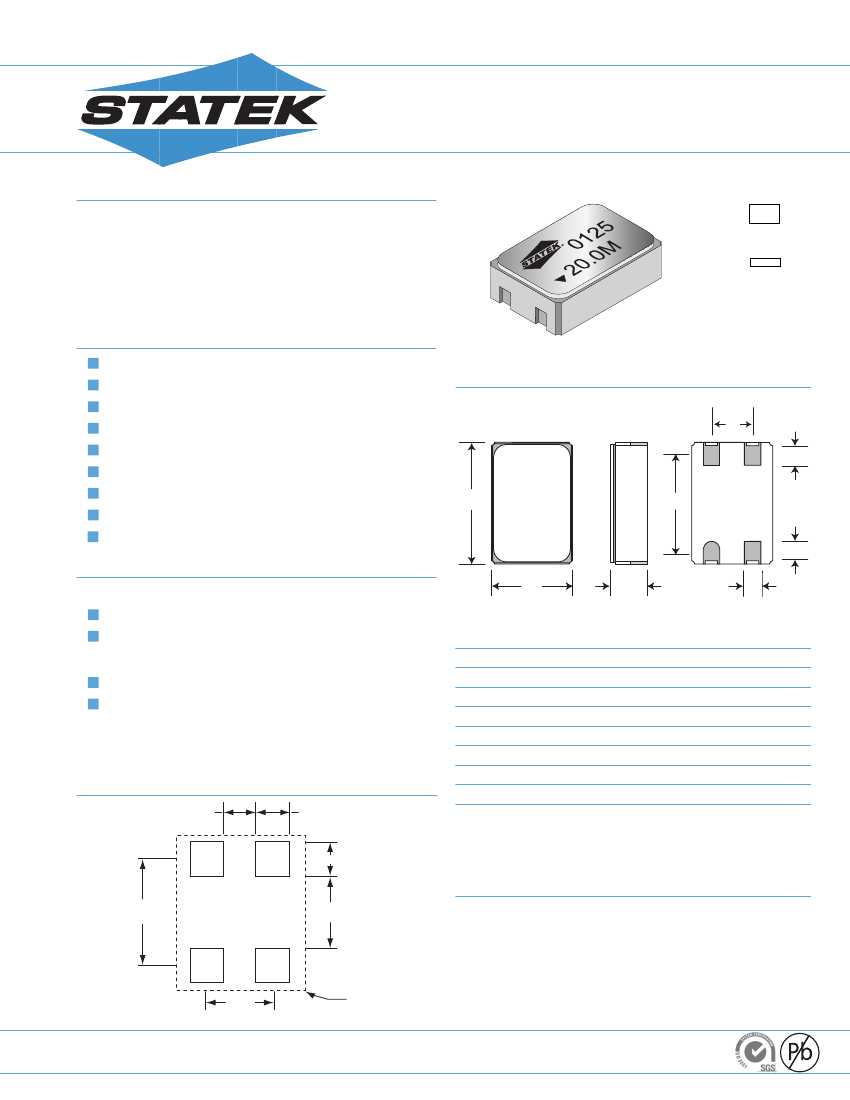

HGXO OSCILLATOR
460 kHz to 50 MHz
®
High Shock Surface Mount Crystal Oscillator
DESCRIPTION
Statek’s HGXO crystal oscillator is an ultra-miniature,
surface-mount oscillator that can survive extremely high
shocks _ up to 100,000 g. The design consists of a
hermetically-sealed high-shock crystal and a CMOS
compatible integrated circuit housed in a 5.0 mm x 7.5 mm
surface-mount ceramic package.
FEATURES
actual size
side view
Mechanical shock survivability up to 100,000 g
CMOS output, TTL on request
Optional Output Enable/Disable with Tri-State
Low EMI emission
Surface mount
Full military testing to MIL-PRF-55310 available
Hermetically sealed ceramic package
Low acceleration sensitivity available
SM1 and SM5 versions are Pb free
APPLICATIONS
2
3
PACKAGE DIMENSIONS
G
D
A
F
1
4
TOP
D
B
Industrial
Transmitter reference oscillator
Clock oscillator
Military & Aerospace
Smart Munitions
Projectile Electronics
DIM
A
B
C*
D
E
SUGGESTED LAND PATTERN
0.040 (1.02)
0.060 (1.52)
C
E
TYPICAL
inches
0.295
0.197
0.089
0.055
0.040
0.240
0.100
mm
7.50
5.00
2.25
1.40
1.02
6.10
2.54
MAXIMUM
inches
0.302
0.204
0.098
-
-
-
-
mm
7.68
5.18
2.50
-
-
-
-
F
G
*SM1 (Termination material is Au over Ni over W). Solder dip (SM3 and SM5) also
available.
0.075 (1.91)
PIN CONNECTIONS
0.240 (6.10)
0.165 (4.19)
1. Enable/Disable (E or T) or not connected (N)
2. Ground
3. Output
4.
V
DD
inches (mm)
0. 00 (2.54)
1
GRID
PLACEMENT
COURTYARD
10156 - Rev B
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
Specifications are typical at 25
O
C unless otherwise noted.
Specifications are subject to change without notice. Tighter
specifications available, please contact factory.
Supply Voltage
Calibration Tolerance
Frequency Stability
Over Temperature
1
Total Frequency
Tolerance
2
Output Load (CMOS)
3
Start-up Time
Rise/Fall Time
Duty Cycle
Shock survival
Vibration, survival
4
Standard Operating
Temperature Ranges
1.8 V to 5 V, as required
±10 ppm and up
±10 ppm and up for Commercial
±20 ppm and up for Industrial
±40 ppm and up for Military
±15 ppm and up for Commercial
±20 ppm and up for Industrial
±50 ppm and up for Military
15 pF
5 ms MAX
6 ns MAX
40% MIN, 60% MAX
Up to 100,000 g, 0.5 ms, ½ sine
20 g, 10-2000 Hz, swept sine
-10
O
C to +70
O
C (Commercial)
-40
O
C to +85
O
C (Industrial)
-55
O
C to +125
O
C (Military)
Supply Voltage V
DD
Storage Temperature
Maximum Process Temperature
-0.5 V to 7.0 V
-55
O
C to +125
O
C
260
O
C for 20 s
ENABLE/DISABLE OPTIONS (E/T/N)
Statek offers three enable/disable options: E, T, and N.
Both the E-version and T-version have Tri-State outputs and
differ in whether the oscillator continues to run internally
when the output is put into the high Z state: it stops in the
E-version and continues to run in the T-version. So, the E-
version offers very low current consumption when the
oscillator is disabled and the T-version offers very fast output
recovery when the oscillator is re-enabled. The N-version
does not have PIN 1 connected internally and so has no
enable/disable capability. The following table compares the
E and T versions.
COMPARISON OF
ENABLE/DISABLE OPTIONS E AND T
E
T
When enabled (PIN 1 is high*)
Output
Oscillator
Current consumption
Freq. output
Oscillates
Normal
Freq. output
Oscillates
Normal
1. Does not include calibration tolerance.
2. Frequency over temperature relative to nominal frequency.
3. TTL loads and higher CMOS loads available. Contact factory.
4. Per MIL-STD-202G, Method 204D, Condition D, Random vibration testing also available.
When disabled (PIN 1 is low)
Output
Oscillator
High Z state
Stops
Very low
High Z state
Oscillates
Lower than normal
PACKAGING OPTIONS
Current consumption
HGXO - Tray Pack
- Tape and Reel
(Reference tape and reel data sheet 10109)
When re-enabled (PIN 1 changes from low to high)
Output recovery
Delayed
Immediate
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
HOW TO ORDER HGXO SURFACE MOUNT CRYSTAL OSCILLATORS
HGXO
Supply Voltage
1 = 1.8V
2 = 2.5V
3 = 3.0V
4 = 3.3V
5 = 5.0V
3
D
S
Blank = Standard
S = Special or
custom
T
Enable/Disable
Option
E, T, or N
SM3
Termination
Blank = SM1
= Gold Plated (Pb Free)
SM3 = Solder Dipped
SM5 = Solder Dipped (Pb Free)
20.0M ,
Frequency
K = kHz
M = MHz
30
Calibration
Tolerance
@ 25
0
C
(in ppm)
/
50
/
/
I
Shock Level
A = 5,000 g
B = 10,000 g
C = 20,000 g
D = 30,000 g
F = 50,000 g
G = 75,000 g
H = 100,000 g
Frequency
Stability over
Temp.Range
(in ppm)
Temperature Range:
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
M = -55
O
C to +125
O
C
S = Customer Specified
OR
Note: The HGXO oscillator with SM1 or SM5
termination is Pb free. The HGXO oscillator with
SM3 termination contains Pb.
/
/
100
Total
Frequency
Tolerance
(in ppm)
/
I
Temperature Range:
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
M = -55
O
C to +125
O
C
S = Customer Specified
10156 - Rev B
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
