XG-1000CB150.0000M-DCL3

Description
IC,CRYSTAL OSCILLATOR,1-CHANNEL,50MHZ-170MHZ,CMOS,LLCC,4PIN,CERAMIC
CategoryPassive components    oscillator
File Size367KB,2 Pages
ManufacturerSeiko Epson Corporation
Environmental Compliance
Download Datasheet Parametric View All

XG-1000CB150.0000M-DCL3 Overview

IC,CRYSTAL OSCILLATOR,1-CHANNEL,50MHZ-170MHZ,CMOS,LLCC,4PIN,CERAMIC

XG-1000CB150.0000M-DCL3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSeiko Epson Corporation
package instructionDILCC4,.12
Reach Compliance Codecompliant
JESD-609 codee4
Installation featuresSURFACE MOUNT
Number of terminals4
Maximum operating frequency170 MHz
Minimum operating frequency50 MHz
Nominal operating frequency150 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeSAW OSCILLATOR
Maximum output low current8 mA
Package body materialCERAMIC
Encapsulate equivalent codeDILCC4,.12
power supply2.5 V
Certification statusNot Qualified
Maximum slew rate25 mA
Nominal supply voltage2.5 V
surface mountYES
technologyCMOS
Terminal surfaceGold (Au)

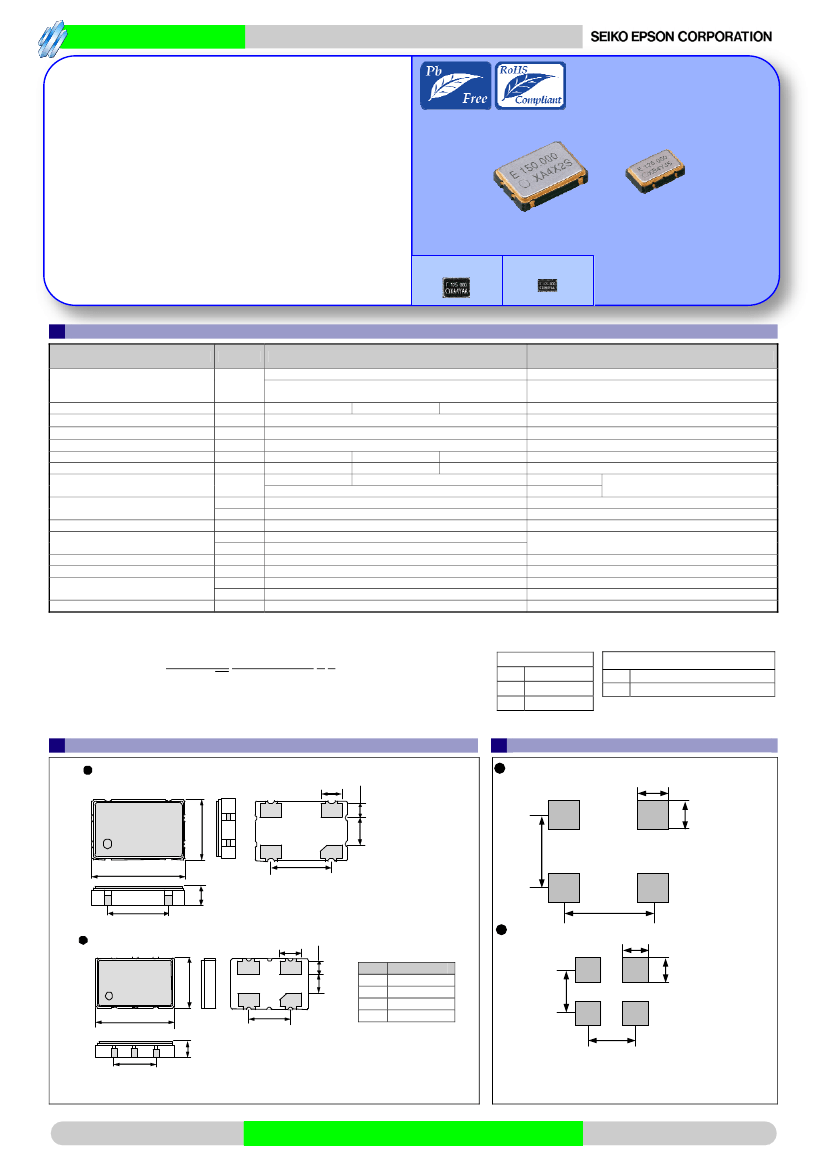

Crystal oscillator
Product Number (please contact us)
LOW-JITTER SAW OSCILLATOR (SPSO)
OUTPUT : CMOS
XG-1000CA: Q3851CA00xxxx00
XG-1000CB: Q3851CB00xxxx00
XG - 1000CA
/
CB
Output
frequency range
Supply
voltage
Frequency
tolerance
Output
Function
External
dimensions
:
50 MHz to 170 MHz
:
1.8 V / 2.5 V / 3.3 V
:
5010
-6
,
10010
-6
:
CMOS
:
Output enable (OE)
:
CA: 7.05.01.2 mm
CB: 5.03.21.1 mm
Actual size
XG-1000CA
XG-1000CB
Very low jitter and low phase noise by SAW unit.
Specifications (characteristics)
Item
Output frequency range *1
Symbol
f
0
Specifications
Conditions / Remarks
Standard frequency
Storage as single product.
50.000 MHz to 170.000 MHz
75.000 MHz, 98.304 MHz, 100.000 MHz,
106.250 MHz, 125.000 MHz, 150.000 MHz
Supply voltage
V
CC
E: 1.8 V
0.1V
D: 2.5 V
0.125
V
C: 3.3 V
0.3V
Storage temperature
-40
C
to +100
C
T_stg
Operating temperature
-10C to +70C
T_use
Frequency tolerance *2
f_tol
B:50
10
-6
C:100
10
-6
Current consumption
Icc
20 mA Max.
25 mA Max.
35 mA Max.
Disable current
I_dis
15 mA Max.
20 mA Max.
30 mA Max.
40 % to 60 %
45 % to 55 %
Symmetry
SYM
40 % to 60 %
V
OH
V
CC
-0.35 V Min
Output voltage
V
OL
0.35 V Max.
Output load condition (CMOS)
L_CMOS
15 pF Max.
70 % V
CC
Min.
V
IH
Input voltage
V
IL
30 % V
CC
Max.
Rise time / Fall time
t
r
/ t
f
2 ns Max.
Start-up time
t_str
10 ms Max.
3 ps Typ.
t
RMS
Jitter *3
t
p-p
25 ps Typ.
Frequency aging
f_aging
5 
10
-6
/ year Max.
*1 Please contact us for requirements non-standard frequencies.
*2 This includes initial frequency tolerance, temperature variation, supply voltage variation and load variation.
*3 Tested using a DTS-2075 Digital timing system made by WAVECREST with jitter analysis software VISI6.
OE=V
CC,
No load condition
OE=GND
f
0
125 MHz
50 % V
CC
level,
f
0
> 125 MHz
E:I
OH
= -6 mA / C,D:I
OH
= -8 mA
E:I
OL
= 6 mA / C,D:I
OL
= 8 mA
OE terminal
L_CMOS
Max.
Between 20% V
CC
and 80% V
CC
level, L_CMOS
Max
Time at minimum supply voltage to be 0 s
(RMS of total distribution)
Peak to Peak
+25
C,
First year, V
CC
=1.8 V, 2.5 V, 3.3 V
Product Name
(Standard form)
XG-1000 CA 150.000000MHz D B
④⑤
①Model
②Package
type
③Frequency
④Supply
voltage
⑤Frequency
tolerance / Operating temperature
(Unit:mm)
④Supply
voltage
Frequency tolerance
C
D
E
3.3 V Typ.
2.5 V Typ.
1.8 V Typ.
B
C
±50 × 10 / -10 to +70°C
-6
±100 × 10 / -10 to +70°C
-6
.
External dimensions
XG-1000CA
#4
#3
#3
#4
Footprint (Recommended)
XG-1000CA
1.8
1.5
(Unit:mm)
#1
7.0±0.2
#2
#2
5.08
#1
1.2±0.2
3.9
XA4YAA
2.6
E 125.000
5.0±0.2
1.1
1.4
5.08
5.08
XG-1000CB
#4
#3
#3
XG-1000CB
1.0
1.2
#4
1.4
1.3
Pin map
Pin
Connection
1
OE
2
GND
3
OUT
4
Vcc
#2 is connected to the
cover
1.2
XB4YAA
#1
5.0±0.2
#2
#2
#1
2.54
1.1±0.15
2.3
E125.000
3.2±0.2
2.54
To maintain stable operation, provide a 0.01uF to
0.1uF by-pass capacitor at a location as near as
possible to the power source terminal of the crystal
product (between Vcc - GND).
2.54
OE pin = HIGH : Specified frequency output.
OE pin = LOW : Output is high impedance
