T201236

Description
ALL DIMENSIONS IN MM [INCH]
File Size57KB,1 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet View All

T201236 Overview

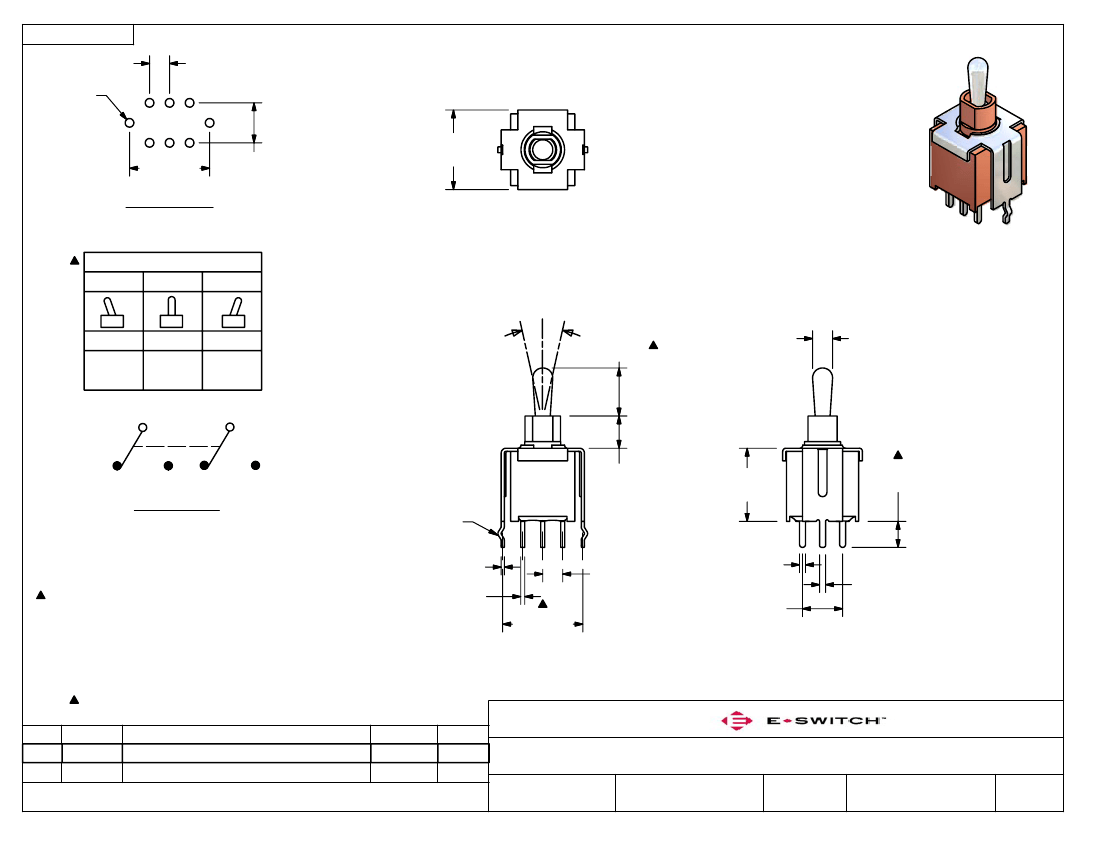

ALL DIMENSIONS IN MM [INCH]

SHEET 1 OF 1
2.54
[.100 in]
n
1.09
[.043 in]
10.16
[.400 in]
P.C. MOUNTING
5.08
[.200 in]
10.11
[.398 in]
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
POS.1
ON
2-3, 5-6
(
NONE
OPEN
(ON)
2-1, 5-4
25
~
POS. 2
6.09
[.240 in]
[.100 in]
n
2.54
ISOMETRIC
) MOMENTARY
2
5
1
3
4
6
SNAP-IN
FEATURE
.40
[.016 in]
.51
[.020 in]
10.16
[.400 in]
4.11
[.162 in]
9.30
[.366 in]
3.30
[.130 in]
CIRCUIT: DPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 3 AMPS @ 120VAC OR 28VDC UL, CUL
1 AMPS @ 250VAC UL, CUL
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
C
B
REV
17327
14666
PCR NO
FIXED SWITCH FUNCTION
REVISED AND REDRAWN
DESCRIPTION
2.54
[.100 in]
.76
[.030 in]
5.08
[.200 in]
.76
[.030 in]
5/24/07
2/2/05
DATE
TN
AR
BY
TITLE
SCALE
200AWMDP2T2A1VS21QE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
5/24/2007
TN
T201236
C
