T116011: DescriptionALL DIMENSIONS IN MM [INCH]; File Size129KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T116011 Overview

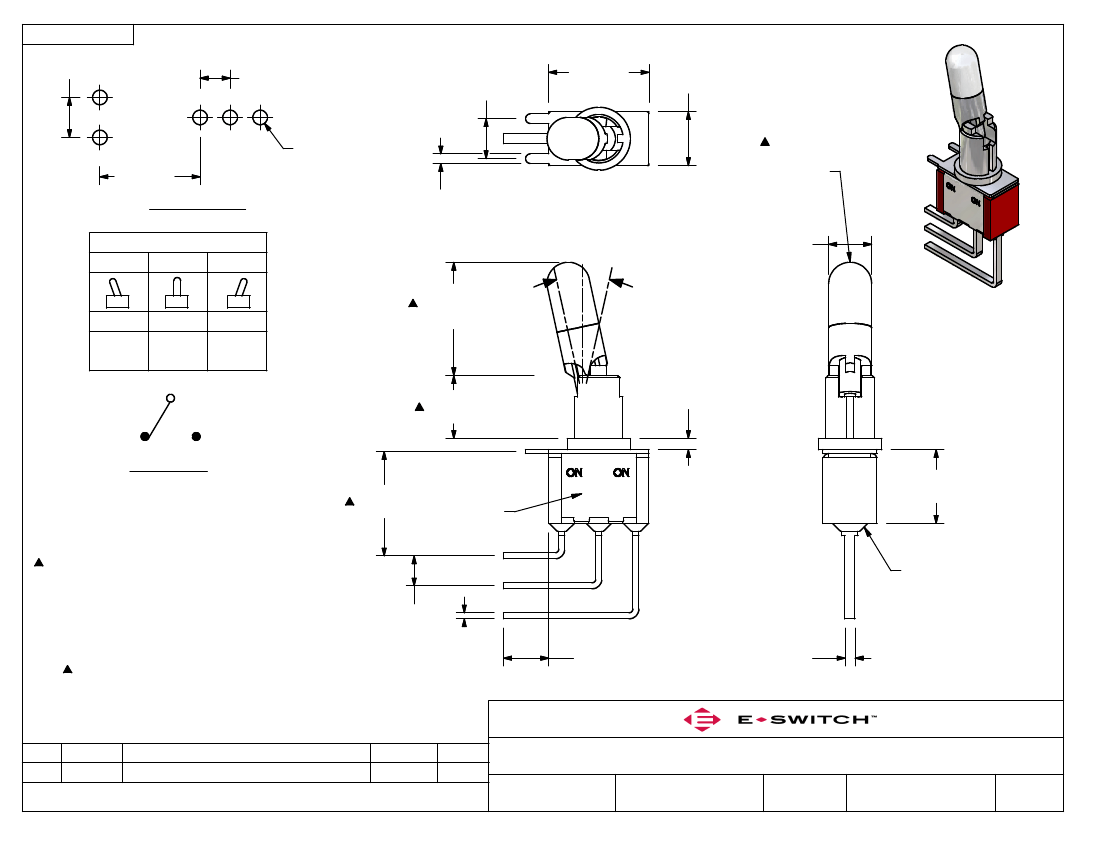

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

5.08

[.200 in]

3.81

[.150 in]

5.08

[.200 in]

12.70

[.500 in]

6.86

[.270 in]

1.85

[.073 in]

12.70

[.500 in]

P.C. MOUNTING

1.22

[.048 in]

KNOB TO BE SECURED

BY A THREAD LOCK

EPOXY. KNOB MUST

NOT SCREW OFF

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

[.214 in]

5.44

POS. 1

14.40

[.567 in]

LOCKED POSITION

POS. 3

ISOMETRIC

2-3

NONE

OPEN

2-1

8.00

[.315 in]

1.40

[.055 in]

CIRCUI: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 2 AMPS @250VAC

5 AMPS @120VAC OR 28VDC

6. ELECTRIC LIFE: 40,000 make-and-break cycles

at full load.

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

13.26

[.522 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

.76

[.030 in]

EPOXY SEAL

9.39

[.370 in]

3.81

[.150 in]

5.72

[.225 in]

1.27

[.050 in]

REV

17834

PCR NO

REMOVED THREADS

DESCRIPTION

11/1/07

DATE

TITLE

100SP1K1B26M7QE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

11/1/2007

T116011
