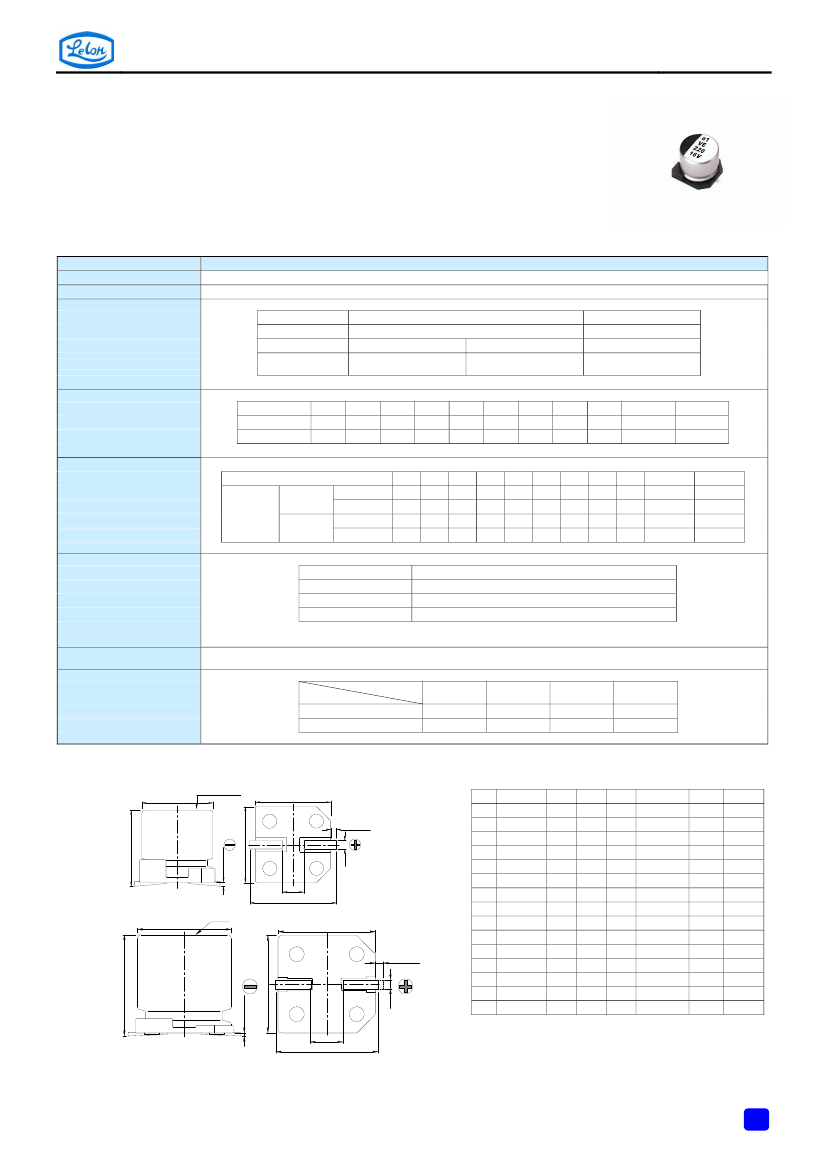

SMD Aluminum Electrolytic Capacitors
VE Series
Features
VE
‧3φ
~ 18φ, 85℃, 2,000 hours assured
‧Chip
type large capacitance capacitors
‧Designed
for surface mounting on high density PC board
‧RoHS
Compliance
Marking color: Black
Performance
-40℃ ~ +85℃
±20%
Rated Voltage
Time
Case size
6.3 ~ 100V
after 2 minutes
160 ~ 450V
after 5 minutes
12.5 ~ 18φ
Specifications
Items
Category Temperature Range
Capacitance Tolerance
(at 120Hz, 20℃)
Leakage Current (at 20℃)
3 ~ 10φ
12.5 ~ 18φ
I = 0.01CV or 3μA,
I = 0.03CV or 4μA,
I = 0.04CV +100μA
Leakage Current
whichever is greater
whichever is greater
Where, C = rated capacitance in
μF
V = rated DC working voltage in V
Rated Voltage
4
6.3
10
16
25
35
50
63
100 160 ~ 250 400 ~ 450
3 ~ 10φ
0.42
0.28
0.24
0.20
0.14
0.12
0.10
0.10
0.10
-
-
12.5 ~ 18φ
-
0.38
0.34
0.30
0.26
0.22
0.18
0.14
0.10
0.20
0.25
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
4.0 6.3
10
16
25
35
50
63 100 160 ~ 250 400 ~ 450
φD＜12.5
7
4
4
3
2
2
2
2
2
-
-
Z(-25℃)
Impedance /Z(+20℃)
φD≧12.5
-
5
5
4
2
2
2
2
2
3
6
φD＜12.5
Ratio
Z(-40℃)
15
8
5
4
3
3
3
3
3
-
-
/Z(+20℃)
φD≧12.5
-
14
12
10
5
4
3
3
3
6
10
Tanδ (at 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Test Time
2,000 Hrs
Capacitance Change
Within ±20% of initial value (4V: ±30%)
Tanδ
Less than 200% of specified value (4V: ±300%)
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage applied for 2,000
hours at 85℃.
Test time: 1,000 hours; other items are the same as those for the Endurance.
The rated voltage shall be applied to the capacitors before the measurements for 160 ~ 450V (Refer to JIS C 5101-4 4.1).
Freq. (Hz)
Cap. (μF)
Under 1,000
1,000
＜
C
≦
10,000
50
0.80
0.85
120
1.00
1.00
1k
1.25
1.15
10k up
1.40
1.25
Ripple Current &
Frequency Multipliers
Diagram of Dimensions
Fig. 1
φ
D
±
0.5
Vent
≧
8
φ×
10L
Lead Spacing and Diameter
B
±
0.2
0.4 max
Unit: mm
C
W
P ± 0.2 Fig. No.
4.1 0.45 ~ 0.75 0.8
1
5.1
0.5 ~ 0.8
1.0
1
5.9
0.5 ~ 0.8
1.5
1
7.2
0.5 ~ 0.8
2.0
1
7.2
0.5 ~ 0.8
2.0
1
9.0
0.5 ~ 0.8
2.3
1
9.0
0.7 ~ 1.1
3.1
1
11.0 0.7 ~ 1.3
4.7
1
11.0 0.7 ~ 1.3
4.7
1
13.7 1.1 ~ 1.4
4.4
2
13.7 1.1 ~ 1.4
4.4
2
18.0 1.1 ~ 1.4
6.4
2
18.0 1.1 ~ 1.4
6.4
2
20.0 1.1 ~ 1.4
6.4
2
20.0 1.1 ~ 1.4
6.4
2
Fig. 2
φ
D
±
0.5
P
C
±
0.2
Vent
B
±
0.2
1.0 Max
A
±
0.2
L
0.4 Max
φD
3
4
5
6.3
6.3
8
8
10
10
12.5
12.5
16
16
18
18
L
5.3 ± 0.2
5.3 ± 0.2
5.3 ± 0.2
5.3 ± 0.2
7.7 ± 0.3
6.5 ± 0. 3
10 ± 0.5
7.7 ± 0.3
10 ± 0.5
13.5 ± 0.5
16 ± 0.5
16.5 ± 0.5
21.5 ± 0.5
16.5 ± 0.5
21.5 ± 0.5
A
3.3
4.3
5.3
6.6
6.6
8.4
8.4
10.4
10.4
13.0
13.0
17.0
17.0
19.0
19.0
B
3.3
4.3
5.3
6.6
6.6
8.4
8.4
10.4
10.4
13.0
13.0
17.0
17.0
19.0
19.0
0.3 Max
A
±
0.2
L
W
P
C
±
0.2
W
All product specifications in the catalog are subject to change without notice. (CAT. 2014E1)
51
SMD Aluminum Electrolytic Capacitors

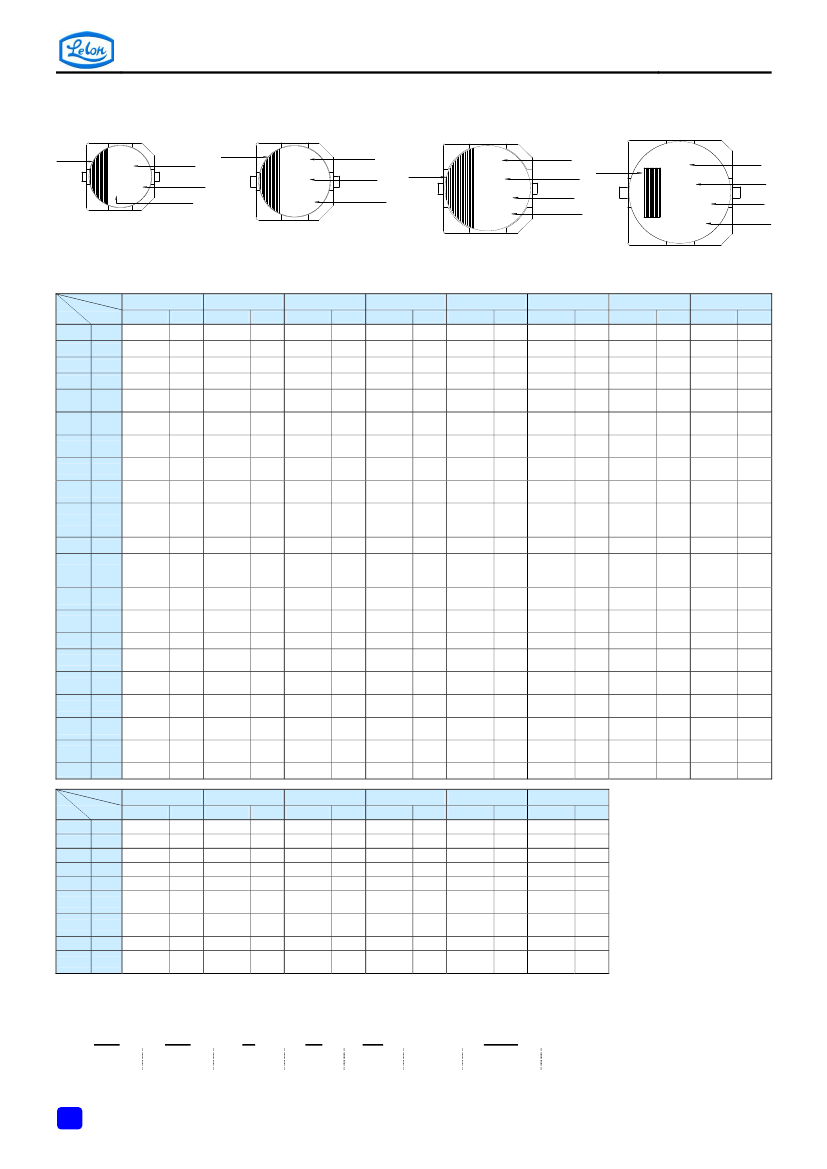

Marking
φD
= 3 mm
Negative
polarity
VE
φD
≧
12.5mm
Date code
Series name
Rated cap
.
Rated voltage
φD
= 4 ~ 6.3mm
Rated cap.
Rated voltage
Date code
φD
= 8 ~ 10 mm
Date code
Rated cap.
Rated voltage
4.7
A16
Negative
polarity
A2
10
16V
Negative
polarity
A2
VE
470
6.3V
Negative
polarity
A2
VE
2200
6.3V
Date
code
Series
name
Rated
cap.
Rated
voltage
Dimension & Permissible Ripple Current
V. DC
μF
1
2.2
3.3
4.7
10
22
33
47
68
100
150
220
330
470
680
1,000
2,200
3,300
4,700
6,800
10,000
Contents
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 120 Hz, 85℃
16V (1C)
φD×L
mA
4V (0G)
φD×L
mA
6.3V (0J)
φD×L
mA
10V (1A)
φD×L
mA
25V (1E)
φD×L
mA
35V (1V)
φD×L
mA
50V (1H)
φD×L
4×5.3
4×5.3
mA
10
14
17
20
35
50
65
75
95
75
190
190
190
63 (1J)
φD×L
4×5.3
4×5.3
5×5.3
5×5.3
6.3×5.3
8×6.5
8×10
8×10
10×10
10×10
10×10
mA
8
12
22
25
40
46
139
139
200
226
226
010
2R2
3R3
4R7
100
220
330
470
680
101
151
221
331
471
681
102
222
332
472
682
103
V. DC
6.3×5.3
6.3×7.7
6.3×7.7
8×10
89
124
124
290
6.3×5.3
6.3×7.7
6.3×7.7
8×6.5
8×10
10×7.7
10×10
12.5×13.5
3×5.3
3×5.3
3×5.3
3×5.3
4×5.3
4×5.3
5×5.3
5×5.3
6.3×5.3
16
31
34
58
58
89
4×5.3
4×5.3
4×5.3
5×5.3
5×5.3
6.3×5.3
6.3×5.3
16
26
31
34
55
58
89
89
4×5.3
5×5.3
4×5.3
5×5.3
6.3×5.3
5×5.3
6.3×5.3
6.3×5.3
6.3×7.7
6.3×7.7
8×6.5
8×10
8×10
10×7.7
10×10
10×10
10×10
12.5×13.5
14
26
44
47
59
55
67
75
98
109
109
145
3×5.3
4×5.3
5×5.3
5×5.3
6.3×5.3
6.3×5.3
6.3×7.7
6.3×7.7
8×6.5
6.3×7.7
8×10
10×7.7
14
26
44
47
59
67
85
98
105
109
252
252
270
370
400
680
680
1,100
1,450
1,500
1,750
4×5.3
4×5.3
5×5.3
6.3×5.3
6.3×7.7
6.3×7.7
8×6.5
6.3×7.7
8×10
8×10
8×10
14
26
44
31
55
75
58
89
89
109
124
175
270
290
290
400
410
430
890
1,300
1,400
1,700
1,750
2,000
3×5.3
4×5.3
4×5.3
5×5.3
5×5.3
5×5.3
6.3×5.3
6.3×5.3
6.3×5.3
6.3×7.7
8×6.5
6.3×7.7
8×10
8×10
10×7.7
10×10
10×10
12.5×13.5
14
26
30
44
55
55
75
89
89
109
125
124
270
290
290
400
410
750
1,100
1,300
1,600
1,650
2,000
4×5.3
5×5.3
5×5.3
6.3×5.3
5×5.3
6.3×5.3
6.3×5.3
6.3×7.7
6.3×7.7
6.3×7.7
8×6.5
89
124
124
190
290
290
430
890
1,000
1,400
1,700
1,750
2,000
8×10
10×7.7
10×10
10×10
12.5×13.5
12.5×13.5
270
270
400
400
680
750
1,100
1,450
1,500
1,750
8×10
10×10
10×10
12.5×13.5
12.5×13.5
10×10
12.5×13.5
320
600
740
1,000
1,350
1,400
12.5×13.5
12.5×16
500
600
850
1,100
12.5×16
16×16.5
18×16.5
16×21.5
16×16.5
18×16.5
16×16.5
18×16.5
16×21.5
18×21.5
16×16.5
16×16.5
18×16.5
16×21.5
18×21.5
16×16.5
18×16.5
16×21.5
18×21.5
12.5×16
16×16.5
18×16.5
16×21.5
18×21.5
16×16.5
16×16.5
18×16.5
16×21.5
18×21.5
100V (2A)
φD×L
8×10
8×10
10×10
10×10
12.5×13.5
12.5×13.5
160V (2C)
φD×L
mA
200V (2D)
φD×L
mA
250V (2E)
φD×L
12.5×13.5
400V (2G)
φD×L
12.5×13.5
12.5×13.5
450V (2W)
φD×L
12.5×13.5
μF
Contents
4.7
4R7
10
100
22
220
33
330
47
470
68
100
220
330
680
101
221
331
mA
90
90
120
120
380
440
600
780
850
mA
150
150
240
340
440
450
490
12.5×13.5
12.5×13.5
12.5×16
16×16.5
18×16.5
16×21.5
290
370
500
650
690
12.5×16
16×16.5
16×16.5
18×16.5
16×21.5
240
310
420
420
550
590
12.5×13.5
12.5×16
16×16.5
18×16.5
16×21.5
18×21.5
16×16.5
16×16.5
18×16.5
18×21.5
mA
120
120
140
140
280
350
12.5×16
16×16.5
18×16.5
18×21.5
mA
120
130
140
180
250
16×16.5
18×16.5
16×21.5
Part Numbering System
VE series
470μF
±20%
6.3V
Carrier
Tape
8φ×10L
Pb-free and PET
coating case
Lead Wire and
Coating Type
VE-
Series name
471
Capacitance
M
Capacitance
Tolerance
0J
Rated
Voltage
TR
Package
Type
-
Terminal
Type
0810
Case size
Note: For more details, please refer to “Part Numbering System (SMD Type)” on page 12.
52
All product specifications in the catalog are subject to change without notice. (CAT. 2014E1)
