T114082: DescriptionALL DIMENSIONS IN MM [INCH]; File Size123KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T114082 Overview

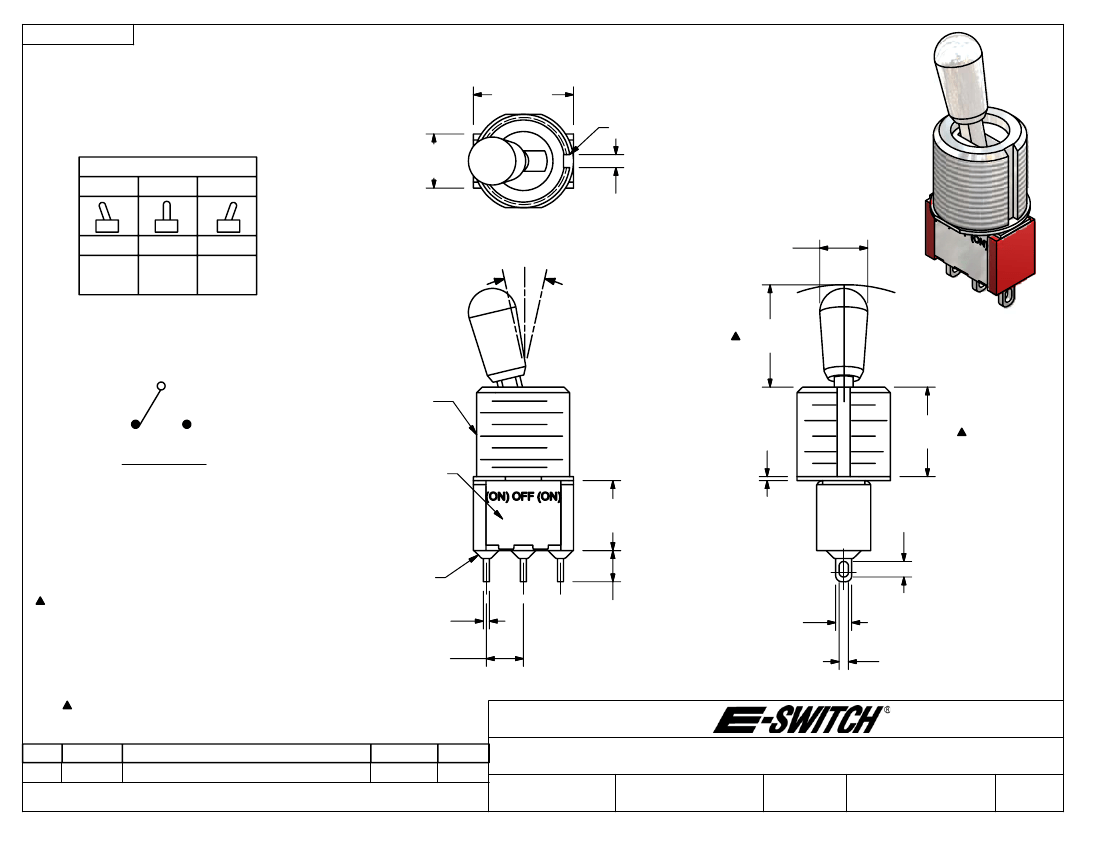

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

12.70

[.500 in]

KEYWAY

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

1.65

[.065 in]

(ON)

2-3

OFF

OPEN

(ON)

2-1

(ON) = MOMENTARY

6.86

[.270 in]

POS. 1

POS. 2

[.240 in]

6.09

POS. 3

13.00

[.512 in]

15/32-32 UNS-2A

E-SWITCH

MARKING ON

OPPOSITE SIDE

8.89

[.350 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 5A @120VAC OR 28VDC

2A @250VAC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10. DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

REV

16679

PCR NO

REVISED AND REDRAWN

DESCRIPTION

1.98

[.078 in]

.51

[.020 in]

ISOMETRIC

11.38

[.448 in]

CIRCUIT: SPDT

EPOXY SEAL

.76

[.030 in]

4.70

[.185 in]

3.96

[.156 in]

2.03

[.080 in]

1.19

[.047 in]

11/20/06

DATE

TITLE

SCALE

100SP4T7B13M1QE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

11/20/2006

T114082
