362CLX1R0ASROHS

Description
Ceramic Capacitor, Multilayer, Ceramic, 3600V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000001uF, 2426,
CategoryPassive components    capacitor
File Size145KB,8 Pages
ManufacturerEXXELIA Group
Environmental Compliance
Download Datasheet Parametric View All

362CLX1R0ASROHS Overview

Ceramic Capacitor, Multilayer, Ceramic, 3600V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000001uF, 2426,

362CLX1R0ASROHS Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerEXXELIA Group
package instruction, 2426
Reach Compliance Codecompliant
capacitance0.000001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high3.8 mm
JESD-609 codee3
length6.2 mm
multi-layerYes
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
positive tolerance5%
Rated (DC) voltage (URdc)3600 V
seriesCLX
size code2426
Temperature characteristic codeNP0
Temperature Coefficient-/+30ppm/Cel ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
width6.6 mm

362CLX1R0ASROHS Preview

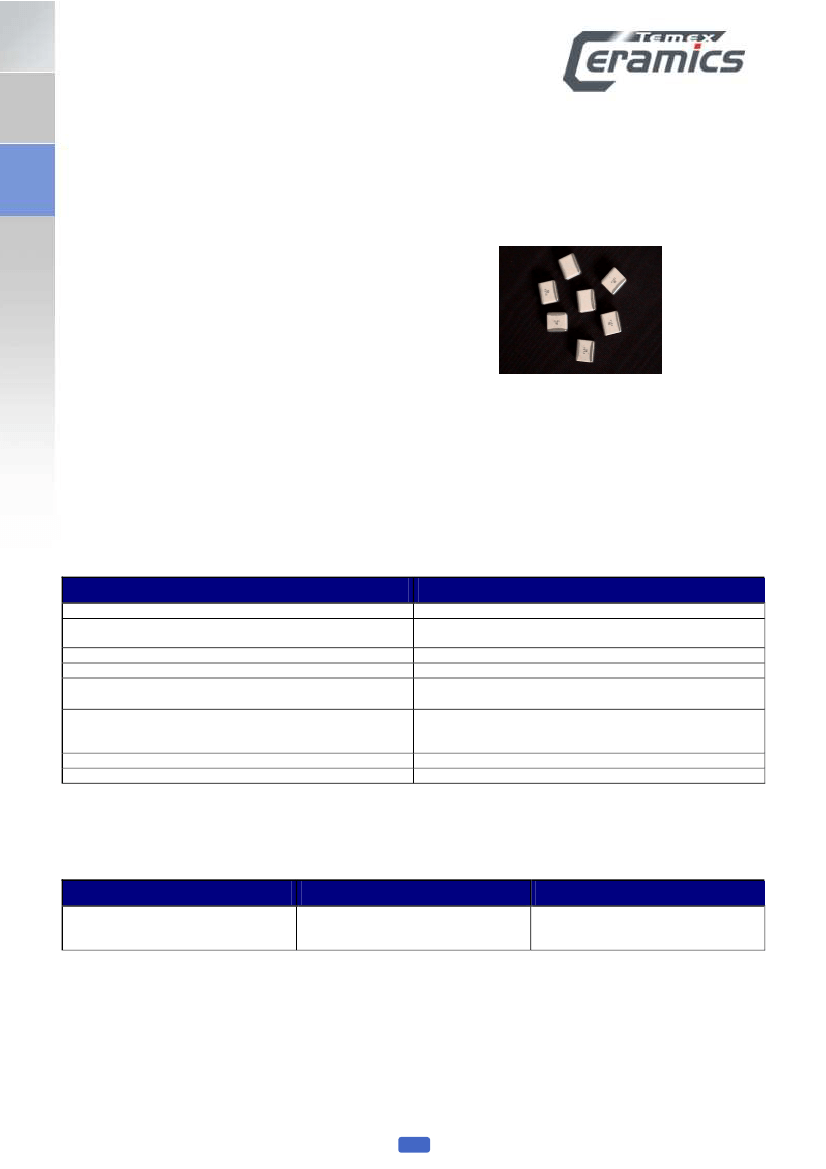

CL
- High Power, High Q, NP0, RoHS
RF Power Capacitors, Ultra Stability
D
ESCRIPTION
Low ESR/ESL
NP0 Porcelain Capacitors
Excellent characteristics in current, voltage
and power with high Q factor
Highest working voltage in class – 7’000V
A
PPLICATIONS
RF Power Amplifiers
Industrial (Plasma Chamber)
Medical (MRI Coils)
C
IRCUIT APPLICATIONS
DC Blocking
Matching Networks
Tuning and Coupling
I. E
LECTRICAL SPECIFICATIONS
Parameter
Capacitance
Tolerances
Working Voltage (WVDC)
Temperature Coefficient
Insulation Resistance
Dielectric Withstanding
(test voltage applied for 5 seconds)
Aging
Piezo Effects
Value
1 to 10'000 pF
B, C, D below 10 pF
F, G, J, K, M above 10 pF
see Capacitance Value chart
0 +/-30ppm/° -55° to +12 5°
C,
C
C
5
C
10 MΩ min @ 25° at rated WVDC
4
10 MΩ min @ 125° at rated WVDC
C
2.0 x WVDC for WVDC
500V
1.5 x WVDC for 500V < WVDC
2’500V
1.3 x WVDC for WVDC > 2’500V
none
none
II. M
ECHANICAL SPECIFICATIONS
Parameter
Case Size
Value
X
E
F
Comment
2225
4040
7065
For each case size, the recommended terminations are listed below.
NB:
- all the terminations are backward compatible and lead-free.
- the non-magnetic terminations are all Magnetism-free Rated.
MR
certified®
ITAR
Free
®
1
CL - Ed.32
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
CL
- High Power, High Q, NP0, RoHS
RF Power Capacitors, Ultra Stability
Termination Type
Standard (tin-plated nickel)
Code
S
CLX
AVAILABLE
CLE
AVAILABLE
CLF
AVAILABLE
Non-magnetic (silver-palladium)
A
AVAILABLE
Non-magnetic (tin-plated copper)
C
AVAILABLE
AVAILABLE
III. E
NVIRONMENTAL SPECIFICATIONS
Parameter
Life Test
Value
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
Moisture Resistance Test 1
Moisture Resistance Test 2
2'000 hours, +125°
C
at 1.5 x WVDC (WVDC≤500V)
at 1.3 x WVDC (500V<WVDC<1'250V)
at 1.0 x WVDC (1'250V≤WVDC)
240 hours, 85% relative humidity at +85°
C
(ESA/SCC n°
3009)
56 days, 93% relative humidity at +40°
C
0V, 5V, WVDC
IV. O

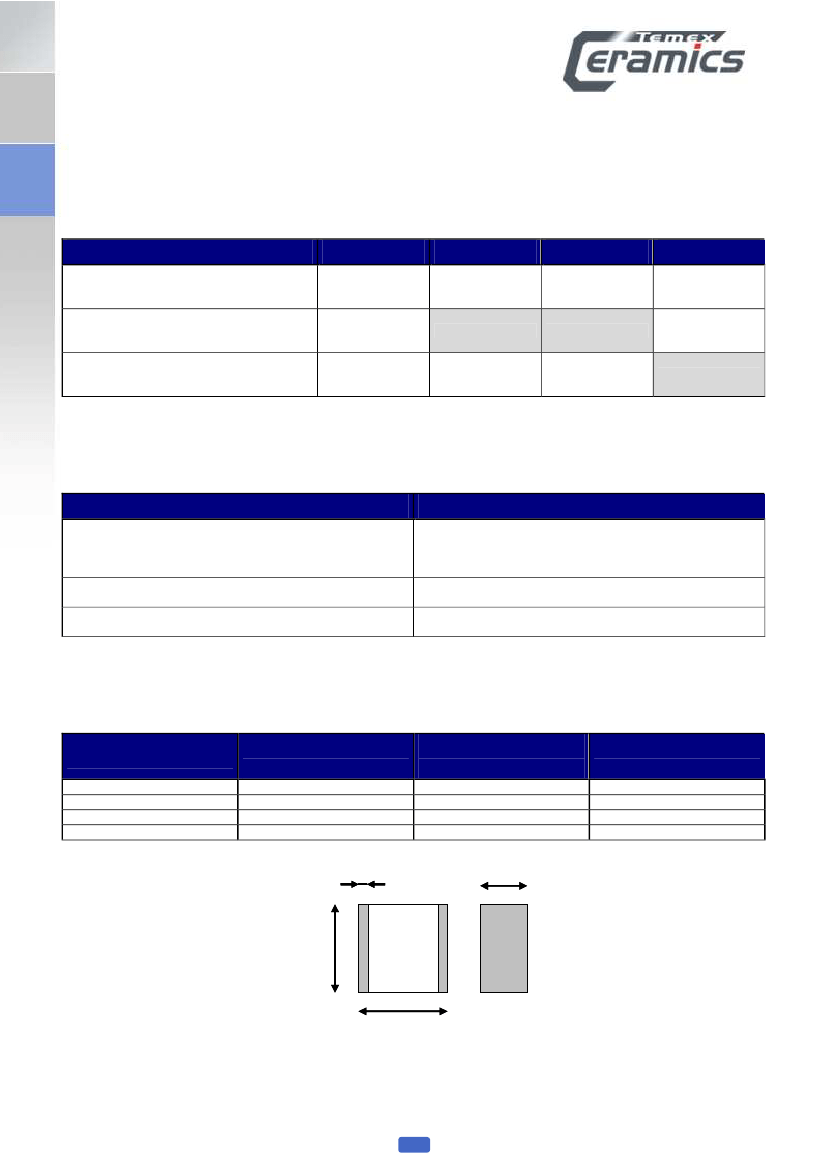

UTLINE DIMENSIONS
Parameter
Length (L)
Width (W)
Thickness (T)
End-Band (e)
X
(2225)
6.20 ±0.50 mm
6.60 ±0.50 mm
3.80 mm (max.)
0.80 ±0.60mm
E
(4040)
10.50 ±0.50 mm
9.50 ±0.50 mm
4.50 mm (max.)
0.80 ±0.60mm
F
(7065)
17.80 ±0.50 mm
16.00 ±0.50 mm
4.00 mm (max.)
0.80 ±0.60mm
e
T
W
L
2
CL - Ed.32
CL
- High Power, High Q, NP0, RoHS
RF Power Capacitors, Ultra Stability
V. H
OW TO ORDER
362
CL
X
100
G
C
1
L
ROHS
voltage
dielectric
case size
capacitance
tolerance
code
A=±0.05
pF
B=±0.1
pF
C=±0.25
pF
D=±0.5
pF
termination
code
please refer
to
Mechanical
Termination
chart
mechanical
code
please refer
to
Mechanical
Configuration
chart
coating
code
“H” means
coating
requested
marking
code
“L” means
marking
requested
tape and
reel
“E” means
horizontal
orientation
the RoHS
tag is not
part of the
reference
please refer
to Volt.Code
given in
Capacitance
Values chart
X
E
F
please refer to
Cap. Code
given in
Capacitance
Values chart
201=200V
301=300V
501=500V
102=1KV
122=1.2KV
152=1.5KV
162=1.6KV
F=±1%
G=±2%
J=±5%
K=±10%
leave blank if
no
mechanical
requested
leave
blank if no
coating
requested
leave
blank if no
marking
requested
“X” means
vertical
orientation
tag added
at the end
of P/N for
information
leave
blank if no
tape and
reel
requested
362=3.6KV
502=5KV
702=7KV
NB:
- for capacitance values lower than 10pF, tolerances A, B, C and D apply. For capacitance values
equal to or higher than 10pF, tolerances F, G, J and K apply.
- only CLX and CLE case size capacitor chips could be supply with tape and reel.
VI. T
APE AND
R
EEL
The following chart gives the number of components per reel.
CLX
Parts per Reel
500
CLE
700
NB: the vertical orientation of product (letter code X) is only available on CLE. In this case, the quantity
per reel is 350 pieces.
3
CL - Ed.32
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
252=2.5KV
CL
- High Power, High Q, NP0, RoHS
RF Power Capacitors, Ultra Stability
VII. C
APACITANCE
V
ALUES
Value (pF)
1,0
1,1
1,2
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,4
2,7
3,0
3,3
3,6
3,9
4,3
4,7
5,1
5,6
6,2
6,8
7,5
8,2
9,1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
Cap. Code
1R0
1R1
1R2
1R3
1R4
1R5
1R6
17R
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
X
(2225)
Standard
Extended
E
(4040)
Standard
Extended
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1 000
1 100
1 200
1 500
1 800
2 200
2 700
3 000
3 300
3 900
4 700
5 100
5 600
6 800
8 200
10 000
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
112
122
152
182
222
272
302
332
392
472
512
562
682
822
103
Value (pF)
Cap. Code
X
(2225)
Standard
Extended
E
(4040)
Standard
Extended
F
(7065)
3600V
7000V
2500V
3600V
5000V
2500V
3600V
3600V
7000V
2500V
1200V
1600V
500V
300V
1000V
1000V
500V
200V
500V
NB: special values, tolerances, higher WVDC and matching available, please consult factory.
4
CL - Ed.32
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
1500V
CL
- High Power, High Q, NP0, RoHS
RF Power Capacitors, Ultra Stability
VIII. M
ECHANICAL
C
ONFIGURATIONS

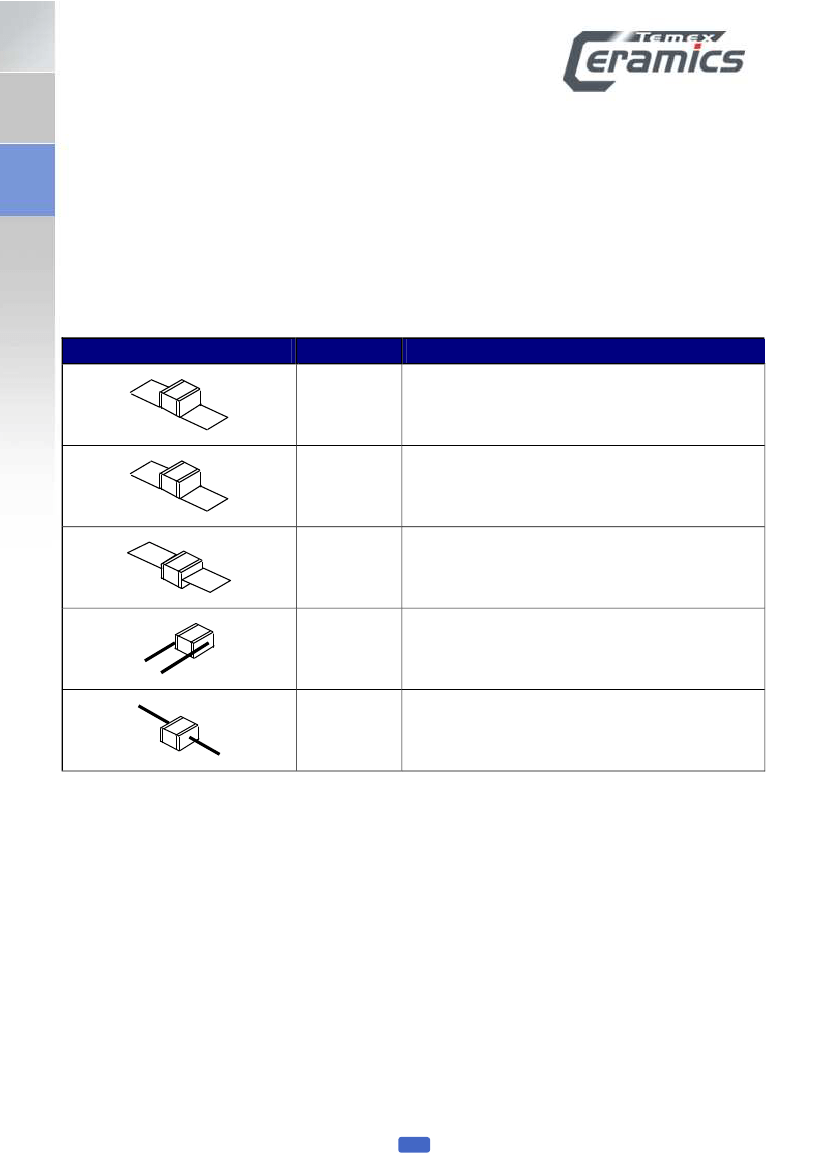

VIII.1. Lead/Ribbon and Wire Types
Configuration Type
Code
Description
1
Micro-strip Ribbon
1S
Short-strip Ribbon
2
Axial Ribbon
6
Radial Wire
7
Axial Wire
NB: when coding ribbons or wires for the description of the part, the termination has to be mentionned
for MR
certified
types to ensure that only non-magnetic materials are used.
Examples :
362 CLE 470 J1L
362 CLE 470 JC1L
any termination material could be used
only non-magnetic termination materials could be used
5
CL - Ed.32
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
