MURD860 ULTRAFAST PLASTIC RECTIFIER
Applications:
•
•
•
Switching Power Supply
Power Switching Circuits
General Purpose
Features:
•
•
•
•
•
•
•
•
Ultra-Fast Switching
High Current Capability
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-O
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

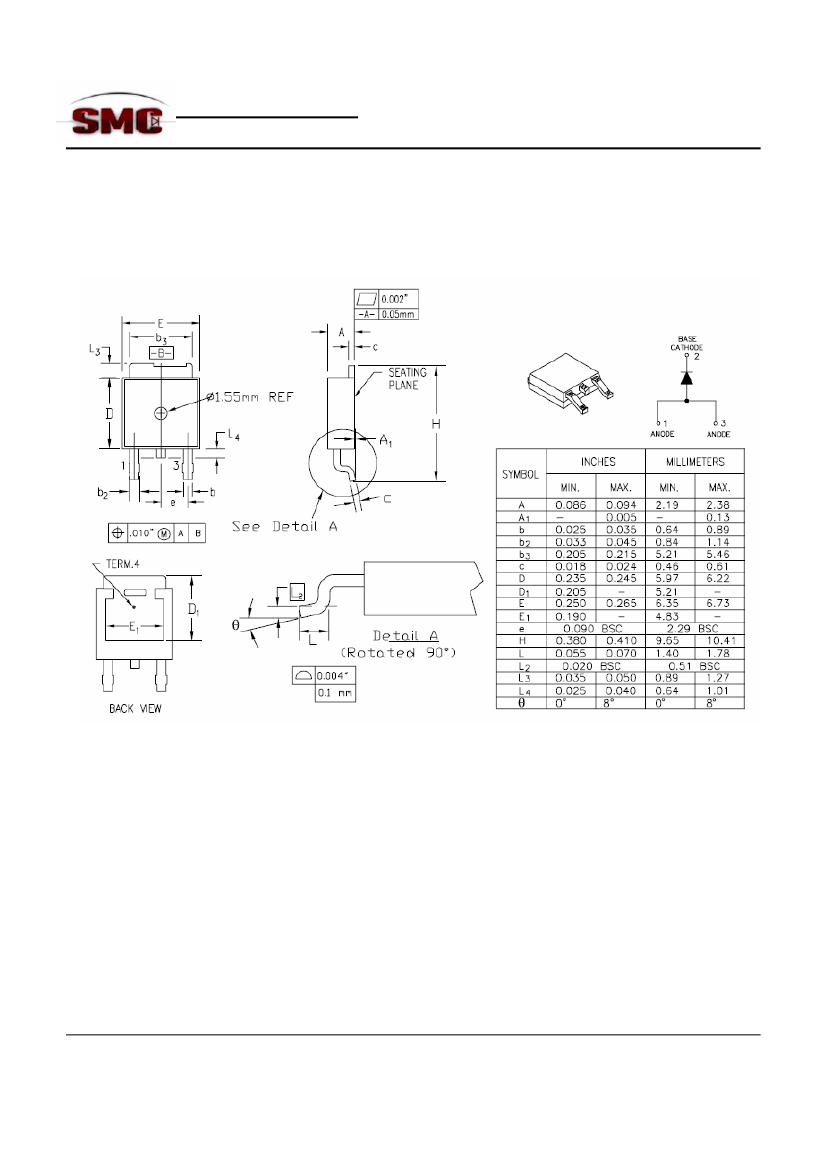

Mechanical Dimensions (In mm):
OPTION 1
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0335, Rev. -
MURD860
Green Products

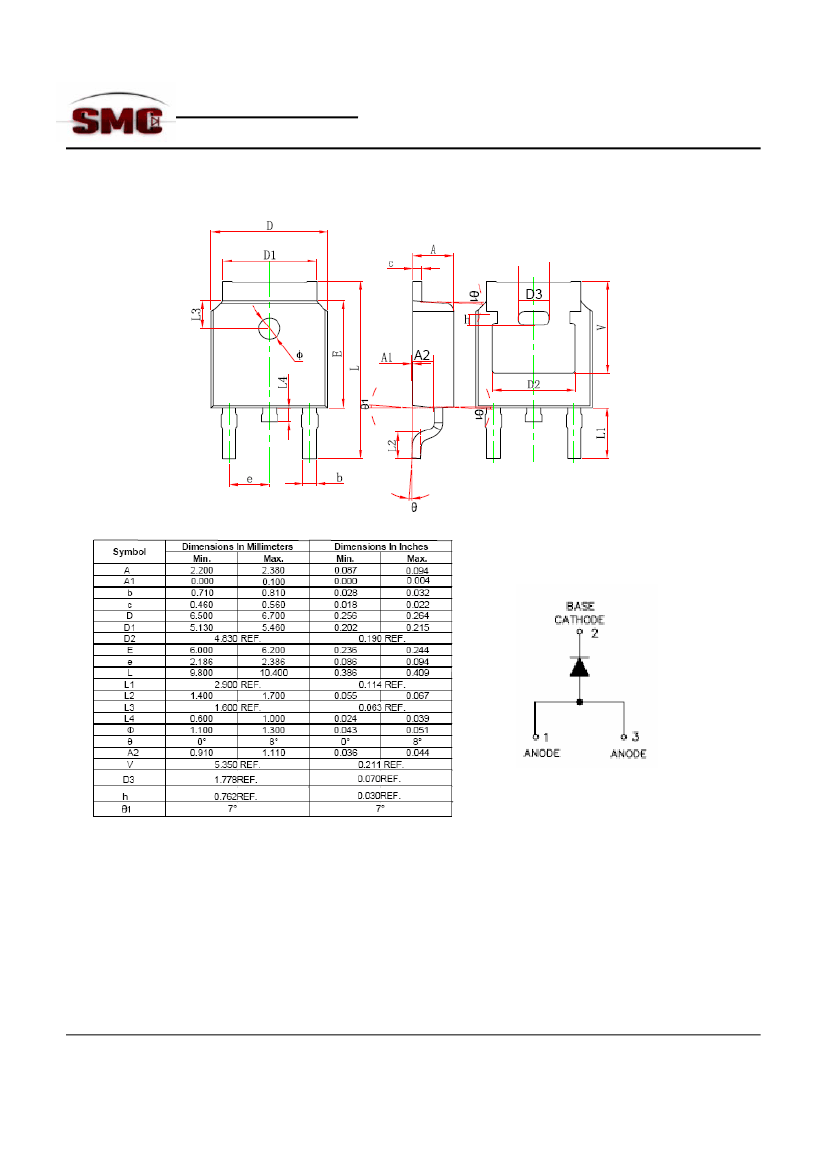

OPTION 2
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0335, Rev. -
MURD860
Green Products

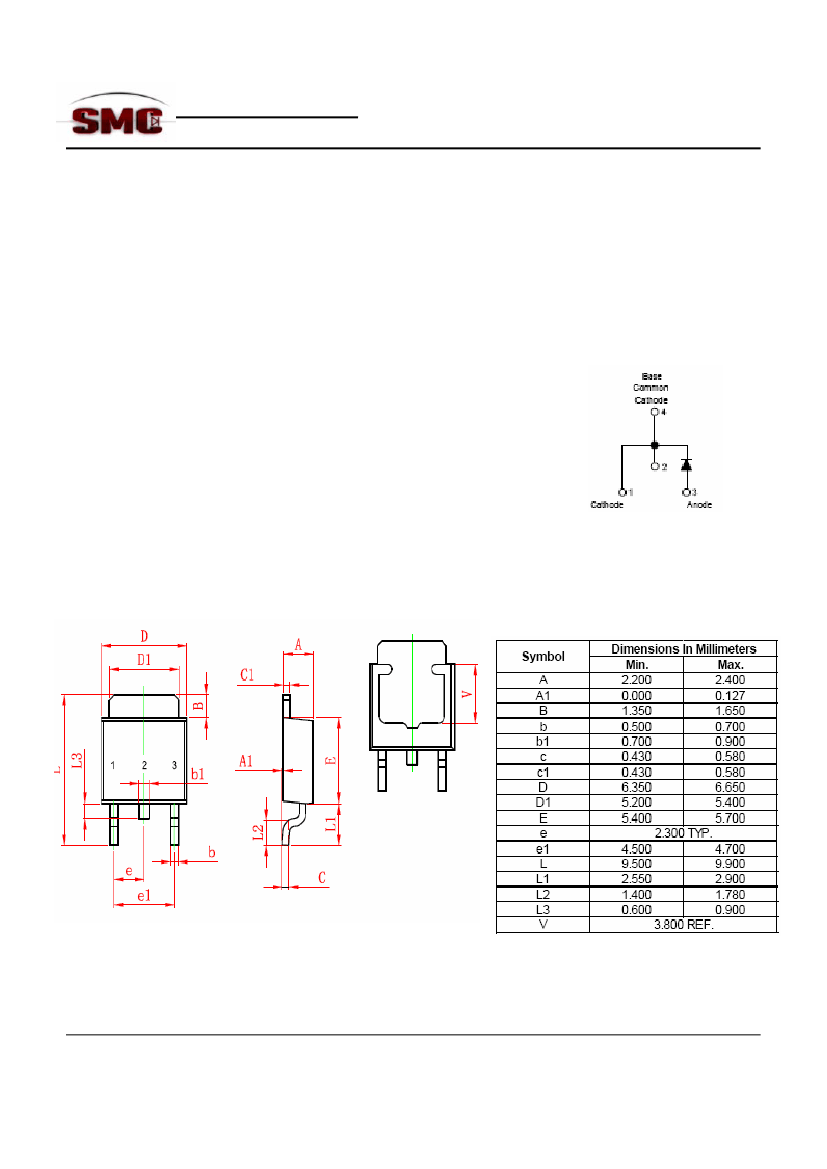

OPTION 3
DPAK
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0335, Rev. -
MURD860
Green Products
Marking Diagram:
Where XXXXX is YYWWL
MUR
D
8
60
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (8A)
= Reverse Voltage (600V)
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
MURD860
Package
DPAK
(Pb-Free)
Shipping
2500 pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0335, Rev. -
MURD860
Green Products
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @T
A
=100°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage (per element)
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 8.0A, T
J
=25°C
@I
F
= 8.0A,T
J
=100°C
@T
A
= 25°C
@T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
Io
I
FSM
V
FM1
V
FM2
I
RM
Trr
dv/dt
R
θJA
T
STG
，
T
J
wt
MURD860
600
420
8.0
110
2.2
2.0
5.0
50
50
10,000
25
-55 to +150
0.39
DPAK
Unit
V
V
A
A
V
V
µA
ns
V/µs
K/W
°C
g
Maximum Reverse Recovery Time (Note 1)
Max. Voltage Rate of Change
Typical Thermal Resistance Junction to Ambient
(Note 2)
Storage Temperature Range
Approximate Weight
Case Style
Note:
1. Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
2. Mount on Cu-Pad Size 16mm×16mm on P.C.B.
•
