Spec Sheet
CERAMIC CAPACITORS
Standard Multilayer Ceramic Capacitors (Temperature compensating type)
UMK105CG511JV-F
Features
Item Summary
50V, C0G, 510pF, ±5%, 0402
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Q (min)
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0402/1005
50V
510pF
±5%
10,000 MΩ min.
1000
C0G/CG
-55 to +125℃/-55 to +125℃
Yes
Yes
Reflow
External Dimensions
L
W
T
e
1.0mm ±0.05
0.5mm ±0.05
0.5mm ±0.05
0.25mm ±0.10
2014.12.23
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK105CG511JV
50V 1005 CG/C0G 510pF +/- 5% t=0.55mmMAX
50V 0402 CG/C0G 510pF +/- 5% t=0.022inchMAX

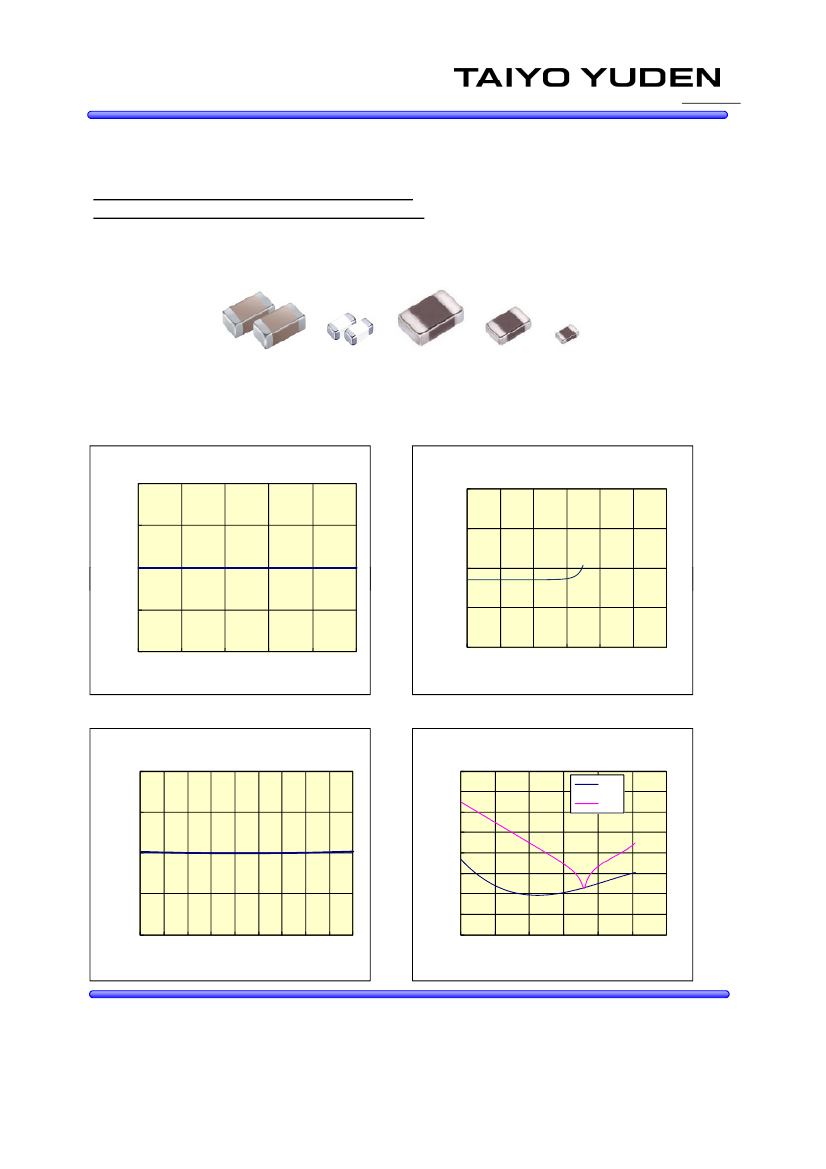

-Electrical Characteristics Data-
13CDD05
RoHS compliance product
10
UMK105CG511JV
DC Bias Char.
100000
10000
UMK105CG511JV
Capa citance Freq.
5
0
Capa cita nce[pF]
apa
n
dC/C
dC/C[%]
1000
100
10
-5
-10
0
10
20
30
40
DC Bias Voltage[V]
50
0.1
1
10
100
1000 10000100000
Frequency[MHz]
UMK105CG511JV
Capacitance Temp.
10
100000
10000
5
1000
UMK105CG511JV
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
100
10
1
0.1
-5
0.01
-10
0.001
0.1
1
10
100 1000 10000100000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
