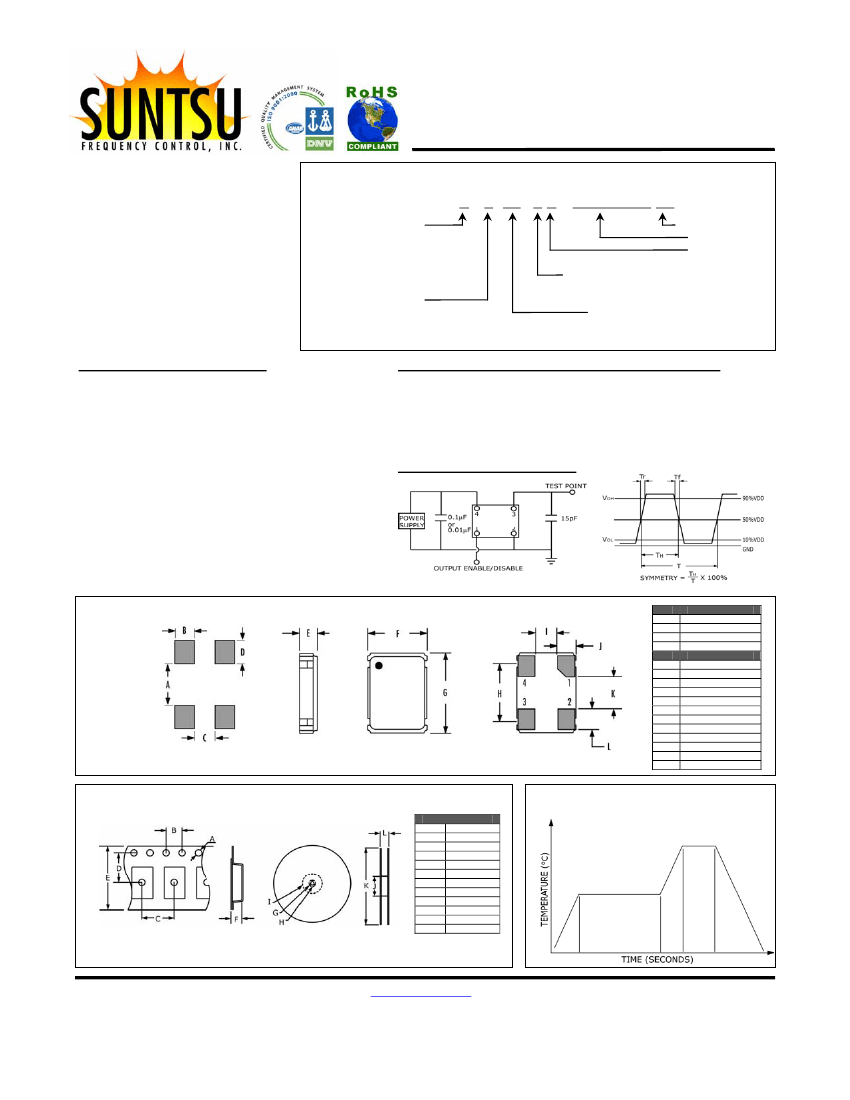

SOE SERIES
3.2X2.5 CERAMIC SMT 4 PAD CRYSTAL OSCILLATOR
RoHS COMPLIANT
SOE SERIES FEATURES
AVAILAABLE TO ±20ppm
ULTRA-MINIATURE PACKAGE
CMOS/TTL COMPATIBLE
TRI-STATE FUNCTION
TAPE AND REEL
RoHS COMPLIANT
3.3±0.33 V
FREQUENCY STABILITY
A: ±100ppm
B: ±50ppm
C: ±25ppm
D: ±20ppm
PART NUMBERING GUIDE
SOE A
3 48 T X - 25.000MHz TR
TAPE AND REEL
FREQUENCY
LOAD
BLANK: 15pF
X: 30pF
Y: 50pF
SUPPLY VOLTAGE
3: 3.3±0.3 V
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
CAGE CODE: 4GUT4
DUTY CYCLE
BLANK: 40%/60%
T: 45%/55%
OPERATING TEMPERATURE RANGE
BLANK: 0°C to + 70°C
27: -20°C to + 70°C
48: -40°C to + 85°C
ELECTRICAL SPECIFICATIONS
FREQUENCY RANGE:
STORAGE TEMPERATURE:
DUTY CYCLE:
CMOS - 50% OF WAVEFORM
TTL – 1.4V
CURRENT CONSUMPTION:
1.544MHz - 9.999MHz
10.000MHz – 34.999MHz
35.000MHz – 49.999MHz
50.000MHz - 80.000MHz
LOAD:
CMOS:
TTL:
START-UP TIME:
RISE/FALL TIME:
TRI-STATE FUNCTION (PIN 1)
1.544MHz-80.000MHz
-55°C TO 125°C
40%/60%, 45%/55%
40%/60%
8.0mA MAX
10.0mA MAX
25.0mA MAX
35.0mA MAX
15pF/30pF/50pF MAX
10 TTL GATES
10mS MAX
10nS MAX
OUTPUT ENABLE HIGH
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
SOLDERABILITY:
RESISTANCE TO
SOLERING HEAT:
75cm ONTO 2mm STEEL PLATE (3 TIMES)
MIL-STD-883, METHOD 2002, CONDITION B
MIL-STD-883, METHOD 2007, CONDITION A
230°C, 3S (±5ppm)
260°C, 10S (±5ppm)
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
FUNCTION
TRI-STATE
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
1.0
0.95
0.8
1.2
1.2±0.1
2.50±0.15
3.20±0.15
2.20±0.1
1.0
0.75±0.1
1.30±0.1
0.9±0.1
TAPE AND REEL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
K
L
DIMENSIONS
Φ1.50
4.0
4.0
3.5
8.0
1.0
2.5
Φ13.5
21.6
60.0
180
9.0
REFLOW PROFILE
260°C
150°C
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
120 S
10 S
MAX
9 ORCHARD RD., SUITE 111
LAKE FOREST, CA 92630
WWW.SUNTSUINC.COM
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
REV. 01/09/09
TELEPHONE • 949.305.0220
FACSIMILE • 949.305.0221
Page 1 of 1
