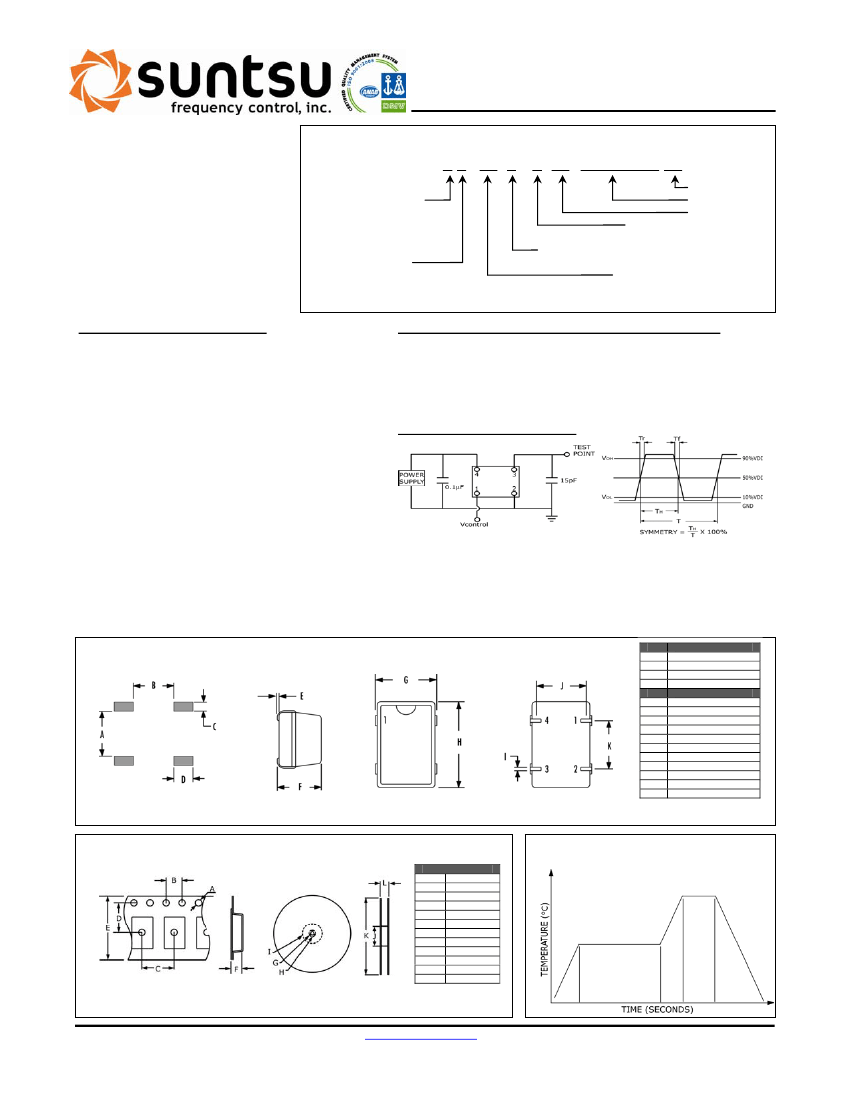

SVP SERIES
PLASTIC SMT 4 PAD VCXO
SVP SERIES FEATURES
AVAILBLE TO ±15ppm
J-LEAD PACKAGE
HCMOS/TTL COMPATIBLE
TAPE AND REEL
RoHS COMPLIANT
3.3±0.3V OR 5±0.5V
PART NUMBERING GUIDE
SVP A 3 48 T
FREQUENCY STABILITY
A: ±100ppm
B: ±50ppm
C: ±25ppm
D: ±20ppm
E: ±15ppm
SUPPLY VOLTAGE
3: 3.3±0.3 V
5: 5.0±0.5 V
B 10 -25.000MHz TR
TAPE AND REEL
FREQUENCY
PULLABILITY
A: ±150ppm
B: ±100ppm
C: ±50ppm
LINEARITY
10: ±10%
20: ±20%
DUTY CYCLE
BLANK: 40%/60%
T: 45%/55%
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
CAGE CODE: 4GUT4
OPERATING TEMPERATURE RANGE
BLANK: 0°C to + 70°C
27: -20°C to + 70°C
48: -40°C to + 85°C
ELECTRICAL SPECIFICATIONS
FREQUENCY RANGE:
AGING:
STORAGE TEMPERATURE:
DUTY CYCLE:
HCMOS - 50% OF WAVEFORM
TTL - 1.4V
CURRENT CONSUMPTION:
LOAD:
HCMOS:
TTL:
START-UP TIME:
RISE/FALL TIME:
JITTER:
VOLTAGE CONTROL:
5.0V
3.3V
10.000MHz-35.328MHz
±5ppm/FIRST YEAR
-55°C TO 125°C
40%/60%, 45%/55%
40%/60%, 45%/55%
35mA MAX
30pF MAX
10 TTL GATES
10mS MAX
10nS MAX
RMS: 10pS TYPICAL
2.5±2.0V
1.65±1.65V
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
SOLDERABILITY:
RESISTANCE TO
SOLERING HEAT:
30cm ONTO 2mm STEEL PLATE (3 TIMES)
MIL-STD-883, METHOD 2002, CONDITION B
MIL-STD-883, METHOD 2007, CONDITION A
230°C, 3S (±5ppm)
260°C, 10S (±5ppm)
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
FUNCTION
VOLTAGE CONTROL
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
3.81
5.81
1.20
3.00
0.25 MIN
4.70 MAX
9.80 MAX
14.00 MAX
0.51±0.2
7.62±0.2
5.08±0.2
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
TAPE AND REEL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
K
L
DIMENSIONS
Φ1.50
4.0
12.0
11.5
24.0
5.4
2.5
Φ13.5
21.6
80.0
330
25.5
REFLOW PROFILE
260°C
150°C
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
120 S
10 S
MAX
9 orchard rd., suite 111
lake forest, ca 92630
www.suntsuinc.com
page 1 of 1
telephone • 949.305.0220
facsimile • 949.305.0221
