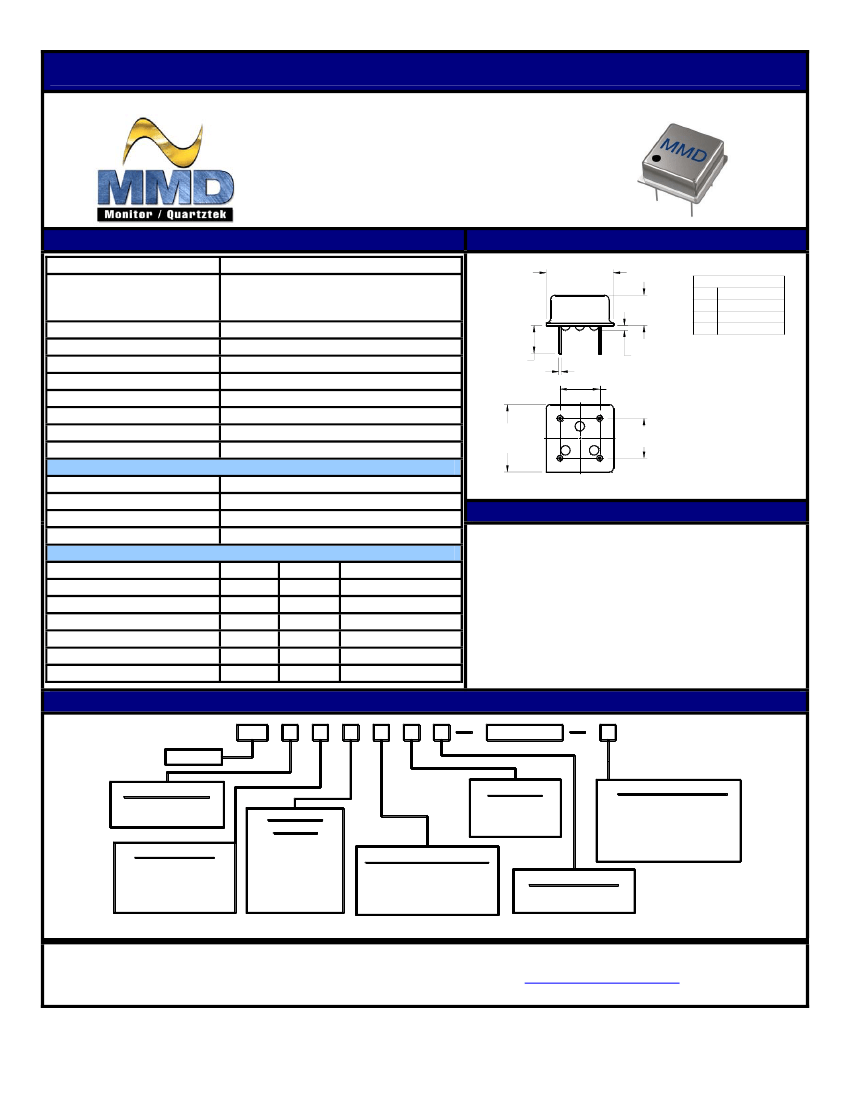

MBH Series
Industry Standard
Package
RoHS Compliant
Available
Tri-state Function
Wide Frequency Range
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Stability
(Inclusive of Temperature,
Load, Voltage and Aging)
Operating Temperature
Storage Temperature
Waveform
Logic “0”
Logic “1”
Duty Cycle
Load
Start Up Time
20.000kHZ to 200.000MHz
See Part Number Guide
MECHANICAL DETAILS:
12.90 [.508]
MAX
5.80 [.228]
MAX
Pin Connections
Pin 1 N/C or Tri-state
Pin 4 Case Ground
Pin 5 Output
Pin 8 Supply Voltage
See Part Number Guide
-55°C to +125°C
HCMOS
10% Vdd max
90% Vdd min
See Part Number Guide
10 TTL Gates or 50pF max
10mSec max
Rise/Fall Time
Up to 24.000MHz
10 nSec max
24.001MHz to 70.000MHz
6 nSec max
70.001MHz to 100.000MHz
4 nSec max
100.001MHz to 200.000MHz
2 nSec max
Supply Voltage (VDC ±10%) – Supply Current (in mA max)
+5.0
+3.3
+2.5/+1.8
20.000kHz to 24.000MHz
20
10
NA
24.001MHz to 50.000MHz
30
20
NA
50.001MHz to 70.000MHz
50
25
NA
70.001MHz to 200.000MHz
60
35
NA
24.000MHz to 30.000MHz
NA
NA
20
30.001MHz to 80.000MHz
NA
NA
40
5.33 [.210]
MIN
0.90 [.035]
0.46 [.018]
7.62 [.300]
8
5
Dimensions in Brackets
are in Inches
12.90 [.508]
MAX
1
4
7.62 [.300]
External Bypass Capacitor
Recommended
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYYMML
S = Internal Code
YYMM = Date Code (Year/Month)
L = Denotes RoHS Compliant
Line 3: XXXXX
Internal Manufacture Code
PART NUMBER GUIDE:
MBH
8 pin DIP
RoHS Compliant
Blank = Not Compliant
F = Is RoHS Compliant
Supply Voltage
5 = +5.0 VDC
3 = +3.3 VDC
2 = +2.5 VDC
1 = +1.8 VDC
Frequency
Stability
010 = ±10 ppm
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
110 = ±10/10 ppm
Symmetry
Blank = 40/60%
A = 45/55%
B = 47.5/52.5%
Value Added Options
Blank = No Added Options
G1 = Gull-Wing (option 1)
G = Gull-Wing (option 2)
CLXXX = Cut Leads
XXX = Lead Length Code
FREQUENCY
Operating Temperature
Blank = 0°C to +70°C
Pin 1 Connection
27 = -20°C to +70°C
Blank = No Connect
48 = -40°C to +85°C
H = Tri-state
08 = 0°C TO +85°C
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision 11/13/06 I
