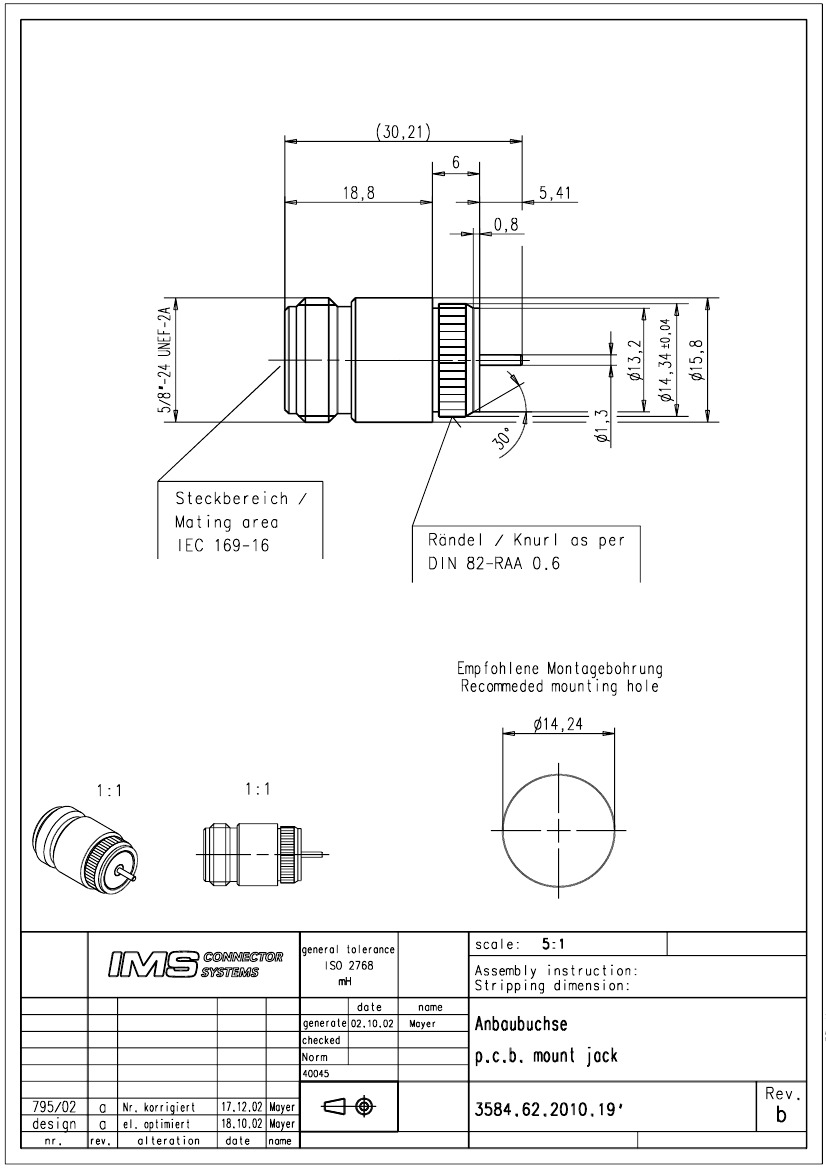

3584.62.2010.199 datasheet, PDF

3584.62.2010.199: DescriptionRF N Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

3584.62.2010.199 Overview

RF N Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
subject depth	0.976 inch
Body diameter	0.625 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	FEMALE
Contact resistance	1 mΩ
Contact style	COAX
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	10 A
Terminal length	0.213 inch
Termination type	SOLDER
Total number of contacts	1

	3584.62.2010.199	3584.62.2010.194
Description	RF N Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack	RF N Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack
Maker	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
Reach Compliance Code	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.976 inch	0.976 inch
Body diameter	0.625 inch	0.625 inch
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	1 mΩ	1 mΩ
Contact style	COAX	COAX
Durability	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	10 A	10 A
Terminal length	0.213 inch	0.213 inch
Termination type	SOLDER	SOLDER
Total number of contacts	1	1
