SBR6200CTL
Green
6A SBR
SUPER BARRIER RECTIFIER
®
Product Summary
(@ T
A
= +25°C)
V
RRM
(V)
200
I
O
(A)
3(Per leg)
V
F(MAX)
(V)
0.85
I
R(MAX)
(mA)
0.1
Features and Benefits
•
•
•
•
•
•
Ultra-Low Forward Voltage Drop
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
Applications
•
•
•
Switching Power Supplies
DC-DC Converter
Freewheeling Diodes
Mechanical Data
•
•
•
•
•
•
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight: 0.4 grams (Approximate)
1
2
3

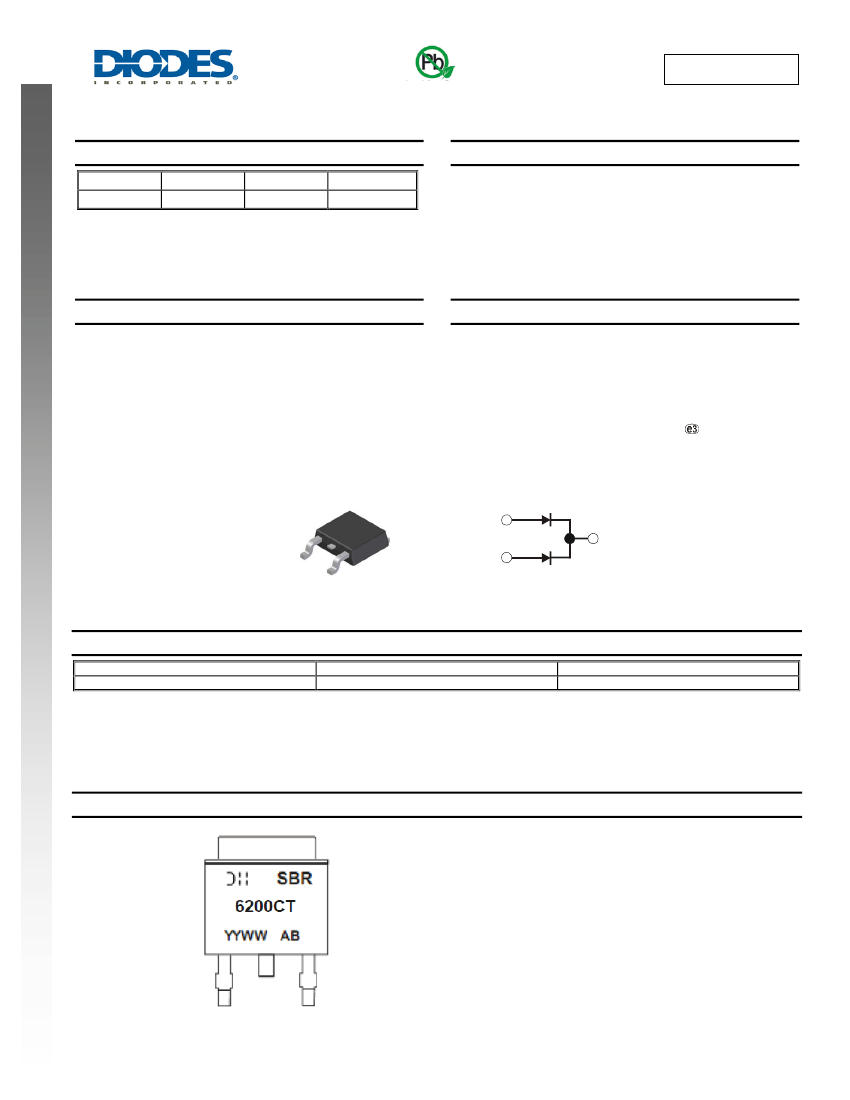

Top View
Package Pin Out Configuration
Ordering Information
(Note 4)
Part Number
SBR6200CTL-13
Notes:
Case
TO252
Packaging
2500 pieces/reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
6200CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 14 = 2014)
WW = Week (01 - 53)
SBR is a registered trademark of Diodes Incorporated
SBR6200CTL
Document number: DS31342 Rev. 4 - 2
1 of 5
www.diodes.com
September 2014
© Diodes Incorporated
SBR6200CTL
Maximum Ratings (Per Leg)
(@T
A
= +25°C unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current per Device
(Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
200
3
6
80
Unit
V
A
A
NEW PRODUCT
Thermal Characteristics (Per Leg)
Characteristic
Typical Thermal Resistance (Note 5)
Operating and Storage Temperature Range
Symbol
R
θ
JC
T
J
, T
STG
Value
5
-65 to +175
Unit
°C/W
°C
Electrical Characteristics (Per Leg)
(@T
A
= 25°C unless otherwise specified.)
Characteristic
Forward Voltage Drop (per leg)
Leakage Current (Note 6) (per leg)
Notes:
Symbol
V
F
I
R
Min
—
—
Typ
0.80
0.65
—
Max
0.85
0.70
0.1
10
Unit
V
mA
Test Condition
I
F
= 3A, T
J
= +25°C
I
F
= 3A, T
J
= +125°C
V
R
= 200V, T
J
= +25°C
V
R
= 200V, T
J
= +125°C
5. Device mounted on 2inch sq. Al board. minimum recommended pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
SBR is a registered trademark of Diodes Incorporated
SBR6200CTL
Document number: DS31342 Rev. 4 - 2
2 of 5
www.diodes.com
September 2014
© Diodes Incorporated
SBR6200CTL
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
3.0
100
2.5
P
D
, POWER DISSIPATION (W)
10
2.0
1
T
A
= 125°C
NEW PRODUCT
1.5
0.1
T
A
= 85°C
T
A
= 25°C
1.0
0.01
0.5
0.001
0.0001
600
800
1,000
400
200
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

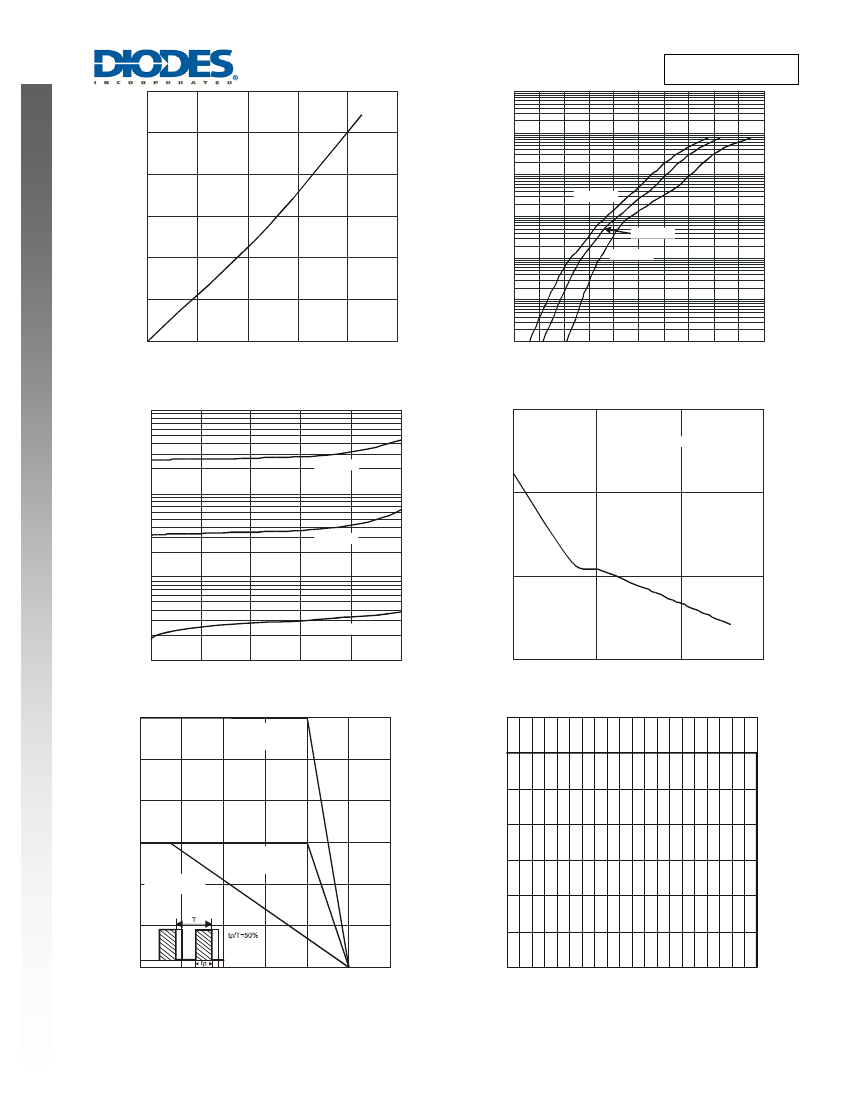

Fig. 2 Typical Forward Characteristics
0
0
1
2
3
4
5
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 1 Forward Power Dissipation
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
100
10,000
f = 1MHz
T
A
= 125°C
C
T
, TOTAL CAPACITANCE (pF)
10
1,000
T
A
= 85°C
1
100
T
A
= 25°C
0.1
0
40
80
120
160
200
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
R
θ
JA
= R
θ
JC
Total Device
10
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
6
175
T
A
, DERATED AMBIENT TEMPERATURE (°C)
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
5
150
125
4
100
75
50
25
0
0
20
40 60 80 100 120 140 160 180 200
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
3
R
θ
JA
= R
θ
JC
Per Element
R
θ
JA
= 74°C/W
Per Element
2
1
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
175
SBR is a registered trademark of Diodes Incorporated
SBR6200CTL
Document number: DS31342 Rev. 4 - 2
3 of 5
www.diodes.com
September 2014
© Diodes Incorporated
SBR6200CTL

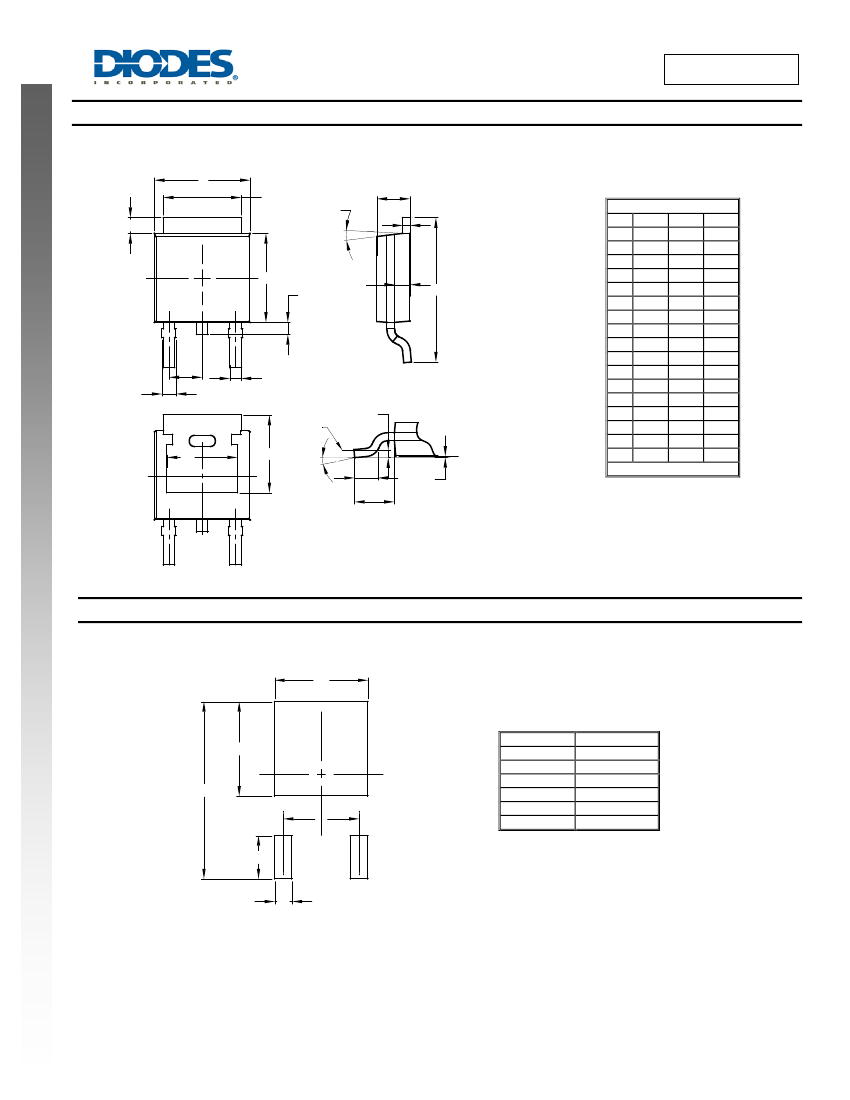

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
E
b3
7°±1°
L3
A
c
D
L4
A2
H
e
b2( 2x)
b( 3x)
Gauge Plane
0.508
E1
D1
L
2.74REF
a
Seating Plane
A1
TO252 (DPAK)
Dim Min Max Typ
A
2.19 2.39 2.29
A1
0.00 0.13 0.08
A2
0.97 1.17 1.07
b
0.64 0.88 0.783
b2
0.76 1.14 0.95
b3
5.21 5.46 5.33
c
0.45 0.58 0.531
D
6.00 6.20 6.10
D1
5.21
-
-
e
-
-
2.286
E
6.45 6.70 6.58
E1
4.32
-
-
H
9.40 10.41 9.91
L
1.40 1.78 1.59
L3
0.88 1.27 1.08
L4
0.64 1.02 0.83
a
0°
10°
-
All Dimensions in mm
NEW PRODUCT
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
Y1
Y2
C
Dimensions
C
X
X1
Y
Y1
Y2
Value (in mm)
4.572
1.060
5.632
2.600
5.700
10.700
Y
X
SBR is a registered trademark of Diodes Incorporated
SBR6200CTL
Document number: DS31342 Rev. 4 - 2
4 of 5
www.diodes.com
September 2014
© Diodes Incorporated
SBR6200CTL
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2014, Diodes Incorporated
www.diodes.com
NEW PRODUCT
SBR is a registered trademark of Diodes Incorporated
SBR6200CTL
Document number: DS31342 Rev. 4 - 2
5 of 5
www.diodes.com
September 2014
© Diodes Incorporated
