Q950108: DescriptionAll Dimension IN MM; File Size79KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

Q950108 Overview

All Dimension IN MM

Preview

Download Datasheet

View All

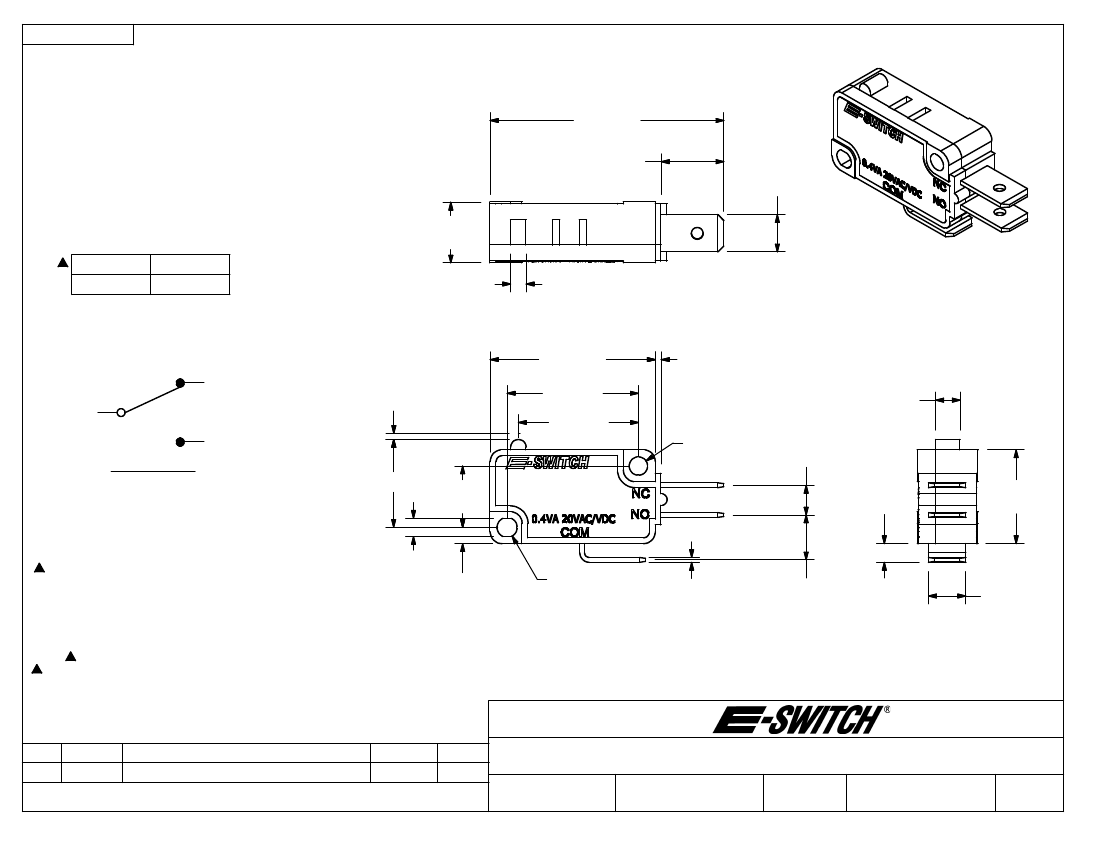

SHEET 1 OF 1

39.50

[1.555 in]

10.60

[.417 in]

6.30

[.248 in]

10.30

[.406 in]

O.P. (MM)

14.75

0.5

P.T. (MM)

.9 NOM

2.60

[.102 in]

O.P. = OPERATING POINT

P.T. = PRE-TRAVEL

27.90

[1.098 in]

COM

CIRCUIT: SPDT

O.P.

10.40

[.409 in]

P.T.

22.20

[.874 in]

20.30

[.799 in]

1.00

[.039 in]

4.15

[.163 in]

3.10

[.122 in]

5.05

[.199 in]

3.15

[.124 in]

15.90

[.626 in]

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=

0.4

X.XX=

0.25

3. RATING: 0.4VA @20VAC OR DC

3.10

4. OPERATING FORCE: 160

40 GRAMS

[.122 in]

5. OPERATING TEMP: -25

C TO 85

2.75

6. ELECTRICAL LIFE: 50,000 CYCLES.

[.108 in]

7. MECHANICAL LIFE: 1,000,000 CYCLES.

8. INSULATION RESISTANCE: >100 MEGA-OHMS @ 500VDC

9. DIELECTRIC STRENGTH: 1500VAC 1 MINUTE (INITAL VALUE)

10. CONTACT RESISTANCE: 100 MILLI -OHMS MAX.

11.

DENOTES CRITICAL PARAMETER.

12. CONTACTS: 10 MICRO INCHES MINIMUM GOLD PLATING (P/N Q990000)

13. 2002/95/EC (ROHS) COMPLIANT

3.40

[.134 in]

.80

[.031 in]

7.60

[.299 in]

6.30

[.248 in]

REV

21147

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

6/4/13

DATE

EBP

TITLE

LS085R100F160C2A

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

6/4/2013

EBP

Q950108
