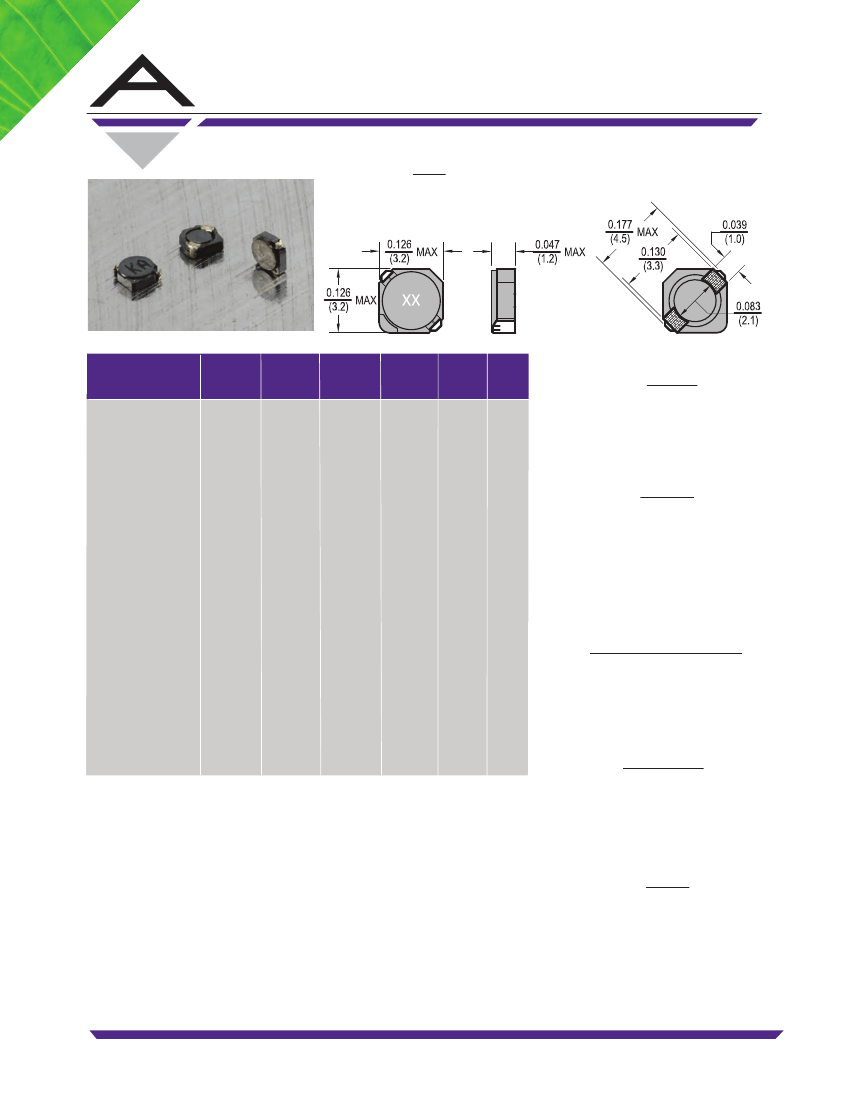

Power Chip Shielded Inductors
Dimensions:
Inches
(mm)
PCS2D11
Allied
Part
Number
Inductance
(µh)
Tolerance
(%)
Test
Freq.
KHz,1v
DCR
(Ω)
Max
Rated
Current
(A)
Irms
(A)
Typ.
Features
• Shielded SMD Power Inductor
• Low profile suitable for pick and place
• Low DC resistance
• Ideal for DC-DC converter applications
PCS2D11-1R0T-RC
PCS2D11-1R5T-RC
PCS2D11-2R2T-RC
1.0
1.5
2.2
30
30
30
100
100
100
0.054
0.068
0.098
0.88
0.90
0.78
1.70
1.48
1.27
Electrical
Inductance Range:
1.0µh to 22µh
Tolerance:
30% over entire range
Also, available in tighter tolerances
Operating Temp:
-30ºC ~ +100ºC
Rated Current:
Current at which inductance
drop is equal to 35% typ.
Irms:
current at which
∆
T=40ºC temp rise
PCS2D11-3R3T-RC
3.3
30
100
0.123
0.60
1.02
PCS2D11-3R9T-RC
3.9
30
100
0.160
0.60
PCS2D11-4R7T-RC
4.7
30
100
0.170
0.50
0.88
PCS2D11-6R8T-RC
6.8
30
100
0.260
0.44
0.80
Resistance to Soldering Heat
Pre-Heat 150ºC, 1 Min.
Solder Composition:
Sn/Ag3.0/Cu0.5
Solder Temp:
260ºC +/- 5ºC for
10 sec. +/- 1 sec.
PCS2D11-100T-RC
10
30
100
0.400
0.35
0.65
PCS2D11-150T-RC
PCS2D11-220T-RC
15
22
30
30
100
100
0.600
0.950
0.25
0.16
Test Equipment
(L):
PM3260A / HP4284A / HP4285A
(RDC):
Chen Hwa 502BC
Rated Current:
HP4284A+HP42841A or
Chen Hwa 1061 + Chen Hwa 301A
All specifications subject to change without notice.
Physical
Packaging:
1000 pieces per 7 inch reel.
Marking:
2 Character Alpha Code
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED
15
04/05/13
www.alliedcomponents.com
