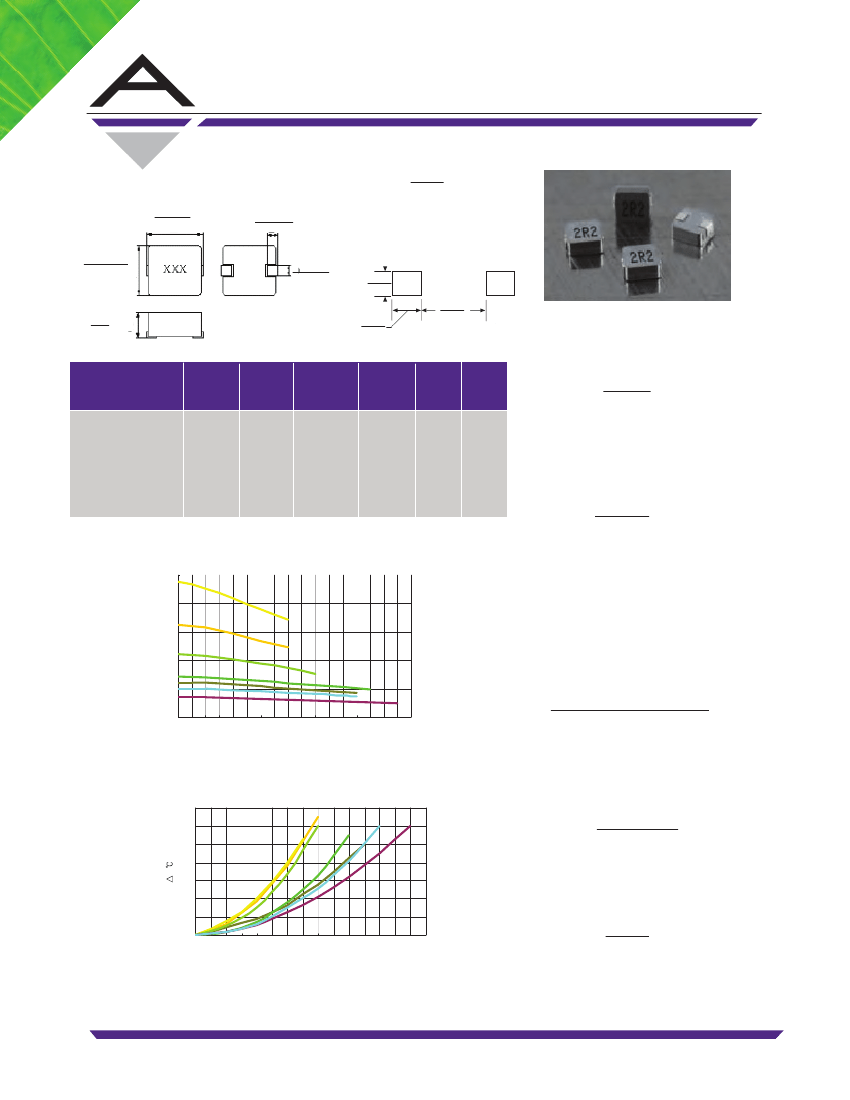

SMD High Current Shielded Choke
PCHC530R8
Inches
(mm)
Dimensions:
.224±.008
MAX
(5.7±0.2)
.059+/-.012
(1.5+/-0.3)
(Recommended Solder Pads)
.212+/-.014
(5.4+/-0.35)
.079±.012
(2.0±0.3)
.099
(2.5)
.075
(1.9)
.161
(4.1)
.118
MAX
(3.0)
Allied
Part
Number
PCHC530R8-R68M-RC
PCHC530R8-1R0M-RC
PCHC530R8-1R2M-RC
PCHC530R8-1R5M-RC
PCHC530R8-2R2M-RC
PCHC530R8-3R3M-RC
PCHC530R8-4R7M-RC
Inductance
(µH)
Tolerance
(±%)
Test
Frequency
(KHz, 0.5V)
RDC
(mΩ)
Max
12
15
15
25
35
46
60
Isat
(A)
Typ
14
11
11
10
8
7
6
Irms
(A)
Typ
8.0
7.0
6.5
6.0
5.0
4.5
4.0
Features
•
•
•
•
Magnetically shielded construction
Ultra High saturation current up to 14A
Low RD Resistance
Expanded operating temp range
.68
1.0
1.2
1.5
2.2
3.3
4.7
20
20
20
20
20
20
20
100
100
100
100
100
100
100
• Suitable for pick and place
Electrical
Inductance Range:
.68µH to 4.7uH additonal
values available.
Tolerance:
20% over entire range
Test Frequency:
100KHz, 0.5Vdc
Operating Temp:
-55ºC ~ +125ºC
Storage Temp:
-55ºC ~ +125ºC
Temp. Rise:
∆
=40ºC Typical at heat rated
current.
Under no condition should the part exceed
125ºC.
Inductance drop: 30% typical at rated Isat
All specifications subject to change without notice.
Inductance v.s DC Current
5
4
4R7
3
3R3
2
2R2
1
1R5
1R2
1R0
R68
L(uH)
Resistance to Soldering Heat
Pre-Heat 150ºC, 1 minute.
Solder Composition:
Sn/Ag3.0/Cu0.5
Solder Temp:
260ºC ± 5ºC
Immersion Time:
10 sec. ± 1 sec.
0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17
DC Current(A)
Tem perature Change v.s DC Current
140
120
4R7
100
1R2
3R3
2R2
1R5
1R0
R68
Test Equipment
(L):
WK 3260B
DCR:
Chen HWA502
IDC:
3260B WK & DC Bias 3265B WK
△
T(
℃
)
80
60
40
20
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Physical
DC Current(A)
Packaging:
1000 pieces per 13 inch reel.
