ZMM5234B-13 Overview

6.2 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-213AA

Preview

Download Datasheet

View All

ZMM5221B - ZMM5267B

500mW SURFACE MOUNT ZENER DIODE

NOT RECOMMENDED FOR NEW DESIGN

SUGGESTED REPLACEMENT MMSZ52xx

Features

500mW Power Dissipation

Outline Similar to JEDEC DO-213AA

Hemetic Glass Package

Lead Free Finish, RoHS Compliant (Note 3)

Mechanical Data

Case: MiniMELF

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Sn97.5Ag2.5. Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Ordering Information: See Last Page

Marking: Cathode Band Only

Weight: 0.034 grams (approximate)

Dim

MiniMELF

Min

3.30

1.30

0.28

Max

3.70

1.60

0.50

All Dimensions in mm

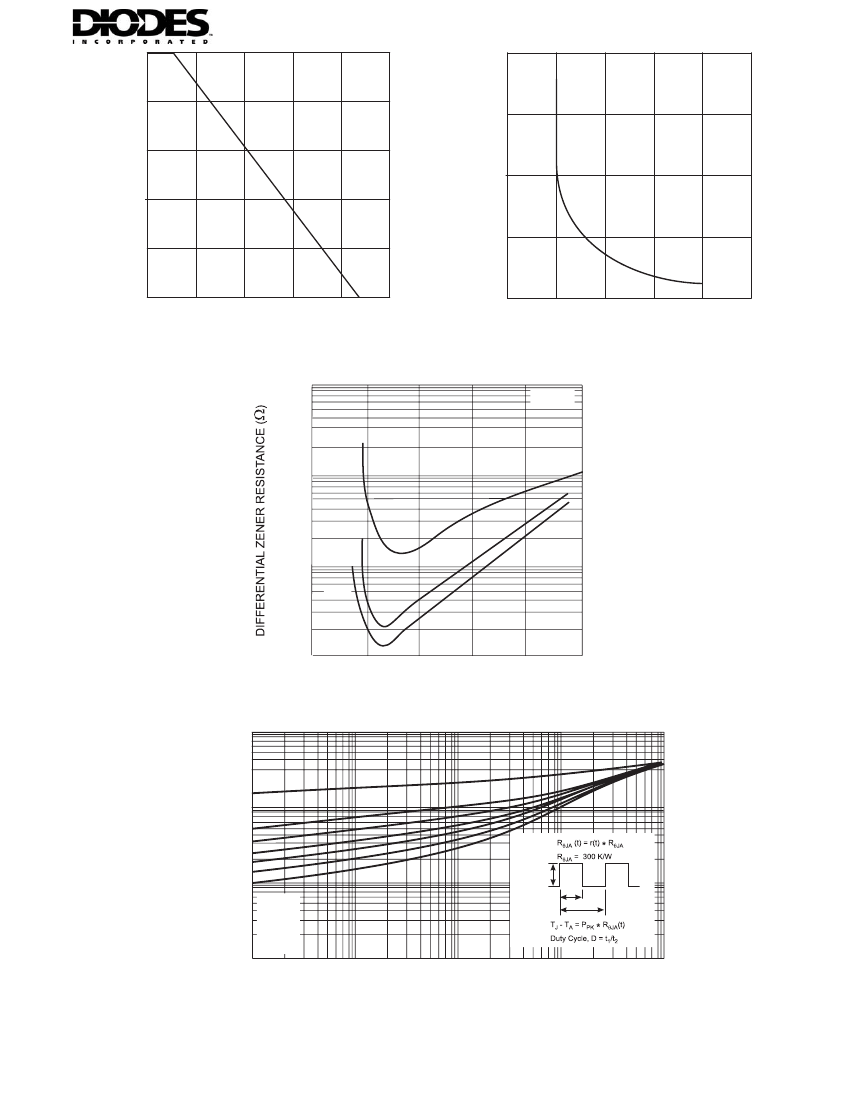

Maximum Ratings and Electrical Characteristics

Characteristic

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Forward Voltage

(Note 1)

qJA

@ T

= 25°C unless otherwise specified

Value

500

300

1.5

-65 to +175

Unit

°C /W

Symbol

@ I

= 200mA

Operating and Storage Temperature Range

Notes:

STG

1. Valid provided that electrodes are kept at ambient temperature.

2. Tested with pulses, T

100ms.

3. EC Directive 2002/95/EC (RoHS) revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied where applicable,

see

EU Directive Annex Notes 5 and 7.

DS30024 Rev. 5 - 3

1 of 5

www.diodes.com

ZMM5221B-ZMM5267B

Diodes Incorporated
