AP97T07GP-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Lower On-resistance
▼
RoHS Compliant & Halogen-Free
G
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
75V
3.6mΩ
220A
S
Description
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
through-hole applications.
G
D
TO-220(P)
S
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
C
=100℃
I
D
@T
C
=25℃
I
DM
P
D
@T
C
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@ 10V(Silicon Limited)
Continuous Drain Current, V
GS
@ 10V(Silicon Limited)
Continuous Drain Current, V
GS
@ 10V(Package Limited)
Rating
75
+20
220
150
120
880
375
-55 to 175
-55 to 175
Units
V
V
A
A
A
A
W
℃
℃
Pulsed Drain Current
1
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maixmum Thermal Resistance, Junction-ambient
Value
0.4
62
Units
℃/W
℃/W
1
200907281
Data and specifications subject to change without notice
AP97T07GP-HF
Electrical Characteristics@T
j
=25 C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
R
g
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
2
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
2
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=60A
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=60A
V
DS
=75V, V
GS
=0V
V
GS
= +20V, V
DS
=0V
I
D
=40A
V
DS
=60V
V
GS
=10V
V
DS
=40V
I
D
=40A
R
G
=25Ω,V
GS
=10V
R
D
=1Ω
V
GS
=0V
V
DS
=25V
f=1.0MHz
f=1.0MHz
Min.
75
-
2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
105
-
-
120
18
66
72
240
210
275
1160
500
1.9
Max. Units
-
3.6
4
-
10
+100
192
-
-
-
-
-
-
-
-
-
V
mΩ
V
S
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Ω
o
4300 6880
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Reverse Recovery Time
2
Test Conditions
I
S
=40A, V
GS
=0V
I
S
=40A, V
GS
=0V
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
85
205
Max. Units
1.3
-
-
V
ns
nC
Reverse Recovery Charge
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP97T07GP-HF
320
160
T
C
= 25 C
o
10V
8.0V
7.0V
I
D
, Drain Current (A)
120
T
C
= 175
o
C
I
D
, Drain Current (A)
240
10V
8.0V
7.0V
6.0V
6.0V
160
80
V
GS
=5.0V
80
V
GS
=5.0V
40
0
0
4
8
12
16
20
24
28
0
0
4
8
12
16
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

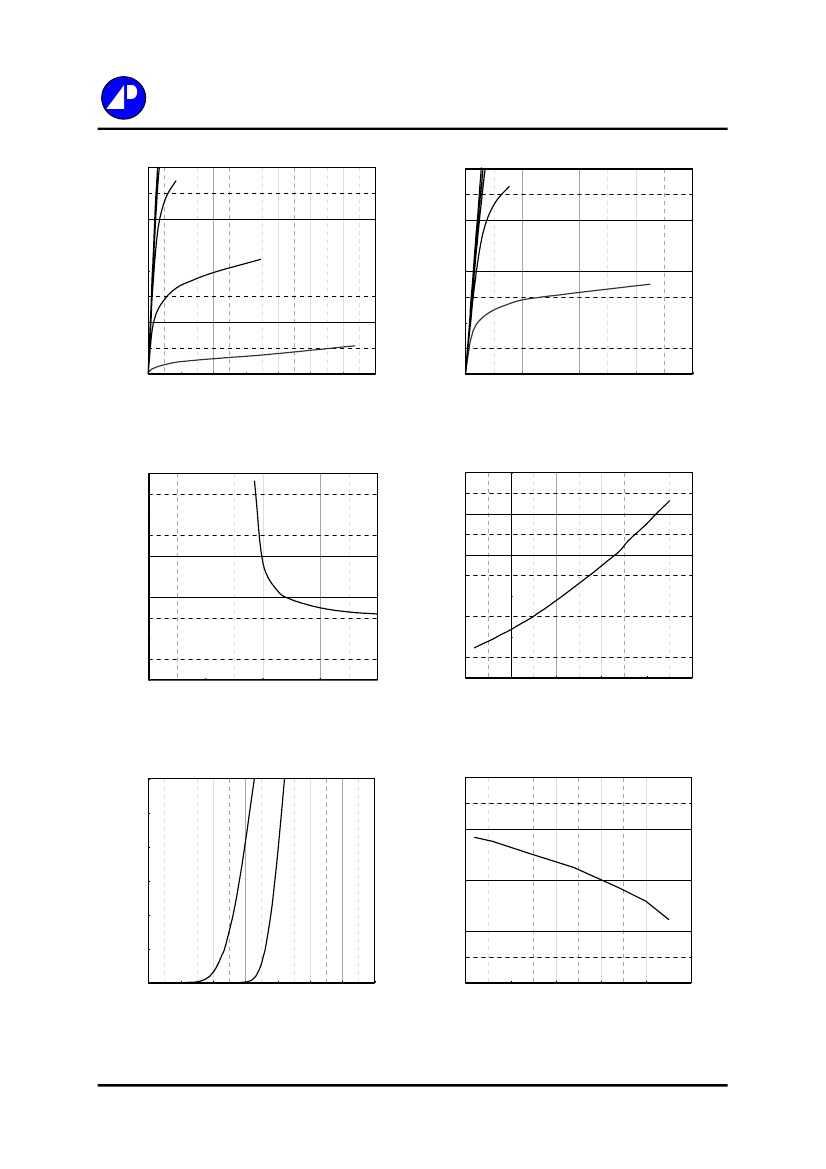

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
10
2.4
I
D
=40A
8
T
A
=25
o
C
Normalized R
DS(ON)
I
D
=60A
V
G
=10V
2.0
R
DS(ON)
(m
Ω
)
6
1.6
4
1.2
2
0.8
0
2
4
6
8
10
0.4
-50
0
50
100
150
200
V
GS
,Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.6
60
50
Normalized V
GS(th)
(V)
1.2
40
I
S
(A)
T
j
=175
o
C
30
T
j
=25
o
C
0.8
20
0.4
10
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0.0
-50
0
50
100
150
200
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP97T07GP-HF
12
6000
f=1.0MHz
I
D
= 40 A
V
GS
, Gate to Source Voltage (V)
10
V
DS
=40V
V
DS
=45V
V
DS
=60V
C (pF)
5000
8
4000
C
iss
6
3000
4
2000
2
1000
C
oxx
C
rss
0
0
40
80
120
160
0
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
V
DS
, Drain-to-Source Voltage (V)

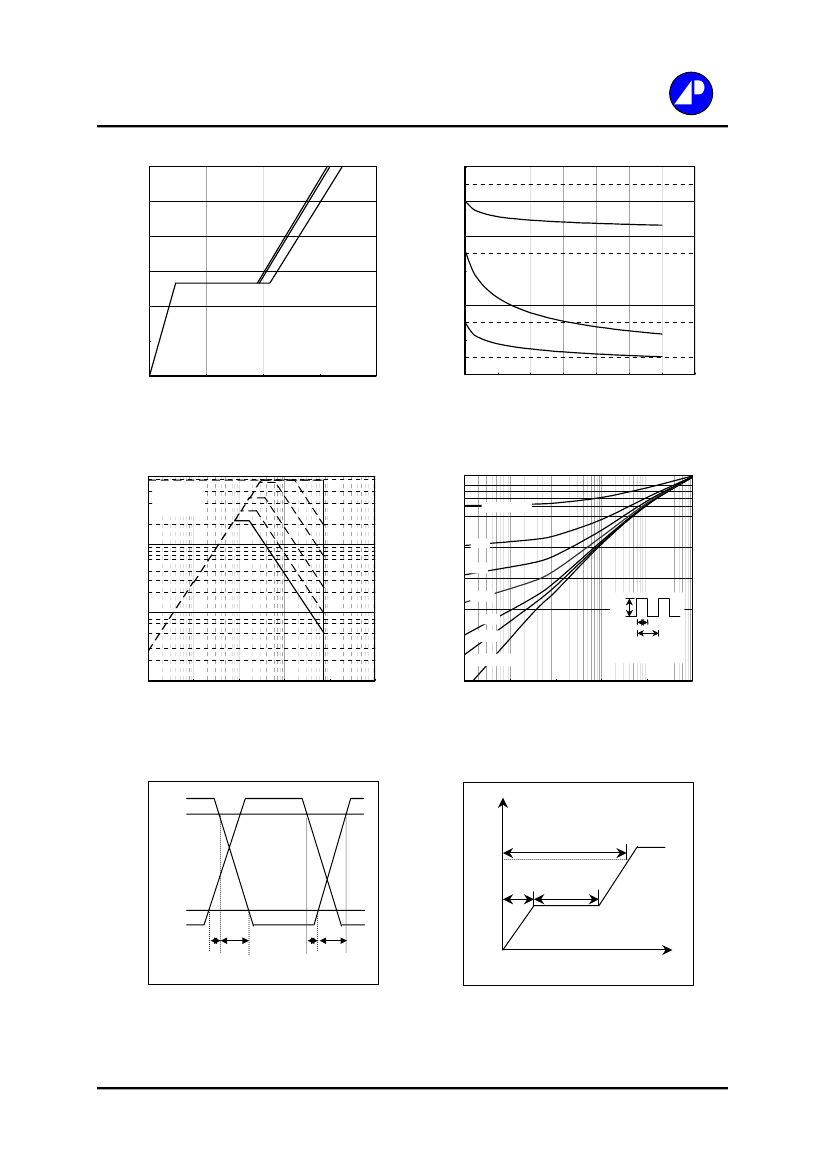

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
1000
1
Normalized Thermal Response (R
thjc
)
Operation in this
area limited by
R
DS(ON)
Duty factor=0.5
100us
100
0.2
I
D
(A)
1ms
10ms
10
0.1
0.1
0.05
P
DM
0.02
t
T
T
c
=25
o
C
Single Pulse
1
100ms
DC
0.01
Single Pulse
Duty factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
0.01
0.01
0.1
1
10
100
1000
0.00001
0.0001
0.001
0.01
0.1
1
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
10V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
