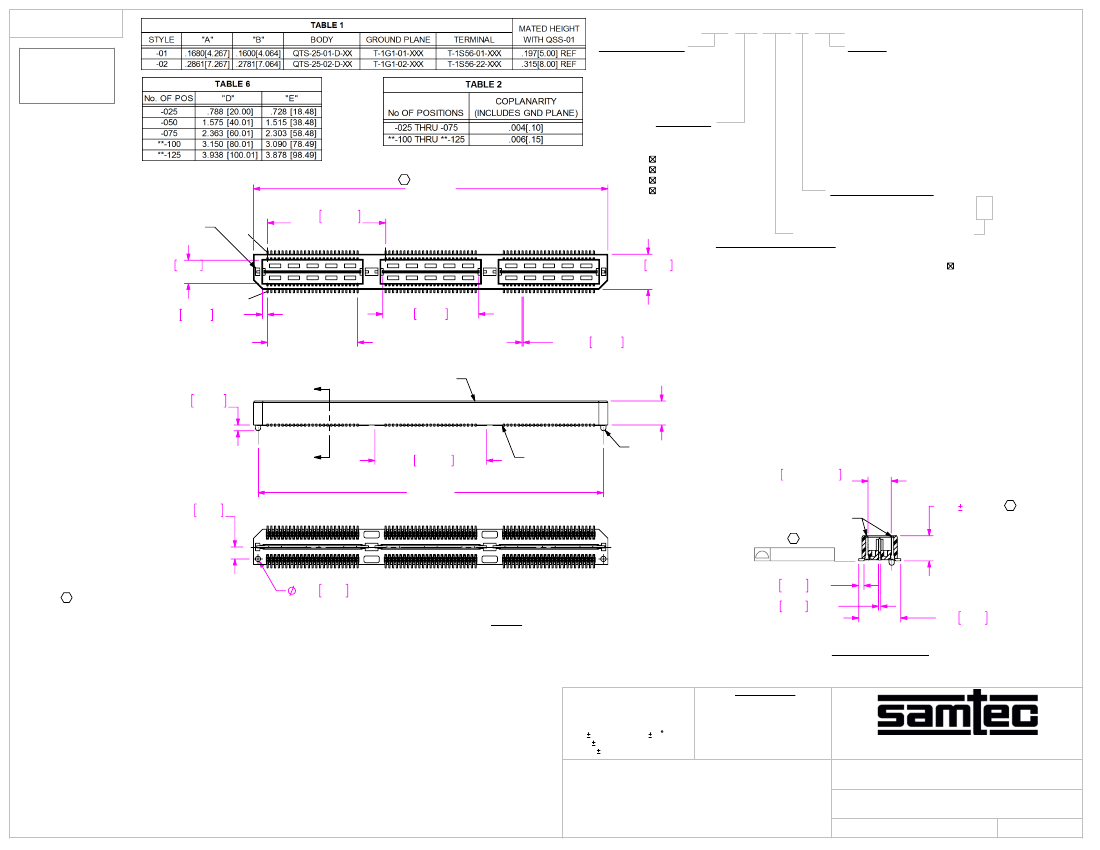

REVISION AG
DO NOT
SCALE FROM
THIS PRINT
QTS-XXX-XX-XXX-D-XXX
No OF POSITIONS
-025, -050, -075,
**-100, **-125
(PER ROW)
** (SEE NOTE 17)
LEAD STYLE
** = SEE NOTE 17
** = SEE NOTE 17
C
"D" REF
*
*
-01: .1680[4.267]
-02: .2861[7.264]
-03: .4043[10.269]
-04: .6001[15.246]
-05: .7181[18.240]
-06: .8361[21.237]
OPTION
-LC: LOCKING CLIPS (SEE NOTE 10 AND NOTE 15)
(USE LC-08-TM-01)
-A: ALIGNMENT PINS (SEE NOTE 10)
(USE QTS-25-XX-D-XX-A)
-K: POLYIMIDE FILM PAD
(USE K-DOT-.276-.375-.005, SEE FIG 3, SHT 2)
-GP: GUIDE POST, (SEE FIG 4, SHT 2)
(AVAILABLE ON STYLE -01 ONLY)
-TR: TAPE & REEL (75 POS MAX)
(N/A ON STYLE -05 & -06)
ROW SPECIFICATION
-D: DOUBLE (USE QTS-25-XX-D-XX
& QTSH-25-XX-D-XX )
No OF BANKS
= SEE SHEET 3
* = NOT TOOLED
SEE NOTE 13
.155 3.94 REF
(SEE NOTE 16)
01
.7875 20.003
(TYP)
.235 5.97
REF
02
.0325 0.826 REF
24 EQ SPACES
@ .0250[0.635]
=.600[15.24]
(TYP)
"A"
.639 16.24 REF
.0080 0.203 REF
QTS-25-XX-D-XX-A
"B" REF
R
.0375 0.953
REF
-F: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
(USE T-1SXX-XX-F & T-1G1-XX-F)(SEE NOTE 11)
-L: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
(USE T-1SXX-XX-L & T-1G1-XX-L)
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE T-1SXX-XX-H & T-1G1-XX-G)
-C: 50µ" HEAVY GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
(USE T-1SXX-XX-C & T-1G1-XX-L)
-STL: 30µ" HEAVY SELECTIVE GOLD IN
CONTACT AREA, TIN LEAD ON TAIL
(USE T-1SXX-XX-STL & T-1G1-XX-STL)
-FTL: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, TIN LEAD ON TAIL
(USE T-1SXX-XX-FTL & T-1G1-XX-FTL)
PLATING SPECIFICATION
"A"
.7450 18.923 REF
"E" REF
T-1G1-XX-XXX
.155±.005 3.94±0.127
(SEE NOTE 16)
T-1S56-XX-XXX
C
.080 2.03
REF
"A"
(SEE NOTE 8, 9 & 12)
.003[.08]
.001[.03]
C
NOTES:
SEE TABLE 2
(SEE NOTE 9 & 12)
.035 0.89 REF
.035 0.90 REF
.015 0.38 REF
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. DELETED.
3. DELETED.
4. MINIMUM TERMINAL RETENTION: 6 OZ.
5. MINIMUM GROUND PLANE RETENTION: 1 LB.
6. DELETED.
7. PARTS TO BE MOLDED TO POSITION.
8. MAXIMUM VARIANCE OF .002[0.05].
9. DIMENSION APPLIES TO TERMINALS AND GROUND PLANES INDEPENDENT OF
THE GROUND PLANE OR TERMINAL RESPECTIVELY.
10. LEAD STYLES -03 AND -05: TOP BODY (QTS) CANNOT HAVE -A OPTION AND
-04 AND -06 CAN USE EITHER -A OR -LC BODY.
11. T-1SXX-XX-L CAN BE SUBSTITUTED FOR T-1SXX-XX-F.
12. GROUND PLANE PRESS HEIGHT MUST BE .003[.08] LESS THAN THE MAX
HEIGHT OR .001[0.03] GREATER THAN THE MINIMUM HEIGHT OF THE TERMINALS.
13. WINDOW NOT PRESENT ON LEAD STYLES -02 THRU -06 HEIGHT
PER REV. E OF THE QTS-25-XX-D-XX-X-XX.
14. NOTE DELETED.
15. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC
OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
16. PIN CAN EXTEND PAST WALL .003[0.08] MAX.
17. AVAILABLE FOR EXISTING CUSTOMERS ONLY.
18. DELETED.

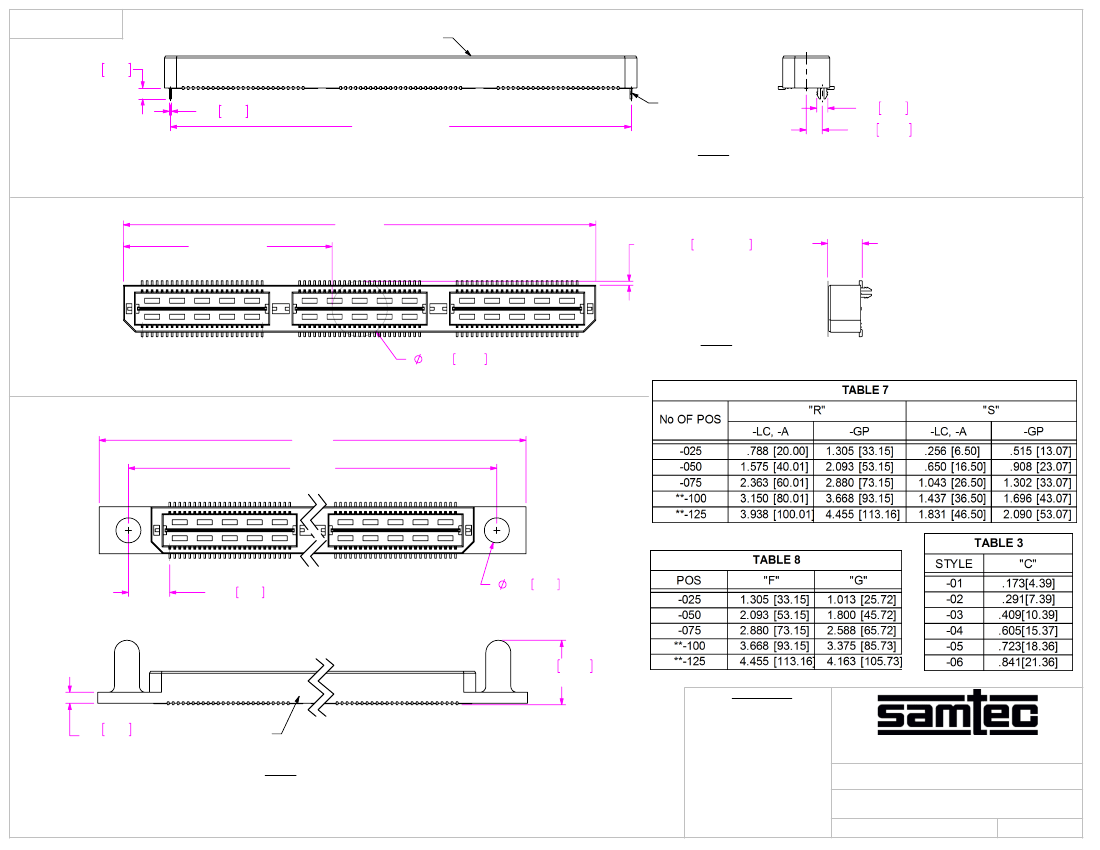

-A: ALIGNMENT PIN OPTION
(QTS-075-01-XXX-D-A SHOWN)
FIG 1
.280 7.11
SECTION "A"-"A"
*
PROPRIETARY NOTE
*
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
DECIMALS
ANGLES
2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, UL94V-0; COLOR: BLACK
TERMINAL: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
F:\DWG\MISC\MKTG\QTS-XXX-XX-XXX-D-XXX-MKT.SLDDRW
H.635mm DOUBLE ROW HS TERMINAL ASSEMBLY
DWG. NO.
BY:
DEAN P
QTS-XXX-XX-XXX-D-XXX
09-14-2010
SHEET
1
OF
3
REVISION AG
.055 1.40
QTS-25-XX-D-XX
.010 0.25 REF
LC-08-TM-01
"E"±.003[0.08]
(SEE TABLE 6, SHT 1)
.056 1.42 REF
.0800 2.032
-LC: LOCKING CLIP OPTION
(QTS-075-01-XXX-D-LC SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
"R" REF
"S"±.020[0.50]
.020±.020 0.508±0.50
"C"
(SEE TABLE 3)
.2760 7.010
-K: POLYIMIDE FILM PAD
(USE K-DOT-.276-.375-.005)
FIG 3
"F"REF
"G"REF
** = SEE NOTE 17
.206 5.24 REF
.125 3.18
REF
.3230 8.204
REF
** = SEE NOTE 17
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
.055 1.40
REF
QTS-25-01-D-XX-X-GP
-GP: GUIDE POST OPTION
(QTS-075-01-XXX-D-GP SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(AVAILABLE ON STYLE -01 ONLY)
F:\DWG\MISC\MKTG\QTS-XXX-XX-XXX-D-XXX-MKT.SLDDRW
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
H.635mm DOUBLE ROW HS TERMINAL ASSEMBLY
QTS-XXX-XX-XXX-D-XXX
09-14-2010
SHEET
2
OF
3
BY:
DEAN P
REVISION AG

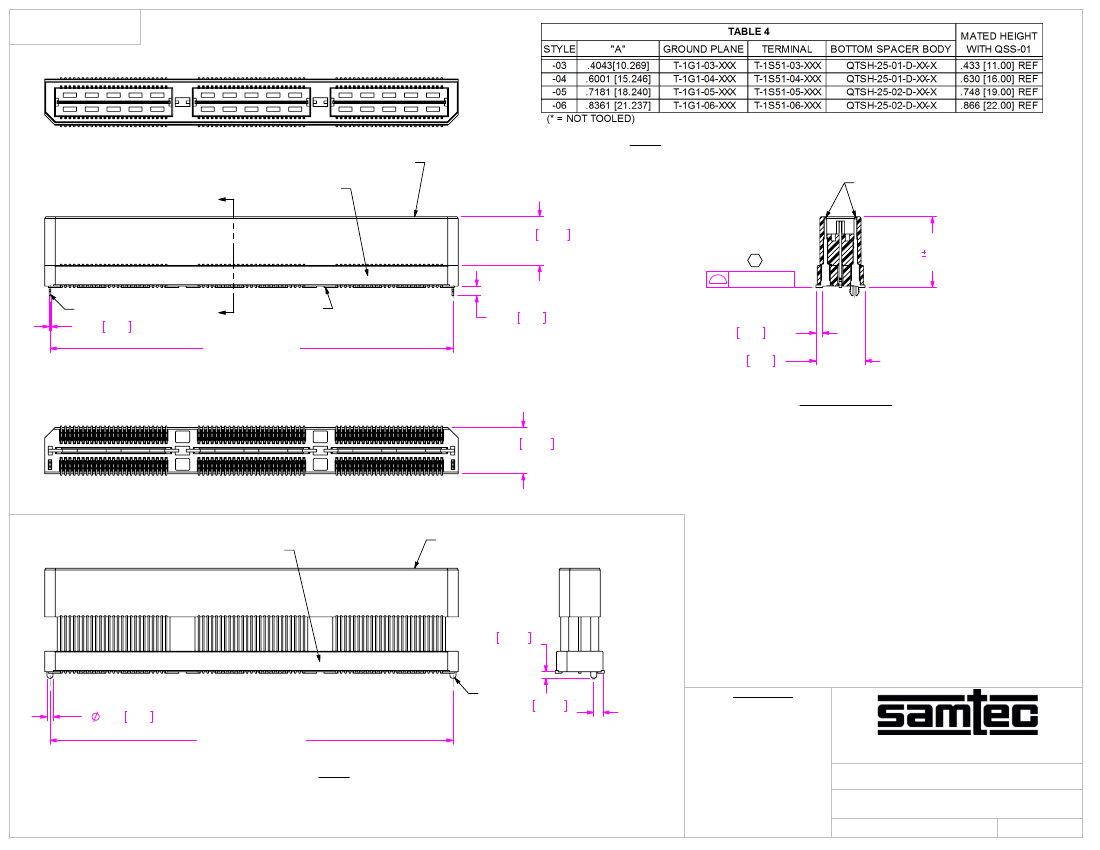

01
*
*
02
QTS-25-02-D-XX (SEE NOTE 10)
"B"
QTSH-25-XX-D-XX
(QTS-075-03-XXX-D-LC SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
T-1S51-XX-XXX
FIG 5
.2781 7.064
REF
C
SEE TABLE 2
(SEE SHEET 1)
(SEE NOTES 9 & 12)
.037 0.94 REF
.281 7.14
"A"
.001[.03]
(SEE NOTES 8, 9 & 12)
.003[.08]
LC-08-TM-01
.010 0.25 REF
"B"
T-1G1-XX-XXX
.055 1.40
"E"±.003[0.08]
(SEE TABLE 6, SHT 1)
SECTION "B"-"B"
.2650 6.731
REF
QTSH-25-XX-D-XX-A
QTS-25-02-D-XX (SEE NOTE 10)
.0375 0.953
REF
F:\DWG\MISC\MKTG\QTS-XXX-XX-XXX-D-XXX-MKT.SLDDRW
R
.035 0.89 REF
"E" REF
(SEE TABLE 6, SHT 1)
(QTS-075-04-XXX-D-A SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(STYLE -03, -04, -05 & -06)
.0525 1.334
REF
FIG 6
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.75:1
H.635mm DOUBLE ROW HS TERMINAL ASSEMBLY
QTS-XXX-XX-XXX-D-XXX
09-14-2010
SHEET
3
OF
3
BY:
DEAN P
