SMA8300L-0085 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SMA8300L-0085

SMA8300L-0085: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack; CategoryThe connector The connector; File Size293KB，2 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

SMA8300L-0085 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack

SMA8300L-0085 Parametric

Parameter Name	Attribute value
Maker	JYEBAO Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, LOCKING NUT
subject depth	0.748 inch
Body/casing type	JACK
Cable type	SEMI-RIGID
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	THREADED
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	SMA8300L
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.3

SMA8300L-0085 Preview

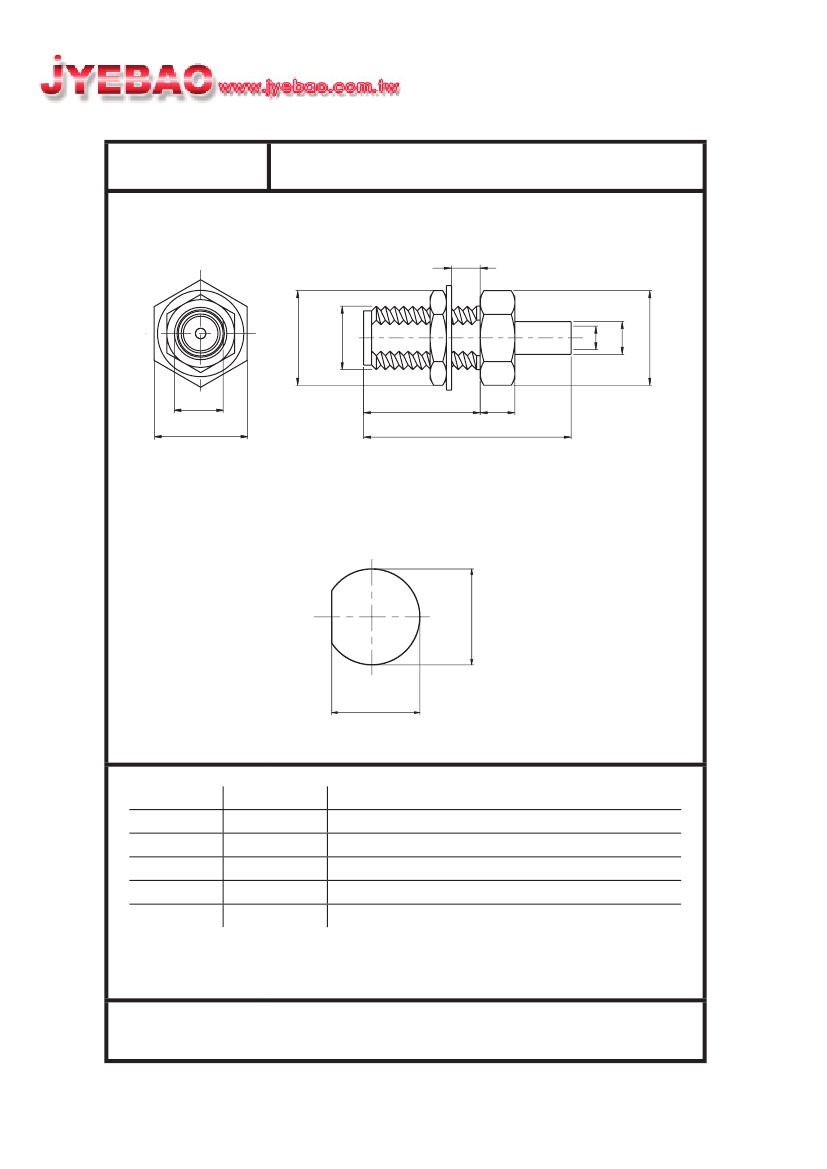

SMA8300L-0085

SMA Jack Solder For Bulkhead

50Ω

2.2 MAX

(.087 MAX)

8 HEX

(.315 HEX)

5.75

(.266)

8 HEX

(.315 HEX)

10.5

(.413)

(.748)

(.118)

MOUNTING HOLE :

(.236)

Parts

Hex Nut

Lock Washer

Contact Pin

Insulator

Body

Material

Brass

Beryllium Copper

Teﬂon

Brass

Plating (Micro-inch)

Gold 5 Over Nickel 50 Over Copper 50

Gold 20 Over Nickel 50 Over Copper 50

Gold 5 Over Nickel 50 Over Copper 50

Weight: 3.54 g

Suitable Cables: Semi-rigid.085

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.

6.5

(.256)

8 HEX

(.315 HEX)

1/4-36UNS

ø2.3

(ø.091)

ø3.5

(ø.138)

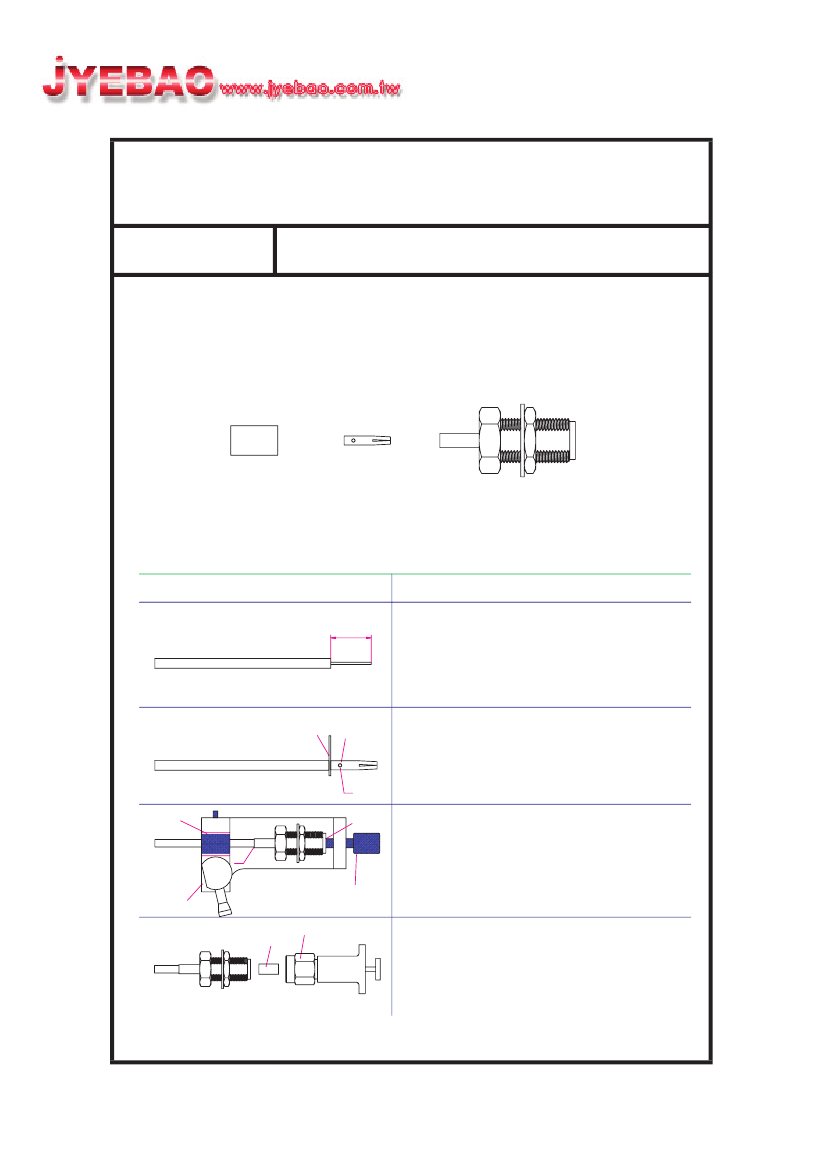

CABLE ASSEMBLY INSTRUCTION

SMA8300L-0085

JYE BAO CO., LTD.

INSULATOR

CONTACT PIN

BODY+HEX NUT

+LOCK WASHER

DIAGRAM

2.5

[.098]

ASSEMBLY INSTRUCTION

Step 1: STRIP AS SHOWN.

USE 0.3MM GAGE

Step 2: INSERT CABLE'S CENTER CONDUCTOR INTO

CENTER PIN AND SOLDER IN "Y", USE 0.3 MM

GAGE.

ST-009

Step3: PUT CABLE INTO SOLDERING FIXTURE "ST-008".

AND LOCK IT. PUT CONNECTOR AS SHOWN.

Step4: SCREW LOCATOR TOOL "ST-011" TO THE

POSITION AS SHOWN IN "S", AND SOLDER IN "X".

ST-011

ST-008

ST-004

Step5: USE DIELECTRIC INSERTION TOOL "ST-004" TO

INSERT THE TEFLON "A".

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
