FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 4 to 80 circuits
s
Easy breakaway to smaller sizes
s
Contact and plating orientation according to DIN 41651
s
North/south contact orientation avoids overstress
s
High pin retention
s
High mechanical stability after soldering
Electrical
Voltage: 350V
Current: 3.0A
Contact Resistance: 20m
Ω
max.
Insulation Resistance: 5000 M
Ω
min.
Mechanical
Contact Retention to Housing: 20N (2.0kgf) min.
Mating Force: 1N max. Gold and 3N max. Tin
Unmating Force: 0.2N min. Gold and 0.2N min. Tin
Normal Force: 1N
Physical
Housing: Black glass-filled polyester, UL 94V-0
Contact: Copper Alloy, 0.64mm (.025") square pins
Plating: See Table
Operating Temperature: -55 to +125˚C
2.54mm (.100") Pitch
C-Grid III
™
Kinked Pin Header
90630
Dual Row
Right Angle
C
2.54mm (.100") Pitch
Reference Information
Product Specification: PS-99020-0001
Packaging: Bag
Mates With: C-Grid III Housing and Connectors
Designed In: Inches

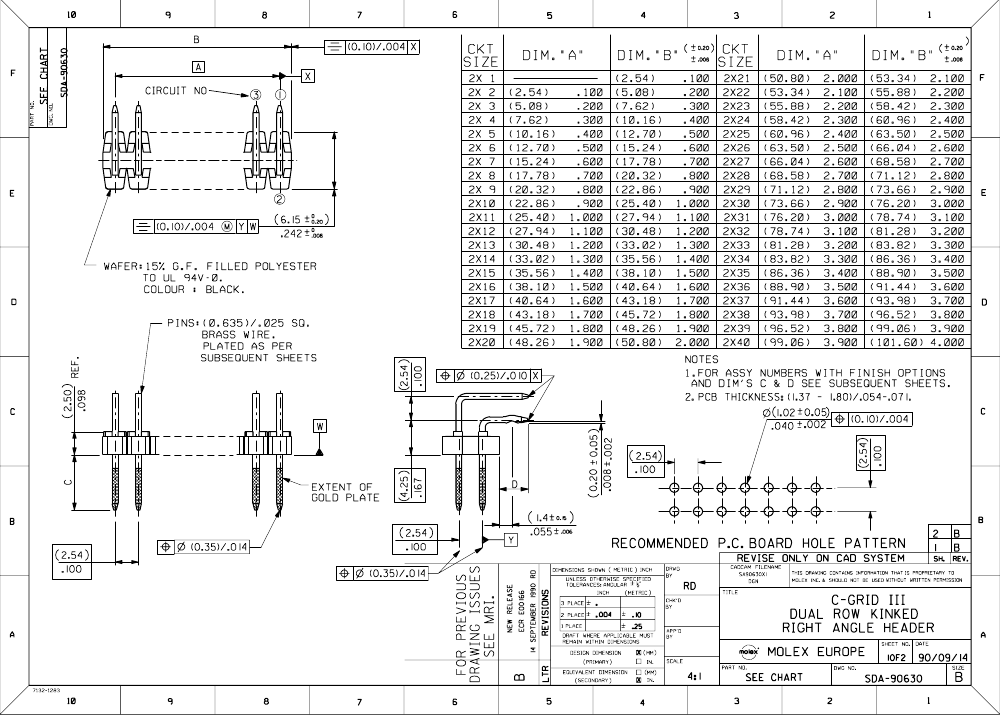

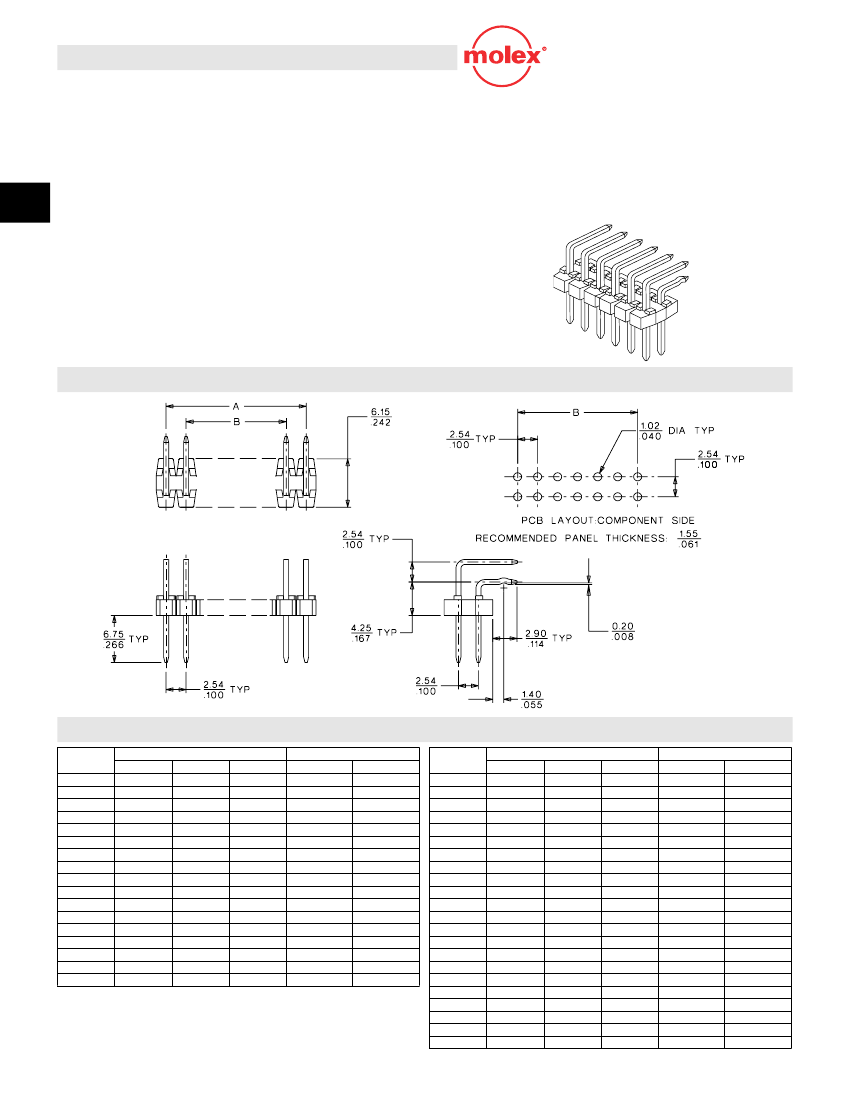

CATALOG DRAWING (FOR REFERENCE ONLY)
Not For Use With Molex SL
™
Components

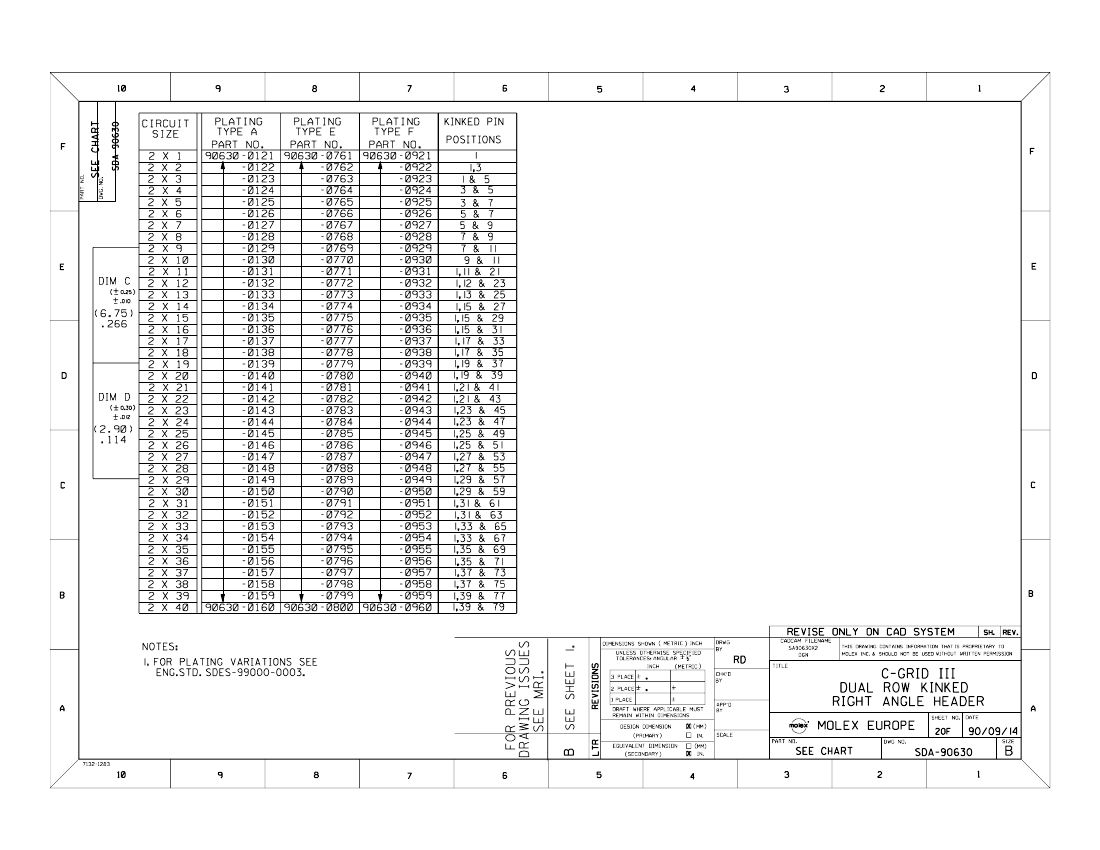

ORDERING INFORMATION AND DIMENSIONS
Circuits
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
Plating A
90630-0122
90630-0123
90630-0124
90630-0125
90630-0126
90630-0127
90630-0128
90630-0129
90630-0130
90630-0131
90630-0132
90630-0133
90630-0134
90630-0135
90630-0136
90630-0137
90630-0138
Order No.
Plating E
90630-0762
90630-0763
90630-0764
90630-0765
90630-0766
90630-0767
90630-0768
90630-0769
90630-0770
90630-0771
90630-0772
90630-0773
90630-0774
90630-0775
90630-0776
90630-0777
90630-0778
Plating F
90630-0922
90630-0923
90630-0924
90630-0925
90630-0926
90630-0927
90630-0928
90630-0929
90630-0930
90630-0931
90630-0932
90630-0933
90630-0934
90630-0935
90630-0936
90630-0937
90630-0938
Dimension
A
B
5.08 (.200)
2.54 (.100)
7.62 (.300)
5.08 (.200)
10.16 (.400)
7.62 (.300)
12.70 (.500)
10.16 (.400)
15.24 (.600)
12.70 (.500)
17.78 (.700)
15.24 (.600)
20.32 (.800)
17.78 (.700)
22.86 (.900)
20.32 (.800)
25.40 (1.000)
22.86 (.900)
27.94 (1.100)
25.40 (1.000)
30.48 (1.200)
27.94 (1.100)
33.02 (1.300)
30.48 (1.200)
35.56 (1.400)
33.02 (1.300)
38.10 (1.500)
35.56 (1.400)
40.64 (1.600)
38.10 (1.500)
43.18 (1.700)
40.64 (1.600)
45.72 (1.800)
43.18 (1.700)
Circuits
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
Plating A
90630-0139
90630-0140
90630-0141
90630-0142
90630-0143
90630-0144
90630-0145
90630-0146
90630-0147
90630-0148
90630-0149
90630-0150
90630-0151
90630-0152
90630-0153
90630-0154
90630-0155
90630-0156
90630-0157
90630-0158
90630-0159
• 90630-0160
Order No.
Plating E
90630-0779
90630-0780
90630-0781
90630-0782
90630-0783
90630-0784
90630-0785
90630-0786
90630-0787
90630-0788
90630-0789
90630-0790
90630-0791
90630-0792
90630-0793
90630-0794
90630-0795
90630-0796
90630-0797
90630-0798
90630-0799
• 90630-0800
Plating F
90630-0939
90630-0940
90630-0941
90630-0942
90630-0943
90630-0944
90630-0945
90630-0946
90630-0947
90630-0948
90630-0949
90630-0950
90630-0951
90630-0952
90630-0953
90630-0954
90630-0955
90630-0956
90630-0957
90630-0958
90630-0959
• 90630-0960
Dimension
A
B
48.76 (1.900)
45.72 (1.800)
50.80 (2.000)
48.76 (1.900)
53.34 (2.100)
50.80 (2.000)
55.88 (2.200)
53.34 (2.100)
58.42 (2.300)
55.88 (2.200)
60.46 (2.400)
58.42 (2.300)
63.50 (2.500)
60.46 (2.400)
66.04 (2.600)
63.50 (2.500)
68.58 (2.700)
66.04 (2.600)
71.12 (2.800)
68.58 (2.700)
73.66 (2.900)
71.12 (2.800)
76.20 (3.000)
73.66 (2.900)
78.24 (3.100)
76.20 (3.000)
81.28 (3.200)
78.24 (3.100)
83.82 (3.300)
81.28 (3.200)
86.36 (3.400)
83.82 (3.300)
88.90 (3.500)
86.36 (3.400)
91.44 (3.600)
88.90 (3.500)
93.98 (3.700)
91.44 (3.600)
96.52 (3.800)
93.98 (3.700)
99.06 (3.900)
96.52 (3.800)
101.60 (4.000)
99.06 (3.900)
• Molex European standard product, usually available within shorter lead times
For other available versions contact Molex
Plating A: 4
µ
m (160
µ
") Tin/Lead over Nickel
Plating E: 0.38
µ
m (15
µ
") selective Gold over Nickel and 4
µ
m (160
µ
") Tin/Lead over Nickel
Plating F: 0.76
µ
m (30
µ
") selective Gold over Nickel and 4
µ
m (160
µ
") Tin/Lead over Nickel
