BYR79-700 datasheet, PDF - EEWORLD Datasheet

BYR79-700: DescriptionRECTIFIER DIODE,700V V(RRM),TO-220AC; CategoryDiscrete semiconductor diode; File Size464KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

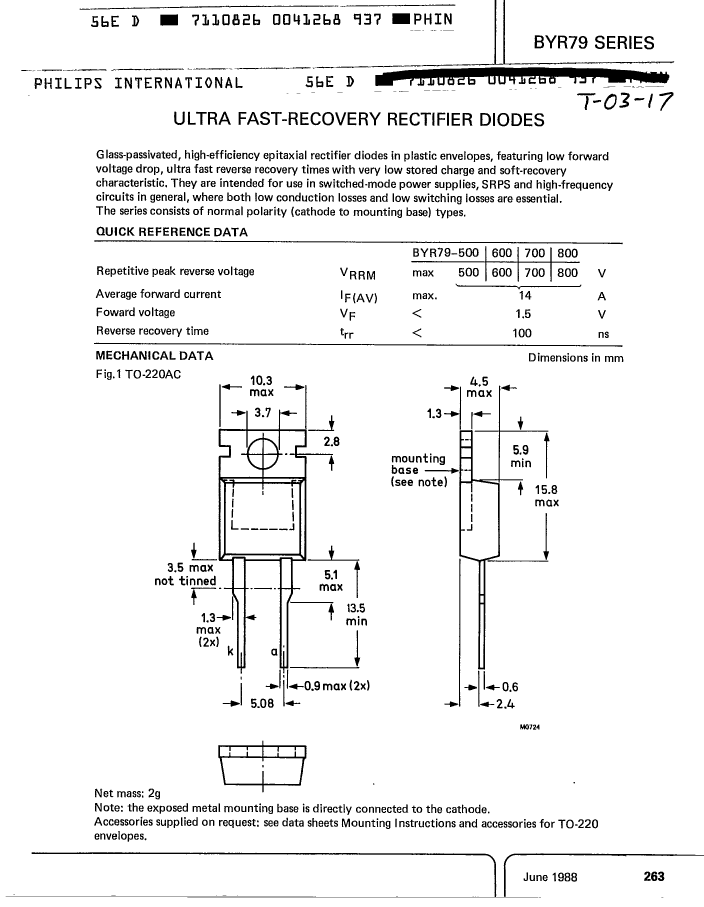

BYR79-700 Overview

RECTIFIER DIODE,700V V(RRM),TO-220AC

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T2
Reach Compliance Code	compliant
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

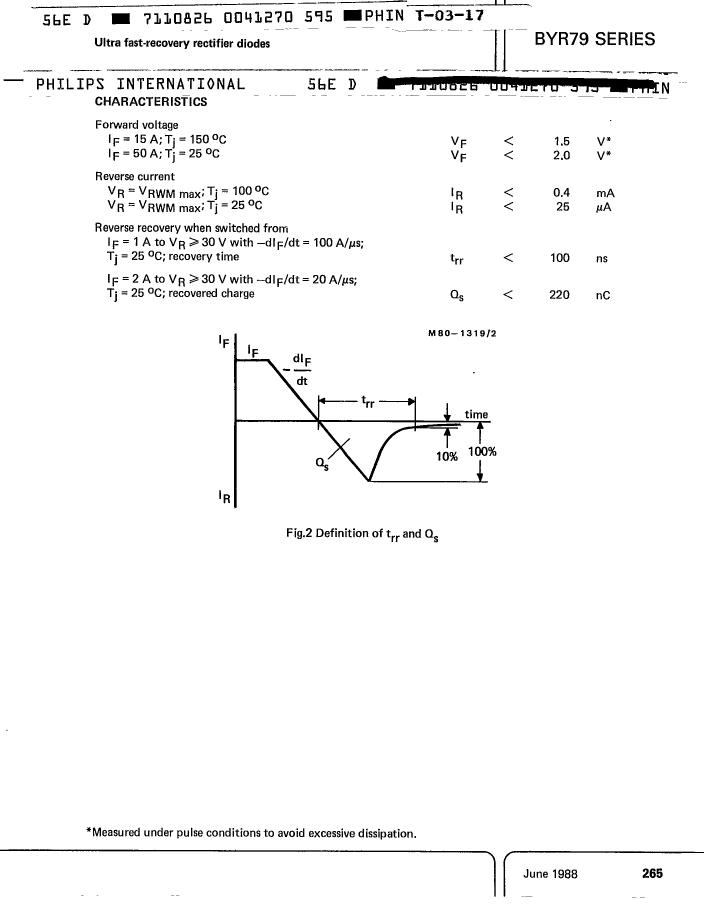

Maximum forward voltage (VF)	2 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2

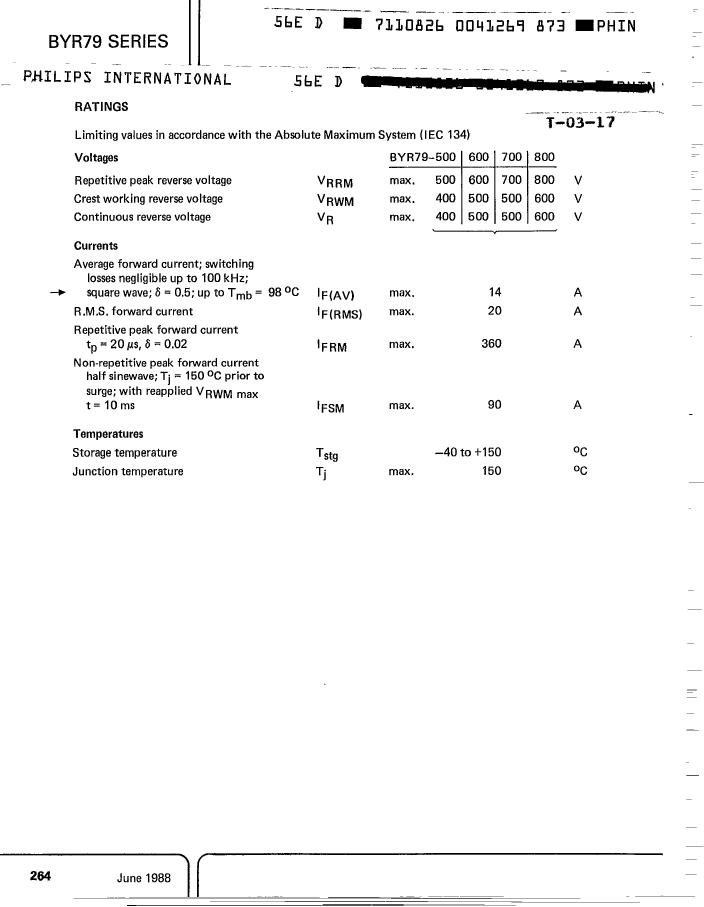

Maximum non-repetitive peak forward current	90 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	14 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Guideline	IEC-134
Maximum repetitive peak reverse voltage	700 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	BYR79-700	BYR79-600	BYR79-500
Description	RECTIFIER DIODE,700V V(RRM),TO-220AC	RECTIFIER DIODE,600V V(RRM),TO-220AC	RECTIFIER DIODE,500V V(RRM),TO-220AC
Maker	NXP	NXP	NXP
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	compliant	compliant	compliant
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	2 V
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	90 A	90 A	90 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	14 A	14 A	14 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Guideline	IEC-134	IEC-134	IEC-134
Maximum repetitive peak reverse voltage	700 V	600 V	500 V
Maximum reverse current	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
