BYX30-300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYX30-300

BYX30-300: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon; CategoryDiscrete semiconductor diode; File Size333KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYX30-300 Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon

BYX30-300 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	3.2 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	250 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	14 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum reverse current	4000 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER

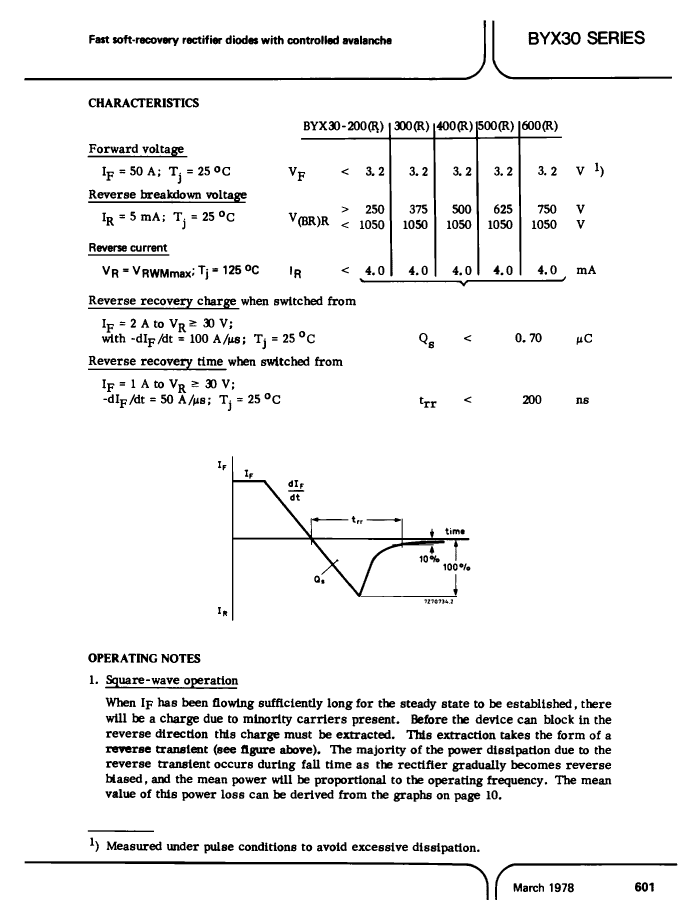

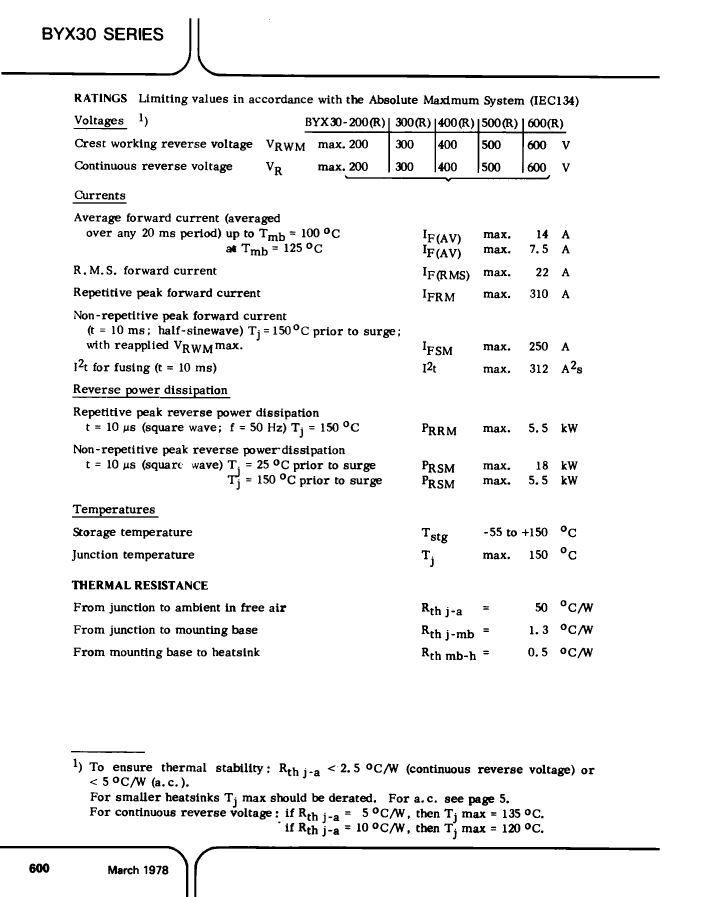

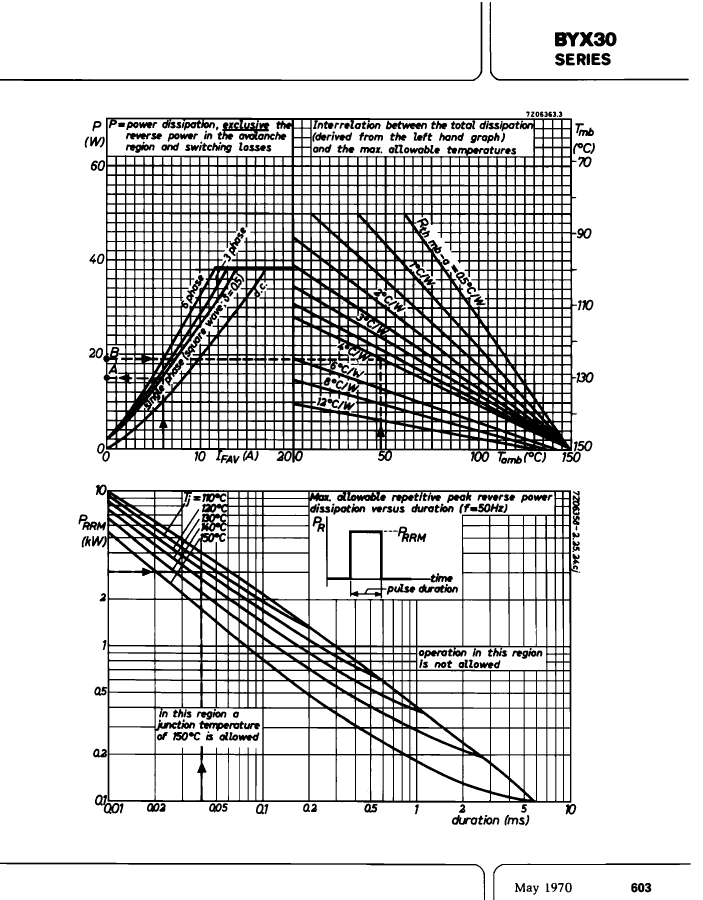

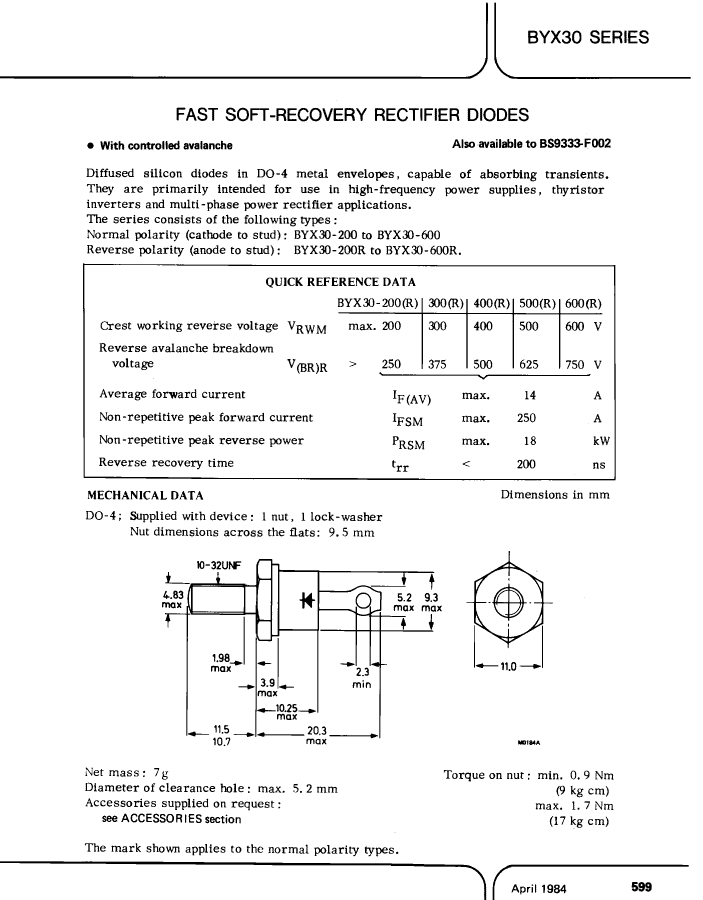

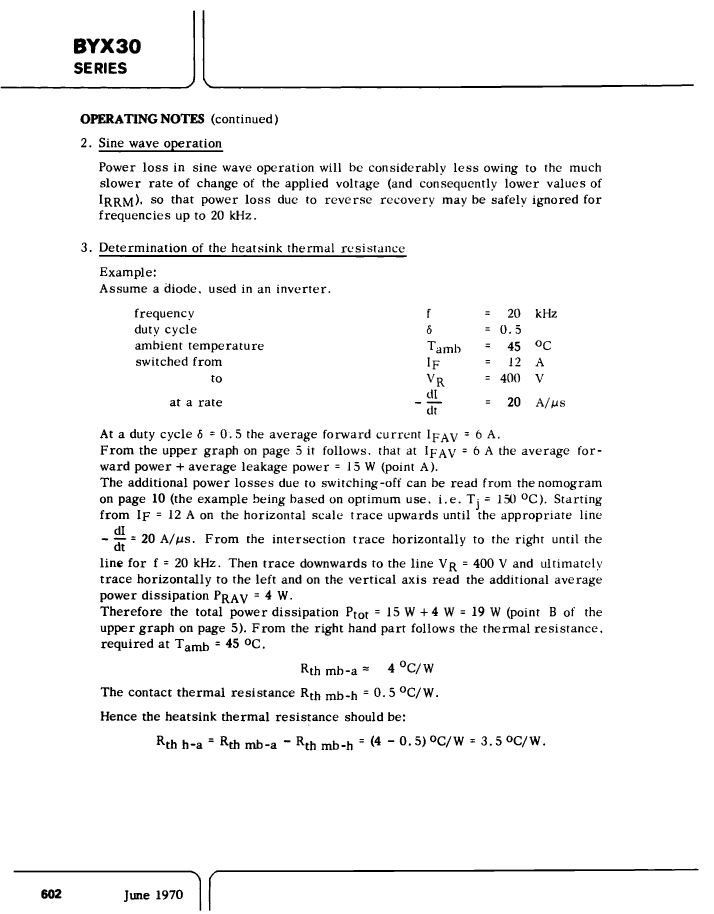

Preview

Download Datasheet

View All

BYX30-300 Related Products

	BYX30-300	BYX30-200	BYX30-500	BYX30-400	BYX30-400R	BYX30-600	BYX30-600R	BYX30-500R	BYX30-300R	BYX30-200R
Description	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 14A, Silicon
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	ANODE	CATHODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	14 A	14 A	14 A	14 A	14 A	14 A	14 A	14 A	14 A	14 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA	4000 µA
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
