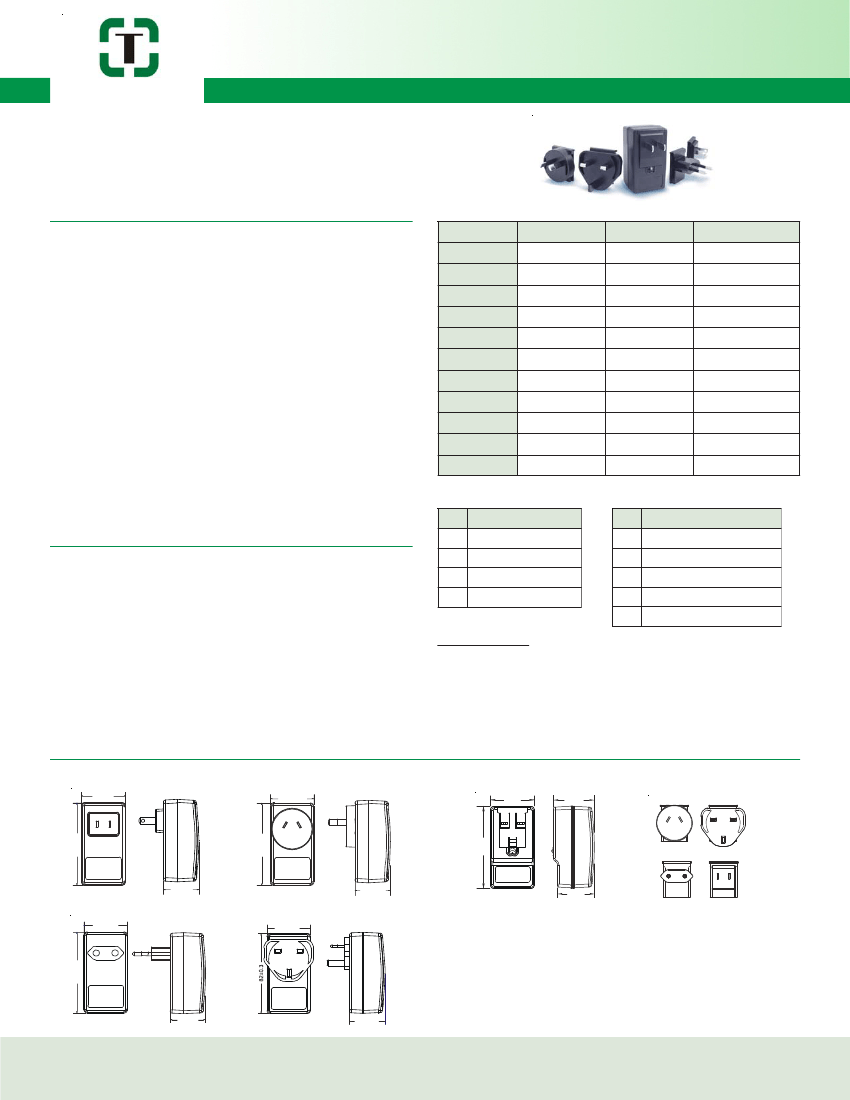

TRW24 Series
TRUMPower
FEATURES
• 90~264 VAC Universal Input
• Interchangeable Plugs Available
• Green Power Meets CEC and ErP Standards
12~24 Watts AC/DC Wall Mount Power Adapters
ELECTRICAL SPECIFICATIONS
Input Voltage ................................. 90~264 VAC, 47~63Hz
Input Current ................................. 0.7A (rms) max.
Output Power ................................ 12~24W
Output Voltage, 3~27V .................. CEC level V, ErP Step 2
27~50V ................ CEC level IV, ErP Step 1
Voltage Regulation ....................... ±5% max.
Efficiency @ Full Load .................. 72% typ.
Standby Power @ No Load .......... 0.5W max. for CEC level IV,
0.3W max. for CEC level V
Operating Temperature ................ -10°C to +50°C
Derating ........................................ Derate linearly from 100%
load @ 40°C to 75% load
@ 50°C
Storage Temperature .................... -20°C to +85°C
Operating Humidity ....................... 20% to 90% RH
Protections ................................... OVP, OLP, & short-circuit
Withstand Voltage ......................... 3000 VAC from input to output
Standard Output Connector .......... Barrel plug
Standard Output Cable ................. UL2468, 5ft
MODELS LIST
Product N o.
TR W24-3-X
TR W24-5-X
TR W24-7-X
TR W24-9-X
TR W24-12-X
TR W24-15-X
TR W24-18-X
TR W24-24-X
TR W24-30-X
TR W24-36-X
TR W24-48-X
Output Voltage
3~5V
5~6V
6~8V
8~11V
11~13V
13~16V
16~21V
21~27V
27~33V
33~40V
40~50V
Output Current
4~2.4A
3~2.5A
2.5~1.88A
2.5~1.82A
2.2~1.85A
1.85~1.5A
1.5~1.15A
1.15~0.9A
0.9~0.73A
0.73~0.6A
0.6~0.48A
Max. Output Pow er
12W
15W
15W
20W
24W
24W
24W
24W
24W
24W
24W
Note: X = AC plug code. See the below tables and drawings for details.
X
Fixed Wall Mount Plug
US Plug
Australi an Plug
EU Plug
Bri ti sh Plug
X
I
IU
IA
IE
IB
Interchangable Plug
Body for Interchangeable Plugs
US Plug
Australi an Plug
EU Plug
Bri ti sh Plug
STANDARDS & COMPLIANCES
Safety Standards ............ IEC60950-1, UL60950-1, EN60950-1
Agency Approvals ........... UL, cUL, CB, CE
EMI Standards ................ EN55022, Class B
CISPR22, Class B
FCC Part 15
EMC Standards .............. EN61000-3-2, EN61000-3-3,
EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8,
EN61000-4-11, EN55024
Other Standards ............. CEC, ErP, RoHS
U
A
E
B
Ordering Information
1. Specify the output voltage and AC plug code when ordering, e.g. TRW24-7.5-U
for 7.5V output model with a fixed US wall plug.
2. For interchangeable plug orders, at least one interchangeable plug must be
ordered together with the "main body" (X = I).
3. Contact TRUMPower for output connector options.
MECHANICAL DRAWINGS
Fixed US Plug
43.5±0.3
Fixed Australian Plug
43.50
±
0.3
I-Body for Interchangeable Plugs
43.5±0.3
40.5±0.3
Interchangeable Plugs
IA
IB
82±0.3
82±0.3
81.5±0.3
IE
IU/IC
IU
35.7±0.3
35.70±0.3
36.5±0.3
Fixed EU Plug
43.50±0.3
Fixed British Plug
43.50±0.3
82±0.3
35.7±0.3
35.70±0.3
Unit: mm
#TRW24-2011-0213
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Building 13 • Santa Clara, California 95054, USA
•
408-988-6616
•
sales@trumpower.com • www.TRUMPower.com
