BSM6-L

Description
Wire Terminal, 6mm2
CategoryThe connector    terminals
File Size51KB,1 Pages
ManufacturerPanduit
Websitehttp://www.panduit.com
Download Datasheet Parametric Compare View All

BSM6-L Online Shopping

Suppliers Part Number Price MOQ In stock
BSM6-L - - View Buy Now

BSM6-L Overview

Wire Terminal, 6mm2

BSM6-L Parametric

Parameter NameAttribute value
MakerPanduit
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial numberBSM
terminal genderFEMALE
Terminal and terminal strip typesWIRE TERMINAL
Conductor cross section6 mm2

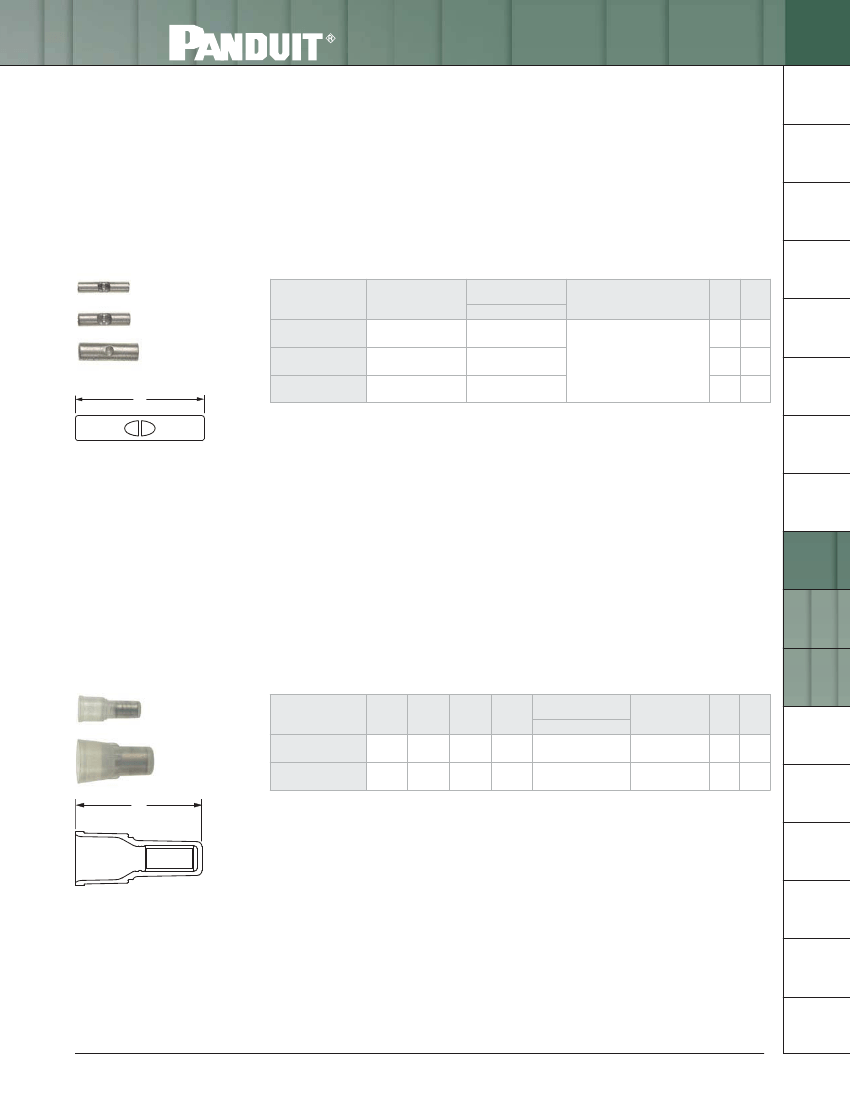

BSM6-L Preview

ELECTRICAL SOLUTIONS
A.
System
Overview
Metric Butt Splice, Non-Insulated
Type BSM
• Designed to splice two solid or stranded wires together to
repair or lengthen wires
• Butted configuration provides low profile for limited
space applications
• Brazed seam protects terminal barrel from splitting during the
crimp process
• Internal wire stop assures proper length of insertion into
terminal barrel
• Non-insulated barrel can be used to provide an economical
termination when insulation is not required
• Maximum recommended operating temperature 302°F (150°C)
• Rated up to 2000 V
Wire
Range
(mm
2
)
0.5 – 1.0
1.5 – 2.5
4.0 – 6.0
Figure Dimensions
(mm)
L
15.7
15.7
18.2
Recommended
Installation
Tool
Std.
Pkg.
Qty.
100
100
50
Std.
Ctn.
Qty.
500
500
250
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Part Number
BSM1-C
BSM2-C
BSM6-L
C1.
Wiring
Duct
CT-1570,
CT-2500
L
For crimping tool information, see pages D1.84 and D1.88.
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Metric Wire Joints, Nylon Insulated
Type JMN
• Large barrel, designed to accommodate from one to seven wires
with just one crimp
• Accommodates multiple wire sizes in varying combinations
• Barrel of terminal internally beveled to provide quick and easy
wire insertion
• Maximum insulation temperature 221°F (105°C)
• Rated up to 600 V
Color
Code
Clear
Clear
CMA
Range
Min.
1284
6480
CMA
Range
Max.
5160
14750
Figure Dimensions Recommended
(mm)
Installation
L
Tool
19.9
CT-1551
23.9
CT-1551
Std.
Pkg.
Qty.
100
100
Std.
Ctn.
Qty.
500
500
D2.
Power
Connectors
D3.
Grounding
Connectors
Part Number
JMN2-C
JMN6-C
Wire
Range
(mm
2
)
0.5 –
2.5
0.75 –
6.0
E1.
Labeling
Systems
L
For crimping tool information, see page D1.84.
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
D1.69

BSM6-L Related Products

BSM6-L BSM2-C BSM1-C
Description Wire Terminal, 6mm2 Wire Terminal, 2.5mm2 Wire Terminal, 1mm2
Maker Panduit Panduit Panduit
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Manufacturer's serial number BSM BSM BSM
terminal gender FEMALE FEMALE FEMALE
Terminal and terminal strip types WIRE TERMINAL WIRE TERMINAL WIRE TERMINAL
Conductor cross section 6 mm2 2.5 mm2 1 mm2
