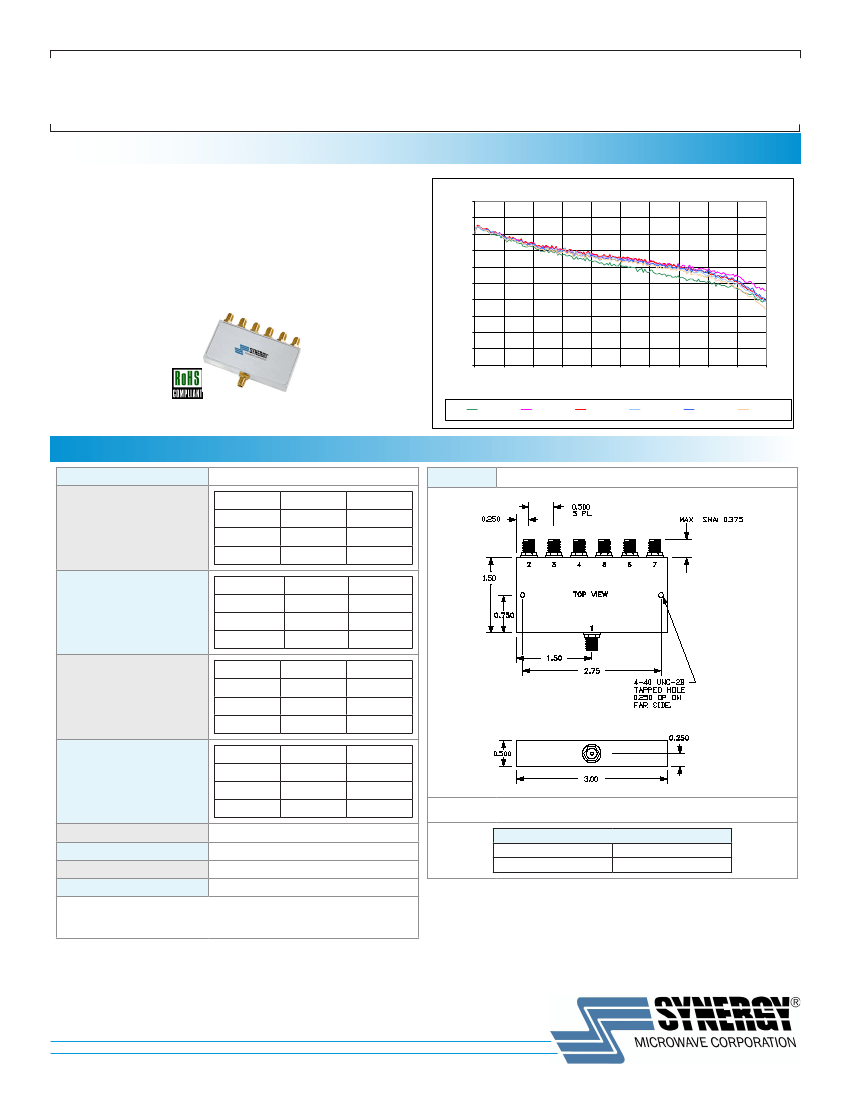

6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-705S
WIDE BANDWIDTH
FEATURES:
►
Excellent Performance
►
Wide Bandwidth
►
Small Size
►
Moderate Power
►
Lead Free RoHS Compliant
APPLICATIONS:
►
Signal Splitting & Low Power Combining
0
-0.2
1 - 500 MHz
Insertion Loss/Amp. Unbalance (dB)
-0.4
-0.6
-0.8
-1
-1.2
-1.4
-1.6
-1.8
-2
1
51
101
151
201
251
301
351
401
451
501
Frequency (MHz)
In - 1
In - 2
In - 3
In - 4
In - 5
In - 6
SPECIFICATIONS
Frequency
1 - 500 MHz
Freq. (MHz)
Insertion Loss (dB) *
1 - 10
10 - 250
250 -500
Freq. (MHz)
Isolation (dB)
1 - 10
10 - 250
250 -500
Freq. (MHz)
Phase Unbalance
1 - 10
10 - 250
250 -500
Freq. (MHz)
Amplitude Unbalance (dB)
1 - 10
10 - 250
250 -500
Input Power **
VSWR
Impedance
Operating Temperature Range
1 Watt (Max.)
1.2:1 (Typ.)
50 Ohms (Nom.)
-40 to +85 °C
Input
1
Package #
Typ.
0.3
0.7
1.2
Typ.
30
28
20
Typ.
0.2º
2º
4º
Typ.
0.05
0.1
0.2
Max.
0.6
1.2
1.8
Min.
25
23
15
Max.
1º
4º
8º
Max.
0.2
0.3
0.5
142
Connector Type: SMA Female
PORT CONFIGURATION
Output
2,3,4,5,6,7
* Above 7.78 dB theoretical split loss.
** Handling power applies to splitter mode and assumes ideal 50 Ohms
impedance matching on all ports.
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 1 of 3 ]
6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-705S
WIDE BANDWIDTH
1 - 500 MHz
DATA @ 25ºC

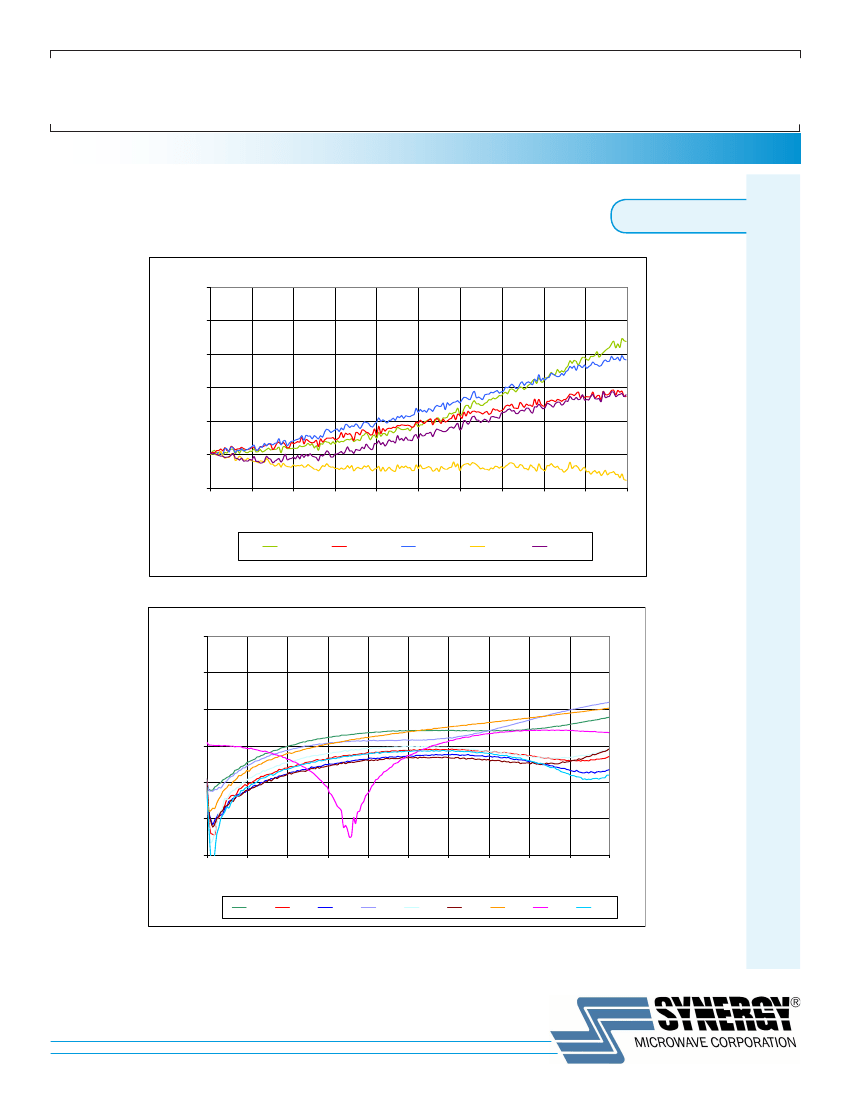

PERFORMANCE PLOTS
5.0
4.0
Phase Unbalance (degrees)
3.0
2.0
1.0
0.0
-1.0
1
51
101
151
201
251
301
351
401
451
501
Frequency (MHz)
In - 2
In - 3
In - 4
In-5
In-6
0
-10
Isolation (dB)
-20
-30
-40
-50
-60
1
51
101
151
201
251
301
351
401
451
501
Frequency (MHz)
1-2
2-3
3-4
4-5
5-6
2-4
4-6
3-6
1-6
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 2 of 3 ]
6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-705S
WIDE BANDWIDTH
1 - 500 MHz
DATA @ 25ºC

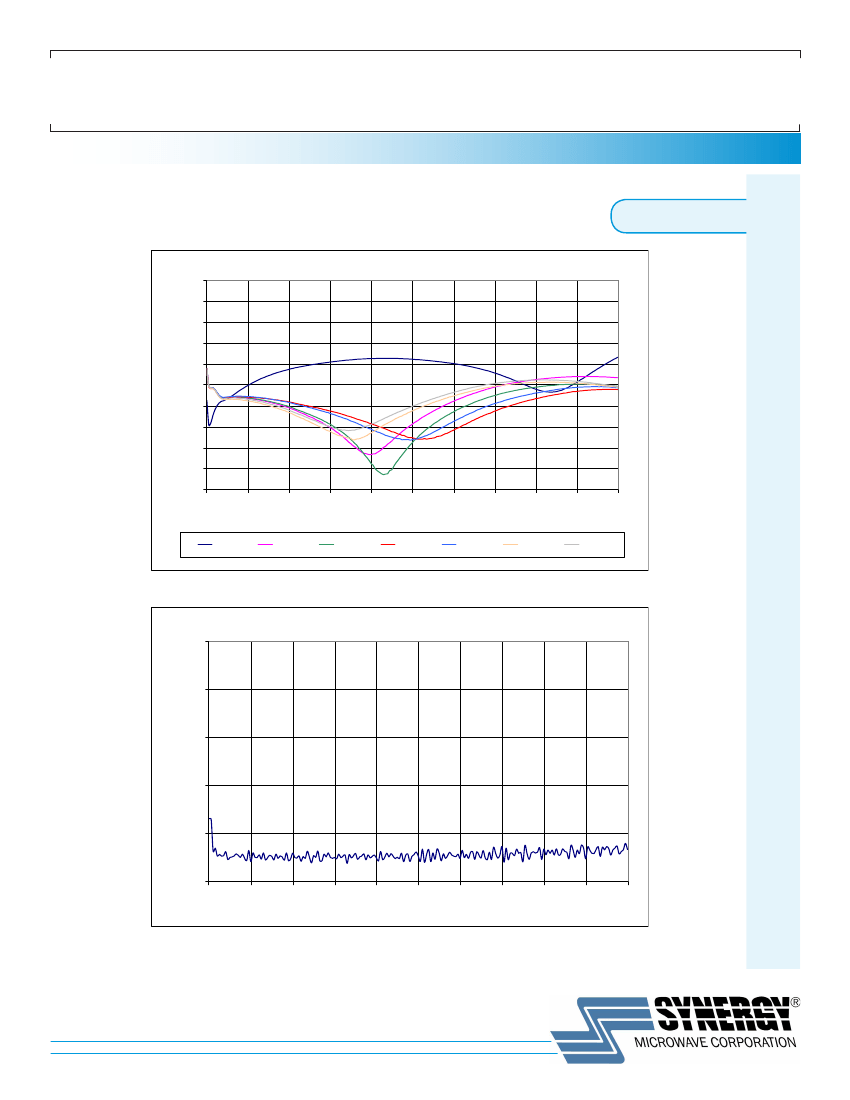

PERFORMANCE PLOTS
0
-5
-10
Return Loss (dB)
-15
-20
-25
-30
-35
-40
-45
-50
1
51
101
151
201
251
301
351
401
451
501
Frequency (MHz)
Input
Out 1
Out 2
Out 3
Out 4
Out 5
Out 6
10
8
Group Delay (nSec)
6
4
2
0
1
51
101
151
201
251
301
351
401
451
501
Frequency (MHz)
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 3 of 3 ]
