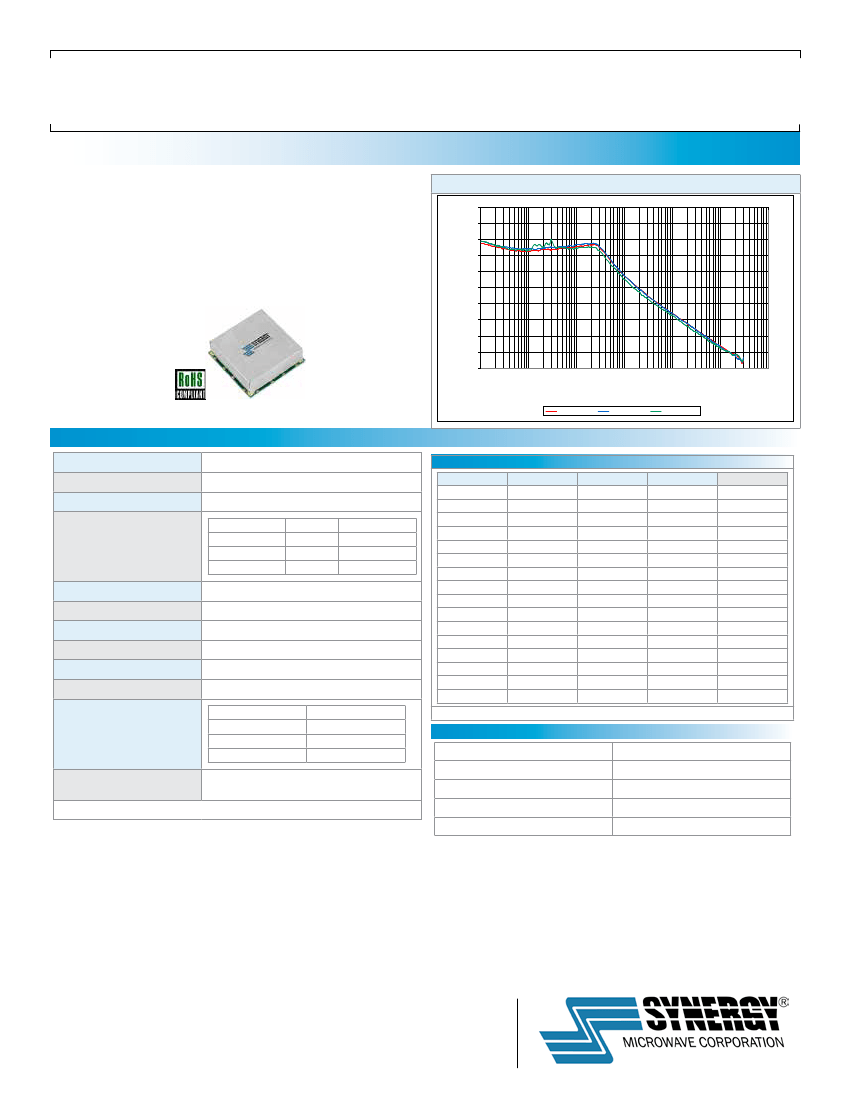

SELECTABLE FREQUENCY SYNTHESIZER
SURFACE MOUNT MODEL:
FCPH100120-15
OPTIMIZED BANDWIDTH
FEATURES:
►
Exceptionally Low Phase Noise
►
No Programming Required
►
Lead Free - RoHS Compliant
►
Patented REL-PRO
®
Technology
►
Small Size, Surface Mount
►
Buffered Output
Phase Noise
-70
-80
-90
1000 - 1250 MHz
Phase Noise (dBc/Hz)
-100
-110
-120
-130
-140
-150
-160
-170
100
1000
10000
100000
1000000
10000000
100000000
Offset Frequency (Hz)
1000 MHz
1078 MHz
1200 MHz
SPECIFICATIONS (Rev. E 10/31/11)
Frequency
Reference Input Frequency
Reference Input Voltage
1000 - 1250 MHz
15 MHz
1.0 V p-p to 3.3 V p-p
Vcc
Vcc 1 (Digital)
Vcc 2 (Vtune)
Vcc 3 (VCO)
CMOS 3.3 V
+8 dBm (Min.)
75 dB (Typ.)
10 dB (Typ.)
90 mSec (Typ.)
1
50 Ohms (Nom.)
Offset
@ 1 kHz
@ 10 kHz
@ 100 kHz
-40 to +85 °C
Phase Noise
-96 dBc/Hz
-93 dBc/Hz
-113 dBc/Hz
V (Vdc)
+5
+5
+5
I (mA Max.)
15
10
60
Binary Frequency Selection Table
D3
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
D2
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
D1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
D0
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Freq. (MHz)
1000
--
--
--
1057.5
--
1078
1100
--
--
1167.5
1188
--
--
--
1200
Bias Voltage
Lock Detect Indicator
Output Power
Spurious Suppression
Harmonic Suppression
Power Up Time
Output Impedance
* Voltage levels: 0V or gnd. / +5V or open.
Absolute Maximum Ratings
Storage Temp. Range
Bias Voltage (Digital)
Bias Voltage (Tune)
Bias Voltage (VCO)
DC Voltage Applied to RF Out
-55 to +125 ºC
+5.25 V
+16 V
+5.5 V
± 25 V
Typical Phase Noise
Operating Temperature
Range
1
From stable power on to stable lock detect.
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 USA
Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • Website: http://www.synergymwave.com
Patents : http://www.synergymwave.com/patents
[ 1 of 8 ]
SELECTABLE FREQUENCY SYNTHESIZER
SURFACE MOUNT MODEL:
FCPH100120-15
OPTIMIZED BANDWIDTH

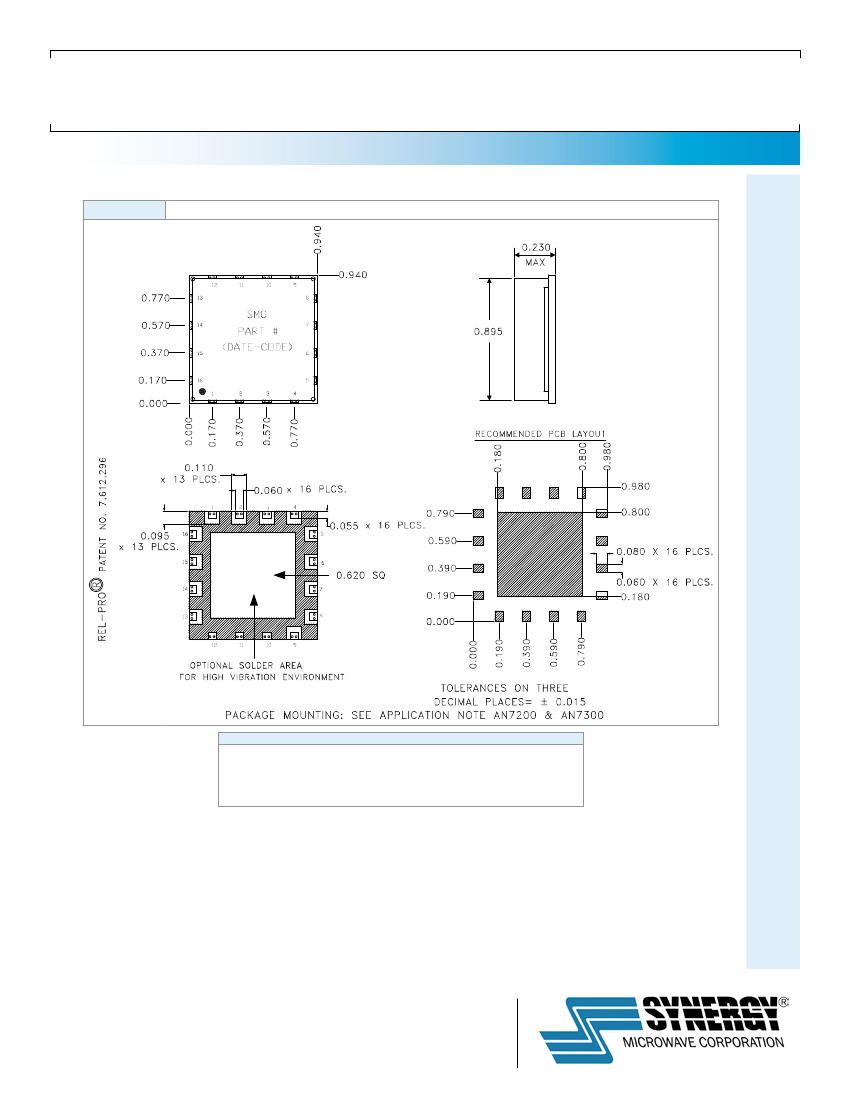

Package #
273LF
1000 - 1250 MHz
PERFORMANCE PLOTS
Pin 2 - D0
Pin 3 - D1
Pin 4 - D2
Pin 5 - D3
Pin 6 - Ref. In
Pin 7 - Vcc 1 (Digital)
PORT CONFIGURATION
Pin 8 - Vcc 2 (Tune)
Pin 9 - Vcc 3 (VCO)
Pin 13 - RF Out
Pin 14 - Lock Detect *
Pin 1, 15, 16 - NC
Pin 10, 11, 12 - Ground
NC - No Connection
*High when locked (source/sink
500 uA)
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 USA
Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • Website: http://www.synergymwave.com
Patents : http://www.synergymwave.com/patents
[ 2 of 8 ]
SELECTABLE FREQUENCY SYNTHESIZER
SURFACE MOUNT MODEL:
FCPH100120-15
OPTIMIZED BANDWIDTH

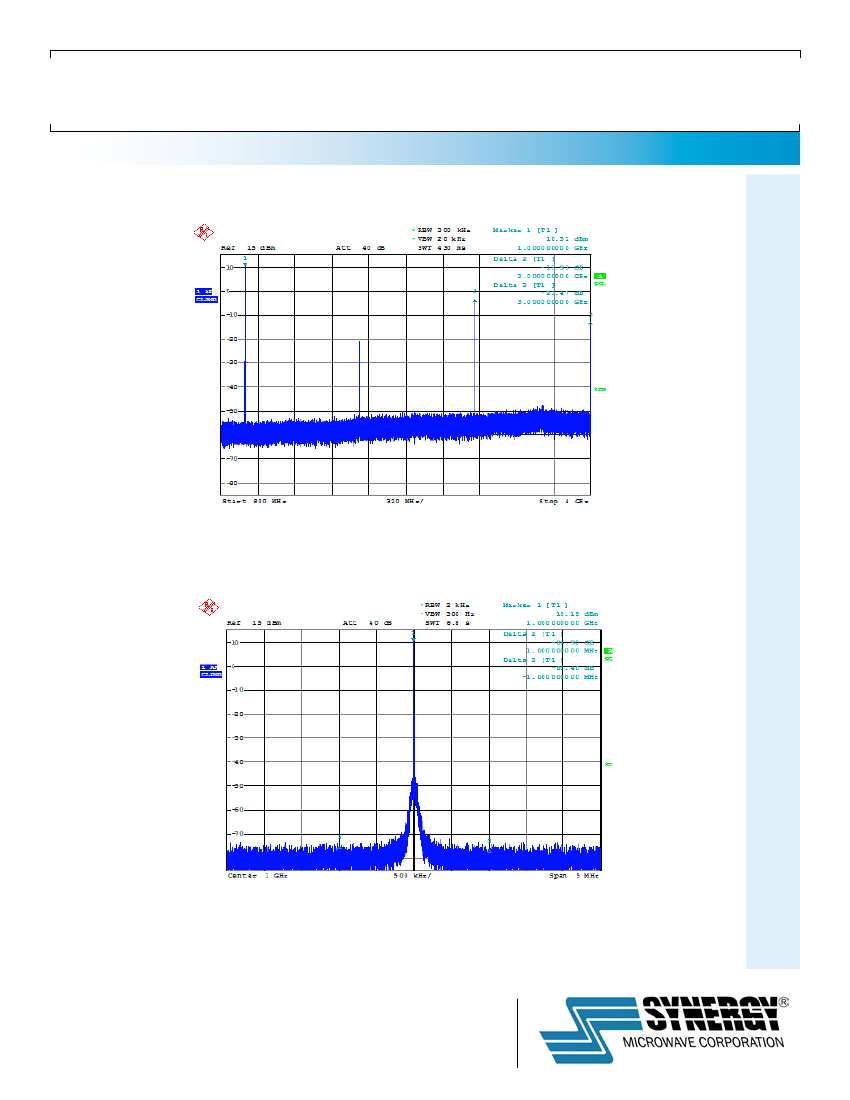

HARMONIC SUPPRESSION
1000 - 1250 MHz
PERFORMANCE PLOTS
REFERENCE SIDEBAND SUPPRESSION
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 USA
Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • Website: http://www.synergymwave.com
Patents : http://www.synergymwave.com/patents
[ 3 of 8 ]
SELECTABLE FREQUENCY SYNTHESIZER
SURFACE MOUNT MODEL:
FCPH100120-15
OPTIMIZED BANDWIDTH

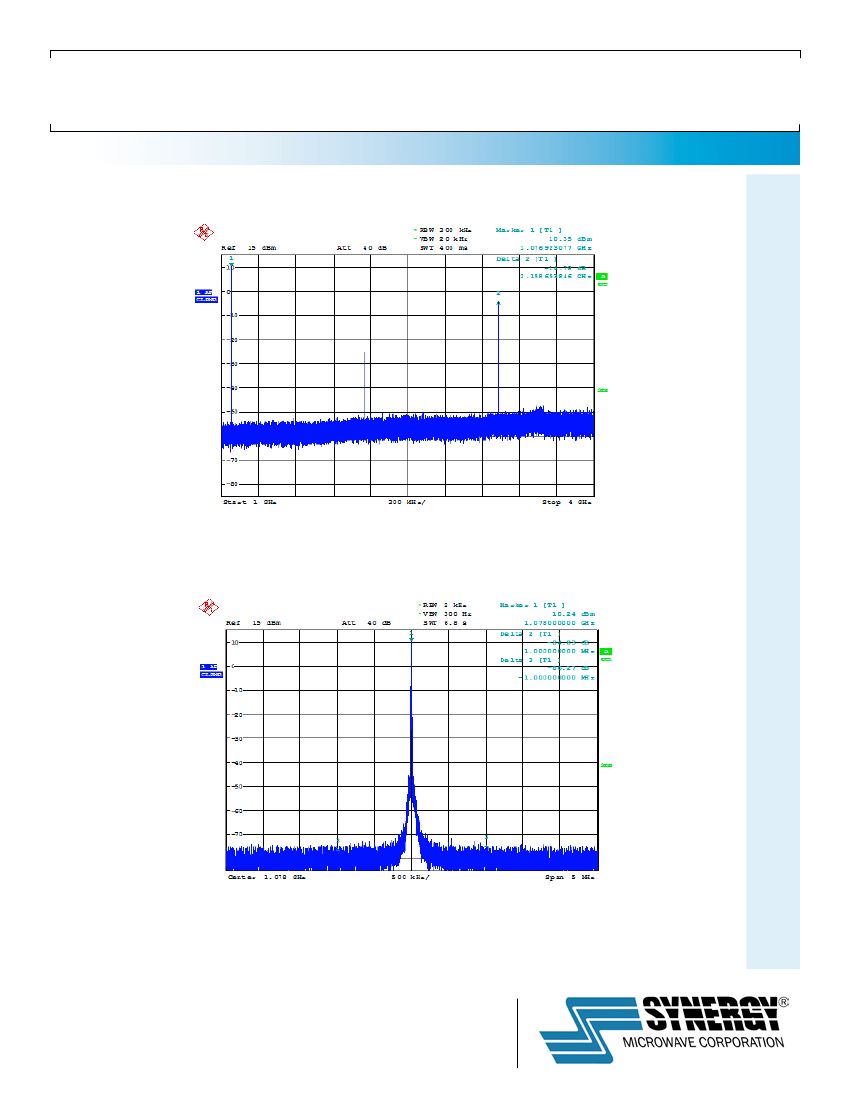

REFERENCE SIDEBAND SUPPRESSION
1000 - 1250 MHz
PERFORMANCE PLOTS
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 USA
Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • Website: http://www.synergymwave.com
Patents : http://www.synergymwave.com/patents
[ 4 of 8 ]
SELECTABLE FREQUENCY SYNTHESIZER
SURFACE MOUNT MODEL:
FCPH100120-15
OPTIMIZED BANDWIDTH

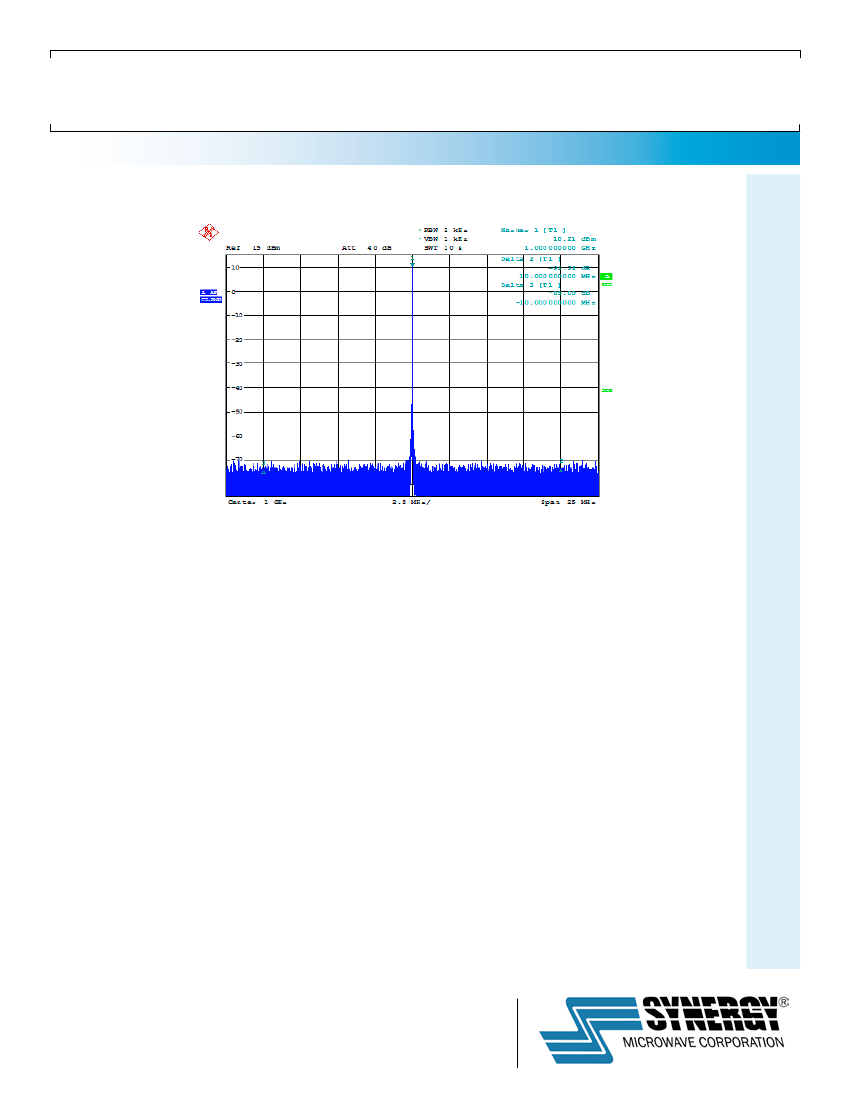

HARMONIC SUPPRESSION
