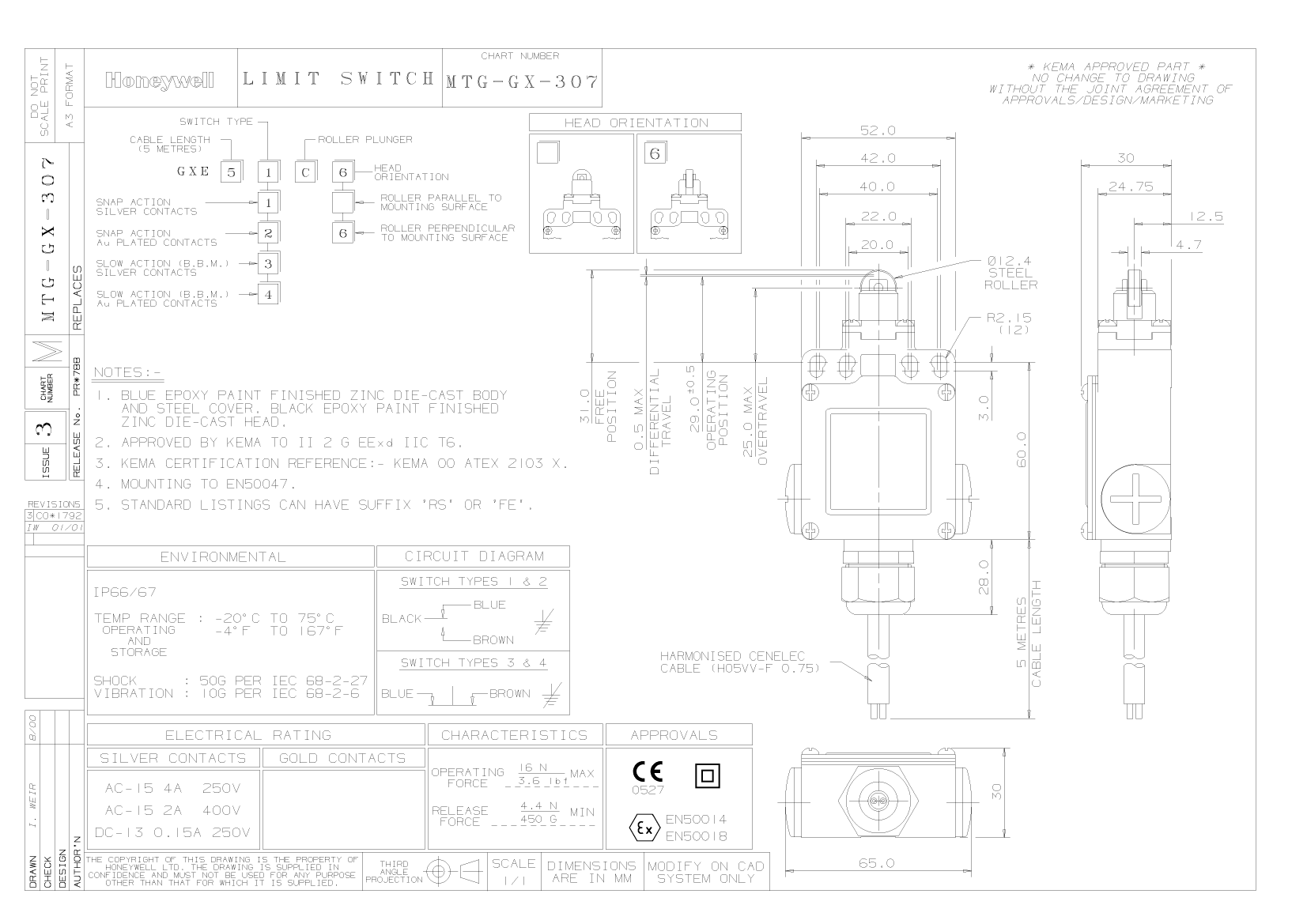

Preview

GXE53C: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size77KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

GXE53C Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount

GXE53C Parametric

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	25 mm
Actuator type	ROLLER PLUNGER
body width	30 mm
body height	60 mm
Body length or diameter	52 mm
Contact (AC) maximum rated R load	4A@250VAC
Maximum contact current (AC)	4 A
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	.15A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Manufacturer's serial number	GXE
Installation features	PANEL MOUNT
Maximum operating force	16 N
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
seal	IP66/IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	WIRE

Preview

Download Datasheet

View All

GXE53C Related Products

	GXE53C	GXE54C6	GXE54C	GXE52C6	GXE51C6	GXE53C6	GXE52C
Description	Snap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPST, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPST, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount	Snap Acting/Limit Switch, SPST, Momentary, 0.15A, 250VDC, 25mm, Wire Terminal, Roller Plunger Actuator, Panel Mount
Maker	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator stroke	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm
Actuator type	ROLLER PLUNGER	ROLLER PLUNGER	ROLLER PLUNGER	ROLLER PLUNGER	ROLLER PLUNGER	ROLLER PLUNGER	ROLLER PLUNGER
body width	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
body height	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Body length or diameter	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm
Contact (AC) maximum rated R load	4A@250VAC	4A@250VAC	4A@250VAC	4A@250VAC	4A@250VAC	4A@250VAC	4A@250VAC
Maximum contact current (AC)	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Maximum contact current (DC)	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Contact (DC) maximum rated R load	.15A@250VDC	.15A@250VDC	.15A@250VDC	.15A@250VDC	.15A@250VDC	.15A@250VDC	.15A@250VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Manufacturer's serial number	GXE	GXE	GXE	GXE	GXE	GXE	GXE
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating force	16 N	16 N	16 N	16 N	16 N	16 N	16 N
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
seal	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPST	SPST	SPDT	SPST
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
