DCRO205215-10 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCRO205215-10 Parametric

Parameter Name	Attribute value
Maker	SYNERGY
package instruction	ROHS COMPLIANT PACKAGE-16
Reach Compliance Code	compli
Maximum control voltage	10 V
Minimum control voltage	0.5 V
Modulation sensitivity	21 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	2150 MHz
Minimum operating frequency	2050 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	5 dBm
phase noise	-109 dBc/Hz
physical size	12.7mm x 12.7mm x 4.57mm
Maximum slew rate	50 mA
Nominal supply voltage	10 V
surface mount	YES

Preview

Download Datasheet

View All

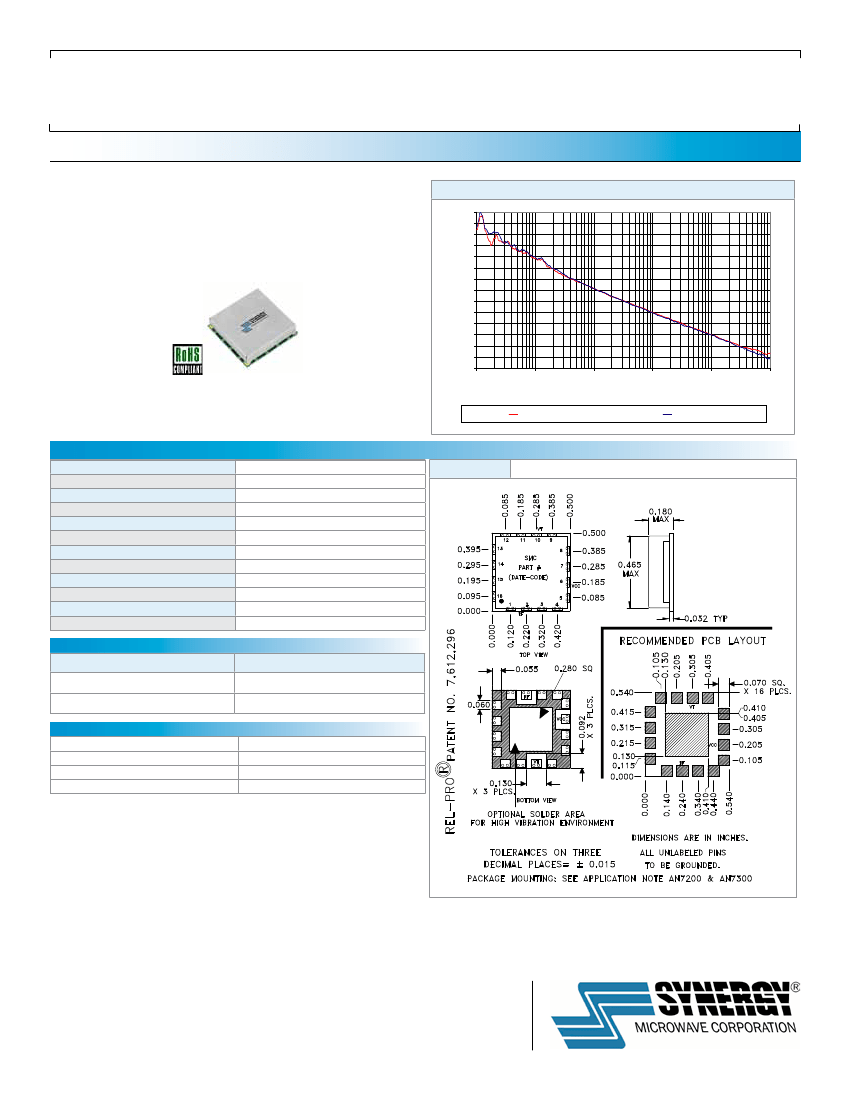

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCRO205215-10

OPTIMIZED BANDWIDTH

FEATURES:

►

Exceptional Phase Noise Performance

►

Small Size, Surface Mount

►

Lead Free Patented REL-PRO

Technology

►

Planar Resonator Construction

Phase Noise

-40

-50

-60

-70

2050 - 2150 MHz

Phase Noise (dBc/Hz)

-80

-90

-100

-110

-120

-130

-140

-150

-160

-170

-180

100

1000

10000

100000

1000000

10000000

Offset Frequency (Hz)

2050.14 MHz

2152.57 MHz

SPECIFICATIONS (Rev. B 01/02/12)

Frequency

Tuning Voltage

Bias Voltage

Output Power

Tuning Sensitivity

Output Impedance

Harmonic Suppression

Frequency Pulling

Frequency Pushing

Tuning Port Capacitance

Phase Noise @ 10 kHz

Operating Temperature Range

Guaranteed Tuning Specifications

Tuning Voltage ( V )

0.5

Absolute Maximum Ratings

Storage Temp. Range

Bias Voltage

Tuning Voltage

DC Voltage Applied to RF Out

Frequency ( MHz )

2050 (Max.)

2150 (Min.)

2050 - 2150 MHz

See table below.

+10 VDC @ 40 mA (Max.)

+5 dBm (Min.)

19 - 21 MHz/V (Typ.)

50 Ohms (Nom.)

24 dB (Typ.)

3 MHz (Typ. @ 1.75:1 VSWR)

5 MHz/V (Typ.)

56 pF (Typ.)

-109 dBc/Hz (Typ.)

-40 to +85 °C

Package #

278LF

-55 to +125 ºC

+10.5 V

+28 V

±25 V

This product is manufactured under one or more of the following patents. Approved: 5,160,810; 5,122,621; 5,390,349; 5,416,449; 5,650,754; 5,805,431; 6,525,623; 6,850,575;

7,088,189; 7,180,381; 7,196,591; 7,262,670; 7,265,642; 7,292,113; 7,365,612; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 7,580,693; 7,586,381; 7,605,670; 7,636,021; 2,533,623

| Pending: 60/493075; 60/501371 & 60/501790; 60/527957 & 60/528670; 60/563481; 60/564173; 60/589090; 60/601823; 60/605791; EV31369834; 11/259766; 60/622485 &

60/710310; 10/937525/60/736901; 60/732787; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 2,563,174; 7,580,693; 7,612,296; 2,524,751

201 McLean Boulevard • Paterson, New Jersey 07504 USA • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3 ]
