A42182 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> A42182

A42182: DescriptionSingle Color LED, Amber, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size835KB，33 Pages; ManufacturerSeoul Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

A42182 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A42182	-	-	View	Buy Now

A42182 Overview

Single Color LED, Amber, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN

A42182 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Seoul Semiconductor
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
color	AMBER
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	1 A
Maximum forward voltage	3 V
minimum luminous intensity	130 cd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.08 mm
method of packing	TAPE AND REEL 13\"
shape	ROUND
size	5.6 mm
surface mount	YES
perspective	130 deg

Preview

Download Datasheet

View All

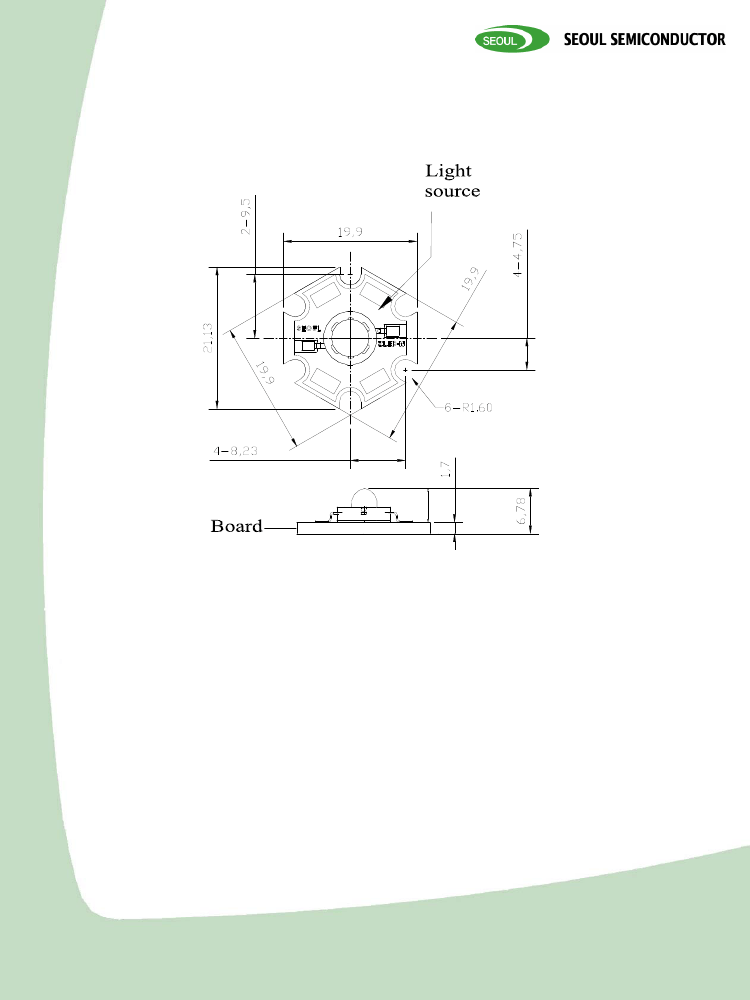

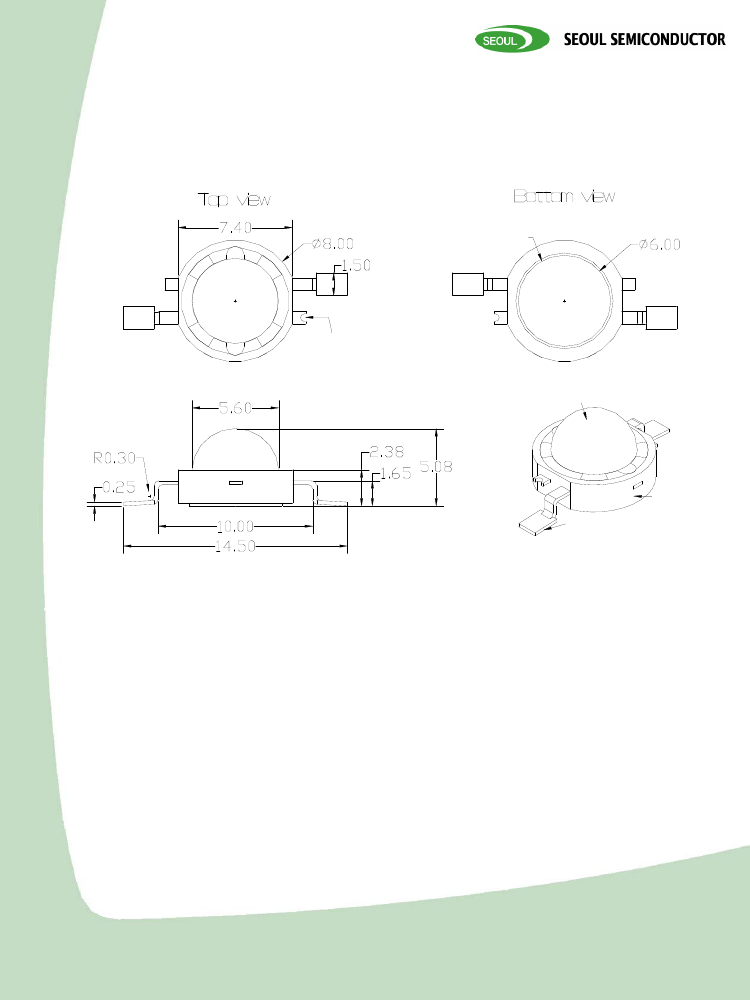

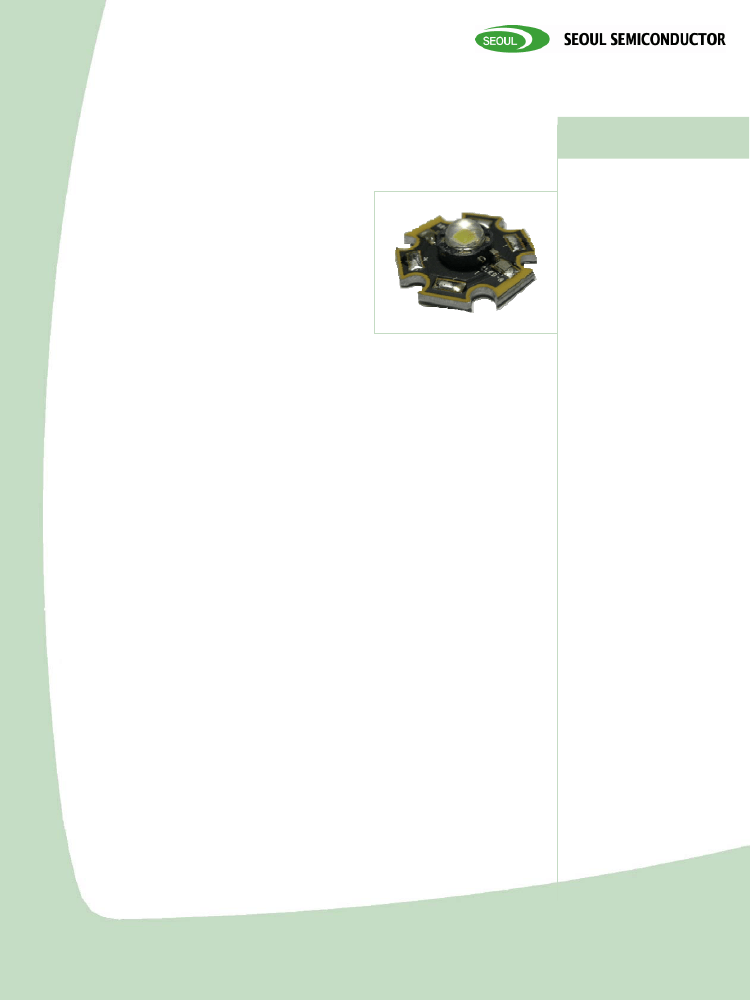

Z-Power LED X10490

Technical Data Sheet

X42182

Z-Power series is designed for

high current operation and

high flux output applications.

Z-Power LED's thermal management

perform exceeds other power LED solutions.

It incorporates state of the art SMD design and Thermal

emission material.

Z Power LED is ideal light sources for general illumination

applications, custom designed solutions, automotive large

LCD backlights

X42182

Features

• Super high flux output

and high luminance

• Designed for high

current operation

• Low thermal resistance

• SMT solderability

• Lead free product

• RoHS compliant

Applications

• Mobile phone flash

• Automotive interior /

Exterior lighting

• Automotive signal lighting

• Automotive forward

lighting

• Torch

• Architectural lighting

• LCD TV / Monitor backlight

• Projector light source

• Traffic signals

• Task lighting

• Decorative / Pathway

lighting

• Remote / Solar powered

lighting

• Household appliances

*The appearance and specifications of the product may be changed

for improvement without notice.

Rev. 04

November. 2009

www.acriche.com

Document No. : SSC-QP-7-07-24 (Rev.00)

A42182 Related Products

	A42182	S42182	S42182H	R42182	G42182	N42182H	N42182	W42182	D42182	B42182
Description	Single Color LED, Amber, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Natural White, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Natural White, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Red, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Green, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Warm White, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Warm White, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Pure White, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Royal Blue, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Blue, 5.6mm, ROHS COMPLIANT, SMD, 2 PIN
Maker	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor	Seoul Semiconductor
package instruction	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown	compliant	compliant	compliant	compliant	unknow
color	AMBER	NATURAL WHITE	NATURAL WHITE	RED	GREEN	WARM WHITE	WARM WHITE	PURE WHITE	ROYAL BLUE	BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
method of packing	TAPE AND REEL 13\"	TAPE AND REEL 13"	TAPE AND REEL 13"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13\"
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm	5.6 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
perspective	130 deg	124 deg	124 deg	130 deg	130 deg	124 deg	124 deg	127 deg	130 deg	130 deg
