PLE10R8CNLSHRP datasheet, PDF - EEWORLD Datasheet

PLE10R8CNLSHRP: DescriptionOT PLD, 15ns, PQCC28,; CategoryProgrammable logic devices Programmable logic; File Size515KB，17 Pages; ManufacturerMonolithic Memories

Download Datasheet Parametric View All

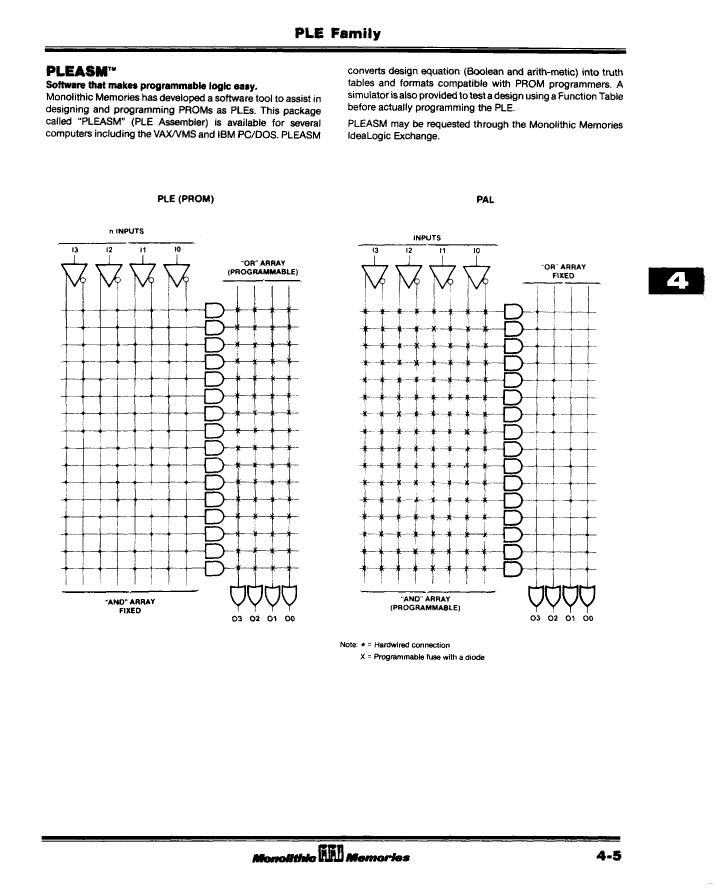

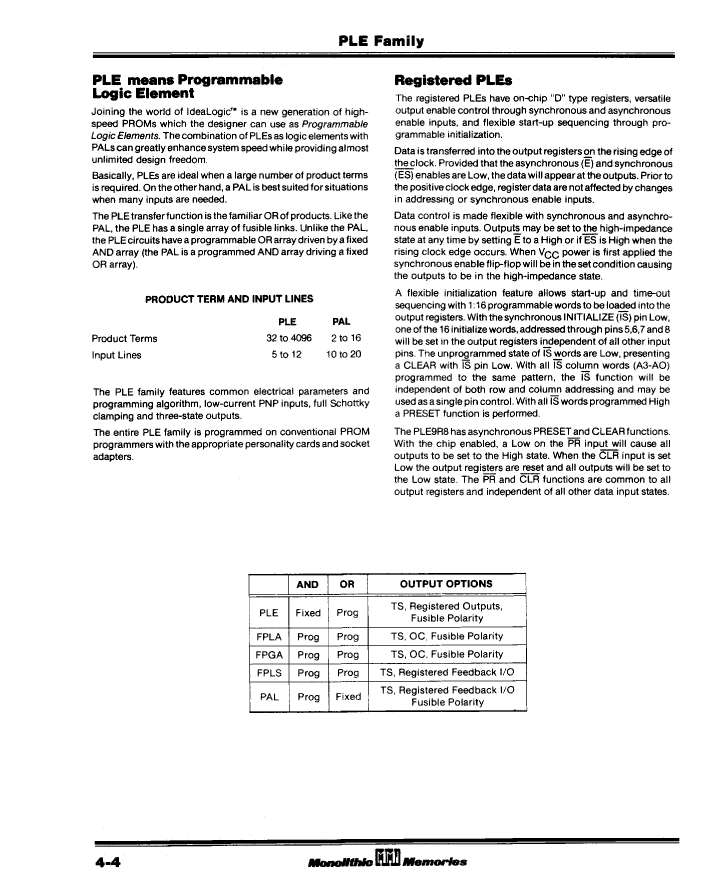

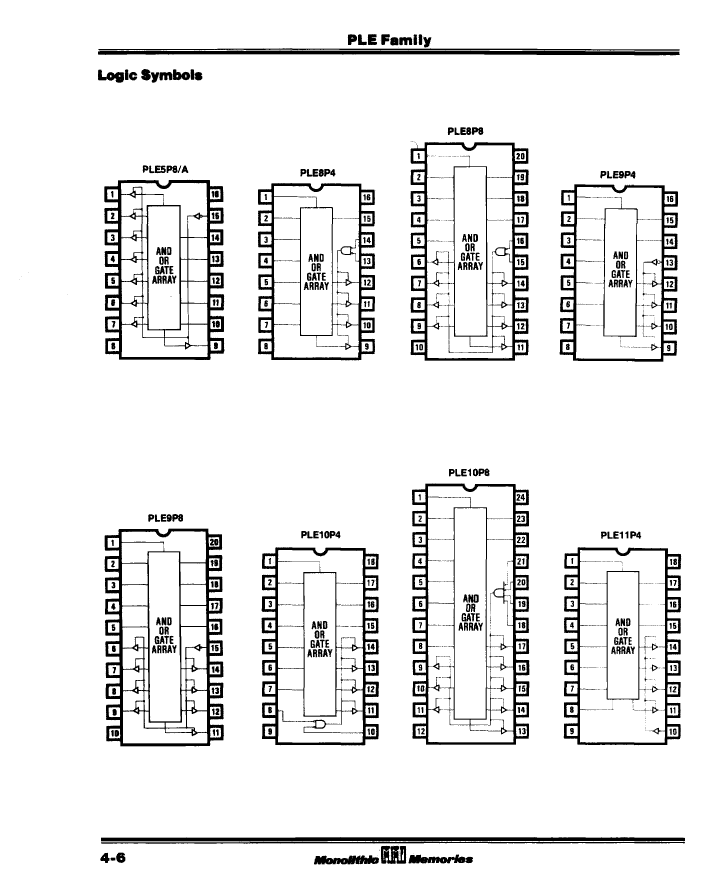

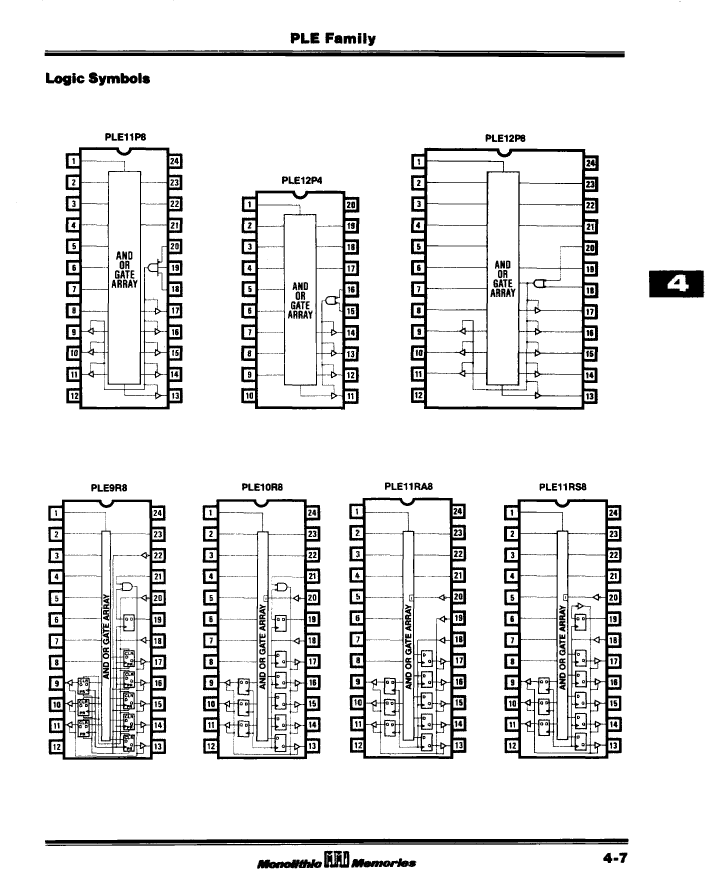

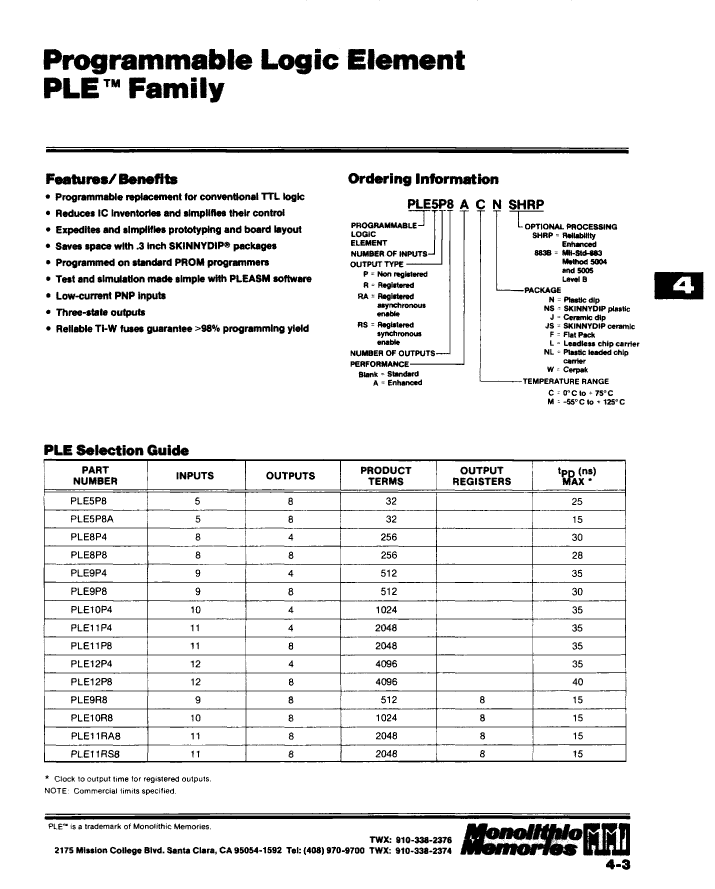

PLE10R8CNLSHRP Overview

OT PLD, 15ns, PQCC28,

Parameter Name	Attribute value
Maker	Monolithic Memories
Reach Compliance Code	unknown
maximum clock frequency	22.222 MHz
JESD-30 code	S-PQCC-J28
Dedicated input times	10
Number of I/O lines
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature
organize	10 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal location	QUAD
