T750003: DescriptionTERMINAL NUMBERS FOR REF ONLY; File Size173KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T750003 Overview

TERMINAL NUMBERS FOR REF ONLY

Preview

Download Datasheet

View All

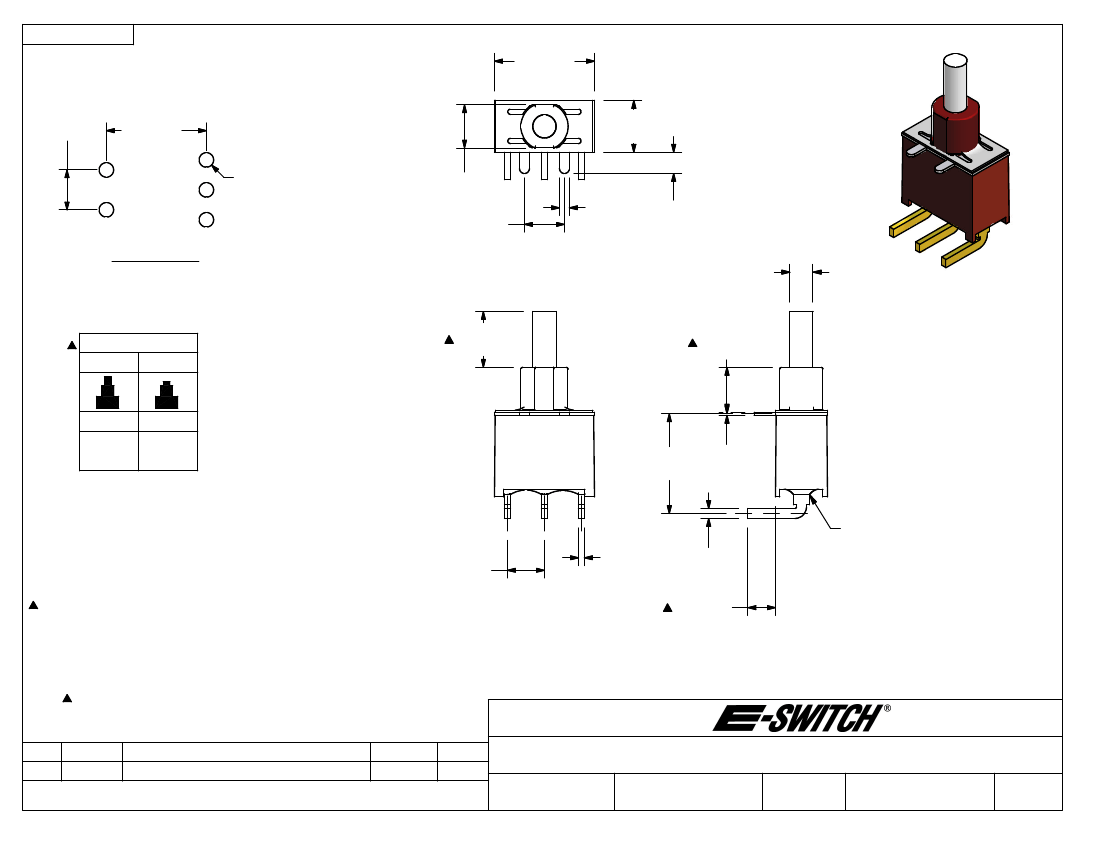

SHEET 1 OF 1

12.70

[.500 in]

5.08

[.200 in]

12.70

[.500 in]

1.85

[.073 in]

6.60

[.260 in]

5.50

[.217 in]

5.08

[.200 in]

1.27

[.050 in]

2.69

[.106 in]

P.C. MOUNTING

2.95

[.116 in]

ISOMETRIC

SWITCH FUNCTION

POS. 1

POS. 2

7.11

[.280 in]

5.90

[.232 in]

1-3

(ON)

1-2

.40

12.70

[.016 in]

[.500 in]

EPOXY SEAL

(ON) = MOMENTARY

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4 VOLT-AMPS @20V MAX (AC OR DC)

6. ELECTRIC LIFE: 50,000 make-and-break cycles

at full load.

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

8. DIELECTRIC STRENGTH: 1,500 V RMS @sea level.

9. OPERATING TEMP.: -30°C to 75°C

10.

DENOTES CRITICAL PARAMETER.

4.70

[.185 in]

.76

[.030 in]

1.27

[.050 in]

3.48

[.137 in]

REV

14506

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

11/15/04

DATE

TITLE

SCALE

700ASP7B21M6RE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

6/8/04

T750003
