MJR28N2DDA3-E7102 Overview

Telecom and Datacom Connector, ROHS COMPLIANT

MJR28N2DDA3-E7102 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerElec & Eltek
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeTELECOM AND DATACOM CONNECTOR

MJR28N2DDA3-E7102 Preview

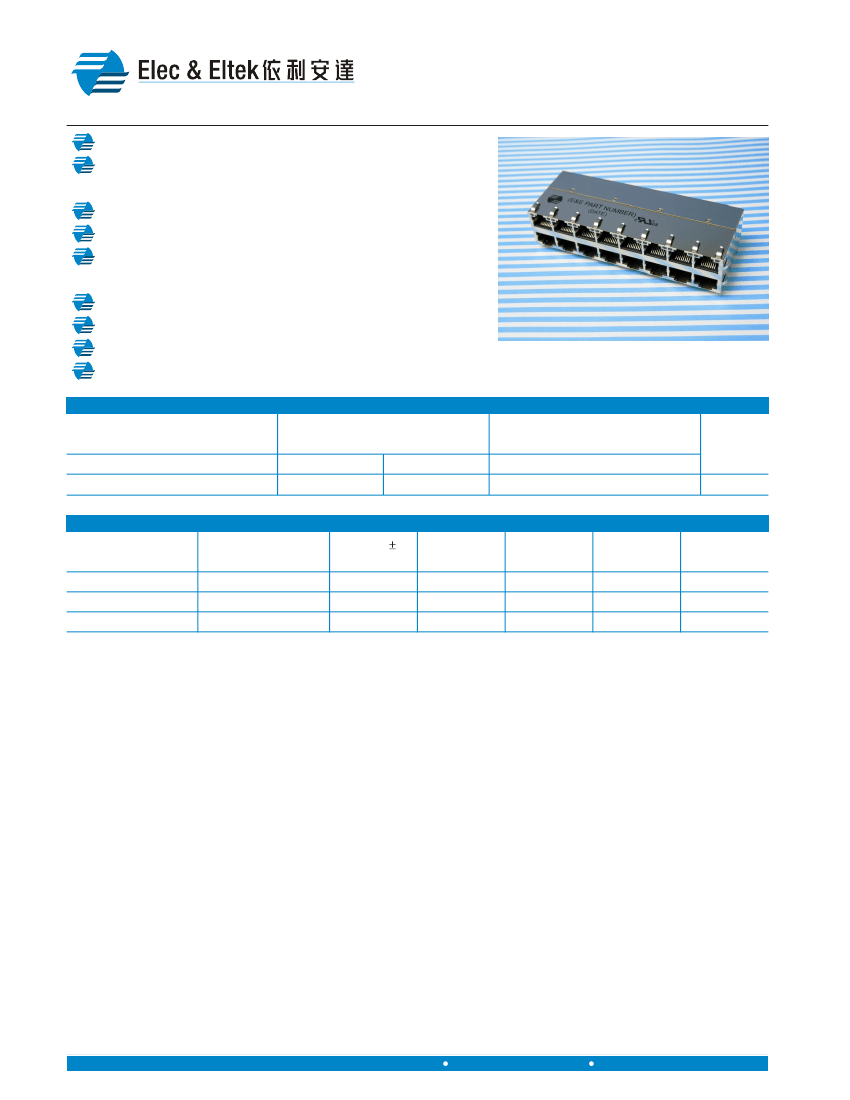

1000 Base-T Applications
Stack 2XN, Through Hole
E & E Magnetic Products Limited
Vertical-row Of Zigzag Output Pins Pattern
(With PoE Feature)
Magnetic Integrated Connector Modules
Compliant with IEEE802.3af standard including 350µH OCL
with 8mA DC Bias
1500Vrms isolation voltage per IEEE802.3
350mA balanced DC line current capability
Designed for Power over Ethernet (PoE) enabled
Switch / Router / Hub applications
Enhanced performance on EMI suppression with metal shield
Operating temperature 0
o
C to +70
o
C
UL 1863 listed
RoHS compliant versions are available
G
ENERAL
E
LECTRICAL
S
PECIFICATION
Insertion Loss
(dB Max)
0.1-100MHz
1.5
Return Loss
(dB Min)
0.5-40MHz
16.0
40-100MHz
10.0
@
25°C
Crosstalk
(dB Min)
0.1-100MHz
30.0
1500
Hipot
(Vrms)
P
ART
N
UMBER
T
ABLE
3
Part Number
1
RoHS Part Number
MJR24N2DDA3-E7102
MJR26N2DDA3-E7102
MJR28N2DDA3-E7102
Turn Ratio ( 3%)
(Chip : Cable)
1CT:1
1CT:1
1CT:1
Configuration
TCA
TCA
TCA
2
LED
(Left / Right)
D/D
D/D
D/D
Mechanical
Package
MJ24N-07B
MJ26N-07B
MJ28N-07B
Schematic
E7102
E7102
E7102
MJ-24N2DDA3-E7102
MJ-26N2DDA3-E7102
MJ-28N2DDA3-E7102
Notes:
1. For different electrical and mechanical specifications, please contact E&E Magnetic Products Limited.
2. Core location are counted from PCB (Chip) side to Cable (Media) side, where:
"T" = Isolation transformer ; "C" = Common-mode choke ; "A" = Auto-transformer .
3. LEDs (Left / Right) : “D” = Orange & Green bi-color (2 terminals type). For different LED color requirements,
please contact E&E Magnetic Products Limited.
4. Panel tabs are optional.
5. All parts shown in this datasheet have gold plating thickness of 10 micro-inch (min.) over contact area.
Advance options including 30 micro-inch (min.) and 50 micro-inch (min.) are also available.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ125(01)
Revised in 06/07
1000 Base-T Applications
Stack 2XN, Through Hole
E & E Magnetic Products Limited
Vertical-row Of Zigzag Output Pins Pattern
(With PoE Feature)
M
ECHANICAL
D
IMENSIONS

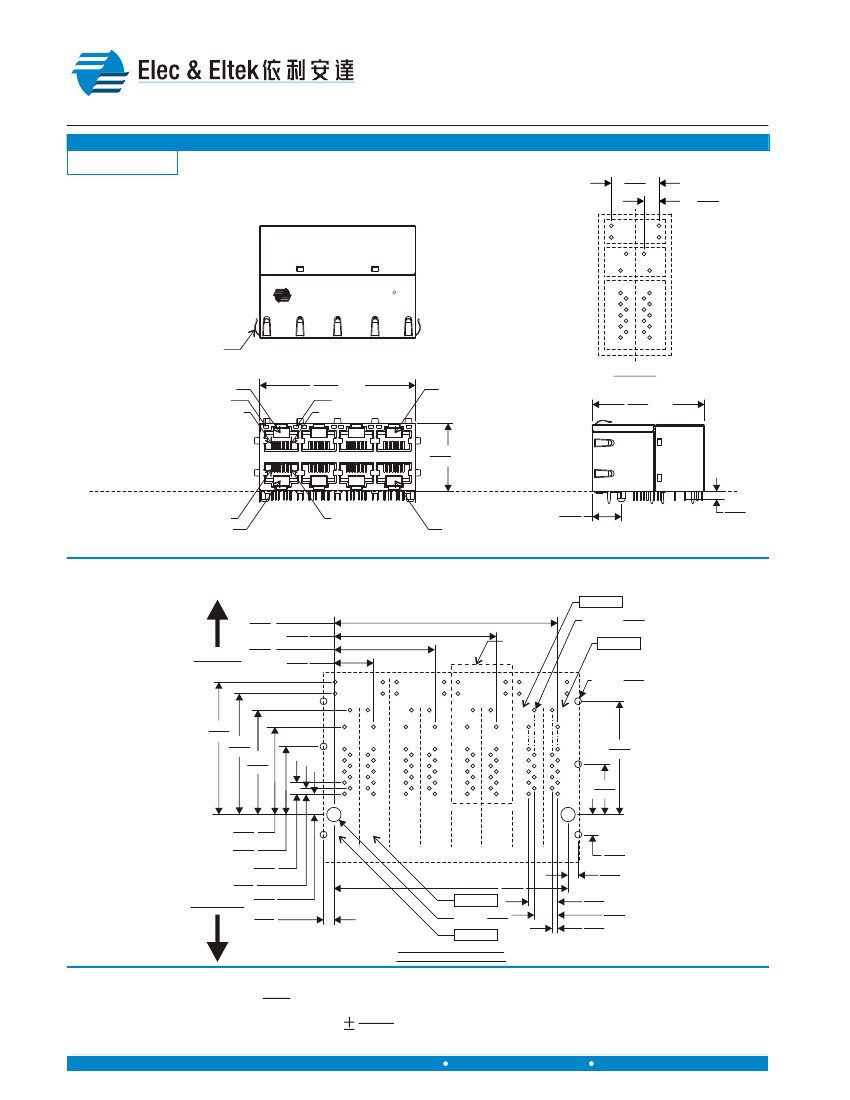

MJ24N-07B
0.426
10.82
0.133
2X 3.38
LEFT SIDE
LED PINS
LOWER PORT
PoE PINS
(E&E PART NUMBER)
C
(DATE)
13
14
12
11
9
7
5
3
1
88
66
44
22
13
14
12
11
9
7
5
3
1
RIGHT SIDE
LED PINS
UPPER PORT
PoE PINS
R
U
R
US
LOWER PORT
SIGNAL PINS
UPPER PORT
SIGNAL PINS
NOTE 4
DETAIL “A”
PORT 2
LED (LEFT)
J8
2.340
59.44 MAX.
LED (RIGHT)
J1
PORT 8
1.680
42.67 MAX.
1.020
25.91 MAX.
REFERENCE OR
GAUGE PLANE
J1
J8
PORT 7
0.425
10.80
0.125
3.18
PORT 1
PORT 7
2.005
50.93
Chip side
0.905
22.99
1.455
36.96
0.355
9.02
0.042
104X DIA: 1.07
DETAIL “A”
PORT 8
6X DIA:
0.062
1.57
1.171
29.74
1.071
27.20
0.935
23.75
1.015
25.78
0.450
11.43
Cable
0.785
19.94
0.610
15.49
0.100
2.54
0.050
1.27
0.185
side
4.70
0.110
2.79
PORT 2
2.100
53.34
0.180
4.57
0.110
2.79
0.260
6.60
0.210
5.33
0.050
1.27
0.126
2X DIA:
3.20
PORT 1
Recommended hole pattern
viewed from component side
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ125(01)
Revised in 06/07
1000 Base-T Applications
Stack 2XN, Through Hole
E & E Magnetic Products Limited
Vertical-row Of Zigzag Output Pins Pattern
(With PoE Feature)
M
ECHANICAL
D
IMENSIONS

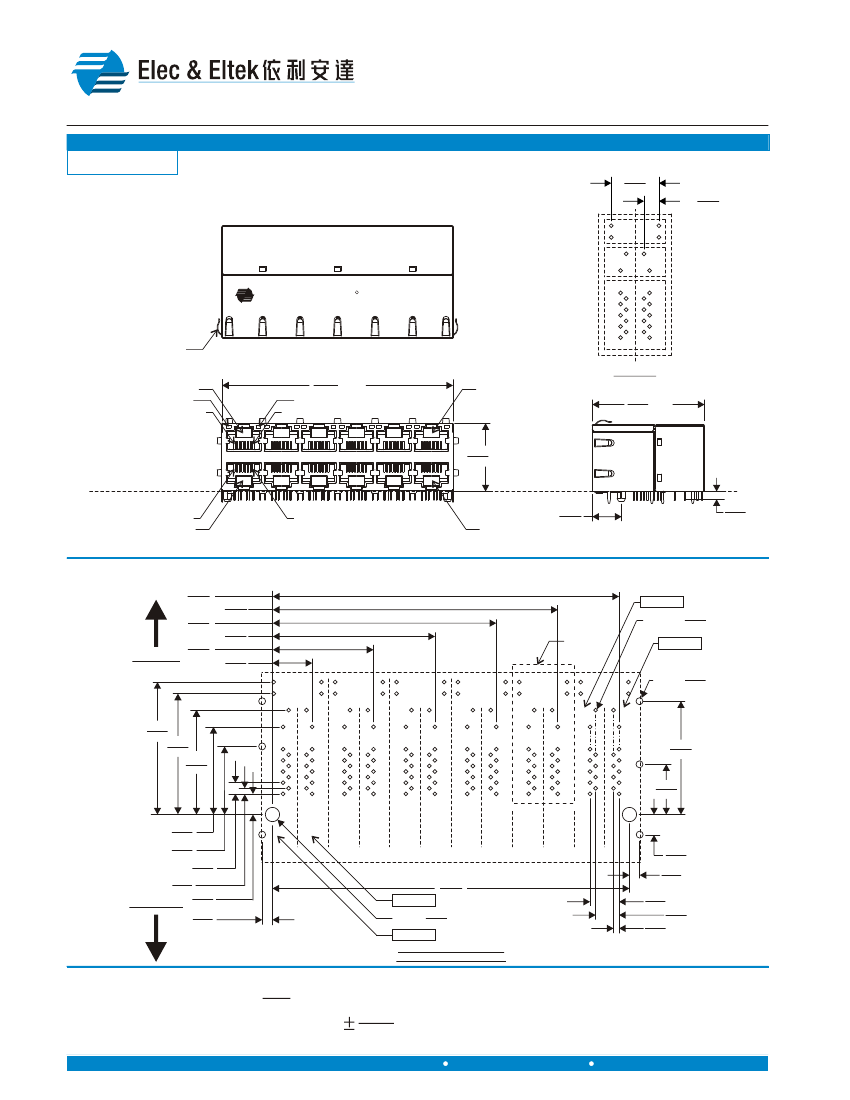

MJ26N-07B
0.426
10.82
0.133
2X 3.38
LEFT SIDE
LED PINS
LOWER PORT
PoE PINS
(E&E PART NUMBER)
C
(DATE)
13
14
12
11
9
7
5
3
1
88
66
44
22
13
14
12
11
9
7
5
3
1
RIGHT SIDE
LED PINS
UPPER PORT
PoE PINS
R
U
R
US
LOWER PORT
SIGNAL PINS
UPPER PORT
SIGNAL PINS
NOTE 4
DETAIL “A”
PORT 2
LED (LEFT)
J8
J1
3.440
87.38 MAX.
LED (RIGHT)
PORT 12
1.680
42.67 MAX.
1.020
25.91 MAX.
REFERENCE OR
GAUGE PLANE
J1
J8
PORT 11
0.425
10.80
0.125
3.18
PORT 1
3.105
78.87
2.005
50.93
2.555
64.90
1.455
36.96
0.355
9.02
PORT 11
0.042
156X DIA: 1.07
DETAIL “A”
Chip side
0.905
22.99
PORT 12
6X DIA:
0.062
1.57
1.171
29.74
1.071
27.20
0.935
23.75
1.015
25.78
0.450
11.43
Cable
0.785
19.94
0.610
15.49
0.100
2.54
0.050
1.27
0.185
side
4.70
0.110
2.79
PORT 2
3.200
81.28
0.180
4.57
0.110
2.79
0.260
6.60
0.210
5.33
0.050
1.27
0.126
2X DIA:
3.20
PORT 1
Recommended hole pattern
viewed from component side
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
3
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ125(01)
Revised in 06/07
1000 Base-T Applications
Stack 2XN, Through Hole
E & E Magnetic Products Limited
Vertical-row Of Zigzag Output Pins Pattern
(With PoE Feature)
M
ECHANICAL
D
IMENSIONS

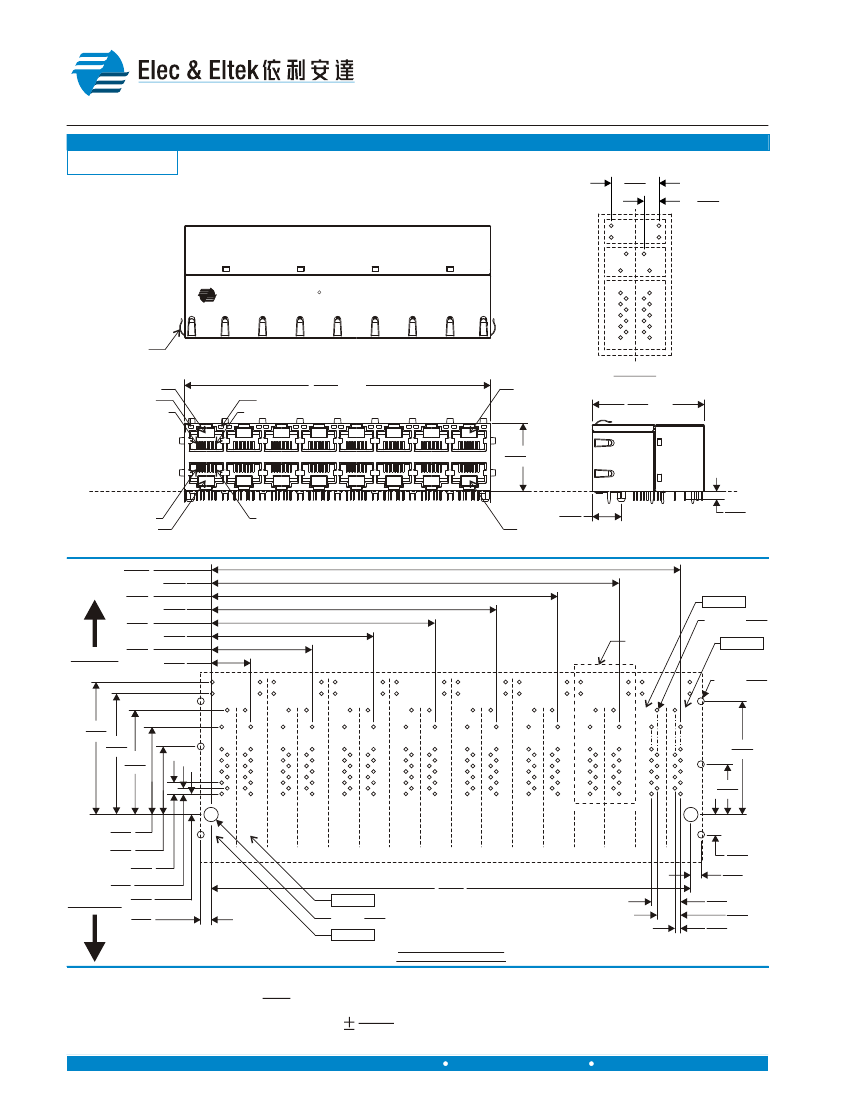

MJ28N-07B
0.426
10.82
0.133
2X 3.38
LEFT SIDE
LED PINS
LOWER PORT
PoE PINS
(E&E PART NUMBER)
C
(DATE)
13
14
12
11
9
7
5
3
1
88
66
44
22
13
14
12
11
9
7
5
3
1
RIGHT SIDE
LED PINS
UPPER PORT
PoE PINS
R
U
R
US
LOWER PORT
SIGNAL PINS
UPPER PORT
SIGNAL PINS
NOTE 4
DETAIL “A”
PORT 2
LED (LEFT)
J8
J1
4.540
115.32 MAX.
LED (RIGHT)
PORT 16
1.680
42.67 MAX.
1.020
25.91 MAX.
REFERENCE OR
GAUGE PLANE
J1
J8
PORT 15
0.425
10.80
0.125
3.18
PORT 1
4.205
106.81
3.105
78.87
2.005
50.93
3.655
92.84
2.555
64.90
1.455
36.96
0.355
9.02
PORT 15
0.042
208X DIA: 1.07
DETAIL “A”
Chip side
0.905
22.99
PORT 16
6X DIA:
0.062
1.57
1.171
29.74
1.071
27.20
0.935
23.75
1.015
25.78
0.450
11.43
Cable
0.785
19.94
0.610
15.49
0.100
2.54
0.050
1.27
0.185
side
4.70
0.110
2.79
PORT 2
0.126
2X DIA:
3.20
PORT 1
4.300
109.22
0.180
4.57
0.110
2.79
0.260
6.60
0.210
5.33
0.050
1.27
Recommended hole pattern
viewed from component side
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
4
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ125(01)
Revised in 06/07
1000 Base-T Applications
Stack 2XN, Through Hole
E & E Magnetic Products Limited
Vertical-row Of Zigzag Output Pins Pattern
(With PoE Feature)
(EACH PAIR PORT)
S
CHEMATICS

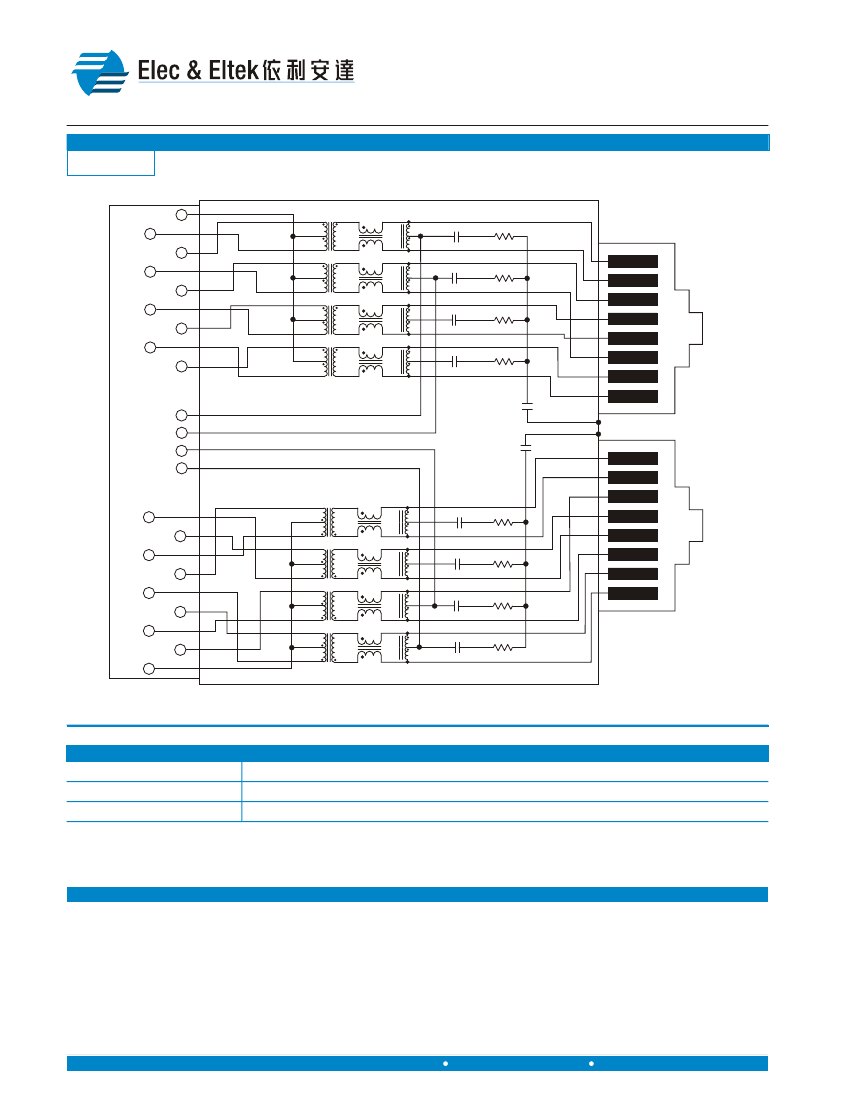

E7102
Primary
1
Shield
1CT:1
12nF/100VDC
75Ω
MDI_0-
2
MDI_0+
3
MDI_1-
4
MDI_1+
5
MDI_2-
6
MDI_2+
7
MDI_3-
8
MDI_3+
9
Secondary
J1
1CT:1
12nF/100VDC
75Ω
J2
1CT:1
12nF/100VDC
75Ω
J3
J4
J5
12nF/100VDC
75Ω
1CT:1
Upper
Port
J6
J7
J8
Vcc+
11
Vcc-
12
Vcc-
12
Vcc+
11
1000pF/2000V
1000pF/2000V
J8
J7
1CT:1
MDI_2+
9
MDI_2-
8
12nF/100VDC
75Ω
J6
J5
J4
Lower
Port
1CT:1
MDI_3+
7
MDI_3-
6
MDI_0+
5
MDI_0-
4
MDI_1+
3
MDI_1-
2
1
12nF/100VDC
75Ω
J3
J2
1CT:1
12nF/100VDC
75Ω
J1
1CT:1
12nF/100VDC
75Ω
RJ-45
Cable Side
RJ-45
Chip Side
M
ATERIALS
Housing
Contact Pins
PCB Pins
5
Consist of thermoset & thermoplastic materials, all of them are UL 94-V0 rated.
Phosphor bronze, plated with nickel under-plating and hard gold over contact area.
Copper wire which meets solderability requirements per MIL-STD-202, method 208.
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
2/F Block A, Merit Industrial Centre,
94 Tokwawan Road, Kowloon,
Hong Kong
Tel: (852) 2765 3888
Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2006, E & E Magnetic Products Limited.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
5
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ125(01)
Revised in 06/07

MJR28N2DDA3-E7102 Related Products

MJR28N2DDA3-E7102 MJ-24N2DDA3-E7102 MJ-26N2DDA3-E7102 MJ-28N2DDA3-E7102 MJR24N2DDA3-E7102 MJR26N2DDA3-E7102
Description Telecom and Datacom Connector, ROHS COMPLIANT Telecom and Datacom Connector Telecom and Datacom Connector Telecom and Datacom Connector Telecom and Datacom Connector, ROHS COMPLIANT Telecom and Datacom Connector, ROHS COMPLIANT
Is it lead-free? Lead free Contains lead Contains lead Contains lead Lead free Lead free
Is it Rohs certified? conform to incompatible incompatible incompatible conform to conform to
Maker Elec & Eltek Elec & Eltek Elec & Eltek Elec & Eltek Elec & Eltek Elec & Eltek
Reach Compliance Code unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Renesas Electronics RL78/G14 Evaluation Board Application
Design a lithium-ion battery management system to achieve intelligent management and performance testing of lithium-ion batteries! Step 1: Design an information acquisition circuit to collect informat...
wsdymg Renesas Electronics MCUs
Teach you how to analyze and solve the problem that WinCE cannot synchronize with PC's AnctiveSync
Seeing many novices like me encounter the problem that WinCE cannot synchronize with PC's AnctiveSync, I remembered the very depressed scene when I started to learn ce. In order to get started as soon...
草履虫 Embedded System
Introduction to FPGA design process and design considerations
Introduction to FPGA design process and design considerations...
呱呱 FPGA/CPLD
Ask a question about SIM300
The protector made of 430 MCU and SIM300 module uses SMS to control the device. Now there is a problem. When the protector is powered off or turned off, the device will not execute the command, but it...
wang72175 Embedded System
Risk assessment report of SGS CN_201008
Risk assessment report of SGS CN_201008...
安_然 Test/Measurement
【Translation】Micropy Official Tutorial 07 Safe Mode and Restoring Factory Settings
7. Safe Mode and Factory Reset Don't be too frustrated when your pyboard fails, especially if you programmed it incorrectly. The first thing to do is to enter safe mode: this will temporarily skip the...
我的学号 stm32/stm8

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1948  2738  1013  1900  1526  40  56  21  39  31
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
