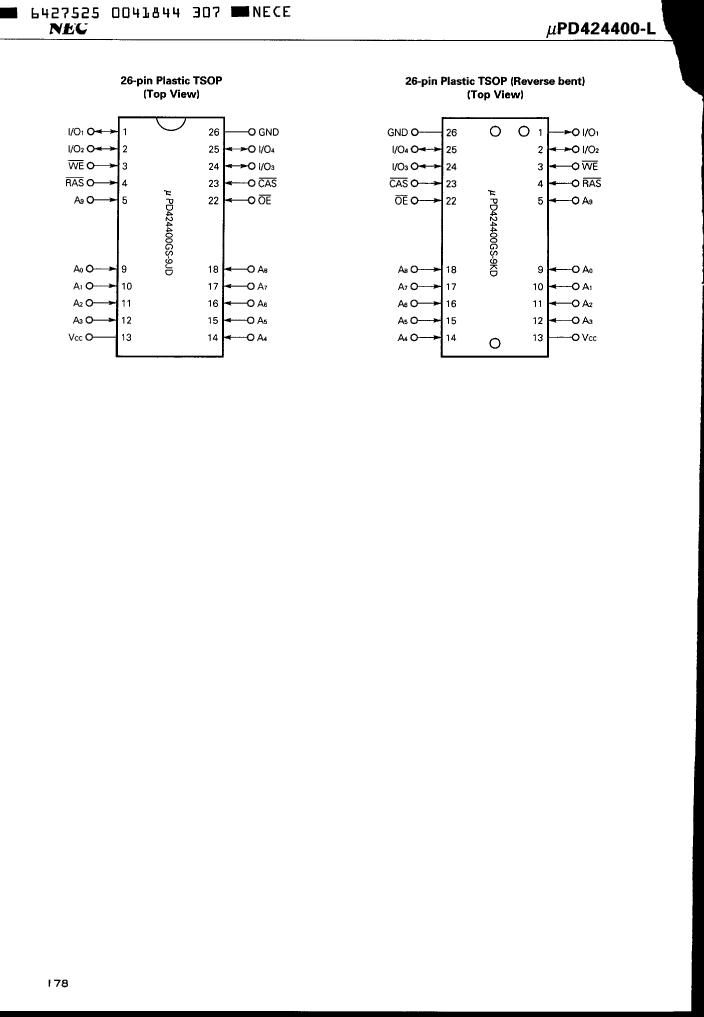

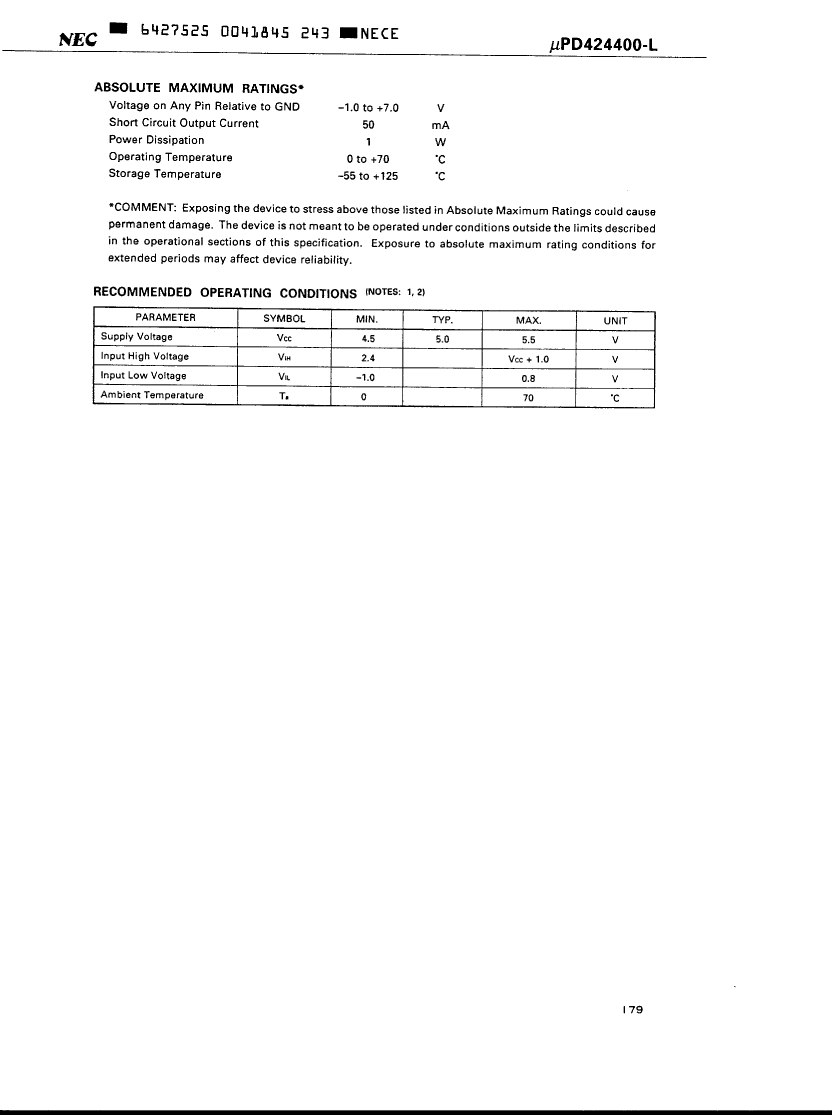

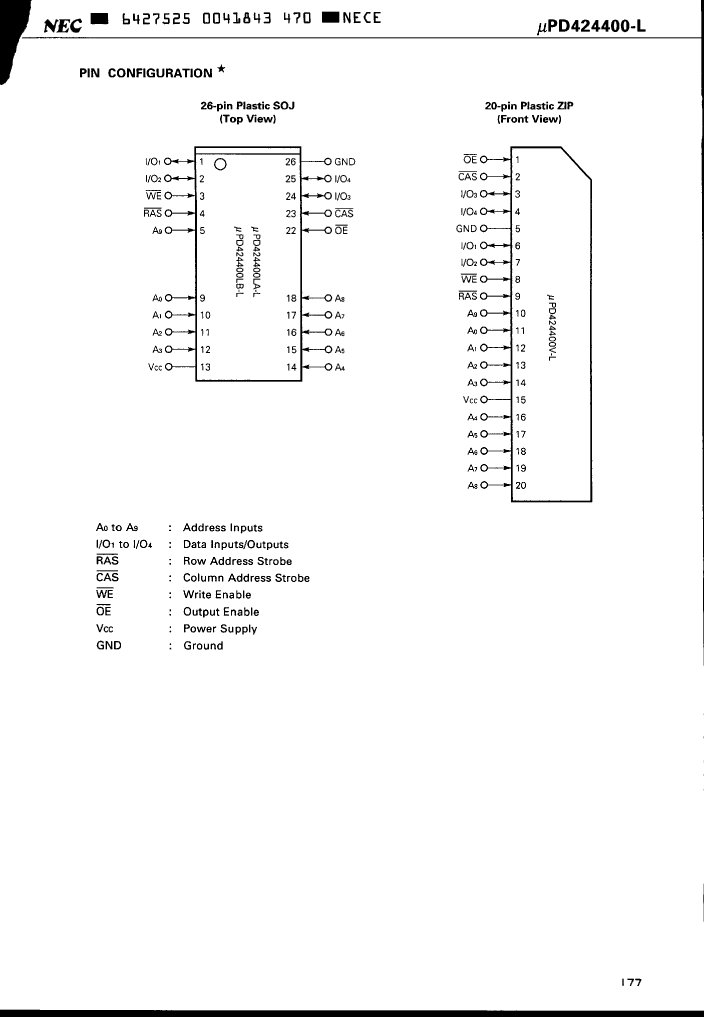

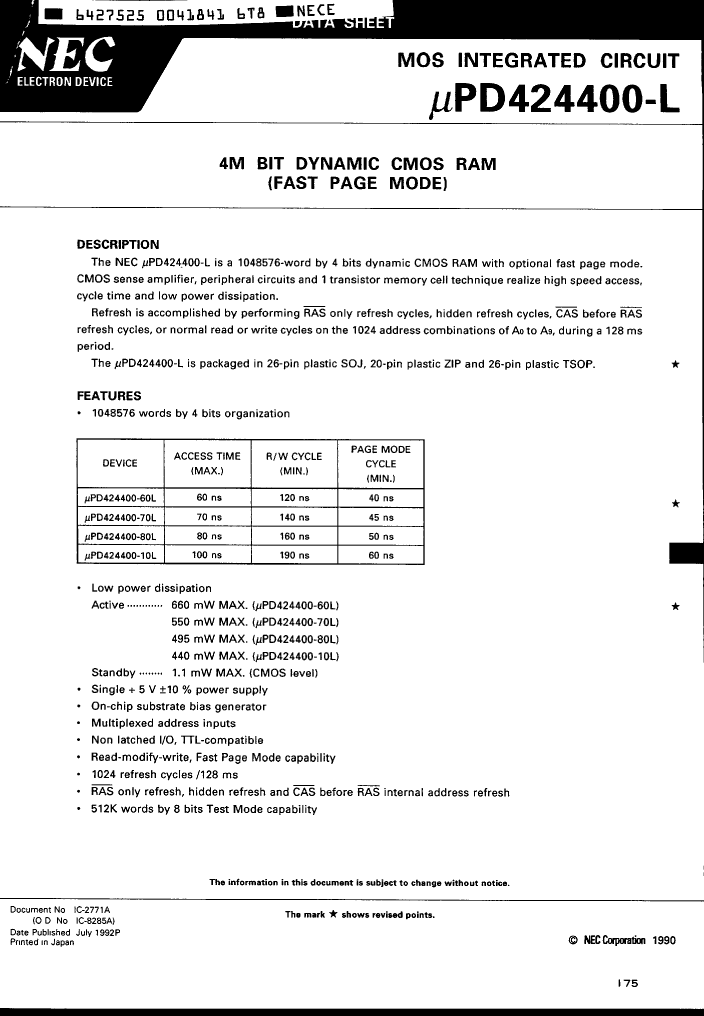

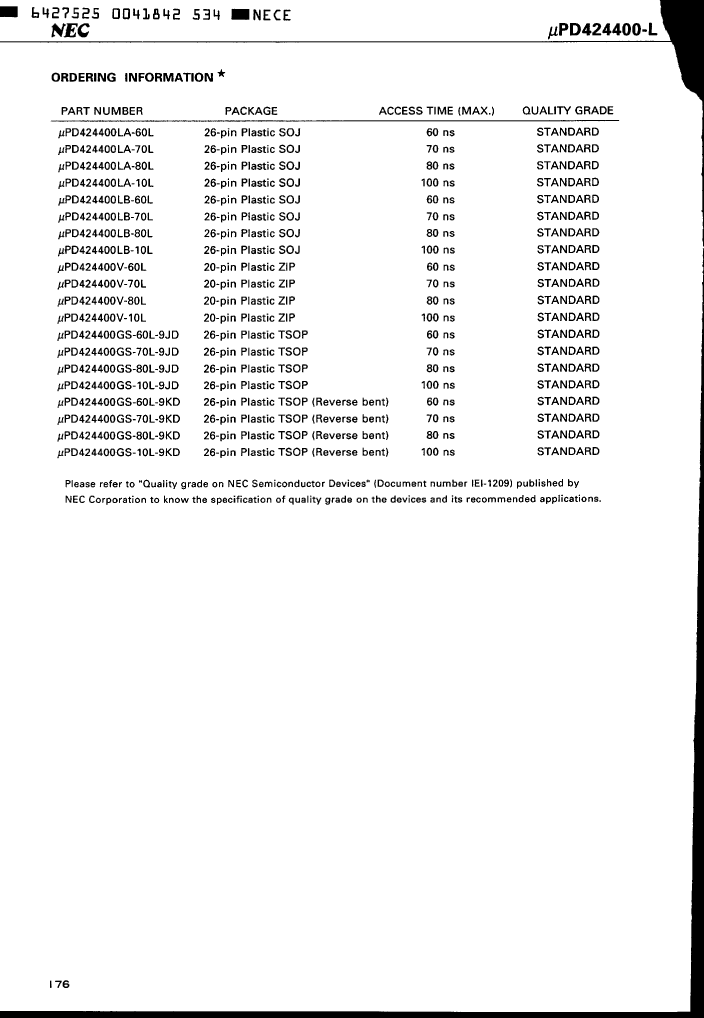

Preview

UPD424400GS-10L-9JD: DescriptionIC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC; Categorystorage storage; File Size1MB，25 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD424400GS-10L-9JD Overview

IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC

UPD424400GS-10L-9JD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	TSSOP, TSSOP20/26,.36
Reach Compliance Code	unknown
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of terminals	20
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20/26,.36
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.0002 A
Maximum slew rate	0.08 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

UPD424400GS-10L-9JD Related Products

	UPD424400GS-10L-9JD	UPD424400GS-80L-9KD	UPD424400GS-80L-9JD	UPD424400GS-10L-9KD	UPD424400GS-60L-9KD	UPD424400LB-10L	UPD424400LB-60L
Description	IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,TSSOP,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,SOJ,20PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX4,CMOS,SOJ,20PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSSOP, TSSOP20/26,.36	TSSOP, TSSOP20/26,.36	TSSOP, TSSOP20/26,.36	TSSOP, TSSOP20/26,.36	TSSOP, TSSOP20/26,.36	SOJ, SOJ20/26,.4	SOJ, SOJ20/26,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	100 ns	80 ns	80 ns	100 ns	60 ns	100 ns	60 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-J20	R-PDSO-J20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4
Number of terminals	20	20	20	20	20	20	20
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	SOJ	SOJ
Encapsulate equivalent code	TSSOP20/26,.36	TSSOP20/26,.36	TSSOP20/26,.36	TSSOP20/26,.36	TSSOP20/26,.36	SOJ20/26,.4	SOJ20/26,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024
self refresh	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.0002 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A
Maximum slew rate	0.08 mA	0.09 mA	0.09 mA	0.08 mA	0.12 mA	0.08 mA	0.12 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
