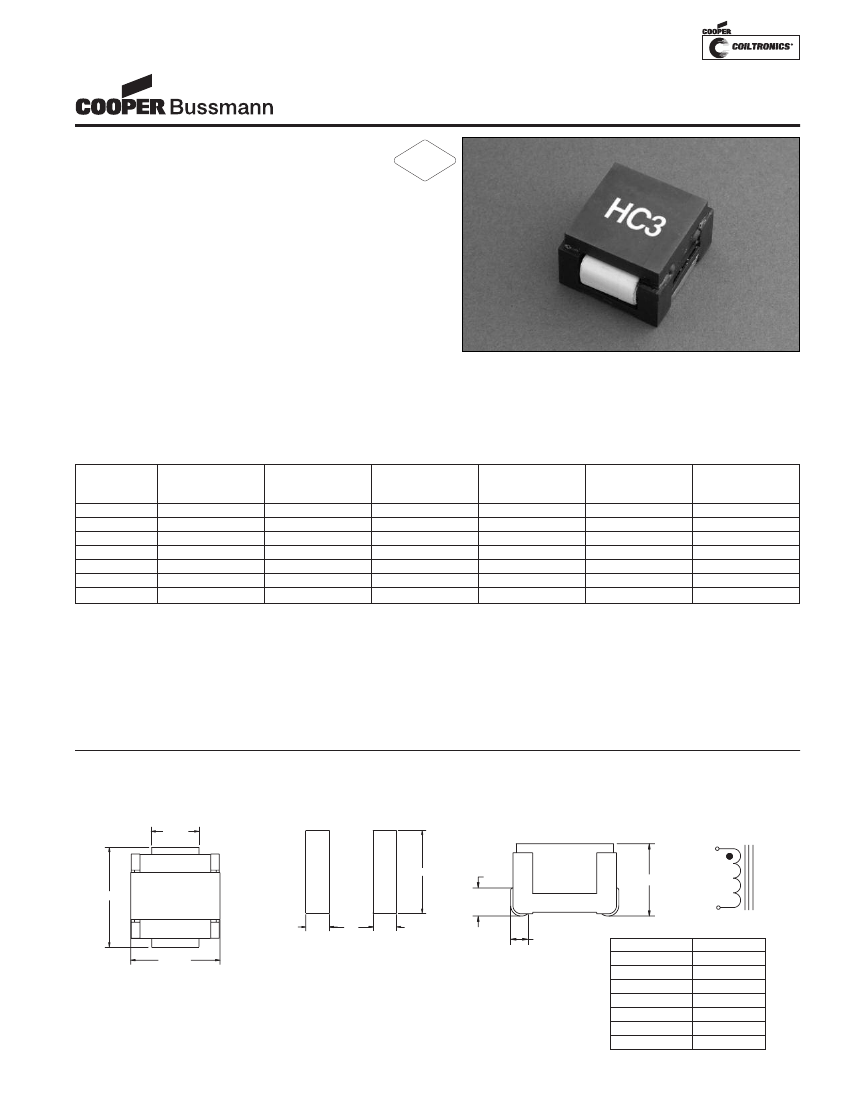

HC3 Series
HIGH CURRENT 3
Power Inductors
Description
RoHS
2002/95/EC
• High Density, high current/low voltage
applications
• Foil technology that adds higher reliability
factor over the traditional magnet wire used
for higher frequency circuit designs
• Current range from 78.0 to 33.8 Amps
• Inductance range from 0.50uH to 6.52uH
• Ferrite core material
Applications
• Next generation microprocessors
• Energy storage applications
• DC-DC converters
• Computers
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C
• Solder reflow temperature: +260°C max. for 10 seconds
max.
Part
Number
HC3-R50-R
HC3-1R0-R
HC3-2R2-R
HC3-3R3-R
HC3-4R7-R
HC3-5R6-R
HC3-6R0-R
Rated
Inductance
µH
0.50
1.0
2.2
3.3
4.7
5.6
6.0
OCL (1)
nominal
+/-20% µH
0.50
1.05
2.05
3.63
4.98
5.68
6.52
Irms (2)
Amperes
(Typ.)
78.00
78.00
55.50
42.45
33.80
33.80
33.80
Packaging
• Supplied in bulk packaging, 24 parts per tray
Isat (3)
Amperes
(Typ.)
120
78
60
46
38
34.5
30.0
DCR (mΩ)
max. @
20°C
0.42
0.42
0.70
1.20
2.17
2.17
2.17
Volts (4)
µSec (VµS)
(ref.)
17.33
17.33
26.01
34.65
43.30
43.30
43.30
1) Test Parameters: 300kHz, 0.25 Vrms
2) DC current for approximately
∆T
of 40°C without core loss
De-rating is necessary for AC currents. PCB layout, trace thickness and width,
air flow and proximity of other heat generating components will affect temperature
rise. It is recommended that the temperature of the part not exceed 125°C under
worst case conditions verified in the end application.
3) Peak current for approximately 30% rolloff (@20°C)
4) Applied Volt-Time product (V-µS) across the inductor. This value represents the
applied V-µS at 300kHz necessary to generate a core loss equal to 10% of the
total losses for a 40°C temperature rise.
Part number definition:
HC3-XXX-R
HC3 = Product code and size
XXX = Inductance value in uH.
R = Decimal point. If no R is present, third character = #of zeros
-R suffix indicates RoHS compliant
Mechanical Diagrams
TOP VIEW
14.5 typ
1
RECOMMENDED
PCB PAD LAYOUT
FRONT VIEW
SCHEMATIC
22.0
30.0 max
HC3
wwllyy R
5.50
19.0
5.50
4.0 typ
HT max
2
3.0 typ
25.3 max
wwllyy = Date code R = Revision level
Part Number
HC3-R50-R
HC3-1R0-R
HC3-2R2-R
HC3-3R3-R
HC3-4R7-R
HC3-5R6-R
HC3-6R0-R
Height max
18.0
17.5
17.5
17.5
17.5
17.5
17.5
HC3 Series
HIGH CURRENT 3
Power Inductors

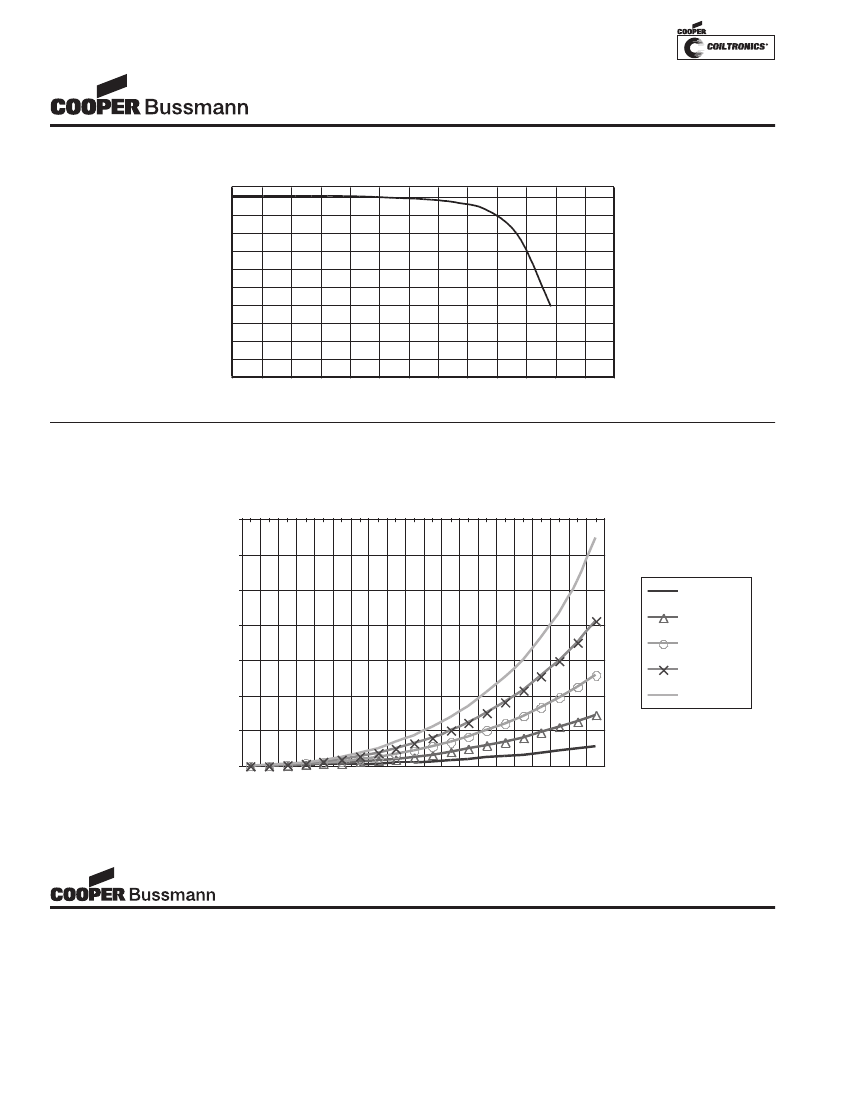

Inductance Characteristics
OCL vs Isat
100
90
80
70
% of OCL
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
110
120
130
% of Isat
Core Loss
Irms DERATING W ITH CO RE LOSS for HC3
% Applied Volt-u Seconds
10
30
30
50
70
90
110
130
150
170
190
%of Irms specified from
zero ripple application
40
50
100kHz
200kHz
300kHz
400kHz
500kHz
60
70
80
90
100
PM-4122 3/07
© Cooper Electronic
Technologies 2007
Visit us on the Web at www.cooperbussmann.com
1225 Broken Sound Pkwy. Suite F Boca Raton, FL 33487
Tel: +1-561-998-4100 Toll Free: +1-888-414-2645 Fax: +1-561-241-6640
This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper Electronic
Technologies reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper
Electronic Technologies also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been
selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Electronic Technologies does not authorize the use of any of its products for use in life support devices or systems without the
express written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when
properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
