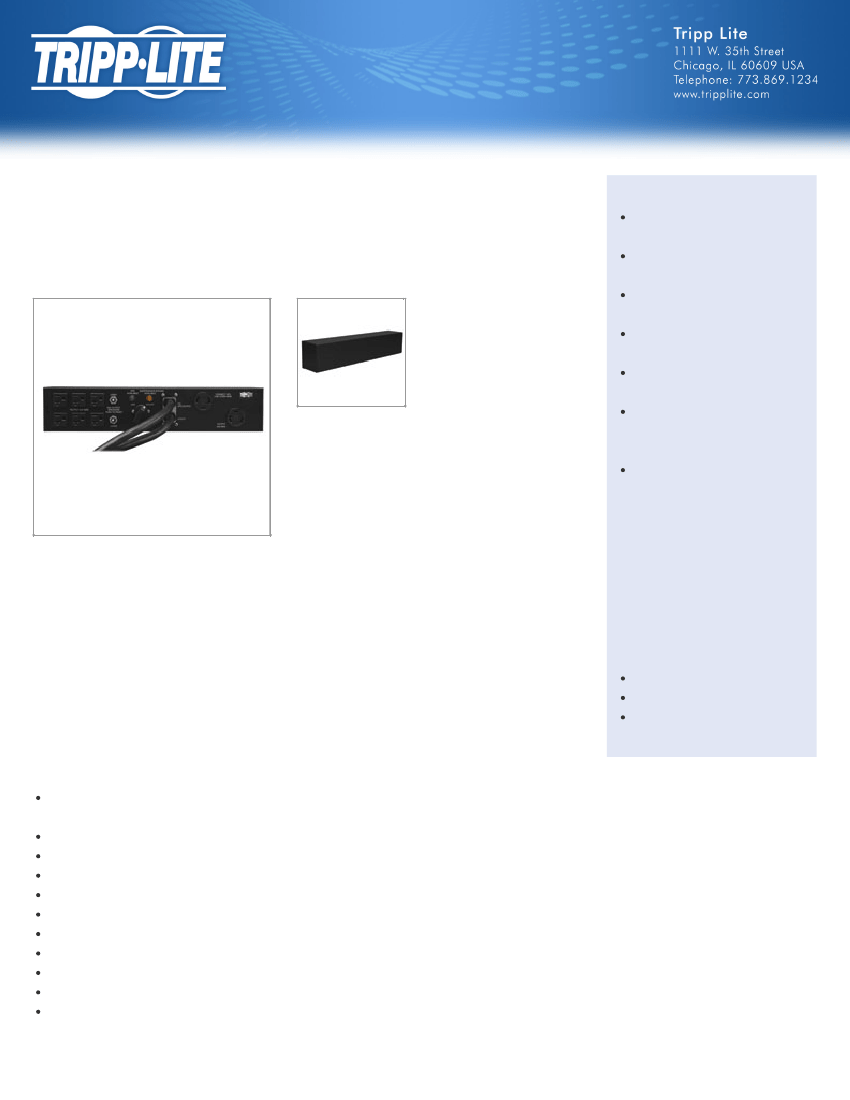

Tripp Lite’s Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no
interruption of connected server or networking loads. Dual input power cables support PDU connection to
separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source
of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and
connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to
momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is
removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical
connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power
to connected equipment.
ensure that connected networking
equipment will see no power
interruption as the UPS is serviced,
replaced or upgraded
Package Includes
Hot-swap PDU System
2U mounting brackets
User manual with warranty
information
Features
Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with no interruption of connected server or
networking loads
PDUB30 is universally compatible with any Tripp Lite or other brand of 100-127V UPS rated up to 3000VA or 2880 watts with a NEMA L5-30P input cable
2U horizontal rackmount form factor compatible with 2 or 4 post racks
Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)
Pair of attached L5-30P PDU input cables connect to separate Utility and UPS power sources
6 5-15/20R and 1 L5-30R outlets support critical networking loads in both Utility and UPS operating modes
One additional L5-30R pass-through outlet supports UPS input power cord
Dual input power cables support PDU connection to separate Utility and UPS power sources
Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS
Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS
Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system
is removed and replaced with a fresh one
1/4
Once the new UPS is up and running with all connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS
power to connected equipment
TAA Compliant Version Available - Order Tripp Lite PDUB30TAA
Specifications
OVERVIEW
PDU Type
Hot-Swap
OUTPUT
Output Watt Capacity (watts)
Output Capacity Details
Frequency compatibility
Output nominal voltage
Outlet quantity / type
Outlet Type
2880
2.9kW (120V input), 3.0kW (127V input), 2.4kW (100V input); 30A maximum (agency de-rated to 24A continuous)
50 / 60 Hz
100-127V nominal, single phase
6 NEMA 5-15/20R and 1 L5-30R outlets support critical connected loads; 1 designated pass-through L5-30R outlet
supports UPS L5-30P input plug
NEMA 5-15/20R, L5-30R
INPUT
PDU Input Voltage
Maximum Input Amps (A)
PDU Plug Type
Input cord length details
Phase
100; 120; 127
24
NEMA L5-30P
Utility input cable (10 ft / 3m) / UPS input cable (6 ft / 1.8m)
Single-Phase
LEDS ALARMS & SWITCHES
Switches
Front panel LEDs
Manual 2 position transfer switch offers fast switching between UPS and Utility operating modes in less than 6
milliseconds
Lighted indicators confirm UPS and Utility switch position and operating mode
PHYSICAL
Shipping Dimensions (HWD/in)
Shipping Dimensions (HWD/cm)
Shipping weight (lbs)
Shipping weight (kg)
Unit Dimensions (HWD/in)
Unit Dimensions (HWD/cm)
Unit weight (lbs)
9.25 x 20.23 x 6.1
23.5 x 51.4 x 15.5
11
5
3.42 x 17.32 x 3.03
8.7 x 44 x 7.7
7.7
2/4
Unit weight (kg)
Material of construction
Style
Form factors supported
PDU Form Factor
3.5
Steel
Rackmount
2U rackmount in 2 or 4 post racks
Horizontal (1U, 2U, etc)
ENVIRONMENTAL
Relative Humidity
0-95% non condensing
CERTIFICATIONS
TAA Compliant Option
Certifications
TAA Compliant Version Available - Order Tripp Lite PDUB30TAA
Tested to UL60950 (USA), CSA (Canada)
WARRANTY
Product Warranty Period (Worldwide)
2-year limited warranty
Related Items
Optional Products
Model Number
P006-006-13LA
P006-006-13RA
P022-001
P023-001
P044-06I
P007-002
P030-002-5
P006-003
P006-004
P006-004-BL
P006-004-GN
P006-004-RD
P006-004-YW
P006-006
P006-006-2
P006-006-515MF
Description
6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Left Angle)
6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Right Angle)
1-ft. 18AWG Power Extension cord (NEMA 5-15R to NEMA 5-15P)
1-ft. 14AWG Power Adapter cord (NEMA L5-15R to NEMA 5-15P)
6-inch 12AWG Heavy Duty Power Adapter cord (NEMA-L5-20R to NEMA-5-20P)
2-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P)
5-Pack of 2-ft. 18AWG Power Cords NEMA 5-15P to IEC-320-C13)
3-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13)
4-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13)
4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Blue Connectors
4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Green Connectors
4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Red Connectors
4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Yellow Connectors
6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13)
6-ft. AC Power Splitter Cable (NEMA 5-15P to 2 x IEC-320-C13)
6 ft. Piggyback Power Cord (NEMA 5-15P/R to IEC-320-C13 )
3/4
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
P007-006
P007-010
P034-010
P006-010
P049-010
P010-012
6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P)
10-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P)
10-ft. 14AWG Heavy Duty Power cord ( IEC-320-C19 to NEMA 5-15P)
10-ft. 18AWG Power cord ( NEMA 5-15P to IEC-320-C13)
10-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to NEMA 5-20P)
12-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13)
1
1
1
1
1
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
