REVISION Z
DO NOT
SCALE FROM
THIS PRINT
PATENT NUMBER
6159045
2 MAX
SWAY
((No OF POS + 2) x .03937) + .100 REF
[1.0000] [2.54]
(No OF POS -1) x .03937
[1.0000]
"A"
02
C2
MEC1-1XX-XX-XX-D-RAX-XX-SL-XX
No OF POSITIONS
-05, -08, -20, -30,
-40, -50, -60 & -70
(PER ROW - SEE TABLE 2)
CARD THICKNESS
-01: .031 THICK CARD
(USE MEC1-XX-T-D-RAX-X-SL)
-02: .062 THICK CARD
(USE MEC1-XX-S-D-RAX-X-SL)
(SEE TABLES 1 AND 4)
(SUBSTITUTE -T: FOR -TR: DESIGNATION
WHEN USING -XM PLATING DESIGNATION
WITH BOTH -NP AND -SL OPTIONS)
(-T OR -TR OPTION NOT AVAILABLE FOR
70 POS)
OPTION
-TR: TAPE & REEL
.1096 2.783
REF
DETAIL 'D'
SCALE 6 : 1
"A" REF
SOLDER LOCKS
.268 6.81
REF
01
"A"
'D'
(No OF POS + 2) x .03937 REF
[1.0000]
(No OF POS + 2) x .03937 REF
[1.0000]
PLATING
-F: GOLD FLASH (USE C-150-XX-F-P)
-L: LIGHT SELECTIVE GOLD (USE C-150-XX-L-P)
-S: SELECTIVE GOLD (USE C-150-XX-S-P)
-FM: FLASH GOLD SELECTIVE, MATTE TIN TAIL
(USE C-150-XX-F-P)
-LM: LIGHT SELECTIVE GOLD, MATTE TIN TAIL
(USE C-150-XX-L-P)
-SM: SELECTIVE GOLD, MATTE TIN TAIL
(USE C-150-XX-S-P)
"C" .005
.134 3.40 REF
C5
NON-POLARIZED OPTION
-NP: NO POLARIZED POSITION
(ONLY AVAILABLE ON -05,
-08, -20, & -30 POSITIONS)
-BLANK: BODY IS POLARIZED
TAIL OPTION
-RA1: STANDARD
-RA2: ELEVATED
ROW SPECIFICATION
-D: DOUBLE (USE MEC1-XX-X-D-RAX-X-SL)
MEC1-XX-X-D-RA1-X-SL
"B" .002 (TYP) (SEE NOTE 8)
.169 4.29
.460 11.68
REF
.225 5.72
REF
.470 11.94
'F'
.03[.8]
C4
.320 8.13
REF
C-150-01-X-P
.013 0.32 REF (TYP)
.025 0.64 REF (TYP)
.022 0.56 REF
.0394 1.000
C3
.059 1.50
C-150-04-X-P
(No OF POS -1)
x .03937[1.0000]
.0394 1.000
SEE TABLE 3
.070 1.78 REF
.01 0.2 REF (TYP)
"E"
MEC1-120-02-XX-D-RA1-SL SHOWN
(IN-PROCESSES ON SHEET 2)
NOTES:
SECTION "A"-"A"
.049 1.23
REF
SEE NOTE 11
DETAIL 'E'
SCALE 4 : 1
1.5 MAX
1. C REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: SEE TABLE 3.
C1 3. BURR ALLOWANCE: .004[0.10] MAX.
4. NOTE DELETED.
5. MINIMUM PUSHOUT FORCE: .5 LB.
6. NOTE DELETED.
7. TAIL OPTION -RA1 TO HAVE C-150-01-XX-X CONTACT FULLY PRE-FORMED.
8. TO BE MEASURED ON OPPOSING CONTACTS.
9. BODIES TO BE LAYER PACKAGED FOR TRANSIT BETWEEN INVENTORY AND PRODUCTION.
10. TO BE MEASURED AT 2 MAIN 90 BENDS.
11. HOT BAR FORM AFTER ASSEMBLY (WILL PRODUCE RETENTION FLANGE AS SHOWN).
12. -F PLATING OPTION CAN BE SUBBED FOR -FM, -L FOR -LM, & -S FOR -SM
SWAY
DETAIL 'F'
SCALE 4 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.350 8.89 REF
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322

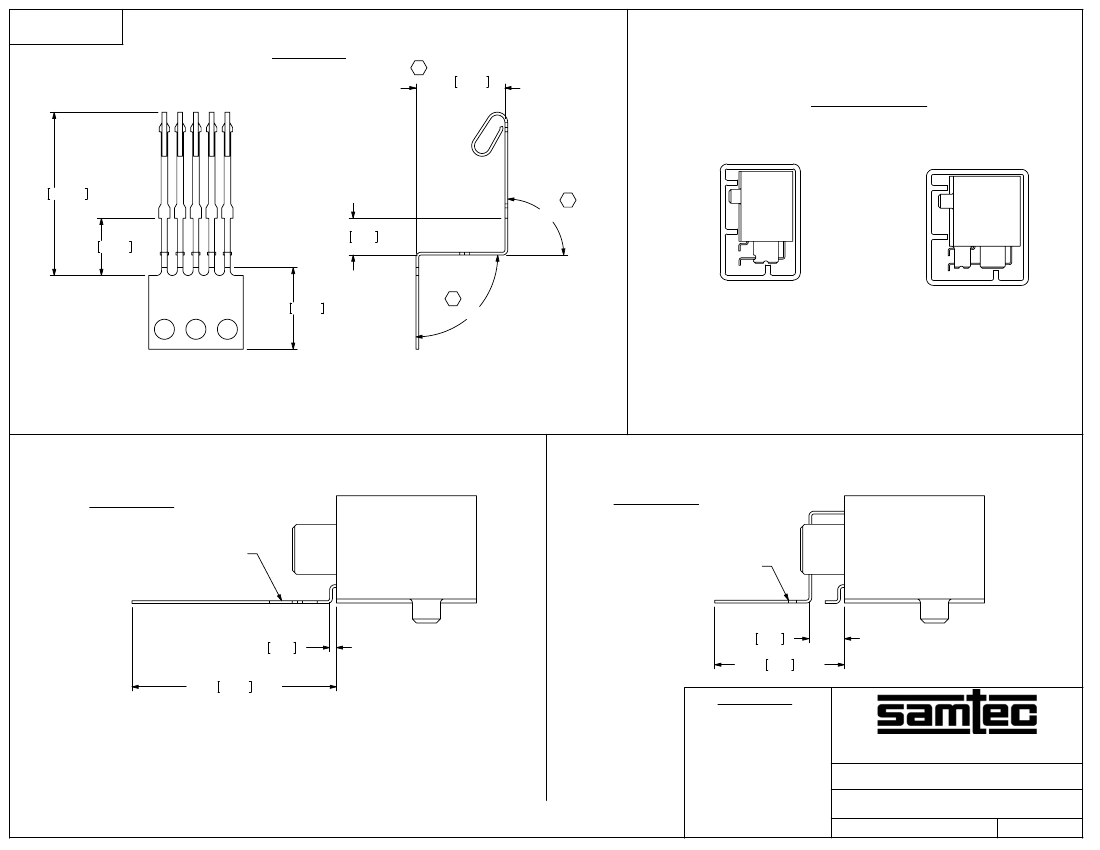

DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
FLAMMABILITY RATING: UL 94V-0
SHEET SCALE: 2:1
INSULATOR: LCP
-01: COLOR: NATURAL
-02: COLOR: BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\Mktg\MEC1-1XX-XX-XX-D-RAX-XX-SL-XX-MKT.SLDDRW

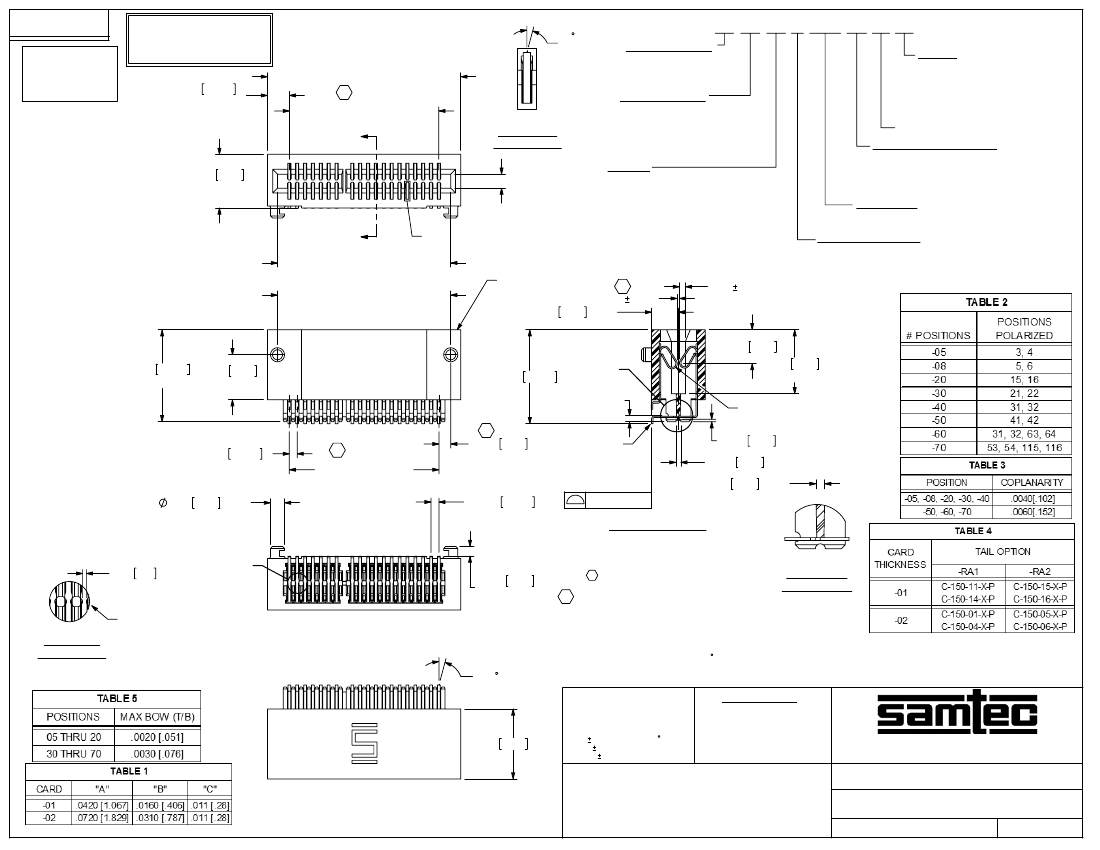

1mm MEC1 -RA ASSEMBLY
01/25/00
SHEET
1
OF
3
MEC1-1XX-XX-XX-D-RAX-XX-SL-XX
BY:
MARKS
REVISION Z
(C-150-04-X-P SHOWN)
(-RA1 SECOND ROW)
IN PROCESS
C7
.2225 5.652
(SEE NOTE 10)
PACKAGING VIEW
STANDARD TAIL OPTION
ELEVATED TAIL OPTION
.4082 10.367
90°
.1430 3.632
.092 2.34
C8
.2045 5.194
C4
90°
TUBE: PT-1-24-01-106
PLUG: TP-07
TUBE: PT-1-24-02-106
PLUG: TP-13
* DIMENSIONS ALSO APPLY TO C-150-14-X-P
(-RA1 FIRST ROW)
IN-PROCESS 1
(-RA1 SECOND ROW)
C-150-X1-X-P
IN-PROCESS 2
C-150-X4-X-P
.017 0.43
.511 12.98 REF
.089 2.26
.325 8.24 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

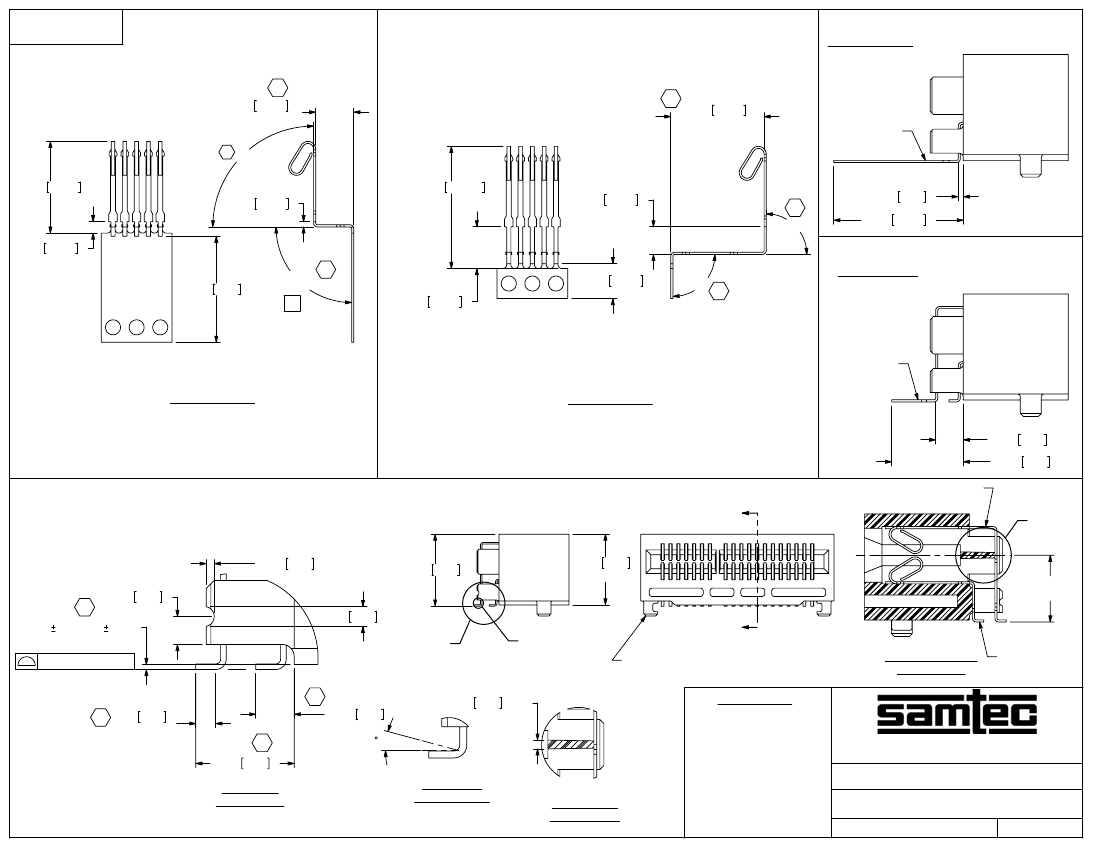

1mm MEC1 -RA ASSEMBLY
MEC1-1XX-XX-XX-D-RAX-XX-SL-XX
01/25/00
SHEET
2
OF
3
F:\DWG\MISC\Mktg\MEC1-1XX-XX-XX-D-RAX-XX-SL-XX-MKT.SLDDRW
BY:
MARKS
REVISION Z
(-RA2 FIRST ROW)
C10
IN-PROCESS 2
.1270 3.225
(SEE NOTE 10)
C9
C12
.3110 7.899
(SEE NOTE 10)
C-150-X5-X-P
90°
.4072 10.342
.017 0.43
.432 10.97
.3058 7.767
.0170 0.432
.0920 2.337
C13
90°
.0378 0.959
.354 8.99
90°
- 5°
+2°
C11
.1160 2.946
.1390 3.531
90°
Z
C14
(-RA2 SECOND ROW)
IN-PROCESS 2
C-150-X6-X-P
IN-PROCESS 1
(-RA2 FIRST ROW)
(C-150-05-X-P SHOWN)
* DIMENSIONS ALSO APPLY TO C-150-15-X-P
(-RA2 SECOND ROW)
(C-150-06-X-P SHOWN)
* DIMENSIONS ALSO APPLY TO C-150-16-X-P
C-150-06-X-P
"B"
IN-PROCESS 1
.092 2.34
.239 6.07 REF
MEC1-120-02-XX-D-RA2-SL SHOWN
TAIL OPTION -RA2 [ELEVATED] SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS TAIL OPTION -RA1]
.010 0.25
.035 0.89
.024 0.62 REF
'B'
SEE TABLE 3, SHT 1
C19
C17
'G'
.360 9.14
.354 8.98
REF
C15
.219[5.55]
REF
"B"
.002 .003[0.06 0.08]
'C'
MEC1-XX-X-D-RA2-SL-X
F:\DWG\MISC\Mktg\MEC1-1XX-XX-XX-D-RAX-XX-SL-XX-MKT.SLDDRW
SECTION "B"-"B"
SCALE 3 : 1
C-150-05-X-P
.025 0.64
(TYP)
.048 1.22
C18
.022 0.56 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
5 MAX
.123 3.12
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DETAIL 'B'
SCALE 8 : 1
(DIMENSIONS APPLY TO -RA1 & -RA2 OPTIONS)
(SEE NOTE 11 & DETAIL "E", SHT 1)
(APPLIES TO BOTH ROWS)
DETAIL 'C'
SCALE 10 : 1
DO NOT SCALE DRAWING
1mm MEC1 -RA ASSEMBLY
DETAIL 'G'
SCALE 4 : 1
SHEET SCALE: 2:1
MEC1-1XX-XX-XX-D-RAX-XX-SL-XX
01/25/00
SHEET
3
OF
3
BY:
MARKS
