IR82C87H datasheet, PDF - EEWORLD Datasheet

IR82C87H: DescriptionIR82C87H; Categorylogic logic; File Size325KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

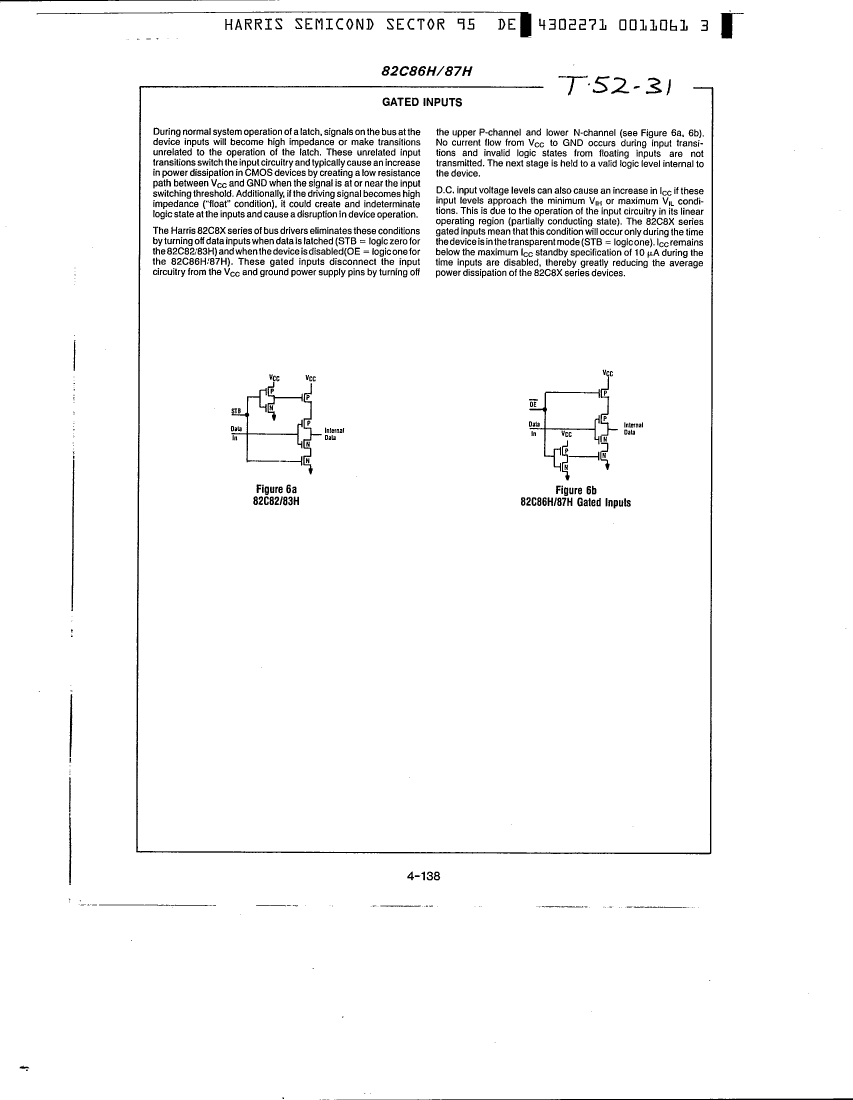

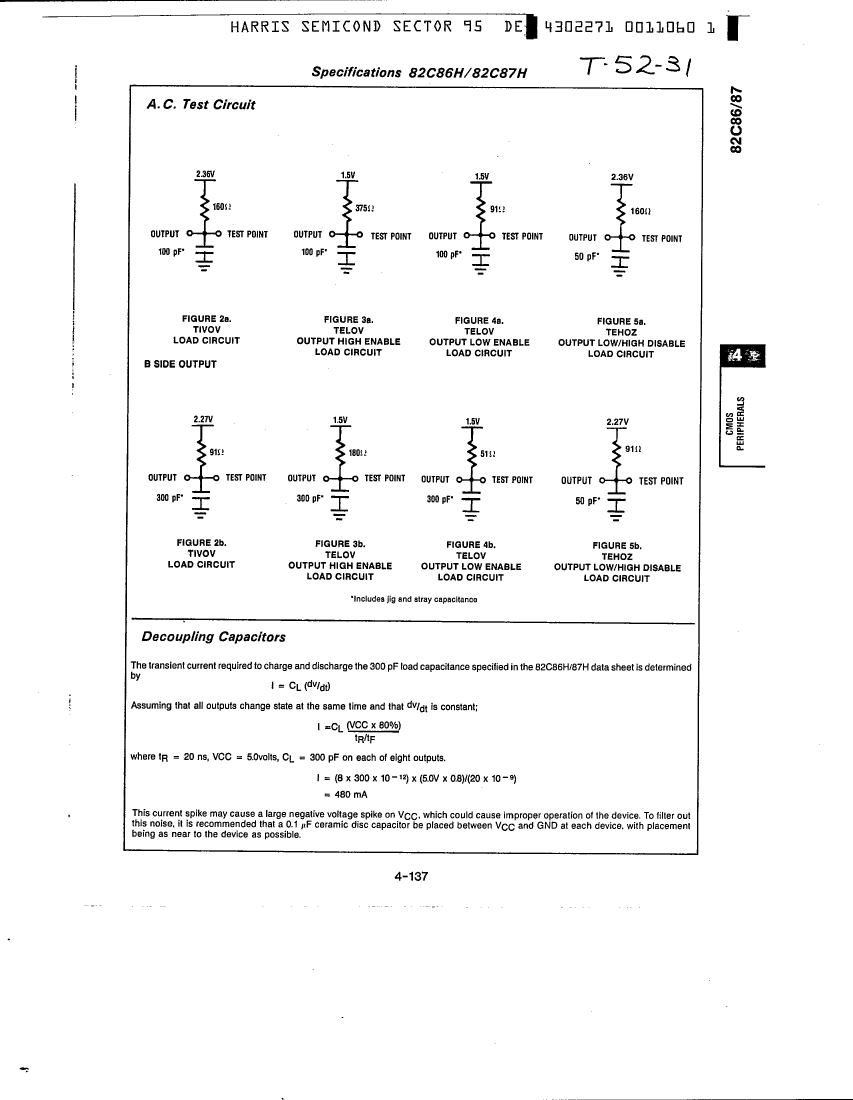

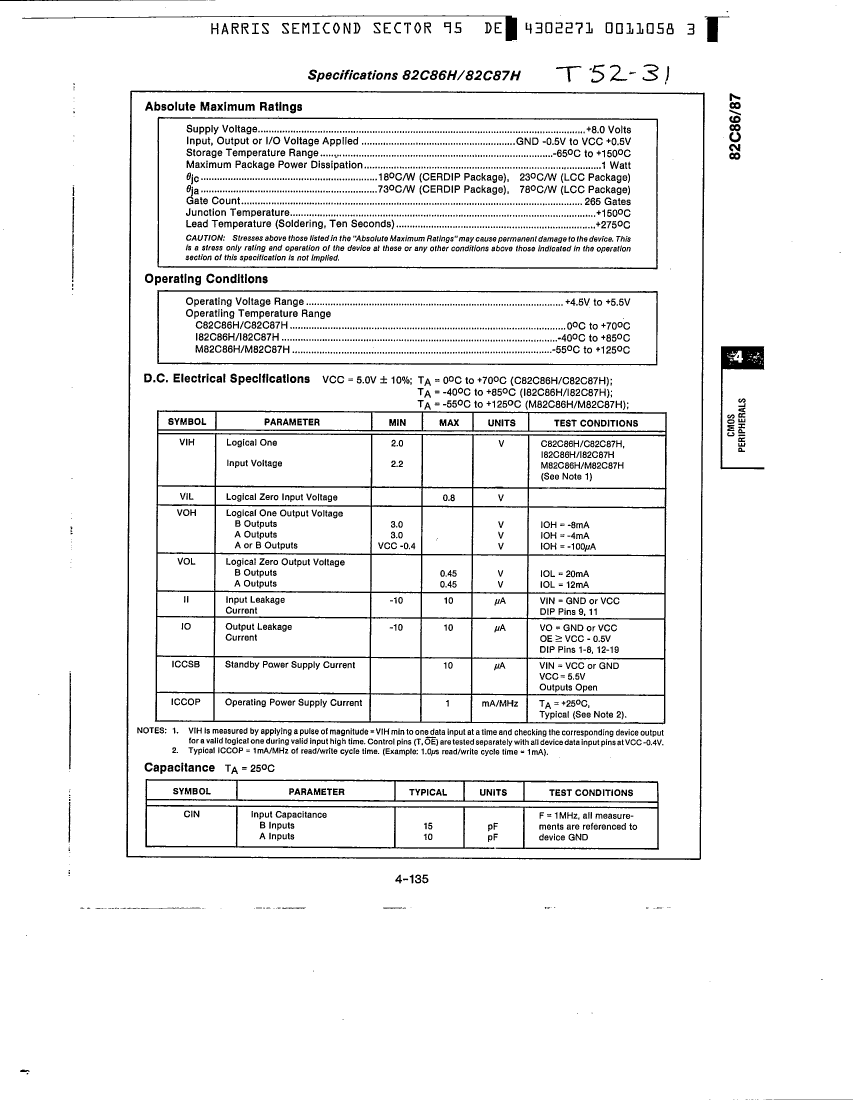

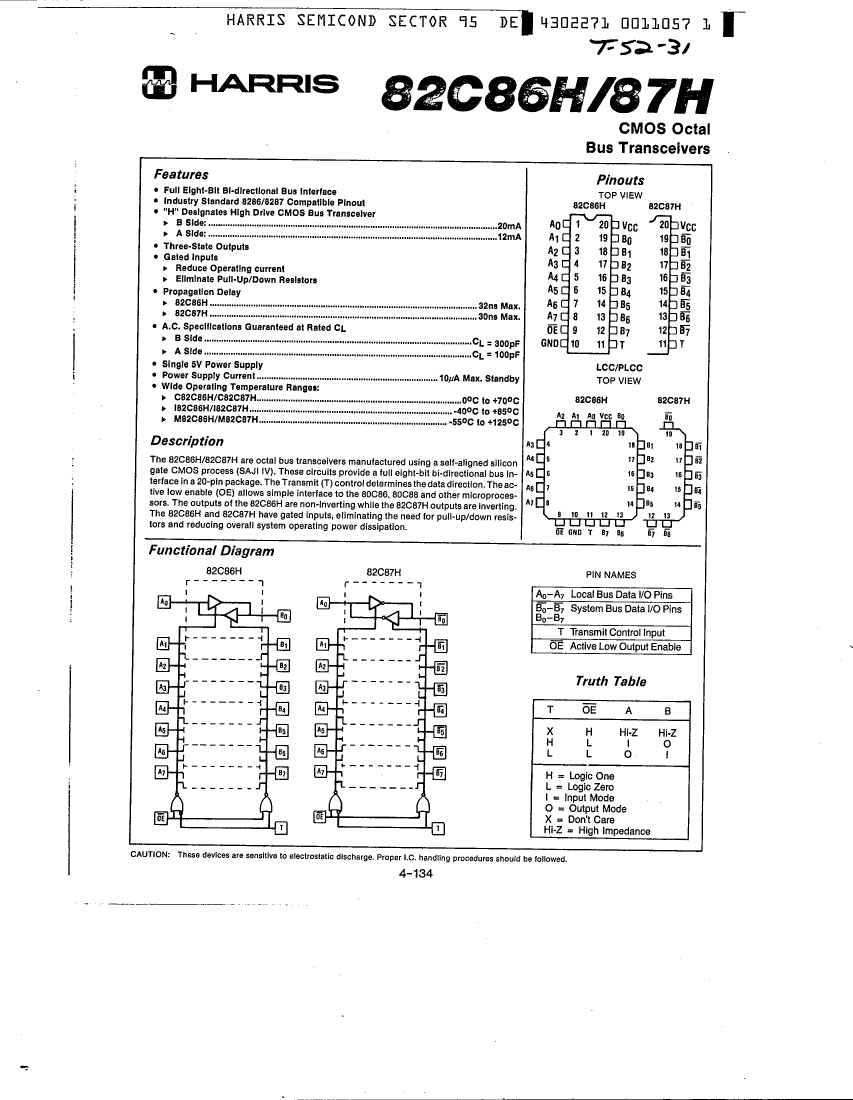

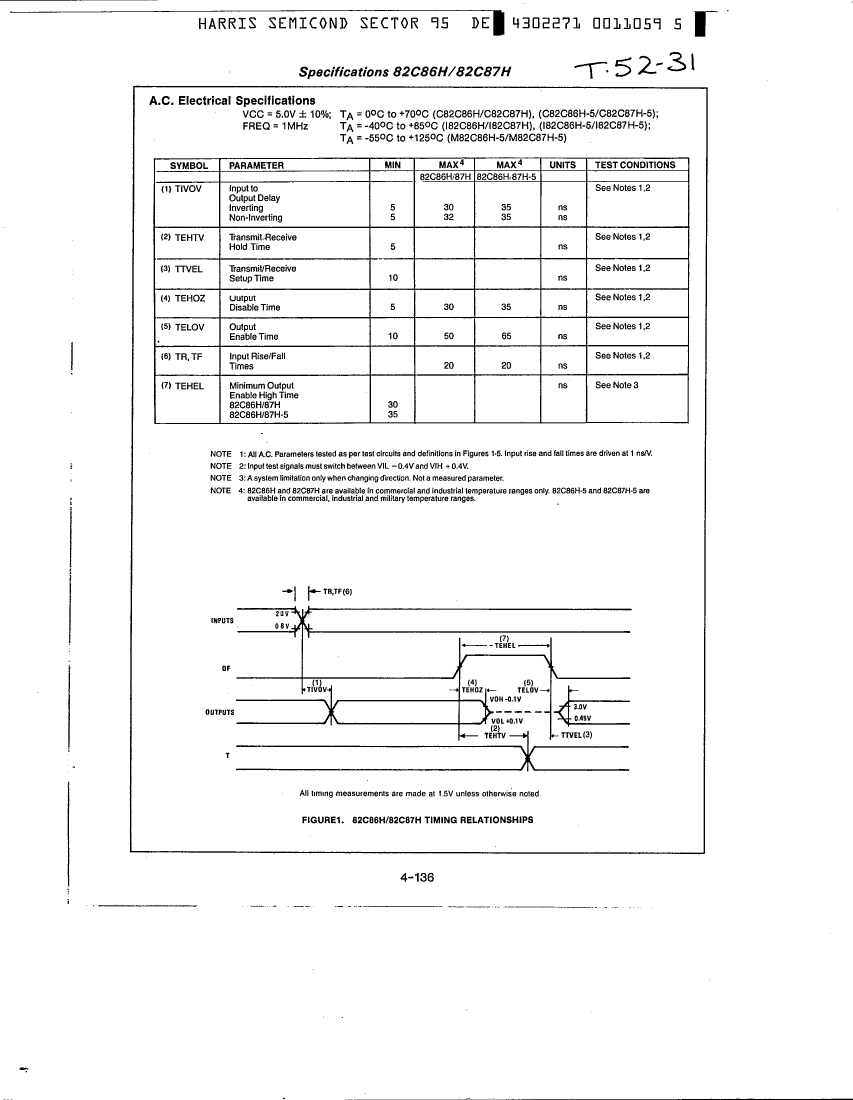

IR82C87H Overview

IR82C87H

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	compliant
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
MaximumI(ol)	0.02 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Prop。Delay @ Nom-Sup	50 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

	IR82C87H	IR82C87H-5
Description	IR82C87H	IC,BUS TRANSCEIVER,SINGLE,8-BIT,ACT-CMOS,LLCC,20PIN,CERAMIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Reach Compliance Code	compliant	compliant
Control type	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-XQCC-N20	S-XQCC-N20
MaximumI(ol)	0.02 A	0.02 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	50 ns	35 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
