DESCRIPTION
ECN: 0S60-0072-05
ECR-05-017301
INIT
APP'D
E.T 3/22/05 B.P 6/15/05
E.T 12/15/05 A.I 12/16/05
D
2
3-FIN HS:
1.375 DIA.
0.479 HT.
NOTE:
1. MATERIAL:
A
D
HEAT SINK: ALUM. (BLACK ANODIZE)
CLIP:
BLACK PEI (UL94-VO)
3
1
3-LEG CLIP SIZE: 29mm
2. BEFORE THE HEATSINK APPLICATION, THE USER
SHOULD IDENTIFY THE SPECIFICATION OF MAXIMUM
LOAD ON THE BGA PACKAGE.
HEATSINK TORQUE SPECIFICATIONS CONVERTED TO FORCE.
BARE DIE PACKAGE:
1.5 INCH - LB TORQUE = 7.5 LBS FORCE
2.0 INCH - LB TORQUE =10 LBS FORCE
C
.016±.002
FULL SIZE LID PACKAGE:
1.5 INCH - LB TORQUE = 6.9 LBS FORCE
2.0 INCH - LB TORQUE = 9.3 LBS FORCE
3. REMOVE CLIP WITH REMOVAL TOOL P/N: 1542616-1.
4. RoHS COMPLIANT AND CERTIFIED.
C
1.375 ±.020
B
.095
.349 MAX
B
DETAIL A
SCALE = 6X
.479
B
A
.115±.005
B
1.147 LIP LEG
1.220
.245±.005
3/4" - 27 UNS-2A
THREAD
SECTION B-B
DO NOT SCALE
A
° C/W @ ° C/W @ ° C/W @ ° C/W @
Power
Ambient 200 LFM 400 LFM 600 LFM
5 Watts
13.25
6.13
4.35
3.14
10 Watts
11.82
6.04
3.99
2.93
15 Watts
10.75
5.89
3.96
2.99
CUSTOMER DRAWING
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
CONFIDENTIAL PROPERTY OF TYCO
ELECTRONICS. NOT TO BE DISCLOSED
TO OTHERS. REPRODUCED OR USED FOR
ANY PURPOSES EXCEPT AS AUTHORIZED
IN WRITING BY AN AUTHORIZED OFFICIAL
OF TYCO. MUST BE RETURNED TO TYCO
ON DEMAND, ON COMPLETION OF ORDERS
OR OTHER PURPOSES FOR WHICH LENT.
DIMENSONS ARE IN:
ITEM
1
2
3
8
7
DESCRIPTION
MOUNTING CLIP
HEAT SINK
INTERFACE
QTY
1
1
1
TITLE:
UNLESS OTHERWISE
SPECIFIED
TOLERANCES ARE:
.XX
.XXX
.XXXX
ANGLES
.
.
.
DRAWN BY:
DATE
MATERIAL:
3/22/05
SEE NOTE
E.TAO
ENGINEER:
DATE

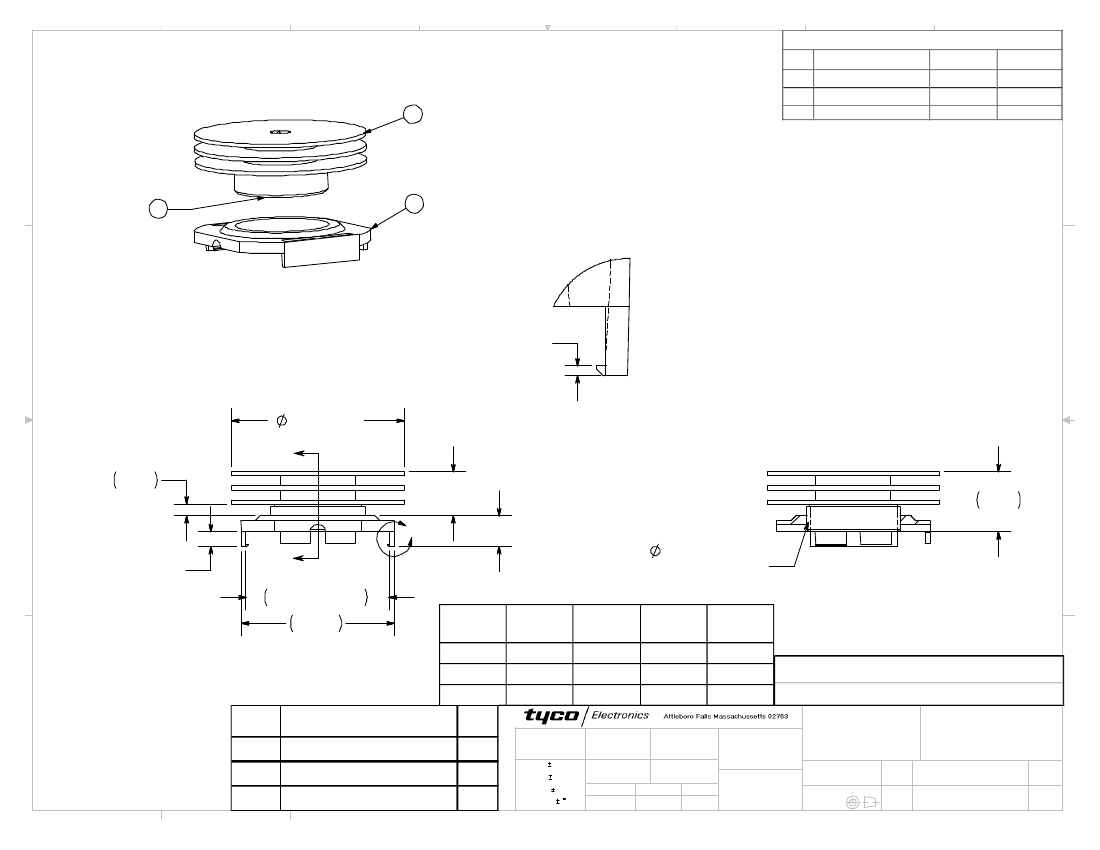

29mm HEATSINK
ASSEMBLY
(HTS785-U)
7-1542004-0
SHEET:
A
B.PETROCELLI
FILENAME
PROJECT
6/15/05
SYSTEM
FINISH:
INCHES
SEE NOTE
TNIRD ANGLE
PROJECTION
SCALE:
1.25:1
SIZE:
PART NO:
1 OF 1
REV:
A
DWG. NO.
C-7-1542004-0
A
