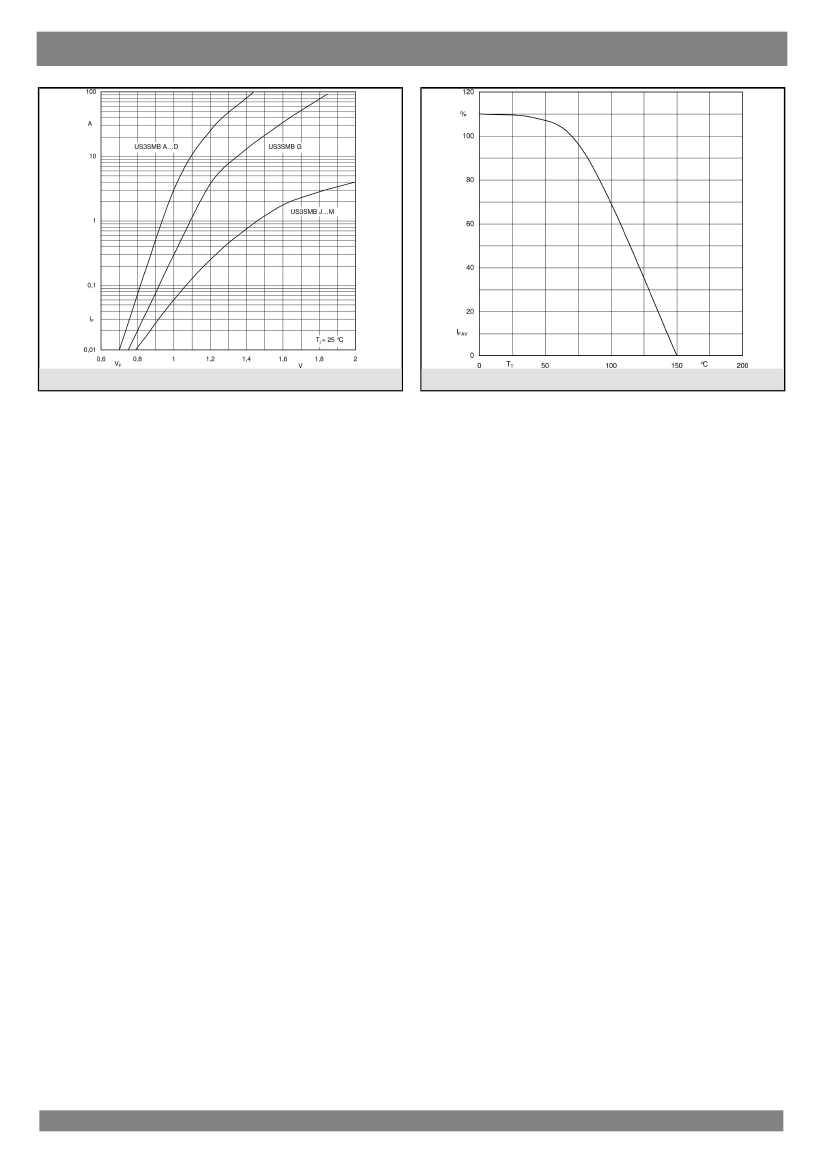

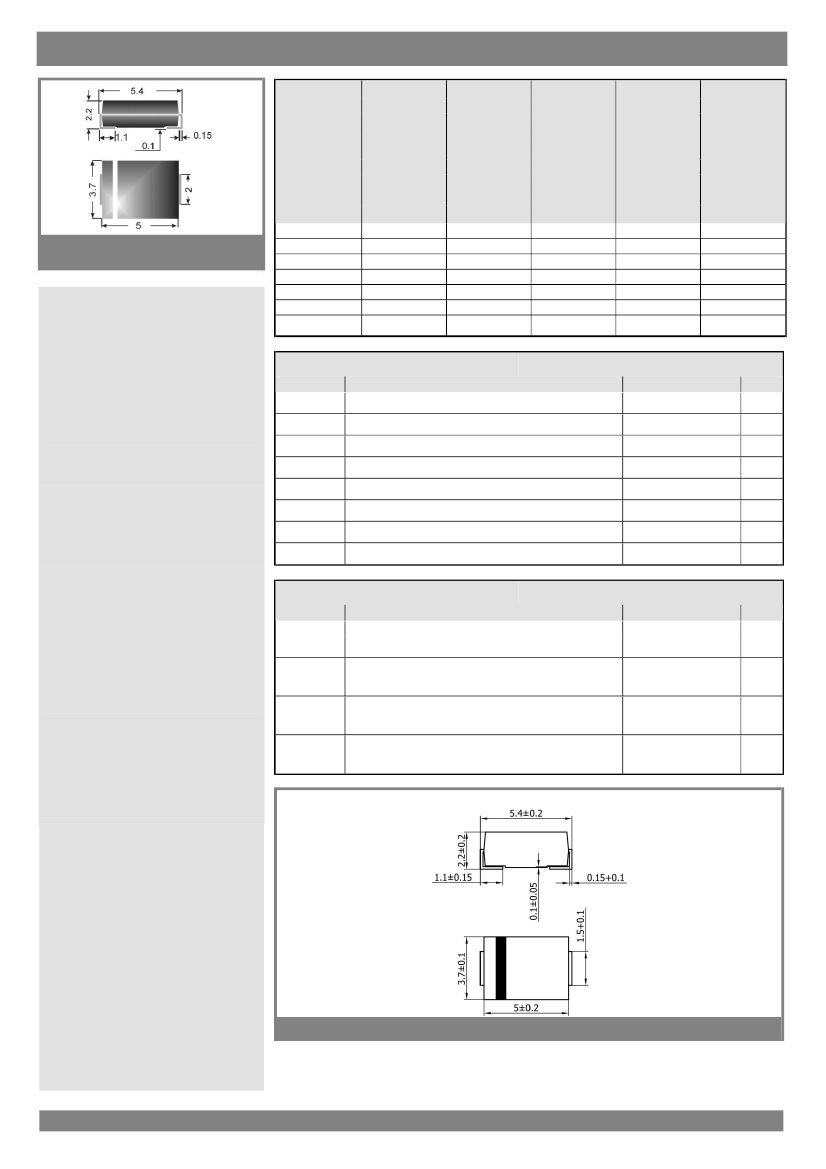

Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN
| Parameter Name | Attribute value |
| Maker | SEMIKRON |
| Parts packaging code | DO-214AA |
| package instruction | PLASTIC, SMB, 2 PIN |
| Contacts | 2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | ULTRA FAST RECOVERY |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-214AA |
| JESD-30 code | R-PDSO-C2 |
| Maximum non-repetitive peak forward current | 100 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 3 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V |
| Maximum reverse recovery time | 0.075 µs |
| surface mount | YES |
| Terminal form | C BEND |
| Terminal location | DUAL |
| US3SMBJ | US3SMBD | US3SMBB | US3SMBM | US3SMBK | US3SMBG | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN |
| Parts packaging code | DO-214AA | DO-214AA | DO-214AA | DO-214AA | DO-214AA | DO-214AA |
| package instruction | PLASTIC, SMB, 2 PIN | PLASTIC, SMB, 2 PIN | R-PDSO-C2 | R-PDSO-C2 | PLASTIC, SMB, 2 PIN | PLASTIC, SMB, 2 PIN |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-214AA | DO-214AA | DO-214AA | DO-214AA | DO-214AA | DO-214AA |
| JESD-30 code | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 |
| Maximum non-repetitive peak forward current | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 600 V | 200 V | 100 V | 1000 V | 800 V | 400 V |
| Maximum reverse recovery time | 0.075 µs | 0.05 µs | 0.05 µs | 0.075 µs | 0.075 µs | 0.05 µs |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | SEMIKRON | - | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON |
