T1500ARBB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T1500ARBB

T1500ARBB: DescriptionRocker Switch, SPST, Latched, 10A, 14VDC, Solder Terminal, Softline Matt Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size203KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/

Download Datasheet Parametric View All

T1500ARBB Overview

Rocker Switch, SPST, Latched, 10A, 14VDC, Solder Terminal, Softline Matt Type Actuator, Panel Mount, ROHS COMPLIANT

T1500ARBB Parametric

Parameter Name	Attribute value
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	SOFTLINE MATT TYPE
body width	17 mm
body height	18.3 mm
Body length or diameter	31.5 mm
Contact (AC) maximum rated R load	14A@250VAC
Maximum contact current (AC)	14 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@14VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	14 V
Manufacturer's serial number	1500
Installation features	PANEL MOUNT
seal	SPLASH PROOF
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

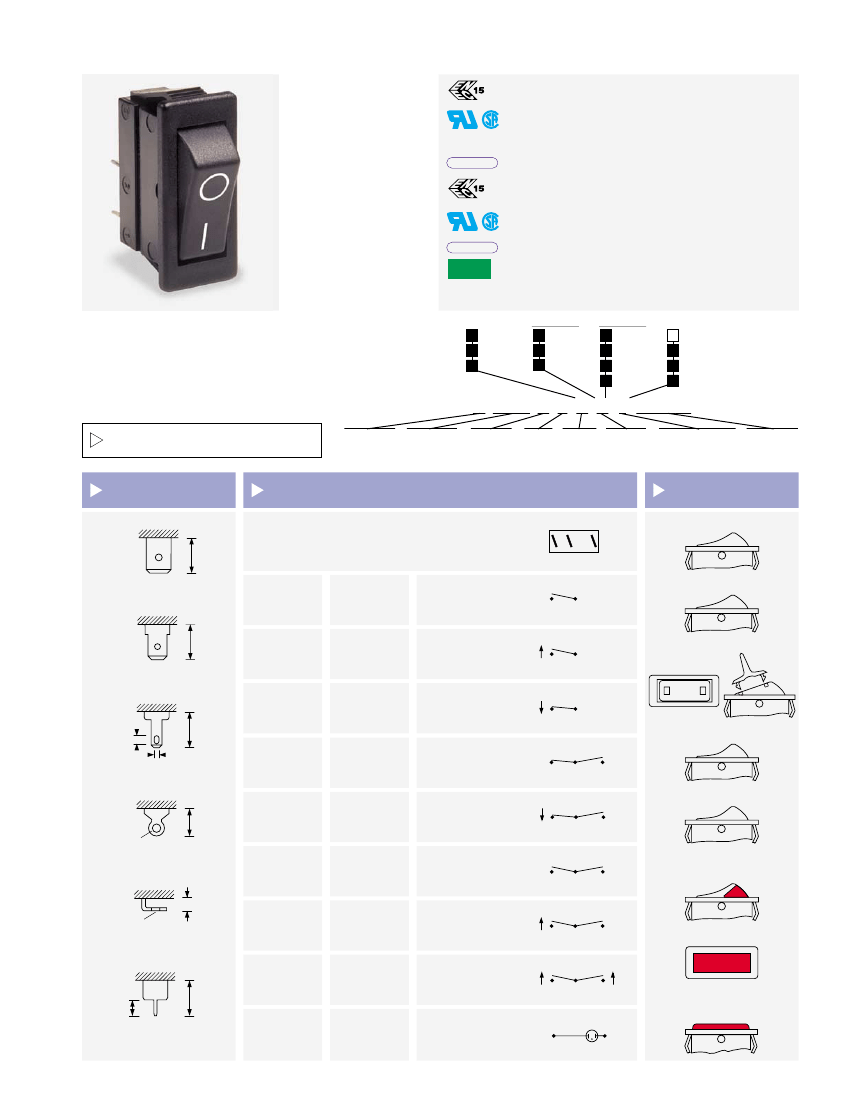

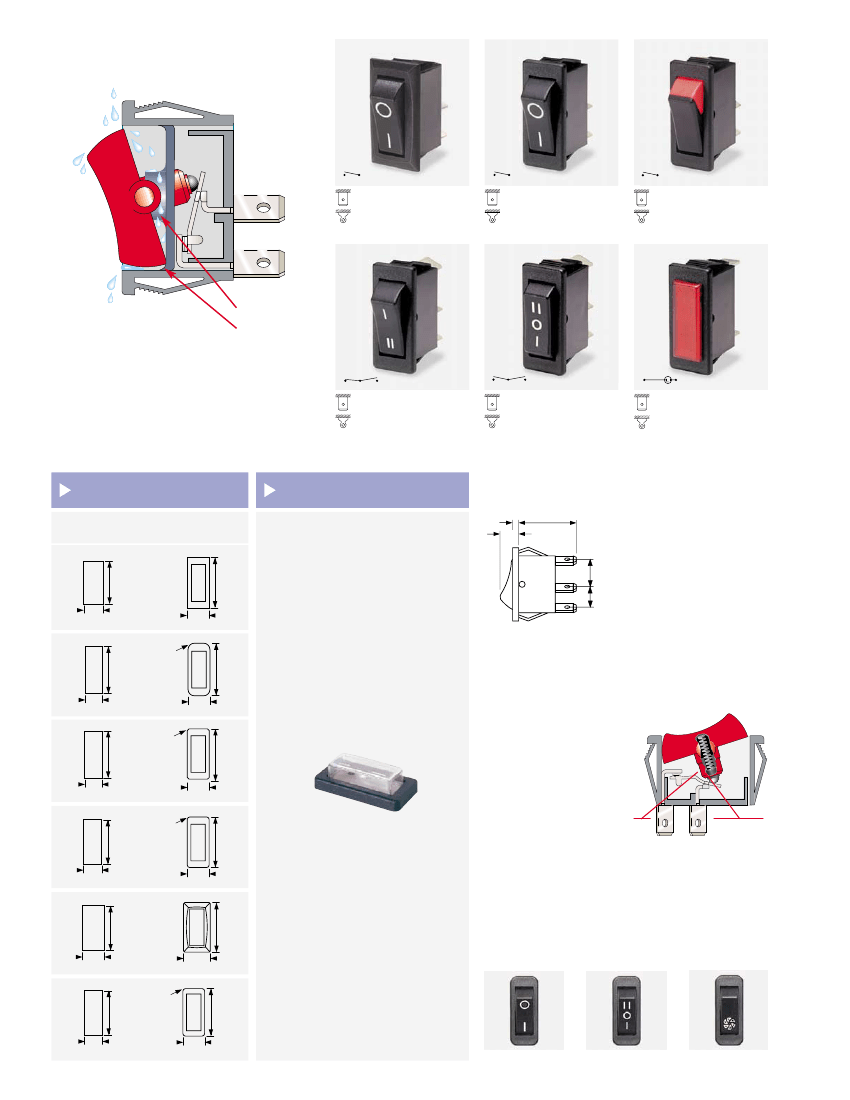

1500 Standard & 1300 High Inrush Switches

150A to EN61058-1 and 16A 250Vac

Standard rocker switch

Non-illuminated

1300 high in-rush current

Choice of switching

circuits including 3

position

Choice of bezel styles

Choice of panel cut outs

Matching indicator

Single pole

Splashproof option

Bezel size ‘A’ style

30.2 x 14.0

BLACK

RED

WHITE

In house test

1500 Series 16(4)A 250Vac T125

UL CSA 16A Non Ind 250Vac, (2 posn) 250Vac 1hp, 125Vac

1/2hp, (3 posn) 250Vac 1/2hp, 125Vac 1/4hp

UL 10A 14Vdc ‘T’ (1500 and 1510 only)

UL 85˚C, file E45221, CSA file LR10990

30A 12Vdc

1300 series 16(6)A 250Vac T125 5E4 (50,000 Ops.)

150A Inrush to EN61058-1

UL CSA 20A 250Vac 1hp, 125Vac 1/2hp

UL 85˚C, file E45221, CSA file LR10990

20A 28Vdc

RoHS compliant

3mm contact gap except if marked µ.

Technical data on pages 4 & 5 (switches), 66 (indicators).

RoHS

NON-LIT

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

‘X’ ROCKER COLOR R,G,W,B

125V NEON

250V NEON

12V INCANDESCENT

C 1300 A L B B - 602AW

ORDER FORMAT

TERMINAL

9.1

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

OR “ON LIGHT”

ROCKER

Softline Matt

LEGEND &

OPTIONS

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminal 1

6.3 x 0.8

9.1

Standard

1500

Approvals apply to C & T

terminals only

High Inrush

1300

Splashproof (with Arcshield)

ON - OFF

Matt

1501

HP rating N/A

ON - OFF

(momentary ON)

Slotted (for custom Adaptors)

not momentary

4.8 x 0.8*

9.1

2.0

1.2

1502

HP rating N/A

ON - OFF

(momentary OFF)

Curved Matt or gloss

1510

HP rating N/A

ON - ON

2.8 x 0.8*

1511

7.0

Ø2.1

HP rating N/A

Splashproof (with Arcshield)

ON - ON

(momentary 1 side)

Matt

Solder

1520

125V & 250V 1/2 HP

H terminal rated

T100 only

Two color Matt

ON - OFF - ON

ON - OFF only (not momentary)

3.2

Ø2.1

1521

HP rating N/A

H terminal rated

T100 only

Right angle “T” solder terminal

ON - OFF - ON

(momentary 1 side)

Flat lens Gloss (0430 only)

9.1

4.0

1522

HP rating N/A

H terminal rated

T100 only

ON - OFF - ON

(momentary 2 sides)

Softline lens Matt (0430 only)

as F but with raised profile

PCB 0.8Sq*

*N/A for 1300 series

0430

X terminal N/A

Indicator

Technical data on page 66
