Micrel, Inc.
3.3V/5V DUAL
LVTTL/LVCMOS-to-DIFFERENTIAL
LVPECL TRANSLATOR
ECL Pro™
SY100EPT22V
ECL Pro™
SY100EPT22V
FEATURES
s
s
s
s
3.3V and 5V power supply option
300ps typical propagation delay
Differential LVPECL outputs
I
CC
Max 25mA
ECL Pro™
s
PNP LVTTL inputs for minimal loading
s
Flow-through pinouts
s
Q outputs will default HIGH with inputs open
s
Max. frequency range 800MHz
s
Available in 8-pin MSOP and SOIC package
DESCRIPTION
The SY100EPT22V is a dual TTL/CMOS to differential
PECL translator. Capable of running from a 3.3 or 5V
supply, the part can be used in either LVTTL/LVCMOS/
LVPECL or TTL/CMOS/PECL systems.
The device only requires a single positive supply of
3.3V or 5V - no negative supply is required.
The tiny 8-pin MSOP package and the low skew, dual
gate design of the EPT22V makes it ideal for those
applications where space, performance, and low power
are at a premium.
PIN NAMES
Pin
Q
0
, /Q
0
, Q
1
, /Q
1
D
0
, D
1
V
CC
GND
Function
Differential LVPECL Outputs
LVTTL Inputs
Positive Supply
Ground
ECL Pro is a trademark of Micrel, Inc.
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
Rev.: F
Amendment: /0
1
Issue Date: May 2008
Micrel, Inc.
ECL Pro™
SY100EPT22V
PACKAGE/ORDERING INFORMATION
Ordering Information
(1)
Q0 1
/Q0 2
LVPECL
LVTTL
8 V
CC
7 D0
6 D1
5 GND
Part Number
SY100EPT22VZC
SY100EPT22VZCTR
(2)
SY100EPT22VKC
SY100EPT22VKCTR
(2)
Package
Type
Z8-1
Z8-1
K8-1
K8-1
K8-1
K8-1
Z8-1
Z8-1
Z8-1
Z8-1
K8-1
K8-1
Operating
Range
Commercial
Commercial
Commercial
Commercial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Package
Marking
XEP22V
XEP22V
XP22
XP22
XP22
XP22
XEP22V
XEP22V
XEP22V with
Pb-Free bar-line indicator
XEP22V with
Pb-Free bar-line indicator
XP22 with
Pb-Free bar-line indicator
XP22 with
Pb-Free bar-line indicator
Lead
Finish
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Q1 3
/Q1 4
Available in 8-pin SOIC and
8-pin MSOP
SY100EPT22VKI
SY100EPT22VKITR
(2)
SY100EPT22VZI
SY100EPT22VZITR
(2)
SY100EPT22VZG
(3)
SY100EPT22VZGTR
(2, 3)
SY100EPT22VKG
(3)
SY100EPT22VKGTR
(2, 3)
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
3. Pb-Free package is recommended for new designs.
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
2
Micrel, Inc.
ECL Pro™
SY100EPT22V
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
V
CC
V
I
I
I
I
O
Paramter
Power Supply Voltage
TTL Input Voltage
TTL Input Current
PECL Output Current
— Continuous
— Surge
T
LEAD
T
store
T
A
Notes:
1. Permanent device damage may occur if absolute maximum ratings are
exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational
sections of this data sheet. Exposure to absolute maximum ratlng
conditions for extended periods may affect device reliability.
TRUTH TABLE
Unit
V
V
mA
mA
D
H
L
Open
Q
H
L
H
/Q
L
H
L
Value
–0.5 to +7.0
–0.5 to V
CC
–30 to +5.0
50
100
+260
–65 to +150
–40 to +85
Lead Temperature
(Soldering, 20sec.)
Storage Temperature
Operating Temperature
°C
°C
°C
DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.3V
±5%
or +5.0V
±5%
T
A
= –40
°
C
Symbol
I
CC
Notes:
1. Parametric values specified at:
3 volt Power Supply Range
5 volt Power Supply Range
100EPT22V Series:
100EPT22V Series:
+3.0V to +3.8V.
+4.2V to +5.5V.
Parameter
Power Supply Current
T
A
= +25
°
C T
A
= +85
°
C
Min. Max. Min. Max. Min. Max. Min. Max. Unit
—
25
—
25
—
25
—
25
mA
T
A
= 0
°
C
Condition
—
TTL DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.3V
±5%
or +5.0V
±5%
T
A
= –40
°
C
Symbol
V
IH
V
IL
I
IH
I
IL
V
IK
Notes:
1. Parametric values specified at:
3 volt Power Supply Range
5 volt Power Supply Range
100EPT22V Series:
100EPT22V Series:
+3.0V to +3.8V.
+4.2V to +5.5V.
T
A
= 0
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
T
A
= +25
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
T
A
= +85
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
Unit
V
V
µA
mA
V
Condition
—
—
V
IN
= 2.7V
V
IN
= V
CC
V
IN
= 0.5V
I
IN
= –18mA
Parameter
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
Input Clamp Voltage
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
3
Micrel, Inc.
ECL Pro™
SY100EPT22V
PECL DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.3V
±5%
or +5.0V
±5%
T
A
= –40
°
C
Symbol
V
OH
V
OL
Notes:
1. Parametric values specified at:
3 volt Power Supply Range
5 volt Power Supply Range
100EPT22V Series: +3.0V to +3.8V.
100EPT22V Series: +4.2V to +5.5V.
T
A
= 0
°
C
Min.
2275
1490
Typ.
—
—
Max.
T
A
= +25
°
C
Min.
Typ.
—
—
Max.
2420
1680
T
A
= +85
°
C
Min.
2275
1490
Typ.
—
—
Max.
2420
mV
1680
Unit
mV
Parameter
Output HIGH Voltage
(2)
100EPT
Output LOW Voltage
(2)
100EPT
Min.
2220
1470
Typ.
—
—
Max.
2420
1750
2420 2275
1680 1490
2. These values are for V
CC
= 3.3V. Level Specifications will vary 1:1 with V
CC
.
AC ELECTRICAL CHARACTERISTICS
(1, 2)
V
CC
= +3.3V
±5%
or +5.0V
±5%
T
A
= –40
°
C
Symbol
t
PD
t
skpp
t
skew
t
r
t
f
f
MAX
Notes:
1. Parametric values specified at:
2. Guaranteed, but not tested.
3. Same transition @common V
CC
levels.
3 volt Power Supply Range
5 volt Power Supply Range
100EPT22V Series: +3.0V to +3.8V.
100EPT22V Series: +4.2V to +5.5V.
Parameter
Propagation Delay to Output D,
ENECL/ENTTL
Part-to-Part Skew
(2)
Within-Device Skew
(2, 3)
Output Rise/Fall Time
20% to 80%
Maximum Toggle Frequency
T
A
= +25
°
C T
A
= +85
°
C
Min. Max. Min. Max. Min. Max. Min. Max.
100
—
—
200
—
600
500
100
500
800
100
—
—
200
—
600
500
100
500
800
100
—
—
200
—
600
500
100
500
800
100
—
—
200
—
600
500
100
500
800
T
A
= 0
°
C
Unit
ps
ps
ps
ps
MHz
Condition
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
4
Micrel, Inc.
ECL Pro™
SY100EPT22V

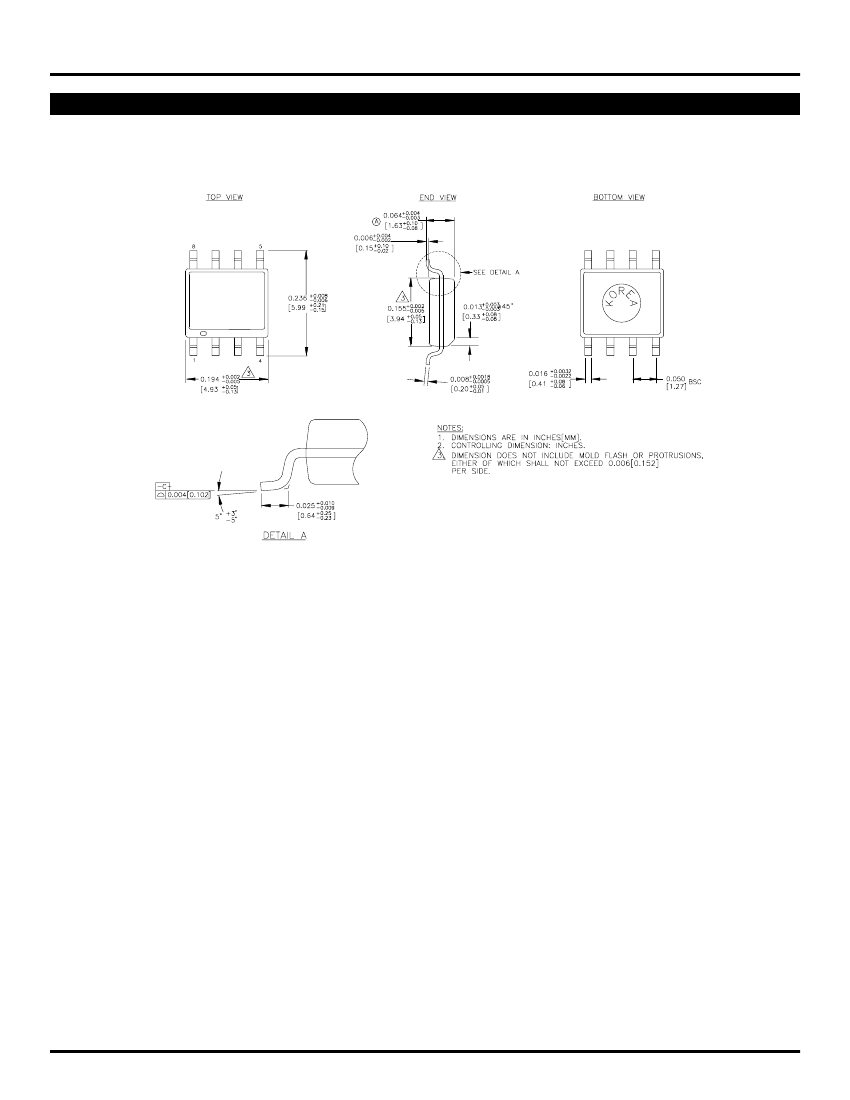

8-PIN PLASTIC SOIC (Z8-1)
Rev. 03
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
5
